Pni Ip649 Surveillance Camera User Manual

IP649 Surveillance Camera
User Manual

ABOUT PNI IP649 1080P SURVEILLANCE CAMERA

Product introduction and main features:
PNI IP649 is a 2MP IP surveillance camera intended for video and audio surveillance and remote monitoring of outdoor locations. It connects to the Internet by cable or  wirelessly in order to remotely transmit real-time video to the dedicated app on your smartphone. It can also save the recordings locally on the microSD card installed in the  surveillance camera (sold separately). The surveillance camera supports motion detection alarm, recording and mobile push notifications and many more other functions.

SURVEILLANCE CAMERA INSTALLATION

Important conditions:

• Connect the surveillance camera to a 230V power supply, using the included power adapter;
• The first configuration should be made with the surveillance camera very close to the router device;
• If you need to record locally, you should install inside the surveillance camera a microSD card (max. 128GB, sold separately), by removing the back panel.

Search for “Tuya Smart” app for iOS/Android smartphones in App Store or Google Play store, or scan the below QR code to download and install the app:

https://smartapp.tuya.com/tuyasmart

REGISTER/LOGIN

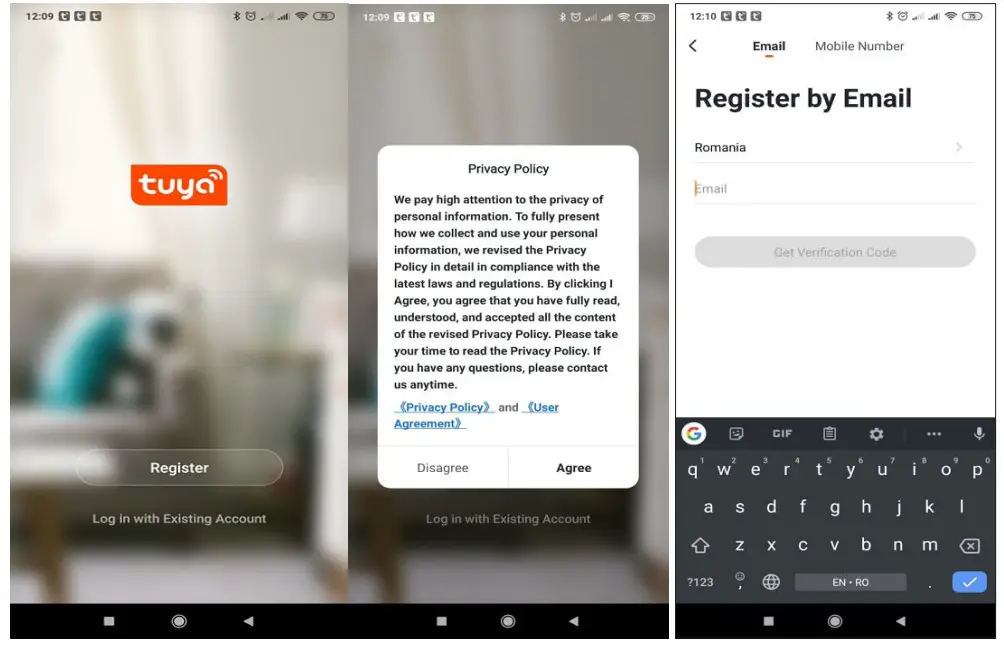

3.1 Register
If you do not have a Tuya App account yet, you can register an account or login via a personal e-mail or personal phone number using the verification code procedure. Please  read and follow the next steps for the registration process:

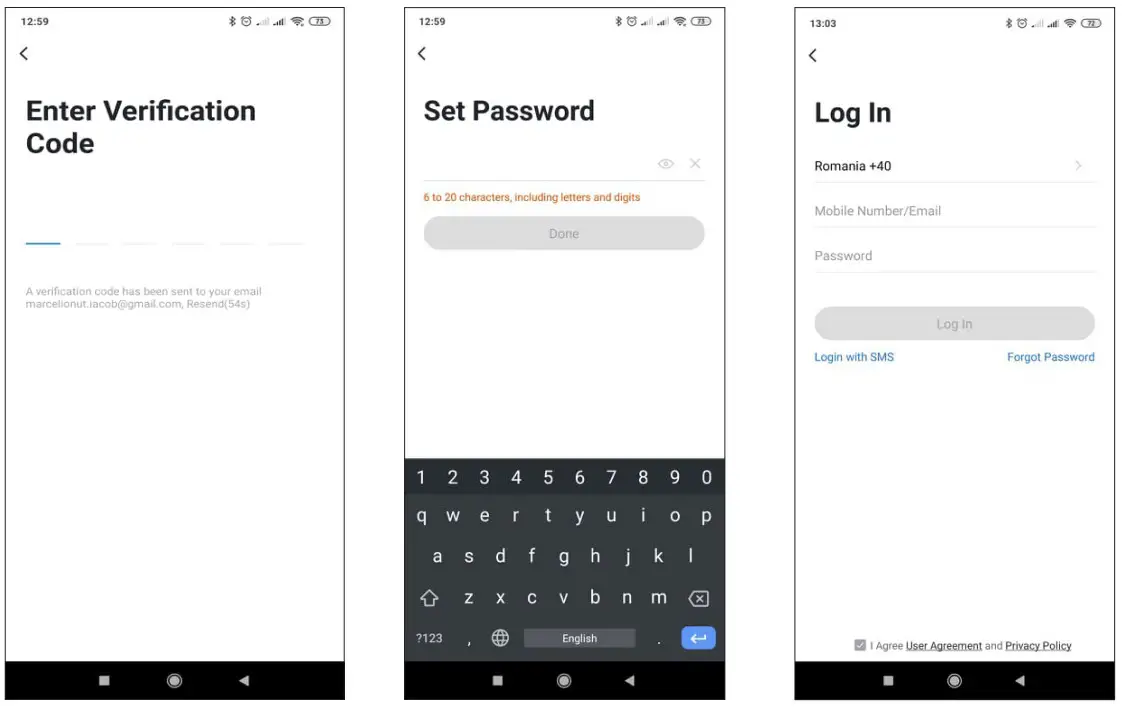

3.2 Login
If you have already registered an account, you can skip the creating a new account steps, click “Login”, and enter the login page.

1. The system automatically selects the current Country/Region, or you can manually select the Country/Region.
2. Enter your registered e-mail address or mobile number and enter your password to log in to the system.
   If your phone has installed WeChat App or QQ App, click WeChat/QQ icon in the login with the social media account area.


ADD DEVICE

4.1 Scan QR code (Recommended)
WARNING: This surveillance camera only supports a 2.4GHz Wi-Fi network. It does not support a 5GHz Wi-Fi network. Before configuring the Wi-Fi, please check or  split the 2 wireless networks from the router parameter settings. The Wi-Fi password should not contain special characters such as ~!@#$%^&*(). When configuring the Wi- Fi, make sure your router, mobile phone and surveillance camera are as close as possible to each other for a quick and successful configuration.
Connect the smartphone to the 2.4 GHz Wi-Fi network. Activate the location in your phone if not already activated.

• The app supports QR code net-pairing and Wi-Fi connection. You can choose to add the device by other options.

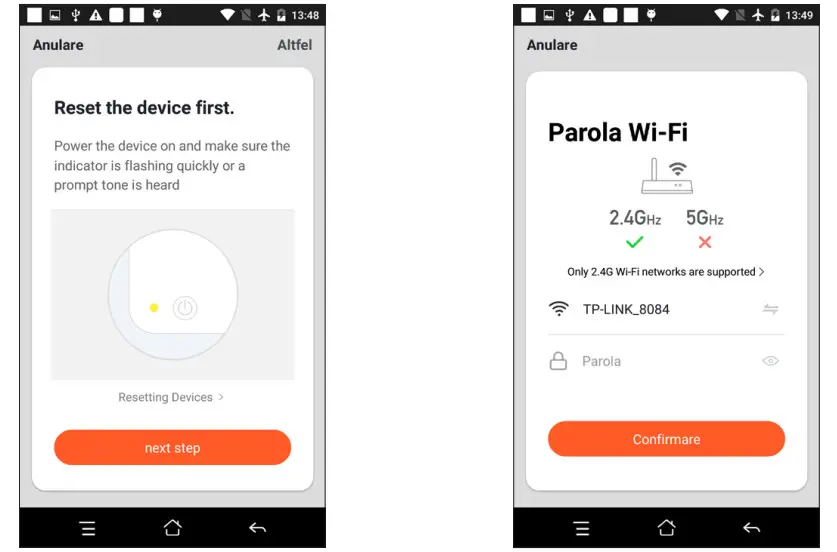

• Power on the surveillance camera, and you can hear the confirmation “Wait for WiFiconfig”, (if you heard nothing at all, please click and hold the “reset” button for  about 20 seconds to restore the factory settings).

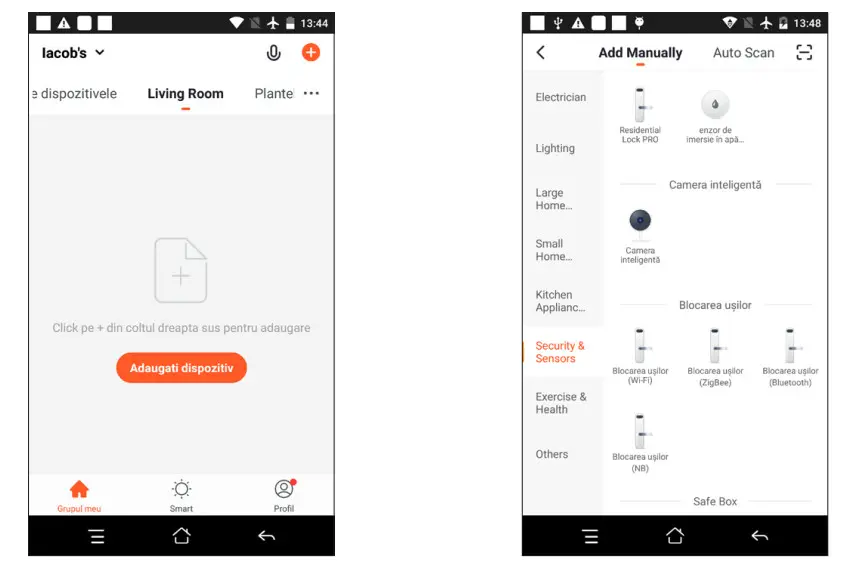

• With the mobile phone connected to the Wi-Fi network, click “Add Device” or “+“ icon on the Home screen of the app, select “Security & Sensor”(figure 2)→ “Smart  Surveillance camera”, click “next step”.
  Check the name of your WiFi 2.4 GHz Network, enter WiFi password and click “Confirm”.

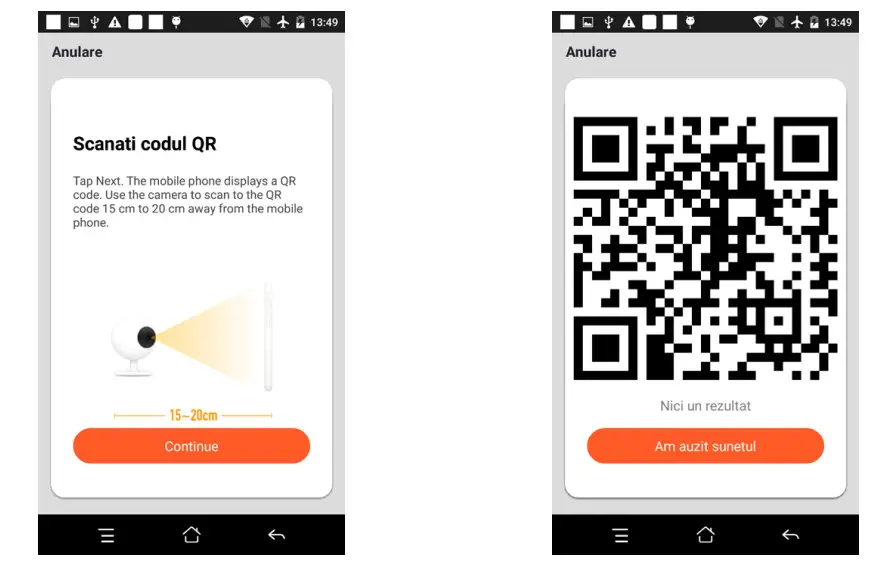

• Hold the mobile phone screen in front of the surveillance camera. The distance between the two devices should be 15 to 20 cm. Try not to shake the mobile phone during the scanning.

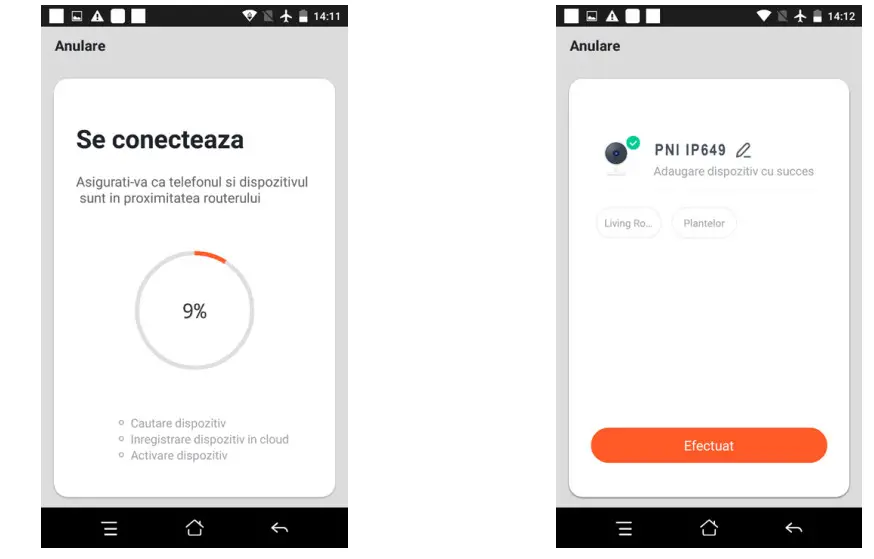

• When you hear “Connect Router”, click “Connect Internet”, and wait for the connection.
• Device added successfully. You can choose the device name and room scene.


FUNCTION DESCRIPTION

Real-time preview interface:

1. Setting & Management
2. Wi-Fi signal strength
3. Sound switch
4. SD/HD
5. Full screen
6. Screenshot
7. Voice chat
8. Record live view
9. Playback of video
10. Not available for this model.
11. Motion detection alarm (abnormal report notification through intelligent detection of an anomaly in the home. You can go out to work and play confidently. Set the alarm level according to the surveillance camera’s field of view can make the alarm more accurate)

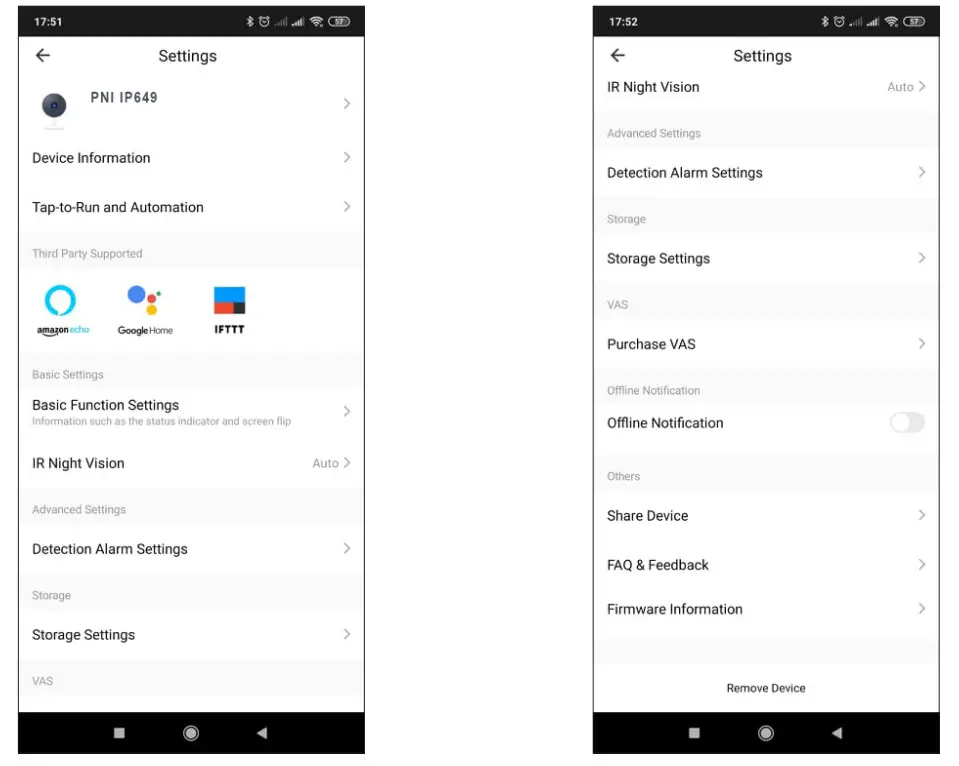

CLICK “ 1 “ IN THE UPPER RIGHT CORNER OF THE CONTROL PAGE FOR THE MANAGEMENT AND SETTING OF THE DEVICE.

• Device Name – modify the device name and device location;
• Device Information – Device ID, Wi-Fi signal strength, IP address, Mac address, Device time zone.
• Tap-to-Run and Automation – View automation and scenarios created for this device
• Third Party Supported – Compatible smart services
• Basic Settings – Basic settings of surveillance camera
• IR Night Vision – Settings for IR function
• Detection Alarm Settings – can set the motion detection switch, motion detection alarm sensitivity
• Storage settings -Shows microSD card information, and settings for Local Recording mode.
• VAS – Value-added service: you can purchase separately video cloud storage service for this surveillance camera for monthly fee (optional according to customer needs)
• Offline Notification – You can purchase a separate video cloud storage service for this surveillance camera for a monthly fee (optional according to customer needs)
• Share Device – can share this device to other people, enter the people’s e-mail or mobile phone number; (Note: the entered e-mail / mobile phone number should be  registered with a Tuya App account).
• FAQ & Feedback – Questions and solutions for any problems with product behavior.
• Firmware Information – Support OTA Remote Upgrade (Do not disconnect during upgrading).


CLICK “ME” ON THE HOME SCREEN OF TUYA APP FOR MORE SERVICES

1. Home Management
2. Message Center
3. FAQ & Feedback
4. More Services
   – Free Services:IFTTT, Google Assistant, Alexa, etc;
   – Value-added Services: you can check the purchasing record of purchased value-added services: Cloud Storage for Surveillance cameras, AI Filtered Notifications etc;
5. Settings and information for your Tuya app account: Sound, Notifications, Network, Cache

FREQUENTLY ASKED QUESTIONS

Q: Fail to add device?

– A:Please make sure the mobile phone and the surveillance camera are connected to the 2.4GHz router. Make sure you have a 2.4 GHz WiFi Network with your network  administrator and if the Wi-Fi password entered is correct.

Q: Still fail to add device after re-scanning?

– A: If fail to add device, it is recommended to restart the device or power off the device, and try again.

Q: The device cannot preview?

– A:Check for weak Wi-Fi signal. You can place the surveillance camera closer to the router. If it still doesn’t work, reset the device, and add it again.

Q: Why the device is still on the list after resetting the device?

– A: The device resetting only resets the surveillance camera’s network configuration and cannot change the configuration on the App. You must login the App to delete the surveillance camera from the list.

Q: How to connect the surveillance camera to another router?

– A:First login the App to delete and reset the device, and configure the device again through the App.

Q: Why the device cannot identify SD card?

– A: It is recommended to insert and remove the SD card after power off the device. Check if the SD card is under normal service conditions and the format is FAT32. The  App shall suggest “”could not find SD card”” under unstable network of the mobile phone or the device.

Q: The device is online and has an alarm event, but the mobile phone cannot receive the information?

– A: First confirm that App allows notification in the settings of your mobile phone.
Under normal circumstances, when an anomaly is detected, a message will appear in the notification bar of your mobile phone. Your should set a notification sound or  vibration in your mobile phone.
In addition, when viewing real-time video in the App you cannot receive alarm from the surveillance camera being viewed. Because the device default function the  surveillance camera being viewed indicating that the user is focusing on the monitoring video, and there is no need for an alarm.
Using the advanced intelligent alarm push algorithm to ensure that the alarm message will not be frequently, but the surveillance camera will record all the alarm messages and videos.

PRODUCT SPECIFICATIONS

EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that PNI IP649 1080P surveillance camera complies with the Directive EMC 2014/30/EU, Directive ROHS 2011/65/EU and RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address:
https://www.mypni.eu/products/7393/download/certifications
