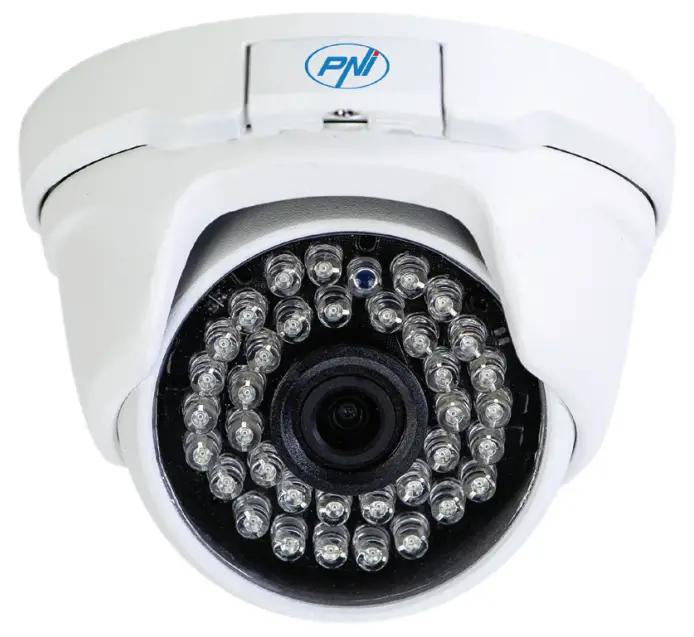

PNi House AHD25 5MP Video Surveillance Camera User Manual

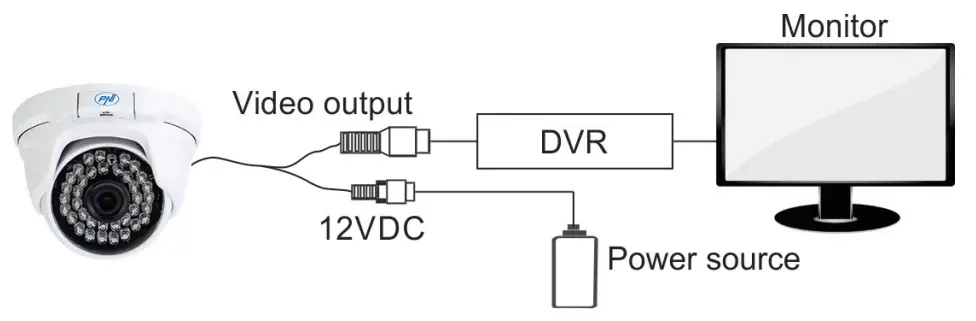

CONNECTION SCHEME

TECHNICAL SPECIFICATIONS

TROUBLESHOOTING

1. No image on the screen
   • check if the power voltage is stable and if the power cable was connected properly
   • check the connections between the camera and the DVR or monitor
2. The image is not stable
   • check if the power voltage is stable
   • check the monitor and other connected equipment
3. The background color changes repeatedly
   • the electromagnetic field of fluorescent lamps causes this problem.
     This is a normal phenomenon of the cameras.
   • reduce the number of fluorescent lamps or increase the distance between the camera and the fluorescent lamps.

CAUTION!

• Do not try to open the housing of the camera. If the camera doesn’t work properly, please contact your supplier.
• Power the camera correctly. The power voltage, polarity and operating temperature must be according to the camera’s specifications.
• If you are using the camera during a lightning storm, please make sure the ground connection is done properly or disconnect the camera from the power supply.
• To keep good quality of the images the power cable and the signal cables should not be very long.
• Do not point the camera to the sun or other source of strong light, to avoid image sensor damage.
• Do not install the camera near a heating radiator or other heat source.

EU Simplified Declaration of Conformity

SC ONLINESHOP SRL declares that Video surveillance camera PNI House AHD25 complies with the Directive EMC 2014/30/EU. The full text of the EU declaration of conformity is available at the following Internet address:
https://www.mypni.eu/products/8627/download/certifications
