PNI House AHD32LR Video Survillance Camera
TECHNICAL SPECIFICATIONS
| English | |||
| Resolution | 1920 x 1080 px 2MP | ||
| Video output | 1 x BNC | ||
| Minimum illumination | Color: 0.1 Lux (F1.2, AGC ON), 0 Lux (IR LED ON) | ||
| IR LEDs | 36 | ||
| IR distance | up to 30 m | ||
| Lens | 3.6 mm | ||
| Power supply | 12V / 1A | ||
| Working temperature | -26°C~+60°C | ||
| Waterproof class | IP66 | ||
| Housing material | Metal Note: when installing, avoid contact of the metal housing with other metal surfaces | ||

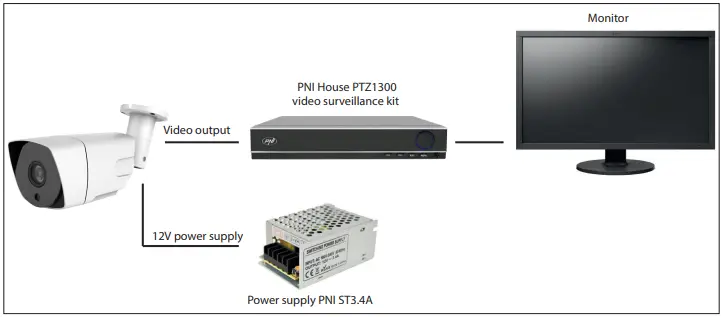

CONNECTIONS
TROUBLESHOOTING
- The camera does not play back any images after powering on
- check if the supply voltage is stable and if the polarity has been observed
- check the connection with the monitor and DVR
- The image shows fluctuations
- check that the supply voltage is stable
- check the monitor and peripheral equipment
- The background color of the image changes continuously
- the electromagnetic field of the fluorescent lamps causes the color change. This is a normal phenomenon
- reduce the number of fluorescent lamps or increase the distance between the surveillance camera and the lamps
- The image is unstable
- check that the supply voltage is stable
- check the correctness of the connections
EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that the Video surveillance camera PNI House AHD32LR complies with Directive EMC 2014/30/EU and LVD 2014/35/EU. The full text of the EU declaration of conformity is available at the following Internet address:
https://www.mypni.eu/products/8359/download/certifications
mypni.eu/products/8359/download/certifications
