PNI House AHD32 Video Surveillance Camera
TECHNICAL SPECIFICATIONS
| Resolution | 1920 x 1080 px 2MP |
| Video output | 1 x BNC |
| Minimum illumination | Color: 0.1 Lux (F1.2, AGC ON), 0 Lux (IR LED ON) |
| IR LEDs | 36 |
| IR distance | up to 30 m |
| Lens | 3.6 mm |
| Power supply | 12V / 1A |
| Working temperature | -26°C~+60°C |
| Waterproof class | IP66 |
| Housing material | Metal Note: when installing, avoid contact of the metal housing with other metal surfaces |

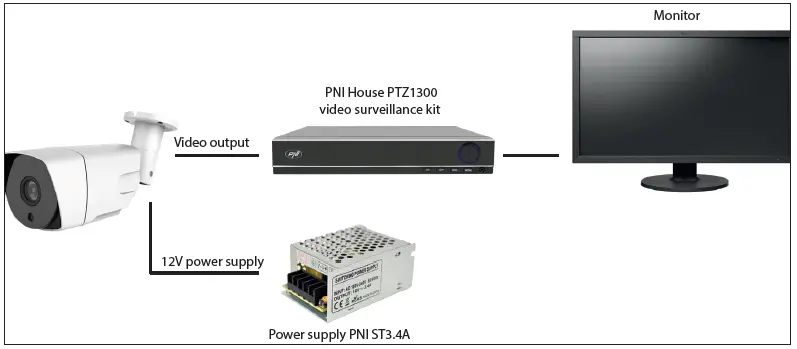

CONNECTIONS
TROUBLESHOOTING
TROUBLESHOOTING- The camera does not play back any images after powering on
- check if the supply voltage is stable and if the polarity has been observed
- check the connection with the monitor and DVR
- The image shows fluctuations
- check that the supply voltage is stable
- check the monitor and peripheral equipment
- The background color of the image changes continuously
- the electromagnetic field of the fluorescent lamps causes the color change. This is a normal phenomenon
- reduce the number of fluorescent lamps or increase the distance between the surveillance camera and the lamps
- The image is unstable
- check that the supply voltage is stable
- check the correctness of the connections
Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that Video surveillance camera PNI House AHD32 complies with the Directive
EMC 2014/30/EU and LVD 2014/35/EU. The full text of the EU declaration of conformity is available at the following
Internet address:
https://www.mypni.eu/products/8188/download/certifications
