User Manual for
Indoor LoRa Gateway
WisDevice Series
RAK7258
Version 1.3 | March, 2019
www.RAKwireless.com
Visit our website for the latest copy of this manual.
12 PAGES
General Description
Product Description

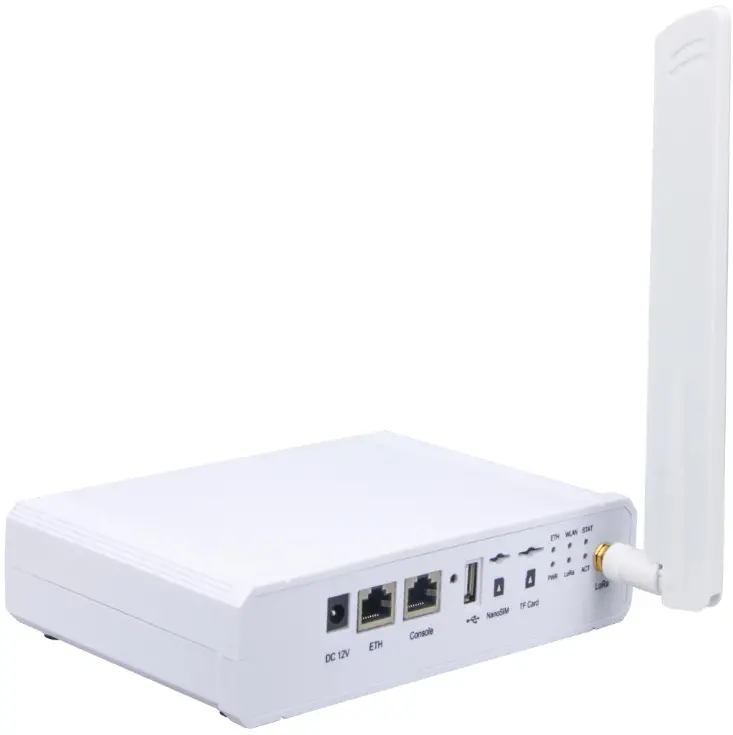

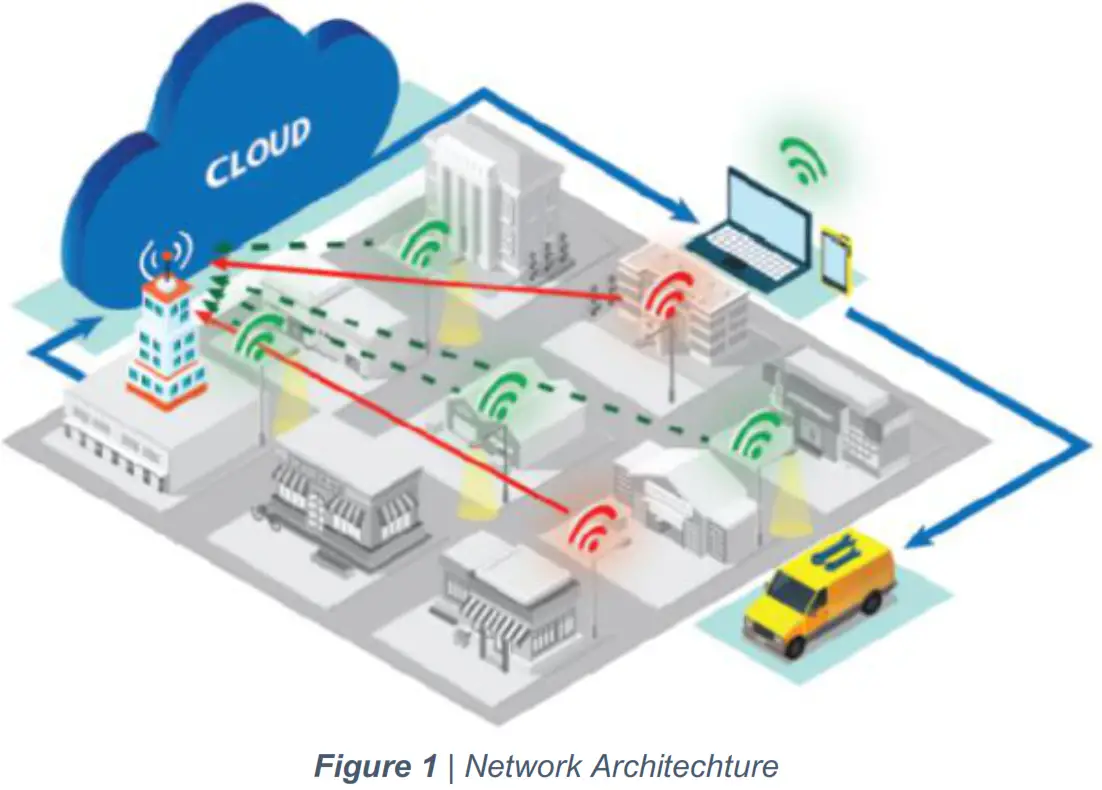

RAK7258 is an indoor LoRa gateway device. Gateway uplink connects the LoRa cloud platform by a standard Ethernet cable, making LoRaWAN wireless to internet forwarding a breeze. RAK7258 supports 2.4G WiFi, WiFi clients can access this gateway and set up the gateway by wireless. It supports an optional NB-IoT /Cat M / LTE 4G module, in the absence of a wired network, it can readily use the cellular network uplink data to the LoRa server when there is no local Ethernet.
Our built-in software is based on the OpenWRT development for LoRaWAN transmission/forwarding. It is designed for all kinds of network environments, parameter configurations,s and firewall functions. Configurations and management of gateway devices are made easy for users through the web configuration management system. RAK7258 is a built-in heat sink to dissipate the heat from the LoRa concentrator which can withstand hot and cold environments. It can be installed on a wall and has a Power-over-Ethernet (POE) supply mode, making it convenient for site construction and installation.
Product Features
- LoRa supports 8RX 1TX channels
- Supports 2.4G WiFi
- 100Mbase-T Ethernet with POE
- Multi uplink backup with Ethernet, WiFi
- OpenWRT software supports LoRaWAN gateway and network configuration
- Heat sink to dissipate heat
- Can integrate with both private and public(TTN) Network Servers
- Supports TF card for storage
- Indoor operation temperature
- Supports optional for NB-IoT /Cat M / LTE 4G cellular network
Product Specifications
Main Specifications
| Feature | Specifications |
| Computing | MT7628, DDR2RAM 128MB |
| WIFI Feature | Frequency: 2.400-2.4835GHz(802.11b/g/n) |
| RX Sensitivity: -95dBm (Min), | |
| TX Power: 20dBm (Max) | |
| Operation Channels: 2.4GHz: 1-13 | |
| LoRa Feature | SX1301 Mini PCIe card |
| 8 Channels | |
| RX Sensitivity: -142 dBm (Min) | |
| TX Power: 27 dBm (Max) | |
| Frequency: EU433 / CN470 / EU868 / US915 / AS923 AU915 / IN865 / KR920 | |
| Cellular | Optional Quectel EG95-E / EG95-NA for LTE CAT 4, |
| nonsupport by default | |
| Power Supply | DC 12V-1A |
| POE (IEEE 802.3af), 42~57VDC | |
| Power Consumption | 12W (typical) |
| ETH | RJ45(10/100M) |
| Console | RJ45 (RS232) |
| Antenna | LoRa: RP-SMA Female Connector |
| WiFi: Internal Antenna | |
| LEDs | LoRa LED(1), Cellular LED (2), |
| POWER LED(1), ETH LED(1), | |
| WiFi LED(1) | |
| Ingress Protection | IP30 |
| Enclosure Material | Plastics |
| Weight | 0.3kg |
| Dimension | 180mm x 120mm x 43mm |
| Operating Temp. | -10 to 55 ˚C |
| Installation method | Wall mounting |
RF Specifications
WiFi Radio Specifications
| Feature | Specifications |
| Wireless Standard | IEEE 802.11b/g/n |
| Operating Frequency | ISM band: 2.412~2.472(GHz) |
| Operation Channels | 2.4GHz: 1-13 |
| Transmit Power (The max. power may be different depending on local regulations) -per chain | • 802.11b 19dBm@ 1Mbps 19dBm@ 11Mbps • 802.11g 18dBm@ 6Mbps 16dBm@ 54Mbps • 802.11n(2.4G) 18dBm@MCS0 (HT20) 16dBm@MCS7 (HT20) 17dBm@MCS0 (HT40) 15dBm@MCS7 (HT40) |
| Receiver Sensitivity (Typical) | • 802.11b -95dBm@ 1Mbps -88dBm @11Mbps • 802.11g -90dBm @6 Mbps -75dBm@54Mbps • 802.11n(2.4G) -89dBm@MCS0 (HT20) -72dBm @MCS7(HT20) -86dBm @MCS0(HT40) -68dBm @MCS7(HT40) |
LoRa Radio Specifications
| Feature | Specifications |
| Operating Frequency | • EU433 / CN470 / EU868 / US915 / AS923 / AU915 / IN865 / KR920 |
| Transmit Power | • 27 dBm (Max) |
| Receiver Sensitivity | • -142 dBm (Min) |
Software Specifications
Lora
- Supports class A, C
- Supports LoRa package forward
- Supports country code setup
- Supports TX power setup
- Supports data logger
- Supports statistic
- Supports location setup
- Supports server address & port setup
Network
- Supports WiFi AP mode
- Supports LTE APN setup
- Supports uplink backup
- Supports 802.1q
- Supports DHCP Server/Client
- Supports router module NAT
- Supports firewall
Management
- Supports WEB management
- Supports SSH2
- Supports firmware update
- Supports NTP
Block Diagram

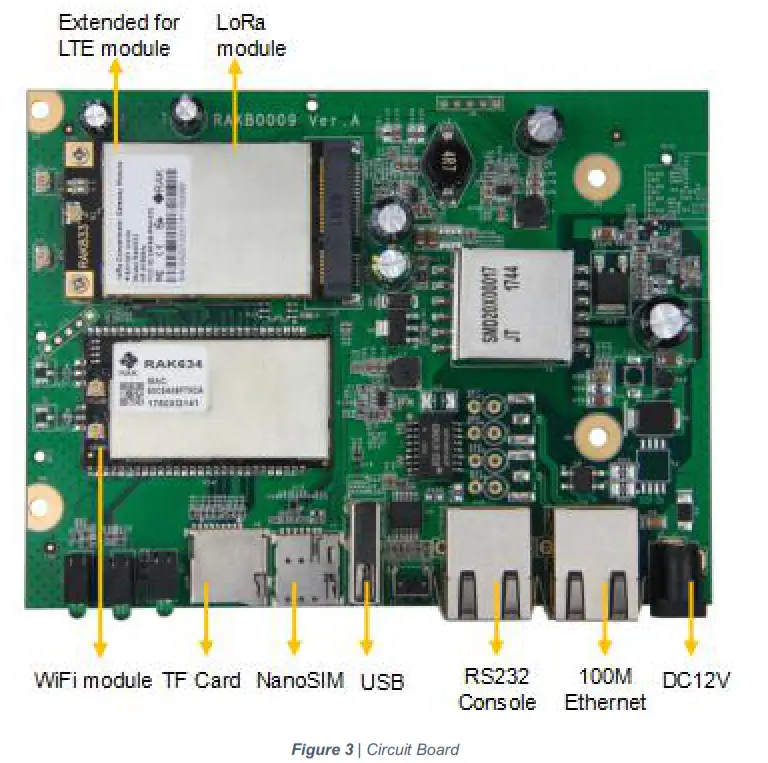

Main Electronic Circuit Board

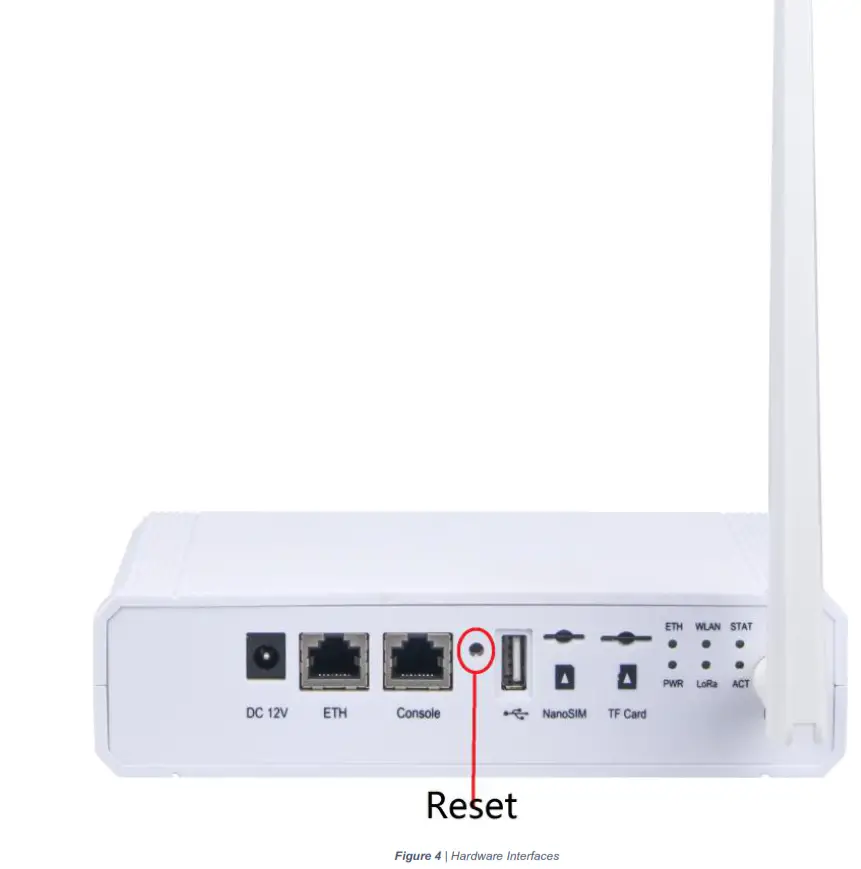

Hardware Interfaces
The hardware interfaces of the RAK7258 gateway include DC 12V, ETH interface, Console interface, Reset key, USB port, Nano-SIM slot, TF Card slot, Status indicator LEDs(6), LoRa Antenna connector, etc. As shown in the following figure.
The function of the Reset key is as follows:
Short press: Restart the Gateway;
Long press (5s and above): Restore Factory Settings;
The status of the LEDs is described as below:
| LEDs | Status Indication Description |
| PWR | Power Indicator, Led on when device power on |
| ETH | ON – linkup OFF – link down Flash – Data Transmitting and Receiving |
| LoRa | ON – LoRa1 is working OFF – LoRa1 is not working Flash – Indicate that LoRa1 Packet receiving and sending |
| ACT | Expanded Led indicator, useless |
| STAT | Expanded Led indicator, useless |
| WLAN | AP Mode : ON – WLAN is working; Flash – Data Transmitting and Receiving STA Mode : Slow Flash(1Hz) – Connection Disconnected; ON – Connection Successful; Flash – Data Receiving and Sending; |
User instructions
The default frequency bands of the Gateway’s built-in firmware are CN470 / EU868 / US915 / AS923. You can log in to the WEB Management page to set other frequency bands or you can customize your frequency bands.
For more information about the WEB Management platform and the configuration guide of the gateway, please refer to this document:
RAK_LoRaWAN_Commercial_Gateway_Application_Note_V1.1.pdf
Contact Information
Shenzhen Business
[email protected]
Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen
Shenzhen Technical
[email protected]
0755-86108311 Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen
Revision History
| Revision | Description | Date |
| 1 | Initial Release | 12/20/2018 |
| 1.1 | Update the right context, photos | 1/10/2019 |
| 1.2 | Modify the WEB configuration guide chapter | 3/11/2019 |
| 1.3 | Add the LEDs Status Indication Description | 3/13/2019 |
Document Summary
Document Title: Indoor LoRa Gateway RAK7258 User Manual
Product Name: RAK7258
Revision Number: V1.3
| Prepared by | hecked by | Approved by |
| Penn | Terry |
About RAKwireless:
RAKwireless is the pioneer in providing innovative and diverse cellular and LoRa connectivity solutions for IoT edge devices. Its easy and modular design can be used in different IoT applications and accelerate time-to-market turnover. For more information, please visit the RAKwireless website at www.rakwireless.com.
Copyright © 2018 Shenzhen RAKwireless Technology Co., Ltd. (Update: June-2018)
