The Tower 200
User’s Manual

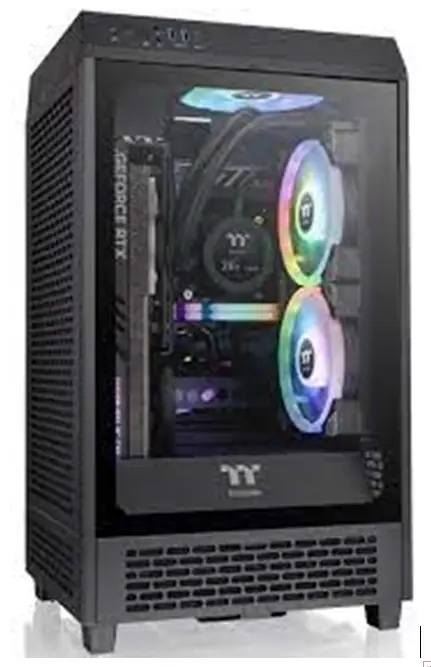

Picture is for reference only
Specification
| Case Type | Mini Tower | ||
| Dimension (1-1*W`D) | 537 x 300 x 280 mm (21.14 x 11.8 x 11 inch) | ||
| Side Panel | Tempered Glass x 1 | ||
| Material | SPCC | ||
| Cooling System | Top (exhaust): 140 x 140 x 25 mm CT140 fan (1500 rpm, 30.5 dBA) x 1 Rear (exhaust): 140 x 140 x 25 mm CT140 fan (1500 rpm, 30.5 dBA) x 1 | ||
| Drive Bays | 2 x 3.5″2 x 2.5″or 4 x 2.5″ | ||
| Expansion Slots | 3 | ||
| Motherboards | 6.7″ x 6.7″ (Mini ITX) | ||
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2. HDAudio x 1 | ||
| PSU | Standard PS2 PSU (optional) | ||
| Fan Support | Top | 1 x 120 mm | 1 x 140 mm |
| Right Side | 2 x 120 mm, 1 x 120 mm | 2 x 140 mm. 1 x 140 mm | |
| Rear | 2 x 120 mm, 1 x 120 mm | 2 x 140 mm. 1 x 140 mm | |
| Power Cover | 1 x 120 mm | 1 x 140 mm | |
| Radiator Support | Top | 1 x 120 mm | 1 x 140 mm |
| Right Side (A10) | 1 x 240 mm, 1 x 120 mm | 1 x 280 mm.1 x 140 mm | |
| Clearances | CPU cooler height imitation | 200 mm | |
| VGA length limitation | 280 mm (With power cover) 380 mm (Without power cover) | ||
| PSU length limitation | 220 mm | ||
Accessory
| Figure | Part Name | Q’ty | Used For |
 | Screw #6-32 x 6 mm | 4 | Power Supply |
 | Screw #6-32 x 5 mm | 16 | Motherboard / 3.5” SSD |
 | Stand-off #6-32 x 6.5 m | 4 | Motherboard |
 | NutS etter | 1 | Motherboard Stand-off |
 | Buzzer | 1 | Motherboard Alarm |
 | Screw M3 x 6 mm | 16 | 2.5” SSD |
 | Screw 5 x 10 mm | 8 | Case Fan |
 | Stand #6-32 x 29 mm | 4 | Case Fan on the Power Cover |
 | Zip Ties | 10 | Cable Management |
 | Side Plate Clip | 6 | Side Panel |
Warning and Notice

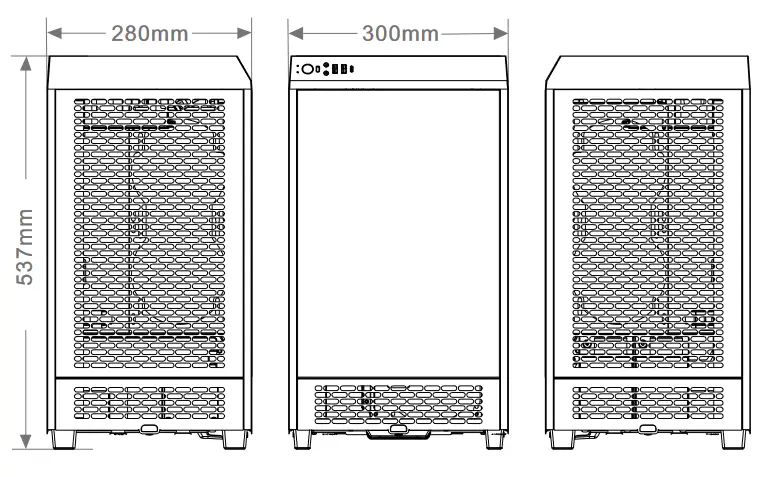

Chassis dimension

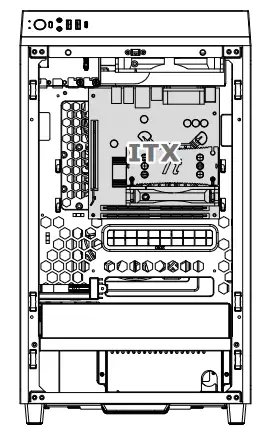

Motherboard Compatibility: ITX

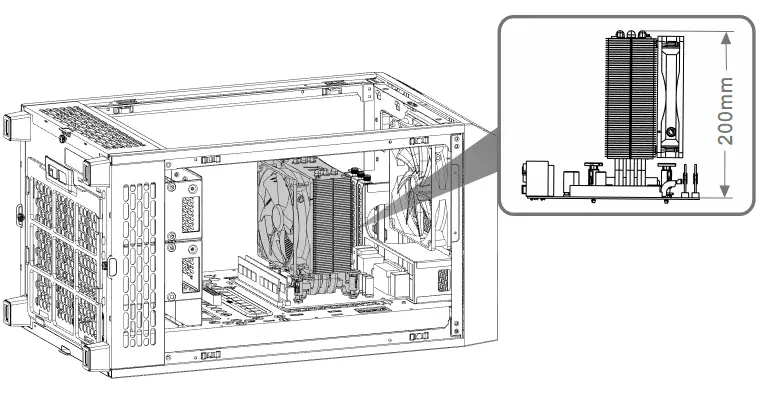

CPU cooler max height: 200mm

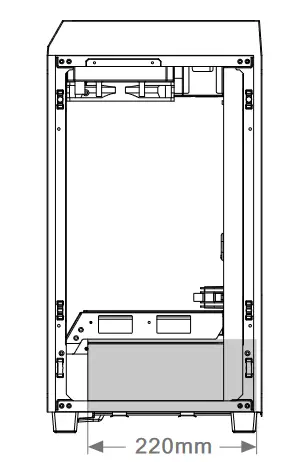

PSU max length: 220mm

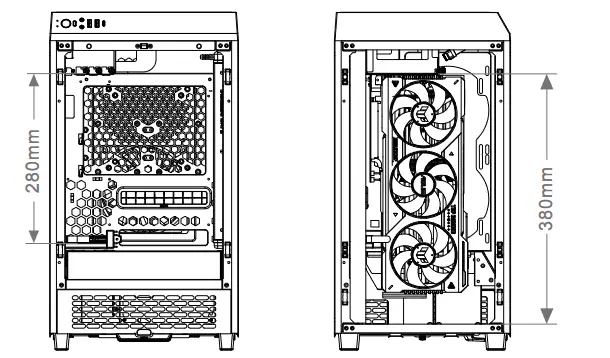

VGA length max length: 280 mm (With Power Cover) 380 mm (Without Power Cover)

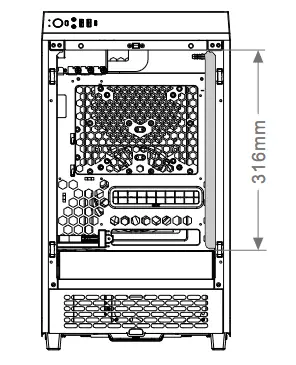

Radiator max length: 316 mm

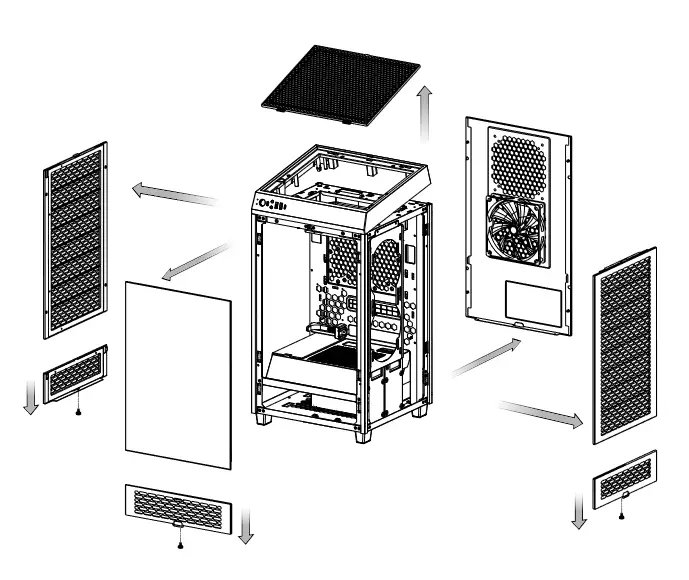

Remove Components
Power Supply Unit Installation

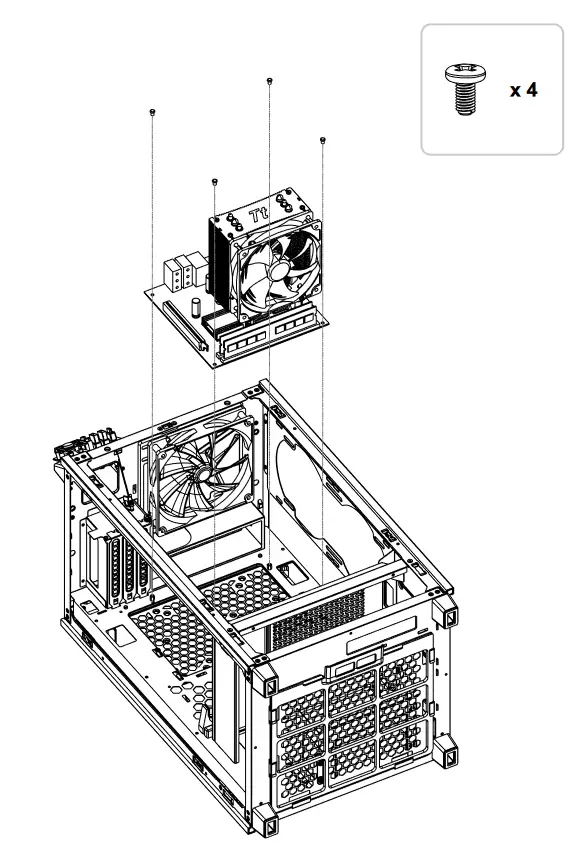

Motherboard Installation

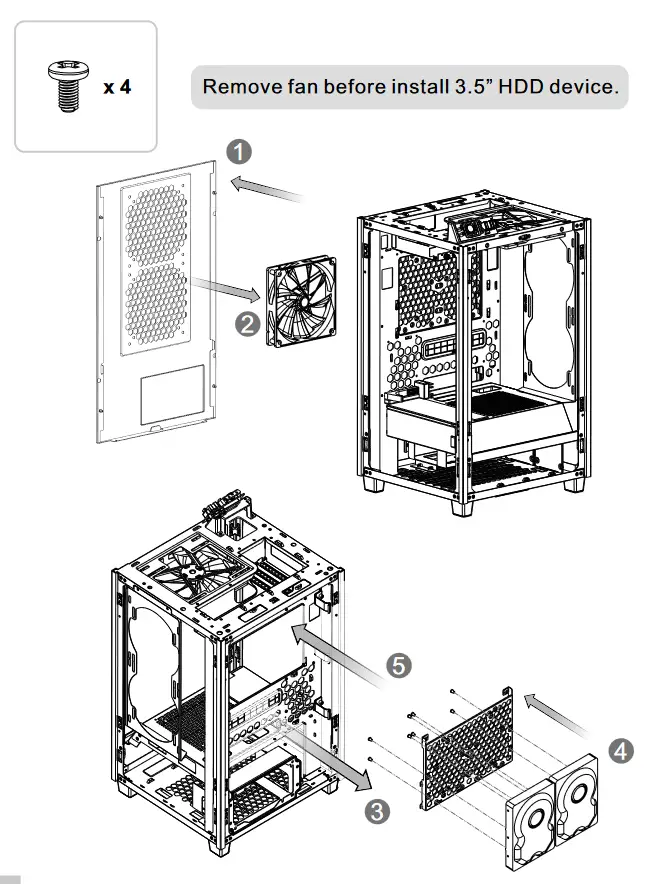

3.5” HDD Installation
2.5” HDD Installation

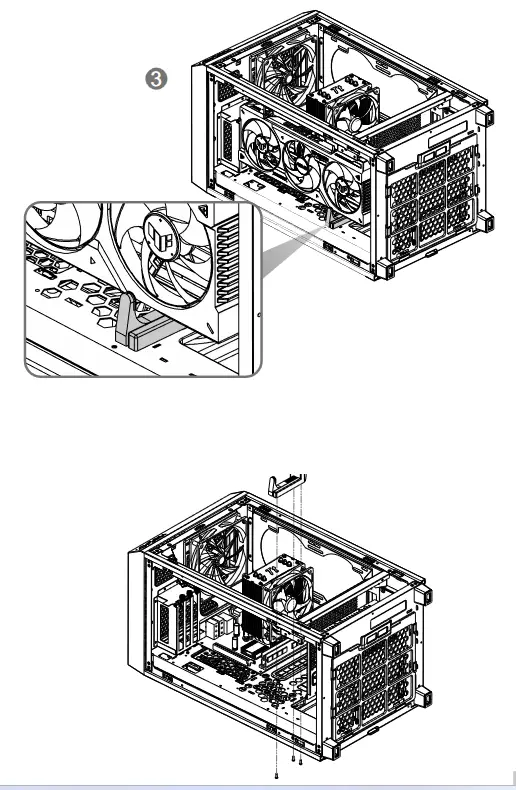

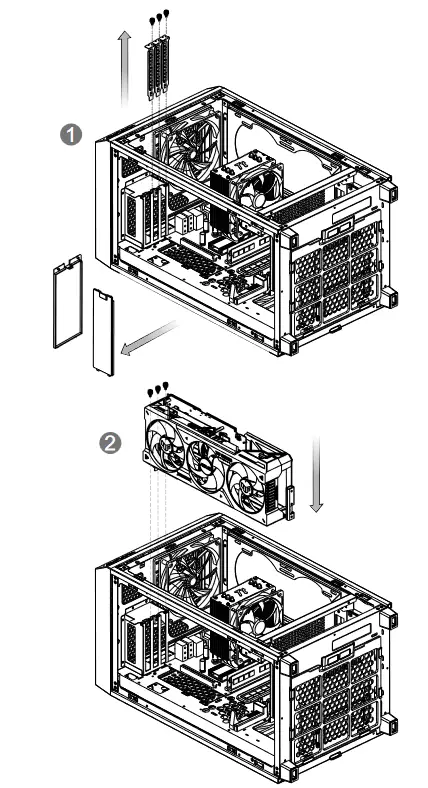

VGA Card Installation
Note: Remove VGA bracket if necessary.

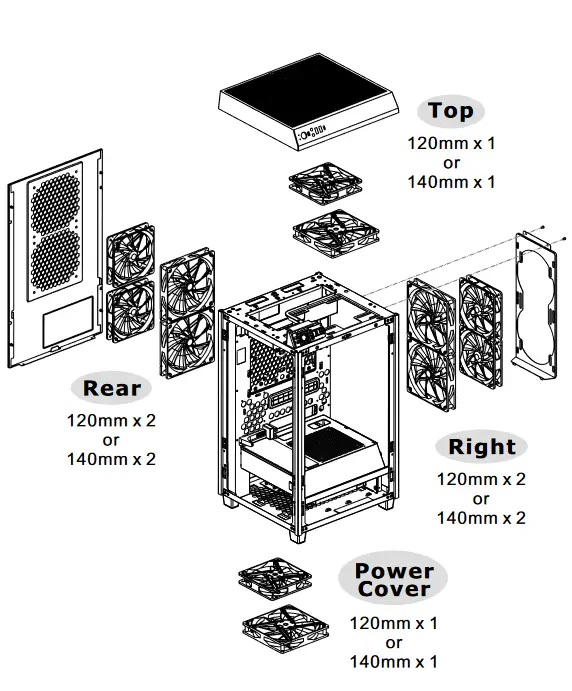

Air Cooling Installation

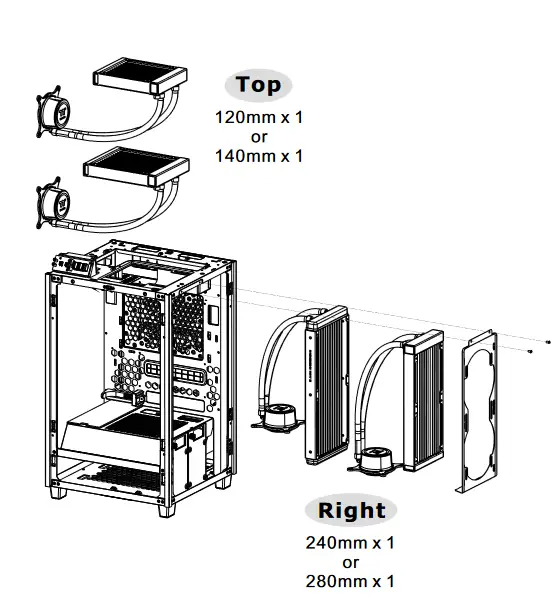

AIO Liquid Cooling Installation

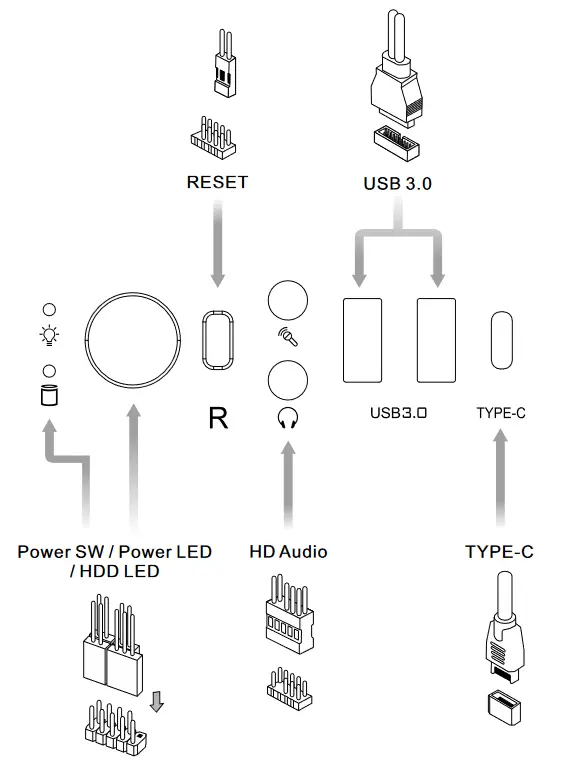

I/O Connection
Remove Filters
