6370 Ambulance Cot Fastener
Owner’s Manual
REF 6370, 6371, 6377, 6378, 6391, 6393,
Warning/Caution/Note Definition
The words WARNING, CAUTION, and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also describe potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the product or other property. This includes special care necessary for the safe and effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or misuse.
Note – Provides special information to make maintenance easier or important instructions clearer.
Introduction for service
This manual assists you with the service of your Stryker product. Read this manual to service this product. This manual does not address the operation of this product. See the Operations Manual for operating and use instructions. To view your Operations Manual online, see https://techweb.stryker.com/.
Expected service life
Cot fasteners have a seven year expected service life under normal use conditions and with appropriate periodic maintenance.
Contact information
Contact Stryker Customer Service or Technical Support at: 1-800-327-0770. Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
To view your operations or maintenance manual online, see https://techweb.stryker.com/.
Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical Support. Include the serial number in all written communication.

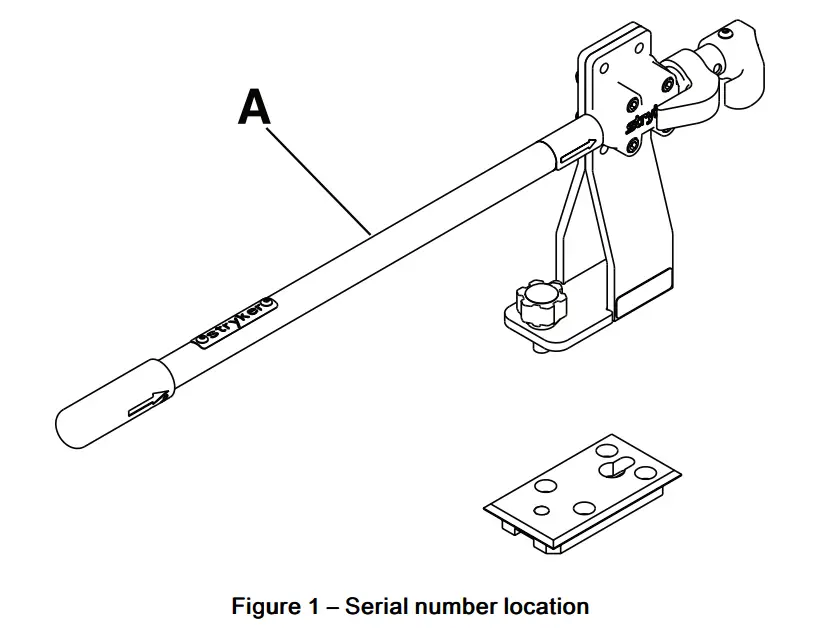

Serial number location
Preventive maintenance
The following schedule is a general guide to maintenance. Factors such as weather, terrain, geographical location, and individual usage will alter the required maintenance schedule. If you are unsure how to perform these checks, contact your Stryker Service Technician. If you are in doubt as to what intervals to follow in maintaining your product, consult your Stryker Service Technician. Check each routine and replace worn parts if necessary.
| Routine | Every | |||
| 1 month | 3 months | 6 months | 12 months | |
| Cot and cot fastener fit and function | X | |||
| All fasteners are secure | X | |||
Maintenance record
| Date | Maintenance operation performed | By | Hours |
Training record
| Training date | |||
| Trainee name | Basic training | Refresher update | Owner’s manual, in-service, formal class, etc. |

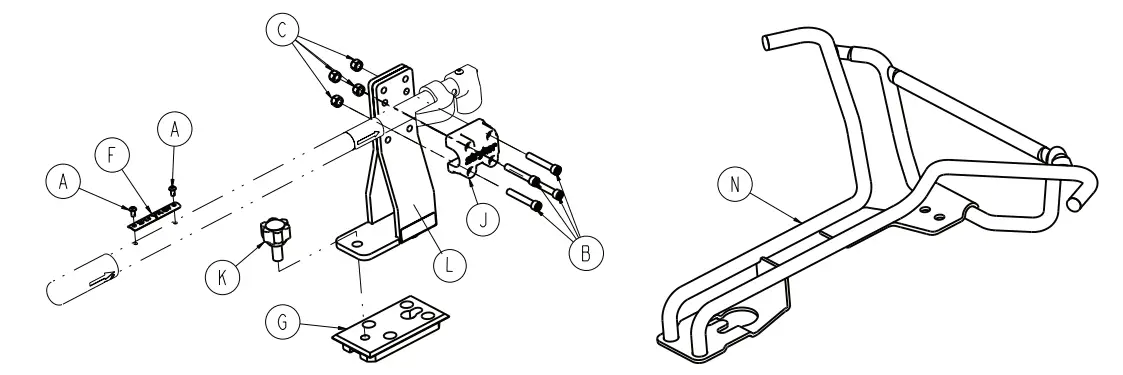

Floor mounted cot fastener assembly – 6370-000-000
6370-230-010 Rev F (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-250-000 | Hex socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| F | 6370-001-926 | Serial number tag | 1 |
| G | 6360-030-011 | Large floor plate | 1 |
| J | 6360-130-018 | Rail clamp | 1 |
| K | 6360-030-031 | Round head knob assembly | 1 |
| L | 6360-030-024 | Rail support bracket assembly | 1 |
| N | 6370-230-038 | Antler assembly | 1 |

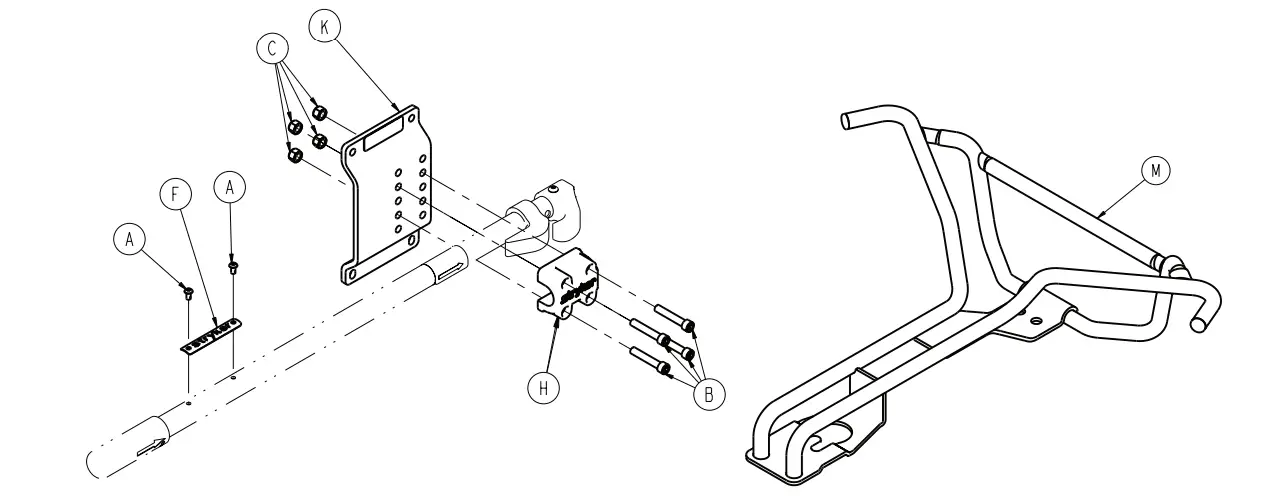

Wall mounted cot fastener assembly – 6371-000-000
6371-230-010 Rev F (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-579-000 | Socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| F | 6371-001-926 | Serial number tag | 1 |
| H | 6360-130-018 | Rail clamp | 1 |
| K | 6361-030-012 | Wall mounting bracket assembly | 1 |
| M | 6370-230-038 | Antler assembly | 1 |

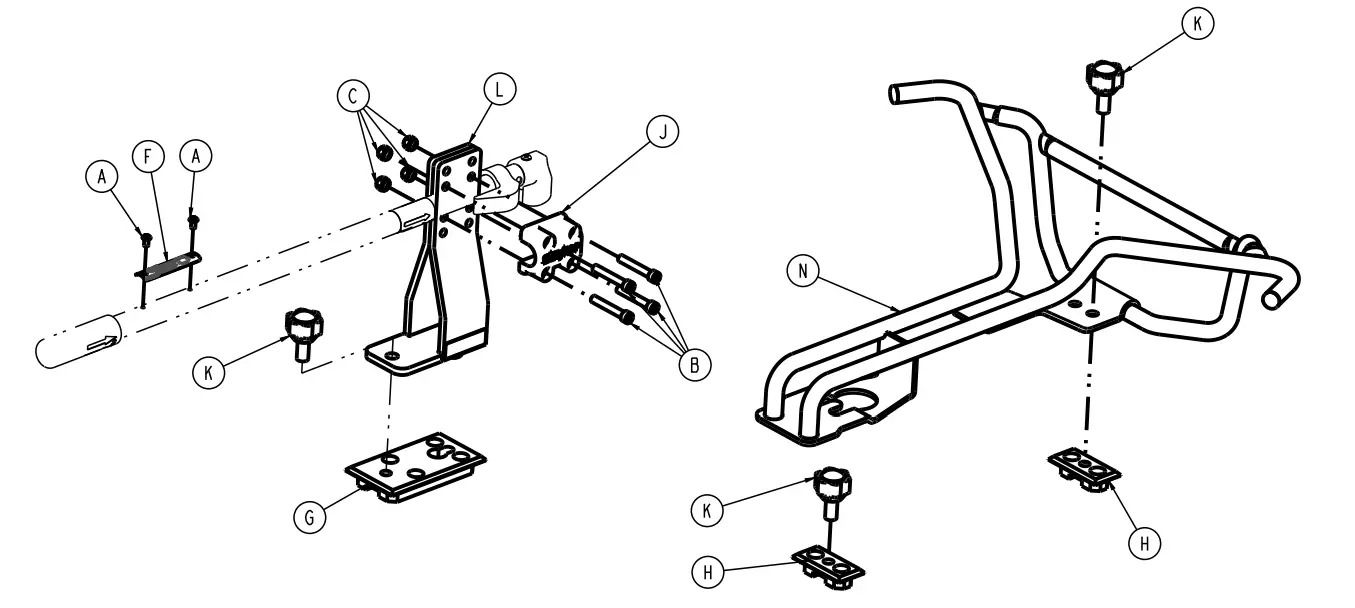

Floor mounted cot fastener assembly – 6377-000-000
6377-230-010 Rev M (Reference only)
| Item | Number | Name | Quantity |
| B | 0004-587-000 | Button head cap screw | 2 |
| C | 0004-250-000 | Hex socket head cap screw | 4 |
| F | 0016-036-000 | Nylock hex nut | 4 |
| G | 6377-001-926 | Serial number tag | 1 |
| H | 6360-030-011 | Large floor plate | 2 |
| J | 6360-030-012 | Small floor plate | 4 |
| K | 6360-130-018 | Rail clamp | 1 |
| L | 6360-030-031 | Round head knob assembly | 3 |
| N | 6360-030-024 | Rail support bracket assembly | 1 |
| 6370-230-038 | Antler assembly | 1 |
Cot fastener, floor mount MTS – 637700550010
Rev A (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-250-000 | Hex socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| F | 6.377E+11 | 6377 MTS serial number tag | 1 |
| G | 6360-030-011 | Large floor plate | 2 |
| H | 6360-030-012 | Small floor plate | 4 |
| J | 6360-130-018 | Rail clamp | 1 |
| K | 6360-030-031 | Round head knob assembly | 3 |
| L | 6360-030-024 | Rail support bracket assembly | 1 |
| N | 6370-230-038 | Antler assembly | 1 |

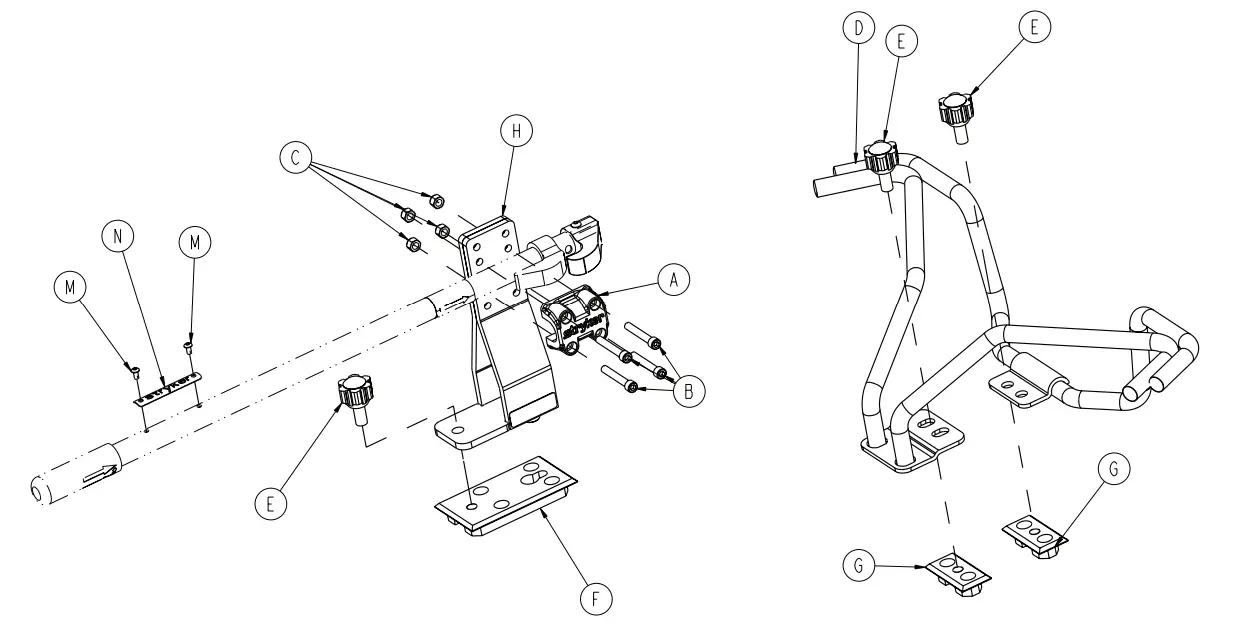

Reduced length floor mounted cot fastener assembly – 6378-000-000
6378-130-010 Rev AA (Reference only)
| Item | Number | Name | Quantity |
| A | 6360-130-018 | Rail clamp | 1 |
| B | 0004-250-000 | Hex socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| D | 6378-030-038 | Antler assembly | 1 |
| E | 6360-030-031 | Round head knob assembly | 3 |
| F | 6360-030-011 | Large floor plate | 2 |
| G | 6360-030-012 | Small floor plate | 4 |
| H | 6360-030-024 | Rail support bracket assembly | 1 |
| M | 0004-587-000 | Button head cap screw | 2 |
| N | 6378-001-926 | Serial number tag | 1 |
Reduced length floor mounted cot fastener assembly – 6378-000-000
6378-130-010 Rev AA (Reference only)
| Item | Number | Name | Quantity |
| A | 6360-130-018 | Rail clamp | 1 |
| B | 0004-250-000 | Hex socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| D | 6378-030-038 | Antler assembly | 1 |
| E | 6360-030-031 | Round head knob assembly | 3 |
| F | 6360-030-011 | Large floor plate | 2 |
| G | 6360-030-012 | Small floor plate | 4 |
| H | 6360-030-024 | Rail support bracket assembly | 1 |
| M | 0004-587-000 | Button head cap screw | 2 |
| N | 6378-001-926 | Serial number tag | 1 |

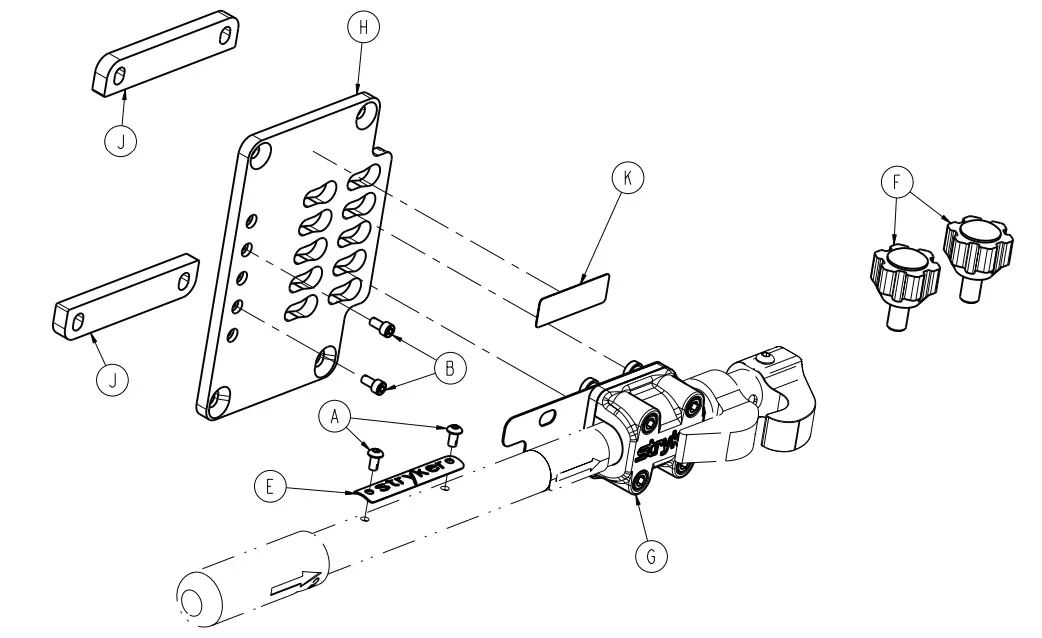

Wall mounted Power-LOAD mass casualty fastener – 6391-000-000
6391-001-001 Rev B (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-658-000 | Socket head cap screw | 2 |
| E | 6391-001-926 | Serial number tag | 1 |
| F | 6390-001-033 | Knob assembly | 2 |
| G | 6390-001-034 | Wall mount bracket assembly | 1 |
| H | 6390-001-155 | Wall mount bracket, detachable | 1 |
| J | 6390-001-156 | Wall mount bracket spacer | 2 |
| K | 6391-090-001 | Label, cot fastener system | 1 |
Floor mounted Power-LOAD mass casualty fastener – 6391-000-000
6391-001-002 Rev AA (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-658-000 | Socket head cap screw | 2 |
| E | 6391-001-926 | Serial number tag | 1 |
| F | 6390-001-033 | Knob assembly | 2 |
| G | 6390-001-034 | Wall mount bracket assembly | 1 |
| H | 6390-001-155 | Wall mount bracket, detachable | 1 |
| J | 6390-001-156 | Wall mount bracket spacer | 2 |
| K | 6391-090-001 | Label, cot fastener system | 1 |

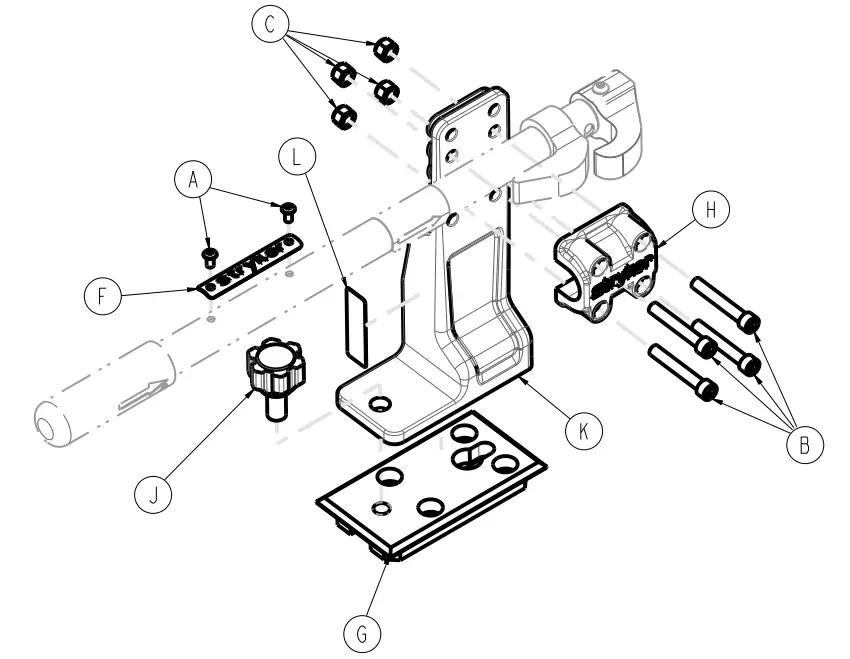

Floor mounted Power-LOAD mass casualty fastener – 6391-000-000
6391-001-002 Rev AA (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-250-000 | Socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| F | 6391-001-926 | Serial number tag | 1 |
| G | 6360-030-011 | Floor plate, large | 1 |
| H | 6360-130-018 | Rail clamp | 1 |
| J | 6360-030-031 | Round head knob assembly | 1 |
| K | 6390-001-033 | Knob assembly | 2 |
| L | 6.39E+11 | Rail clamp floor mount bracket | 1 |
| M | 6391-090-001 | Label, cot fastener system | 1 |

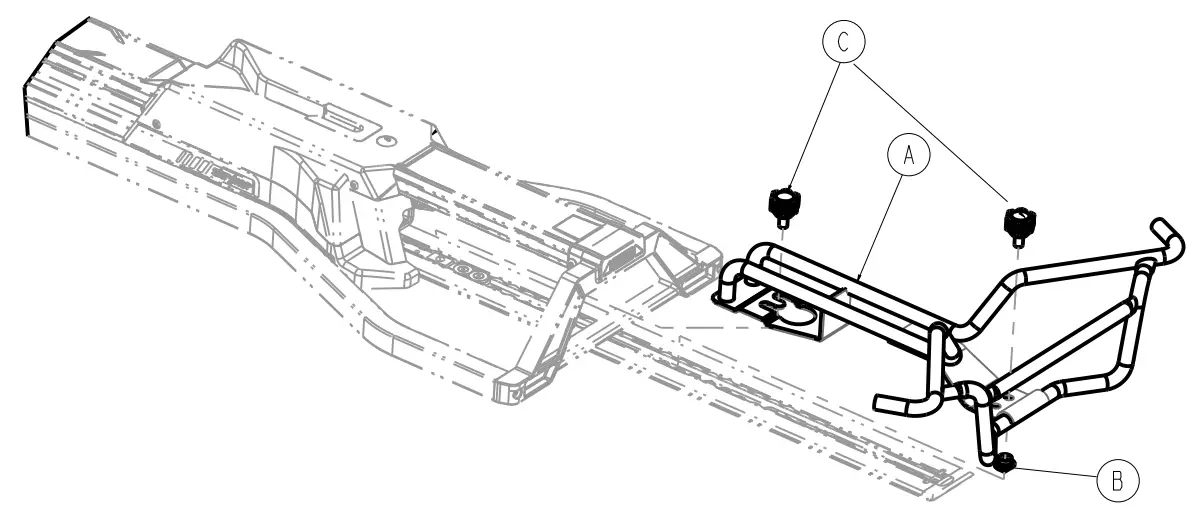

Performance-LOAD antler option – 6393-001-001
Rev A (Reference only)
| Item | Number | Name | Quantity |
| A | 6370-230-038 | Antler assembly | 1 |
| B | 6392-001-151 | Mass casualty cam | 1 |
| C | 6390-001-033 | Knob assembly | 2 |
Performance-LOAD no antler option – 6393-001-002
Rev C (Reference only)
| Item | Number | Name | Quantity |
| A | 6392-001-151 | Mass casualty cam | 1 |
| B | 6390-001-033 | Knob assembly | 2 |

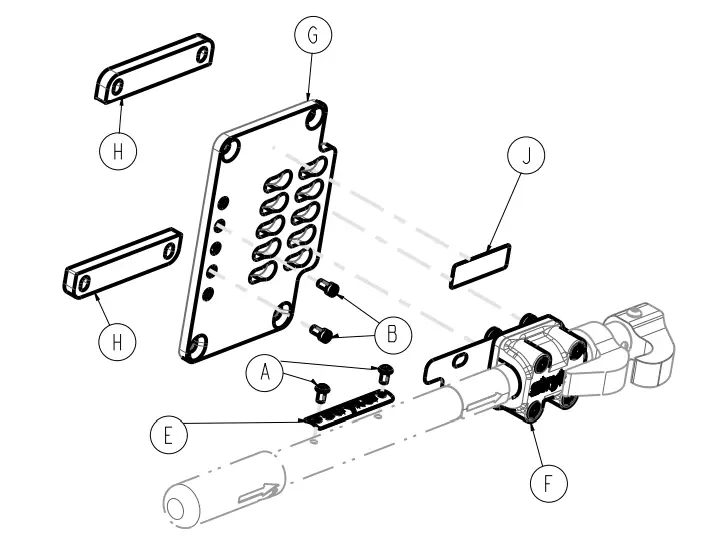

Wall mounted Performance-LOAD mass casualty fastener – 6393-000-000
6393-002-001 Rev AA (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-658-000 | Socket head cap screw | 2 |
| E | 6393-001-926 | Serial number tag | 1 |
| F | 6390-001-034 | Wall mount bracket assembly | 1 |
| G | 6390-001-155 | Wall mount bracket, detachable | 1 |
| H | 6390-001-156 | Wall mount bracket spacer | 2 |
| J | 6393-090-001 | Label, cot fastener system | 1 |

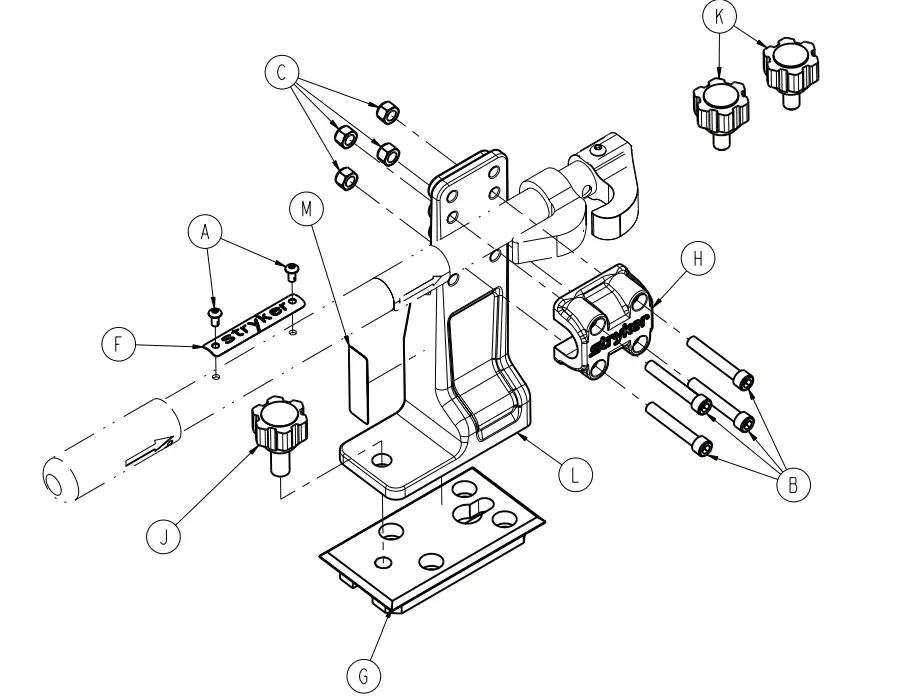

Floor mounted Performance-LOAD mass casualty assembly – 6393-000-000
6393-002-002 Rev AB (Reference only)
| Item | Number | Name | Quantity |
| A | 0004-587-000 | Button head cap screw | 2 |
| B | 0004-250-000 | Socket head cap screw | 4 |
| C | 0016-036-000 | Nylock hex nut | 4 |
| F | 6393-001-926 | Serial number tag | 1 |
| G | 6360-030-011 | Floor plate, large | 1 |
| H | 6360-130-018 | Rail clamp | 1 |
| J | 6360-030-031 | Round head knob assembly | 1 |
| K | 639000010142 | Floor mount bracket, rail clamp | 1 |
| L | 6393-090-001 | Label, cot fastener system | 1 |

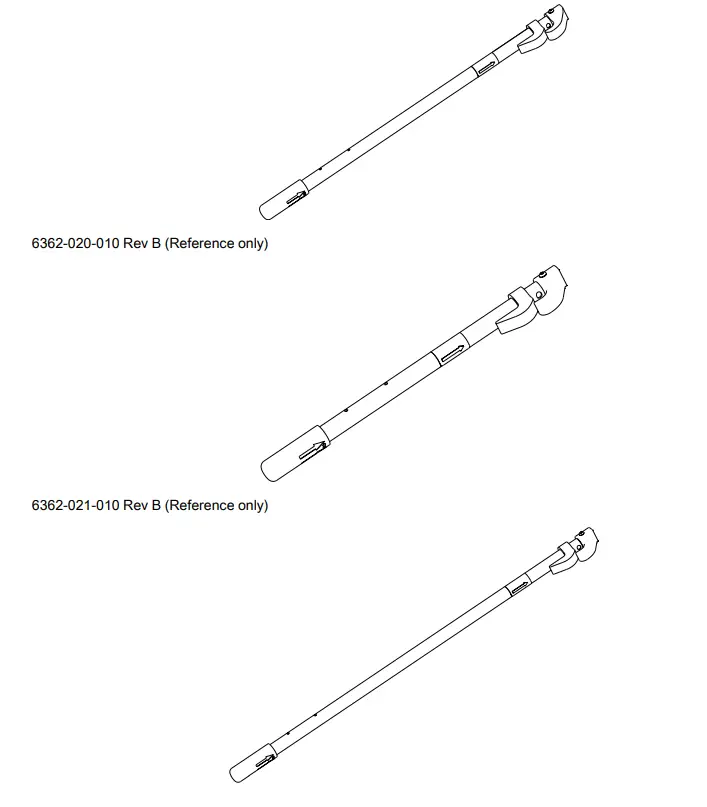

Rail assembly – 6360-020-000/Rail assembly, short – 6362-020-000/Rail assembly, long – 6362-021-010
6360-020-010 Rev H (Reference only)
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
6370-009-002 Rev AA.0
WCR: AD.3
