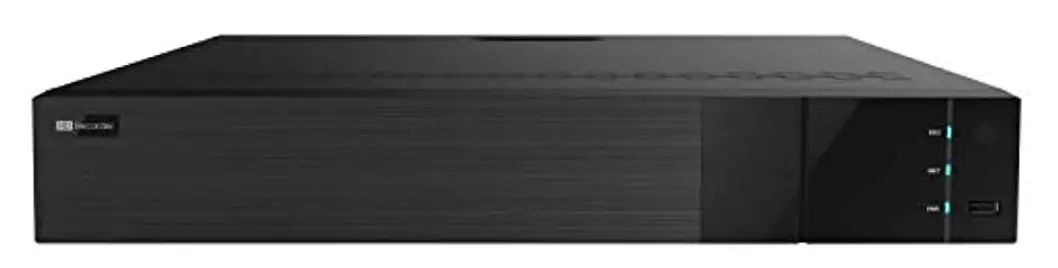

WORLD EYECAM ED9632H5NV-16P-AN 32 Channel HD PoE Network Video Recorder
Features
| 4K Output | t HD IPC | DDNS | Network | PTZ | Audio | MIC | Mobile | CMS | USB | Mouse | STD | FR | VCA |
ED9632H5NV-16P-AN series supports 32 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280×1024/960P/ 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
ED9632H5NV-16P-AN series integrates with 16 PoE network ports and supports 16 CH IPC direct connection to NVR , simultaneous 16 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
SPECIFICATIONS
Model | ED9632H5NV-16P-AN | |
System | OS | Embedded Linux |
Video | Compression | H.265S/H.265+/H.265/H.264 |
| IP Video Input | 32CH IPC input | |
Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | |
| Network Bandwidth | 192Mbps/192Mbps (incoming/outgoing) | |
Output | HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source | |
Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view | |
Audio | Network Input | 32 CH IPC audio input |
2-way Audio | RCA × 1 | |
| Local Output | RCA × 1 | |
Compression | G.711(U/A) | |
Record | Record Stream | Dual stream recording |
Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Frame Rate | 12MP: 20fps; 8MP or lower resolution: NTSC: 30fps; PAL: 25fps | |
Playback | Simultaneous Playback | Max 16CH |
| Search | Time slice / time / event / tag / smart search | |
Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P |
Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 16 CH local alarm input | |
Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
Face | Face Detection Performance (AI by IPC) | 32CH |
| Face Detection Performance (AI by Device) | 2 CH | |
Face Match Performance | 6 CH | |
| Comparison Capability | 18 pictures / second | |
Face Picture Database | 32 libraries 10000 Face Pictures | |
| Face Picture Search | Search by picture is supported | |
Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
Face Picture Comparison | Support successful face recognition alarm and stranger match alarm | |
| Track | Track display on a map | |
Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |
Video Structure Analysis | Human/Vehicle Classification | Yes |
Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP |
| Plate Recognition (AI by IPC) | Yes | |
Network | Interface | RJ 45 1000 Mbps × 2 |
| Protocol | TCP / IP, Ipv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. | |
Client Connection | Max. 128 users access | |
| PoE | PoE Port | RJ 45 100Mbps × 16 |
Standard | IEEE802.3AF/AT | |
| Output Power | ≤ 150W | |
Mobile Device | OS | iOS, Andriod |
Storage | HDD Interface | SATA × 4, max 10T for each HDD |
| E-SATA Interface | E-SATA × 1 | |
Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
USB | USB 3.0 × 1 ; USB 2.0 × 2 | |
| Remote Controller | Optional | |
Others | Power Supply | ATX 300W(PoE) |
Consumption | ≤ 20W ( without HDD and PoE power supply ) | |
Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
Dimensions(mm) | 440 × 390 × 70( W × D × H ) | |
| Working Environment | -10 〜 50 ℃，10% 〜 90% humidity | |
Features
- Support 32CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface ( GUI , Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support license plate recognition
- Support POS information overlay on live view and playback
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF, etc.
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Support 16CH PoE IPC direct connection to NVR via PoE ports
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS

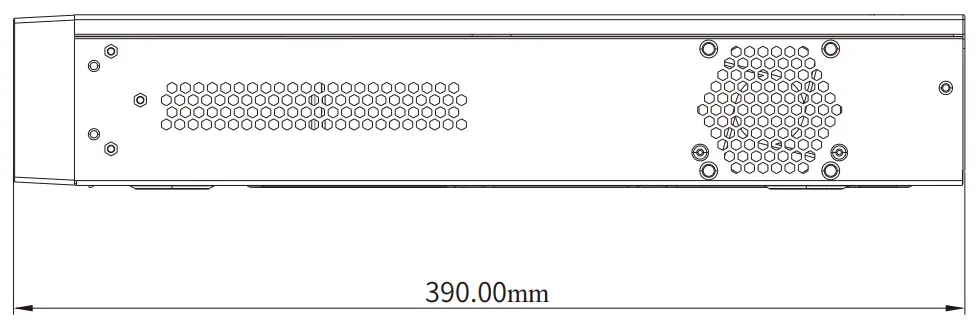

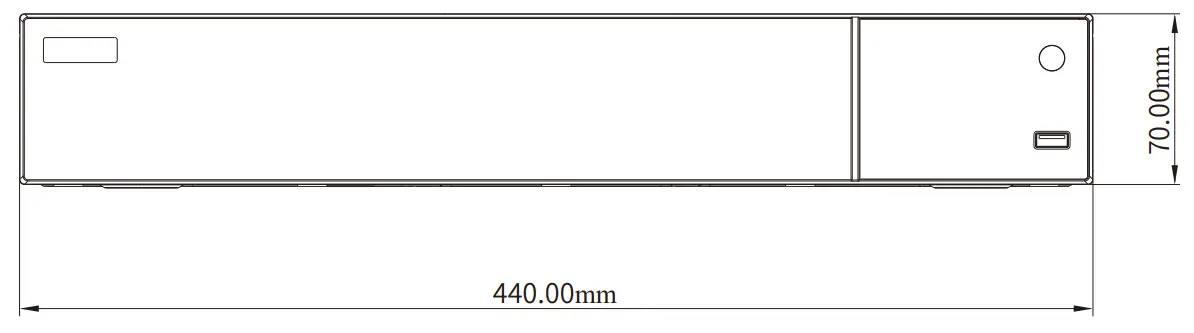

DIMENSIONS

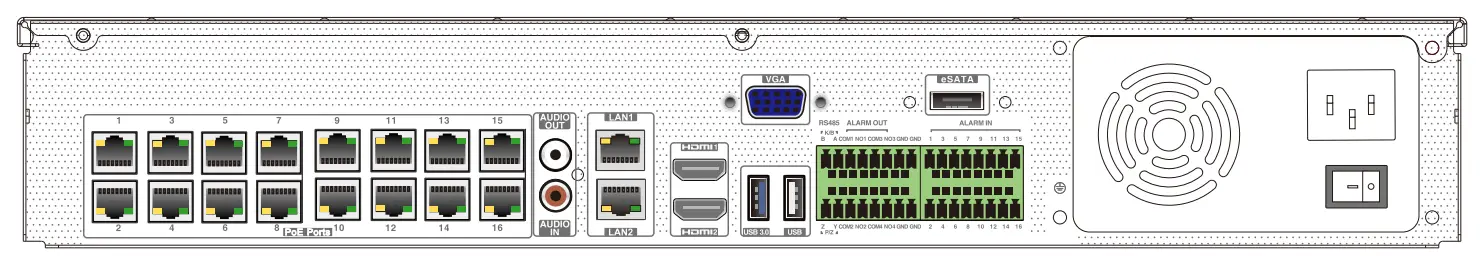

Rear Panel
