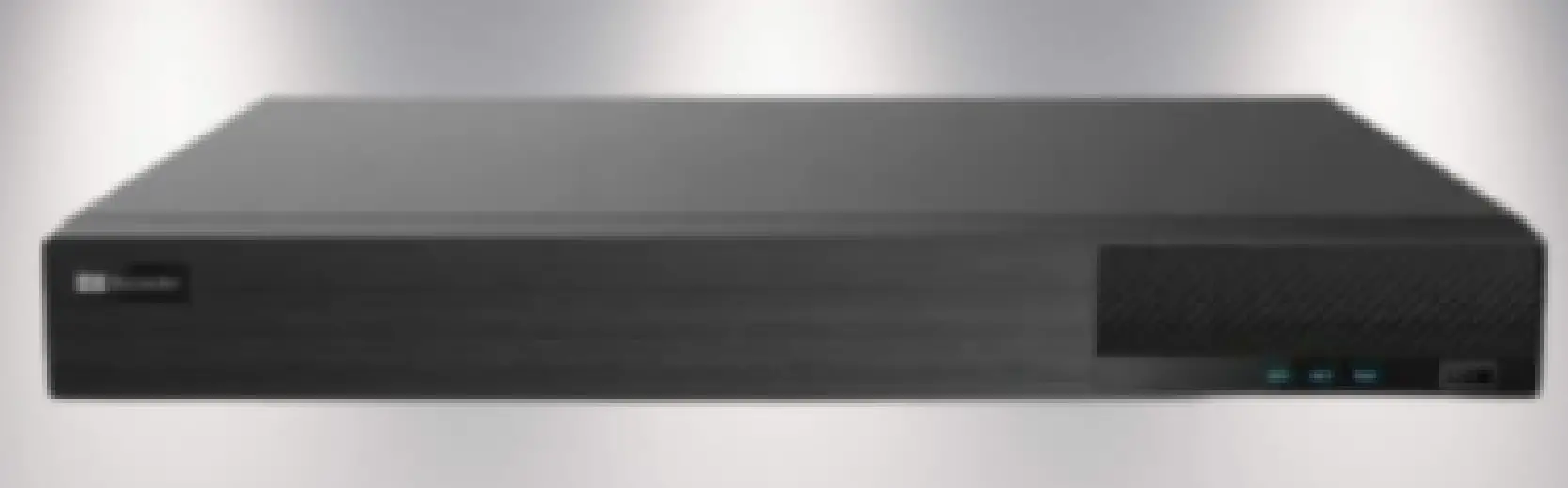

WORLD EYECAM ED9532H5NV-A2 32 Channel 720P HD NVR
ED9532H5NV-A2 series supports 32 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280×1024/960P/ 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
ED9532H5NV-A2 series supports 32CH IPC input , simultaneous 16CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

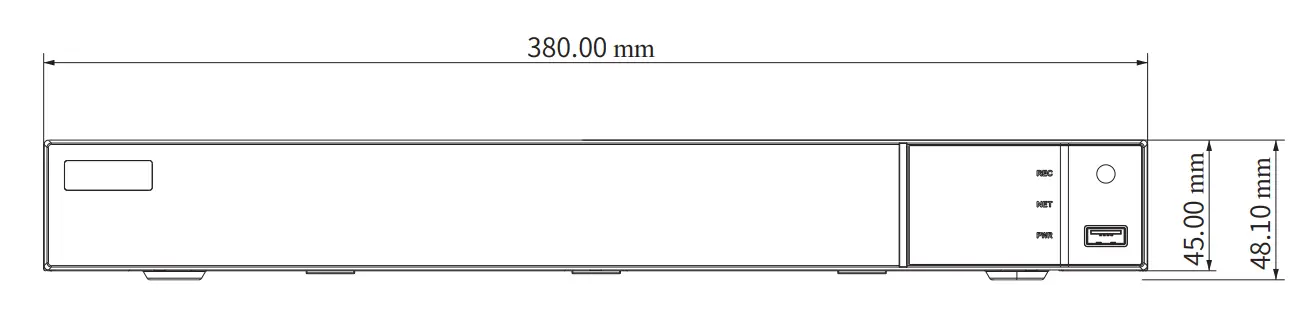

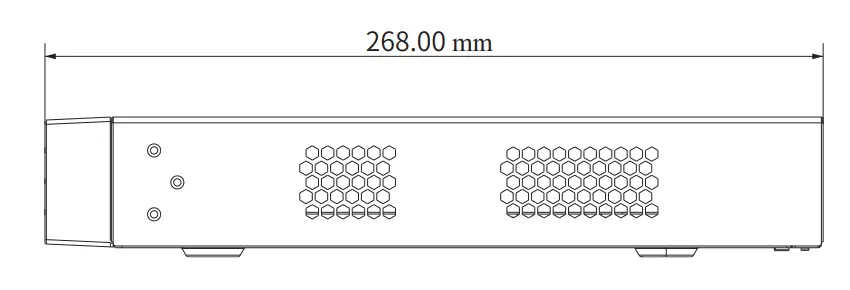

DIMENSIONS

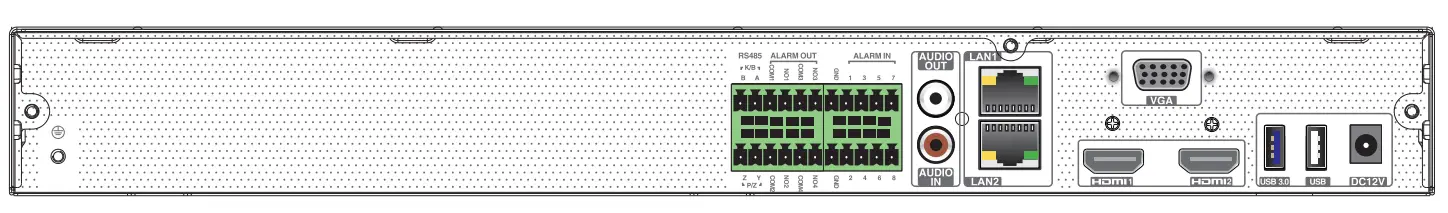

REAR PANEL
SPECIFICATIONS
| Model | ED9532H5NV-A2 | |||
| System | OS | Embedded Linux | ||
| Video | Compression | H.265S/H.265+/H.265/H.264 | ||
| IP Video Input | 32CH IPC input | |||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | |||
| Network Bandwidth | 192Mbps/192Mbps (incoming/outgoing) | |||
| Output | HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source | |||
| Audio | Network Input | 32 CH IPC audio input | ||
| 2-way Audio | RCA × 1 | |||
| Local Output | RCA × 1 | |||
| Compression | G.711(U/A) | |||
| Record | Record Stream | Dual stream recording | ||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | |||
| Frame Rate | NTSC: 30fps; PAL: 25fps | |||
| Playback | Simultaneous Playback | Max 16CH | ||
| Search | Time slice / time / event / tag / smart search | |||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |||
| Function | Play, pause, FF, FB, digital zoom, etc. | |||
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P | ||
| Multi-Screen Display Mode | Mode | Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device AI mode: HDMI2 output and 12MP video input (live view/playback) are unavailable, but 8MP video input supports | ||
| Dual Output Mode | 32CH (HDMI1) +4CH (HDMI2) | |||
| AI Mode | 24CH (HDMI1) | |||
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | ||
| Input | 8 CH local alarm input | |||
| Output | 4 CH | |||
| Triggering | Record, snap, preset, e-mail, etc. | |||
| Face | Face Detection Performance (AI by IPC) | 32CH | ||
| Face Detection Performance (AI by Device) | 2 CH (2MP) | |||
| Face Match Performance | 6 CH | |||
| Comparison Capability | 18 pictures / second | |||
| Face Picture Database | 32 libraries 10000 Face Pictures | |||
| Face Picture Search | Search by picture is supported | |||
| Database Management | Add, modify, delete and search face pictures | |||
| Face Picture Adding | Add face pictures through APP, WEB and external import | |||
| Face Picture Comparison | Support allow list, block list and stranger match alarm | |||
| Track | Track display on a map | |||
| Face | Statistical Graph of Information | Bar graph | ||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |||
| Video Structure Analysis | Human/Vehicle Classification | Yes | ||
| Other Functions | Fisheye | Supports fisheye de warping via Web Client and mobile APP | ||
| Plate Recognition | Yes | |||
| Network | Interface | RJ 45 1000 Mbps × 2 | ||
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. | |||
| Client Connection | Max. 20 users access | |||
| Mobile Device | OS | iOS, Andriod | ||
| Storage | HDD Interface | SATA × 2, max 10T for each HDD | ||
| Backup | Local Backup | U disk, USB mobile HDD | ||
| Network Backup | Yes | |||
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard | ||
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | |||
| Remote Controller | Optional | |||
| Others | Power Supply | DC12V/4A | ||
| Consumption | ≤ 20W ( without HDD ) | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |||
| Dimensions(mm) | 380 × 268 × 45 ( W × D × H ) | |||
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |||
FEATURES
- Support 32CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280× 1024/960P/720P/ 960H/D1/ CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/ missing, region intrusion, tripwire, video exception, etc.
- Support license plate recognition
- Support POS information overlay on live view and playback
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QR Code scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
