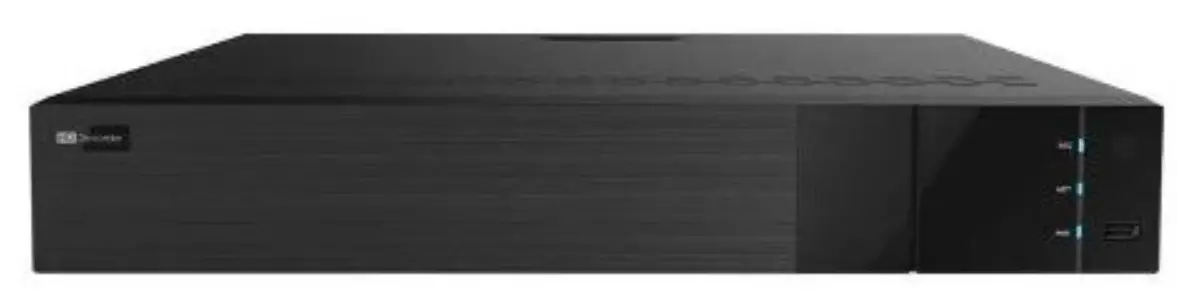

WORLD EYECAM ED9632H5NV-16P-A2 32 Channel HD PoE Network Video Recorder
ED9632H5NV-16P-A2 series supports 32 CH 12MP / 8MP / 6MP /5MP / 4MP / 3MP / 1080P / 1280×1024/960P/ 720P high definition IP input, which adopts the advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
ED9632H5NV-16P-A2 series integrates with 16 PoE network ports and supports 16 CH IPC direct connection to NVR , simultaneous 16
CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

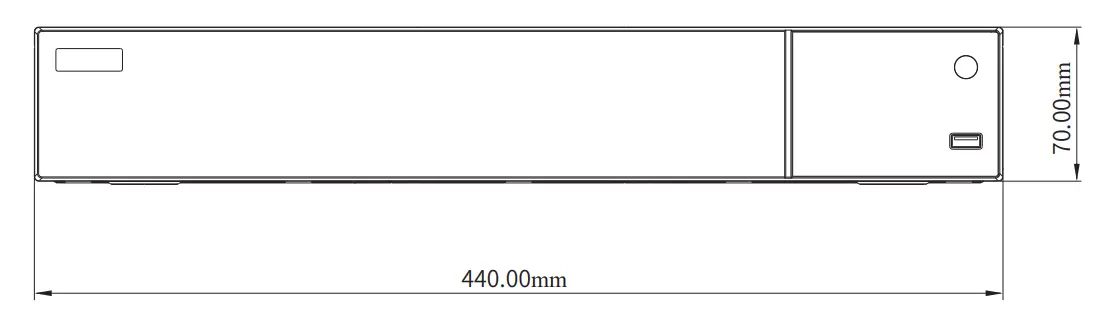

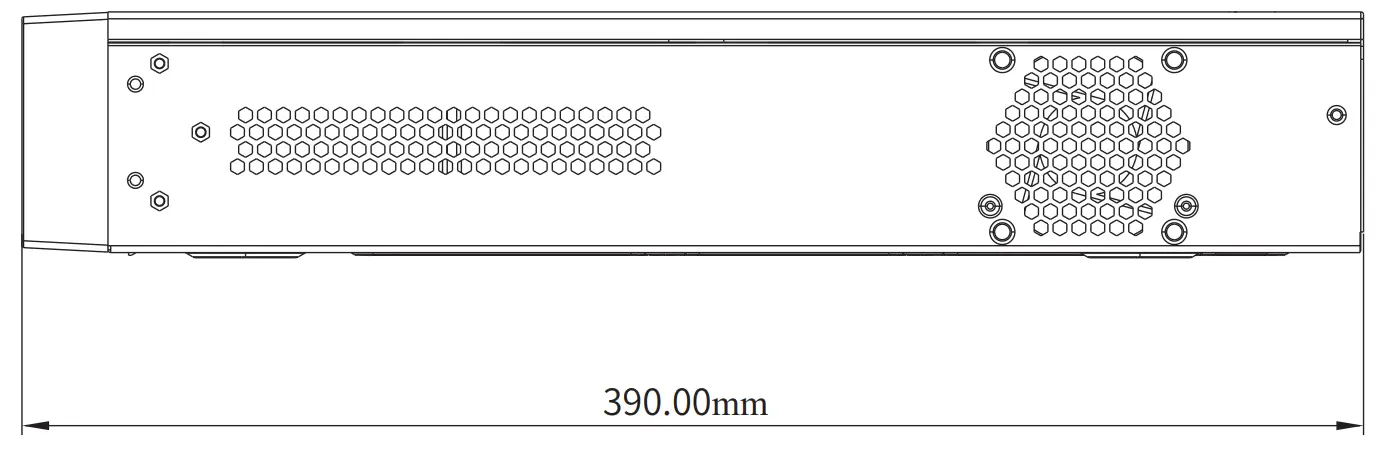

DIMENSIONS

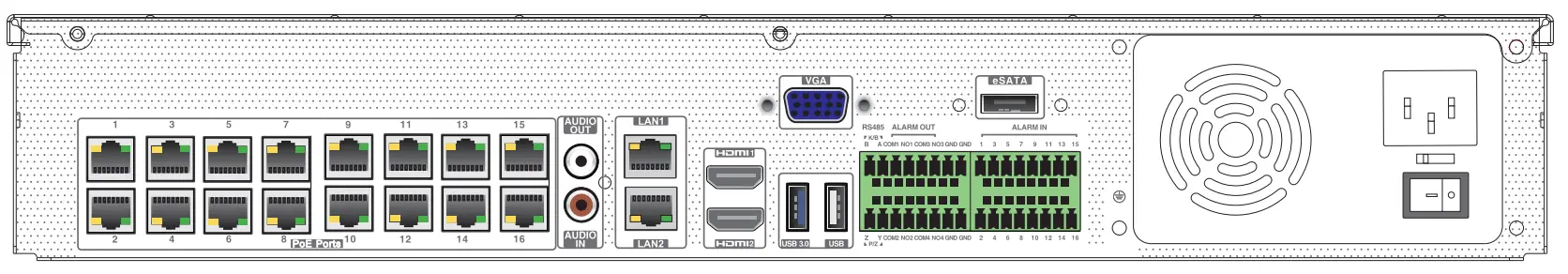

Rear Panel
SPECIFICATIONS
| Model | ED9632H5NV-16P-A2 | ||||
| System | OS | Embedded Linux | |||
| Video | Compression | H.265S/H.265+/H.265/H.264 | |||
| IP Video Input | 32CH IPC input | ||||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | ||||
| Network Bandwidth | 192Mbps/192Mbps (incoming/outgoing) | ||||
| Output | HDMI1 : 3840 × 2160/1920 × 1080 / 1280× 1024 / 1024× 768 HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 × 768 / 1024 VGA and HDMI1 output the same video source | ||||
| Audio | Network Input | 32 CH IPC audio input | |||
| 2-way Audio | RCA × 1 | ||||
| Local Output | RCA × 1 | ||||
| Compression | G.711(U/A) | ||||
| Record | Record Stream | Dual stream recording | |||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF | ||||
| Frame Rate | NTSC: 30fps; PAL: 25fps | ||||
| Playback | Simultaneous Playback | Max 16CH | |||
| Search | Time slice / time / event / tag / smart search | ||||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||||
| Decoding Capability | Live View/ Playback | 1CH 12MP/4CH 1080P | |||
| Multi-Screen Display Mode | Mode | Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device AI mode: HDMI2 output and 12MP video input (live view/playback) are unavailable, but 8MP video input supports | |||
| Dual Output Mode | 32CH (HDMI1) +4CH (HDMI2) | ||||
| AI Mode | 24CH (HDMI1) | ||||
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. | |||
| Input | 16 CH local alarm input | ||||
| Output | 4 CH | ||||
| Triggering | Record, snap, preset, e-mail, etc. | ||||
| Face | Face Detection Performance (AI by IPC) | 32CH | |||
| Face Detection Performance (AI by Device) | 2 CH (2MP) | ||||
| Face Match Performance | 6 CH | ||||
| Comparison Capability | 18 pictures / second | ||||
| Face Picture Database | 32 libraries 10000 Face Pictures | ||||
| Face Picture Search | Search by picture is supported | ||||
| Database Management | Add, modify, delete and search face pictures | ||||
| Face Picture Adding | Add face pictures through APP, WEB and external import | ||||
| Face Picture Comparison | Support allow list, block list and stranger match alarm | ||||
| Track | Track display on a map | ||||
| Statistical Graph of Information | Bar graph | ||||
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | ||||
| Video Structure Analysis | Human/Vehicle Classification | Yes | |||
| Other Functions | Fisheye | Supports fisheye dewarping via Web Client and mobile APP | |||
| Plate Recognition | Ye | ||||
| Network | Interface | RJ 45 1000 Mbps × 2 | |||
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF | ||||
| Client Connection | Max. 20 users access | ||||
| PoE | PoE Port | RJ 45 100Mbps × 16 | |||
| Standard | IEEE802.3AF/AT | ||||
| Output Power | ≤ 150W | ||||
| Mobile Device | OS | iOS, Andriod | |||
| Storage | HDD Interface | SATA × 4, max 10T for each HDD | |||
| E-SATA Interface | E-SATA × 1 | ||||
| Backup | Local Backup | U disk, USB mobile HDD | |||
| Network Backup | Yes | ||||
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard | |||
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | ||||
| Remote Controller | Optional | ||||
| Others | Power Supply | ATX 300W(PoE) | |||
| Consumption | ≤ 20W ( without HDD and PoE power supply ) | ||||
| Certificate | CE, FCC | ||||
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | ||||
| Dimensions(mm) | 440 × 390 × 70( W × D × H ) | ||||
| Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | ||||
Features
- Support 32CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/ missing, region intrusion, tripwire, video exception, etc.
- Support license plate recognition
- Support POS information overlay on live view and playback
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Support 16CH PoE IPC direct connection to NVR via PoE ports - Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
