NVR
AMX-93018H5NV-8P-3N
8CH 8MP/6MP/5MP/4MP/3MP/1080P/720P HD PoE NVR
HD Output HD IPC DDNS Network
PTZ Audio MIC Mobile
CMS USB Mouse E-mail
STD VCA
ED9308H5NV-8P-3N supports 8 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P high definition IP video input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system.
ED9308H5NV-8P-3N integrates with 8 PoE network ports and supports 8 CH IPC direct connection to NVR, simultaneous 8 CH playback and 4K ultra high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Specifications
Model | ED9308H5NV-8P-3N | |
| System | OS | Embedded Linux |
Video | Network Input | 8CH IPC input |
Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF | |
Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |
Compression | H.265S /H.265+ / H.265 / H.264 | |
Audio | Network Input | 8 CH IPC audio input |
2-way Audio | RCA 1 × | |
Local Output | RCA 1 × | |
Compression | G.711(U/A) | |
Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
Frame Rate | NTSC:30fps; PAL:25fps | |
Playback | Simultaneous Playback | Max. 8 CH |
Search | Time slice / time / event / tag / smart search | |
Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
Decoding Capability | Live View/ Playback | 1CH 8MP; 4CH 1080P |
Alarm | Mode | Manual, sensor, motion, exception, smart events |
Input | Supports IPC alarm input | |
Output | Supports IPC alarm output | |
Triggering | Record, snap, e-mail, etc. | |
Other Functions | Plate Recognition | Yes |
Fisheye | No | |
Video Structure Analysis | Human/Vehicle Classification | Yes |
Network | Interface | RJ 45 × 1 (10/100/1000Mbps) |
Protocol | TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. | |
Incoming/ Outgoing Bandwidth | 80/80 (Mbps) | |
Client Connection | Max. 10 users access | |
Mobile Device | OS | iOS, Andriod |
Storage | HDD Interface | SATA3.0 1, max 10T |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | USB | USB 2.0 × 2 |
Remote Controller | Optional | |
PoE | PoE Ports | 100M RJ45 × 8 |
Standards | IEEE802.3AF/AT | |
Output Power | ≤ 96W | |
Others | Power Supply | DC 48V/2.5A |
Consumption | ≤ 10W ( without HDD ) | |
Dimensions (mm) | 300 249 45( W D H ) | |
Working Environment | -10～50 10% °C, ～ 90% humidity | |
Certificate | CE, FCC | |
Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
Features
- Support 8 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/ DI/CIF IP video input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 8 CH simultaneous playback
- Search : time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
- 8 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS

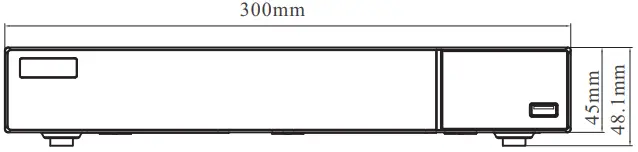

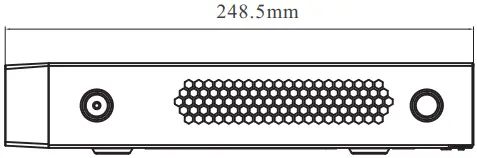

Dimensions
Rear Panel
ED9308H5NV-8P-3N
*All pictures and specifications are for reference only and are subject to change without prior notice.
