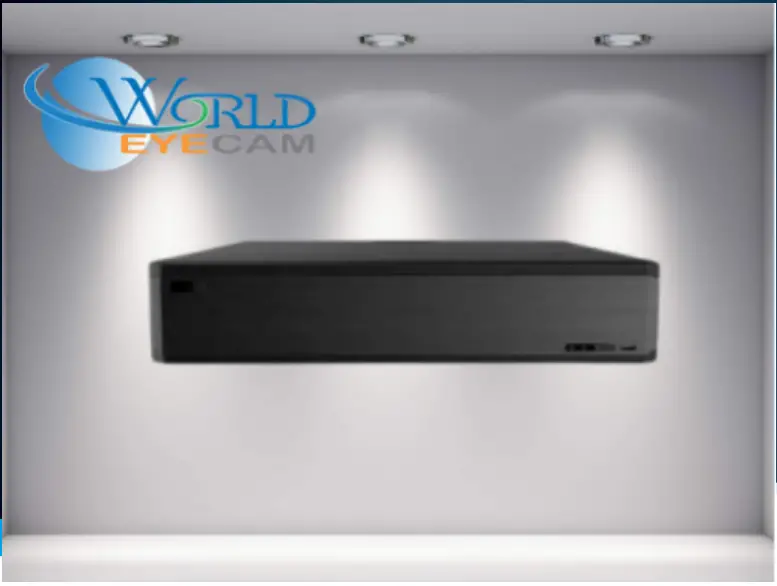

WORLD EYECAM ED9764H5NV-2 64 Channel HD Network Video Recorder
FEATURES
- 4K Output
- HD IPC
- DDNS
- Network
- PTZ
- Audio
- MIC
- Mobile
- CMS
- USB
- Mouse
- E-mail
- STD
Introduction
ED9764H5NV-2 is a 64 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P high definition NVR, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. ED9764H5NV-2 supports 64 CH IP input, simultaneous 16 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Characteristics
- Support 64 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input Adopt
- standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS

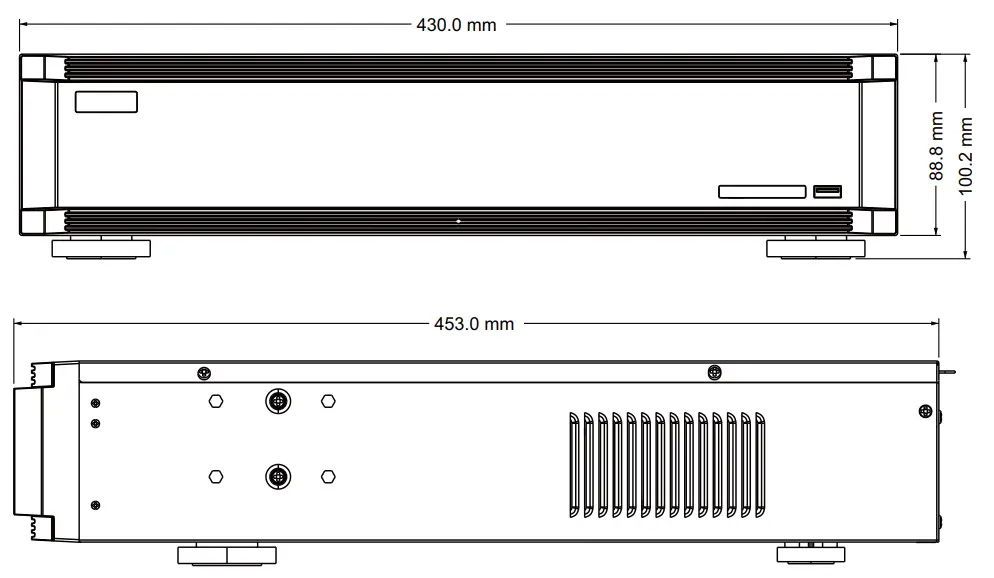

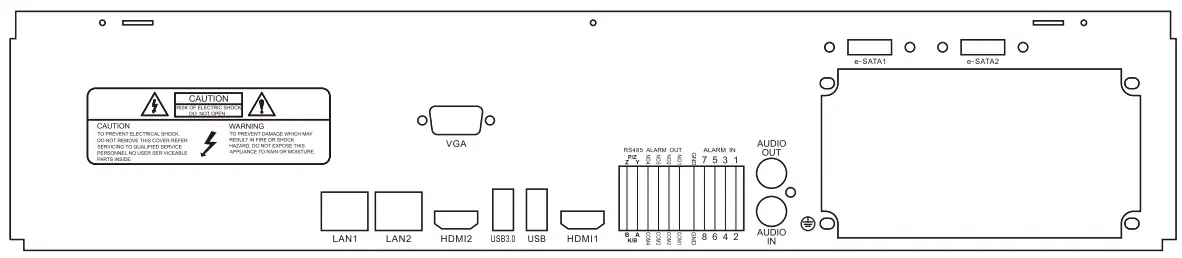

Dimensions
Specification
| Model | E D9764H5NV-2 | ||
| System | Compression | Standard H.265 | |
| OS | Embedded Linux | ||
| Video | Network Input | 64 CH IPC input | |
| Network Access Bandwidth | 320Mbps | ||
| Network Access Format | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps | ||
| Output | HDMI × 2 : one of 4K × 2K / 1920 × 1080 / 1280 × 1024 the other of 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 | ||
| Audio | Network Input | 64 CH IPC audio input | |
| 2-way Audio | RCA × 1 | ||
| Local Output | RCA × 1 | ||
| Record | Record Stream | Dual stream recording | |
| Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P | ||
| Mode | Manual, timer, motion, sensor | ||
| Playback | Simultaneous Playback | Max 16 CH | |
| Search | Time slice / time / event / tag search | ||
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Alarm | Mode | Manual, sensor, motion, exception | |
| Input | 8 CH local alarm input, support IPC alarm input | ||
| Output | 4 CH | ||
| Triggering | Record, snap, preset, e-mail, etc. | ||
| Network | Interface | RJ45 10 / 100 / 1000 Mbps × 2 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | ||
| Web Client | Max 10 users online | ||
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD | SATA × 8, e-SATA × 2, max 6T per HDD | |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| Port | USB | USB 2.0 × 2 ( one in the front panel and the other in the rear panel ), USB 3.0 × 1 ( rear panel ) | |
| Remote Controller | Yes | ||
| Others | Power Supply | ATX | |
| Consumption | ≤ 15W ( without HDD ) | ||
| Dimensions (mm) | 430 × 453 × 89 ( W × D × H ) | ||
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | ||
