VLWP-2HVG-TR
18G, 2×1 HDMI/VGA Wall Plate w/Auto-Switching,
USB2.0, POC (2-Gang US Decora, 40M@4K, 70M@1080P)
White color Tx
User Manual
VER 1.0
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shook, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
The HDBaseT Wall-plate Transmitter supports HDMI and VGA with audio inputs within a standard 2-Gang US Decora wall box. It can transmit HDMI signal over CAT6/6a/7 to a distance up to 131ft/40m for 4K2K@60Hz (4:4:4) or 1080p60Hz up to 230ft/70m. Auto-switching allows users to plug in and play. Built-in two-way IR, RS-232, and USB transmissions for easy device control.
Features
☆ HDMI 2.0b 18Gbps, HDCP 2.2 compliant
☆ up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, 1080p@120Hz
☆ up to 7.1 channels HD audio
☆ HDBaseT™ over a single CAT6/6a/7 cable up to 230ft/40m distance for 4K2K@60Hz (4:4:4) or up to 230ft/70m distance for 1080p60Hz
☆ Built-in scaling for VGA input
☆ Automatic and manual switching modes
☆ Two-way IR, RS-232, and USB supported
☆ 2-Gang US Decora Wall Plate
☆ 24V POC is supported
Package Contents
- 1× 18G HDMI Wall Plate Transmitter
- 1× Phoenix connector (3 pins)
- 1× Phoenix connector (2 pins)
- 1× Wideband IR RX
- 1× Wideband IR TX
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| HDMI Video Resolution | 4K2K@50/60Hz 4:4:4 (max) |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| VGA Video Resolution | 1080P@50/60Hz 4:4:4 (max) |
| ESD Protection | Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Connections | |
| Transmitter | Inputs: lx HDMI Type A [19-pin female] lx VGA [15-pin female] lx USB [USB-B] lx IR IN [Phoenix jack] lx RS-232 [Phoenix jack] 1 xAUDIO IN [3.5mm Stereo Mini-jack] Outputs:1x HDBaseT Out [RJ45] lx IR OUT [Phoenix jack] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | White |
| Dimensions | 91.8mm [W] x 104.8mm [D] x 43mm [H] |
| Weight | 212.5g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 6W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
Operation Controls and Functions

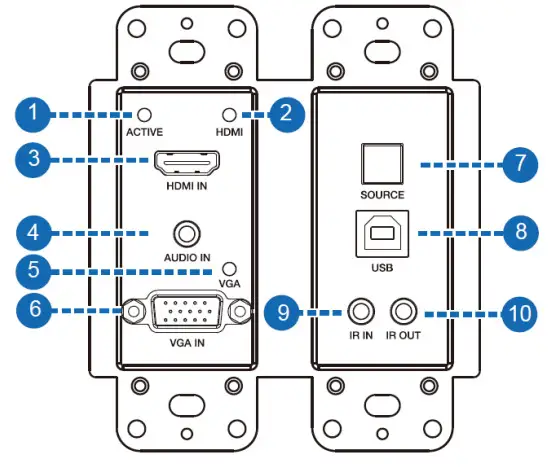

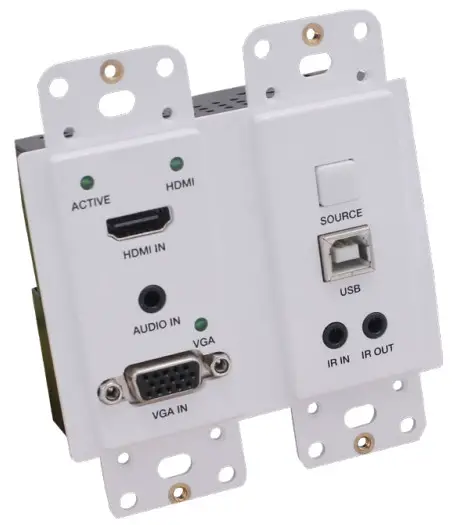

5.1 Front panel
| Number | Name | Function description |
| 1 | ACTIVE | Signal status indicator. The LED will illuminate green when the HDMI or VGA port has signal source input. |
| 2 | HDMI LED | The HDMI input signal indicator. The LED will illuminate green when the SOURCE button has selected the input signalfrom the HDMI port. |
| 3 | HDMI IN | Connect to HDMI source devices such as Blu-ray or PS4 player. |
| 4 | AUDIO IN | The VGA audio input port. |
| 5 | VGA LED | The VGA input signal indicator. The LED will illuminate green when the SOURCE button has selected the input signal from the VGA port. |
| 6 | VGA IN | The VGA input port. |
| 7 | SOURCE button | Manual switching button. |
| 8 | USB | USB host port. |
| 9 | IR IN | Receiving the remote-control signal and sending it to tEReceiver side |
| 10 | IR OUT | I am sending the remote-control signal from the Receiver side. |

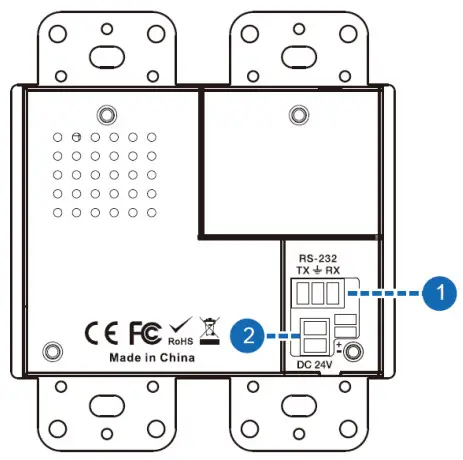

5.2 Rear panel
| Number | Name | Function description |
| 1 | RS-232 | Use the phoenix jack to connect the PC or control system to transmit RS-232 commands. |
| 2 | DC 24V | Use the phoenix jack to connect the power supply. |

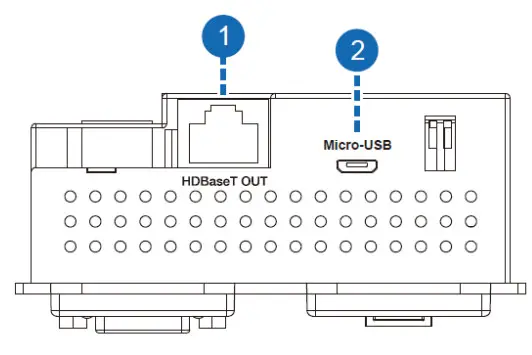

5.3 Side panel
| Number | Name | Function description |
| 1 | HDBaseT OUT | HDBaseT output port. Connect the HDBaseT receiver with a UTP cable. |
| 2 | Micro-USB | For firmware updates. |

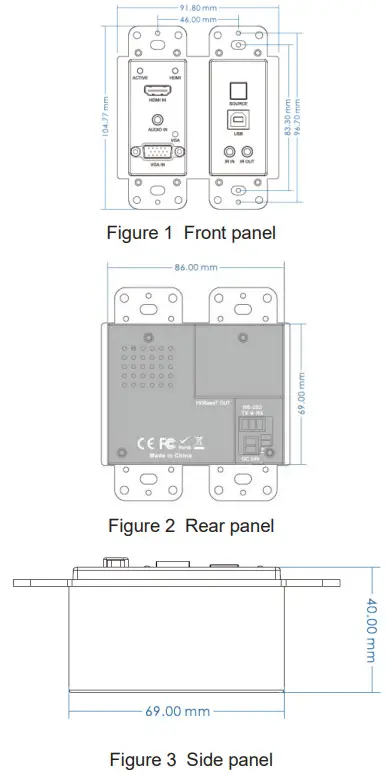

5.4 Dimension of Panel

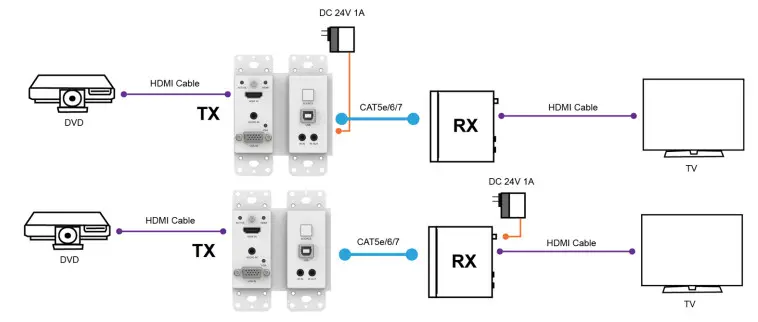

※ Description 1
POC (Power over Cable) Application Example

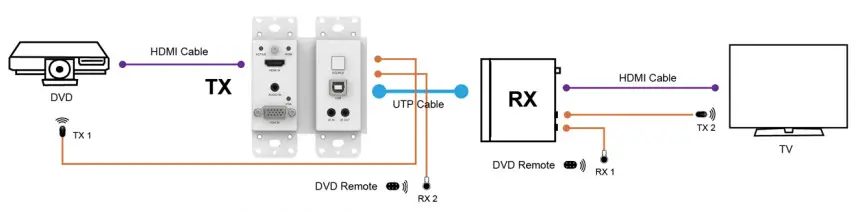

※ Description 2
Bidirectional Infrared control Application Example

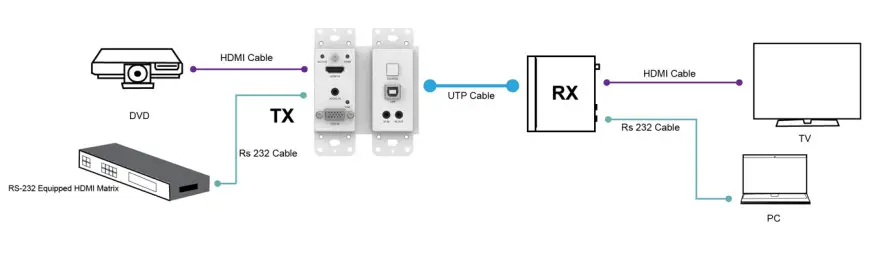

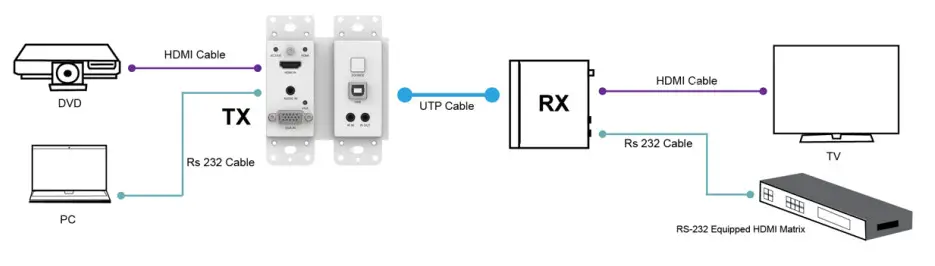

※ Description 3
Bidirectional RS-232 control Application Example

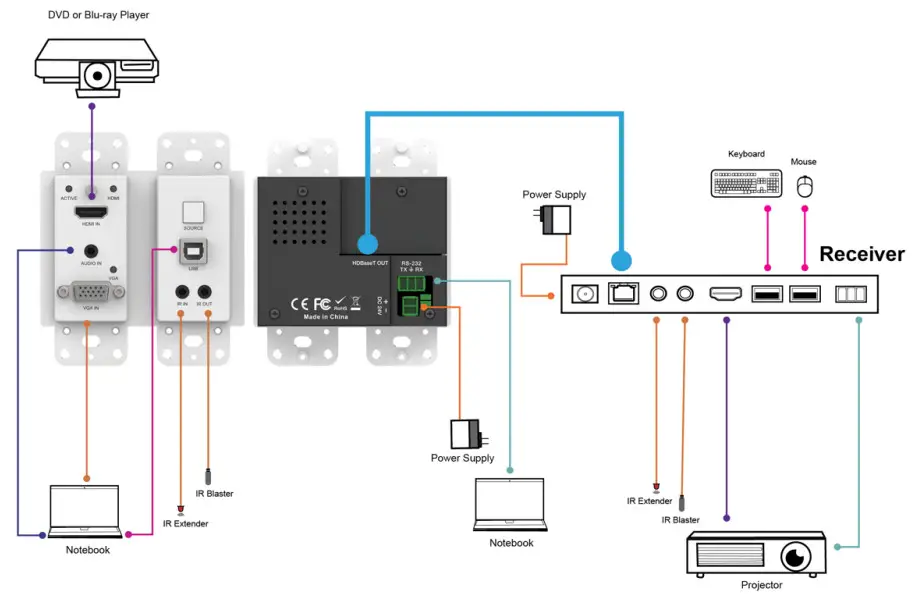

Application Example
