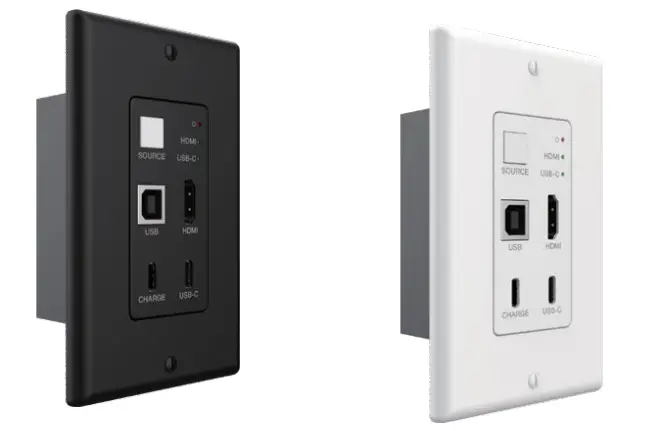

VigilLink VL-WP21UP-1 18G, 2×1 HDMI/USB-C Wall Plate w/Auto-Switching, USB2.0, POE
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and Windows® PCs as well as smartphones and tablets. Support video resolution up to 4K@60Hz 4:4:4. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.
Features
- Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a
- Support 18Gbps video bandwidth
- Video resolution up to 4K@60Hz 4:4:4
- HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
- Support HDR10 and HDR10+
- Audio formats support Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High-Resolution Audio, 5.1; PCM 2-8Ch
- Support HDMI and USB-C input
- US one-gang enclosure for Decora-style wall plate openings
- Input signal selection supports automatic mode and manual mode
- USB2.0 extension with Receiver
- Support POE function (only from Receiver to Transmitter)
- With USB-C charging port
- Available in white or black coating
Package Contents
- 1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | 4096×2160@24/25/30/50/60Hz,3840×2160@24/25/ 30/50/60Hz, 2048x1080p,[email protected]/24/25/29.97 /30/50/59.94/60Hz,1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+ |
| HDMI Audio Formats | Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
| Transmission Distance | Max distance (1080p) : 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
|
Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x USB-B [Micro USB, Update port] |
|
Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Control: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White / Black |
|
Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] |
| Weight | Wall plate: 196g, Receiver: 511g |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |

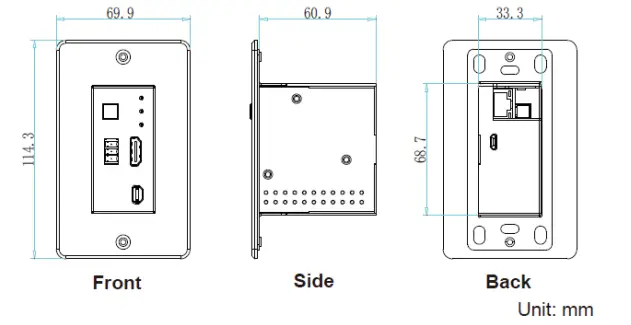

Product Dimensions
Operation Controls and Functions
Transmitter Panel
| No. | Name | Function Description |
| 1 | Power LED | The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby. |
| 2 | HDMI LED | When the HDMI input port is active and the HDMI signal is detected, the green LED will be on. |
| 3 | USB-C LED | When the USB-C input port is active and the USB-Csignal is detected, the green LED will be on. |
| 4 | HDMI port | HDMI input port, connect to HDMI source device. |
| 5 | USB-C port | (1) USB-C signal input port. (2) Charging port for devices with USB-C port. |
| 6 | CHARGE port | Connect this port to the power supply, then the USB-C port will power the connected device. |
| 7 | USB-B port | Connect to the computer’s USB port. |
| 8 | SOURCE button | Used to switch HDMI / USB-C input signal. |
| 9 | HDBaseT OUT | Connect to the HDBaseT IN port of the Receiver witha CAT6/6a/7 cable. |
| 10 | Micro-USB | Firmware update port. |
Receiver Panel
| No. | Name | Function Description |
| 1 | Power LED | When the product is powered on, the red LED indicator will be on. |
| 2 | DC 24V | DC 24V power supply port. |
| 3 | FW | Firmware update port. |
| 4 | HDBaseT IN | Connect to the HDBaseT OUT port of the Transmitterwith a CAT6/6a/7 cable. |
| 5 | HDMI OUT | HDMI output port, connect to HDMI display device. |
| 6 | HDMI IN | HDMI input port, connect to HDMI source device. |
| 7 | AUDIO OUT | Analog audio output port. |
| 8 | USB port | Two USB ports for KVM function. |
Note:
This transmitter supports automatic/manual mode for source signal input. In manual switching mode, press the SOURCE button to select HDMI/ USB-C input source.
In automatic switching mode, the last connected or the currently connected source signal will be selected automatically; When both HDMI and USB-C ports are connected to the active signal, HDMI signal input is preferred; When both HDMI and USB-C ports are not connected to the active signal, it will switch to the source signal of the Receiver.

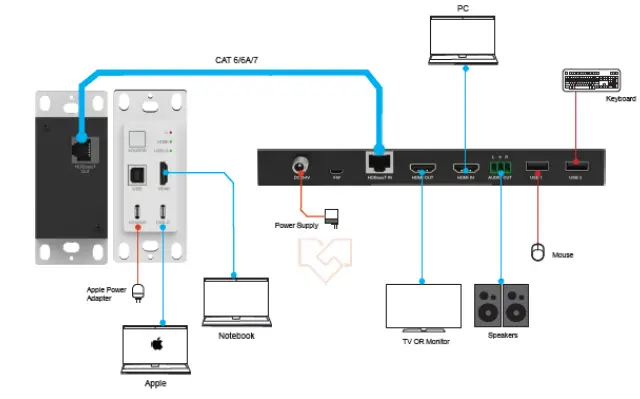

Application Example
