StarTech.com VS221VGA2HD VGA + HDMI to HDMI Switch

Introduction

Packaging Contents

• VGA+HDMI to HDMI converter switch
• mounting kit
• universal power adapter (NA, EU, UK, ANZ)
• instruction manual

System Requirements

• HDMI-enabled source device w/ HDMI cable (i.e. computer, Blu-ray player)
• VGA-enabled source device w/ VGA cable (i.e. computer)
• HDMI-enabled display device w/ HDMI cable (i.e. television, projector)
• 3.5mm audio cable (optional for VGA audio support)

Product Diagram

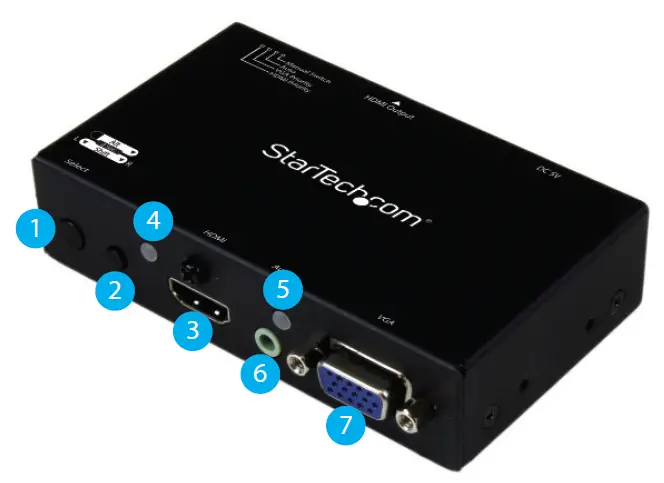

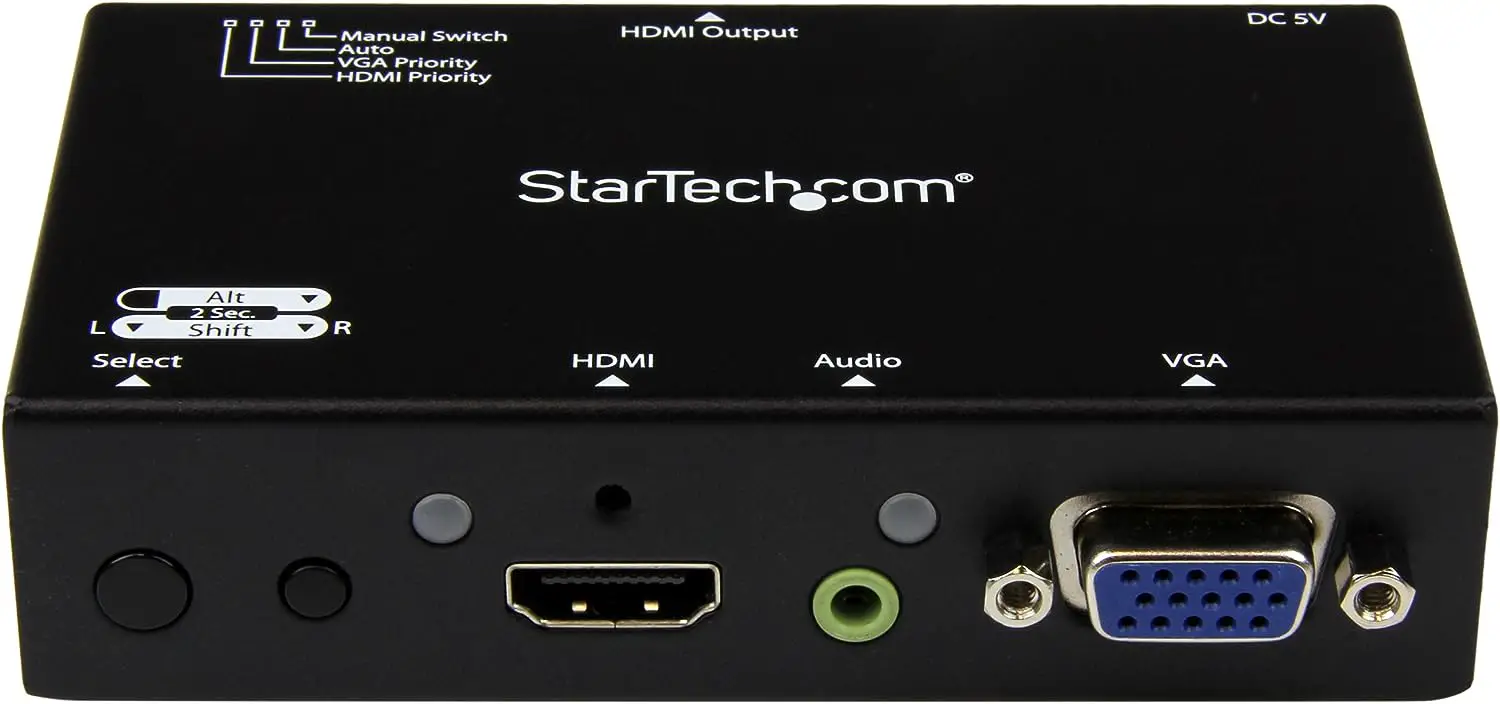

Front View

1. Input Selection / Screen Left Adjustment Button
2. Resolution adjustment/screen right adjustment button
3. HDMI audio/video Input Port #1
4. HDMI LED Indicator
5. VGA LED Indicator
6. 3.5mm Audio Input Port #2
7. VGA Input Port #2

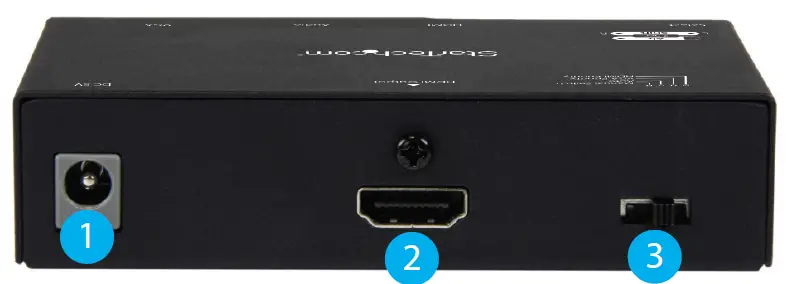

Rear View

1. Power Adapter Port
2. HDMI Output Port
3. Mode Selection Switch

Hardware Installation

1. Using an HDMI cable (not included), connect your HDMI-enabled video source device to the HDMI audio/video input port #1 on the VS221VGA2HD.
2. Using a VGA cable (not included), connect your VGA-enabled video source device to the VGA audio/video input port #2 on the VS221VGA2HD.
3. (Optional) If your VGA-enabled video source device includes an audio output, connect the audio source output on the device to the 3.5mm audio input port #2 on the VS221VGA2HD using a 3.5mm audio cable (not included).
4. Using an HDMI cable (not included), connect your HDMI-enabled display device to the VS221VGA2HD.
5. Using the included power adapter, connect the power adapter port on the VS221VGA2HD to an available power outlet.
6. Turn on the HDMI-enabled display device as well as any connected HDMI & VGA-enabled video source devices.

Mode Selection and Switch Operation

Change the mode selection switch to choose your desired operation mode. Instructions and descriptions for each operation mode are listed below:

Manual Mode

Manual mode enables you to switch between video sources with push button operation.

1. Set the mode selection switch to “Manual Switch” to place the VS221VGA2HD into manual mode.
2. Press the Input Selection Button to toggle between each video source device. The active port LED indicator will light as video sources are switched, indicating which port is selected.

Priority Mode

Priority mode enables you to select a prioritized video input device that will automatically be selected should that device be turned on.

1. Set the mode selection switch to “HDMI Priority” or “VGA Priority” to place the VS221VGA2HD into your choice Video Source Device priority.
2. Your HDMI or VGA Video source device (depending on your selection) will now automatically be displayed on your HDMI-enabled video display device while it is turned on. Turning off the device will automatically switch the display to the remaining device.

Automatic Mode

Automatic Mode enables the VS221VGA2HD to automatically select the most recently turned-on video source device.

1. Set the mode selection switch to “Auto” to place the VS221VGA2HD into automatic mode.
2. The VS221VGA2VHD will now automatically switch to the most recently turned-on video source device.

Screen Shift Mode

Screen Shift Mode can move the screen image to the right or left side of the monitor (horizontal position) for comfortable viewing.

1. Press both screen adjustment buttons simultaneously for 2 seconds and release after the VGA input LED turns to pale blue.
2. Press the left screen adjustment button or the right screen adjustment button (B2) to adjust the image to your desired position.

Notes:

• The system will automatically escape from shift mode if no activity is detected within 20 seconds.
• For adjusting horizontal image displacement, the maximum number of adjustments is 50 steps.
• The VS221VGA2HD will automatically retain your last setting.

Resolution Alteration Mode

If the resolution output from your video source device is not supported by your video display device, the VS221VGA2HD will alert you through the VGA input LED by emitting blue and flashing orange three times. This will be accompanied by your video source not being displayed on the video display device. You can follow the below steps to use Resolution Alteration mode to resolve these symptoms should they occur.

1. Press the resolution adjustment button for 2 seconds and release when the VGA input LED flashes purple.
2. The LED flashes purple once indicating the setting working.

NOTES:

• Repeat these steps again to select next available resolution or to switch back to the previous resolution.
• The VS221VGA2HD will automatically retain your last setting.
