Check battery level: press once.
Power on/off: press, then press and hold.

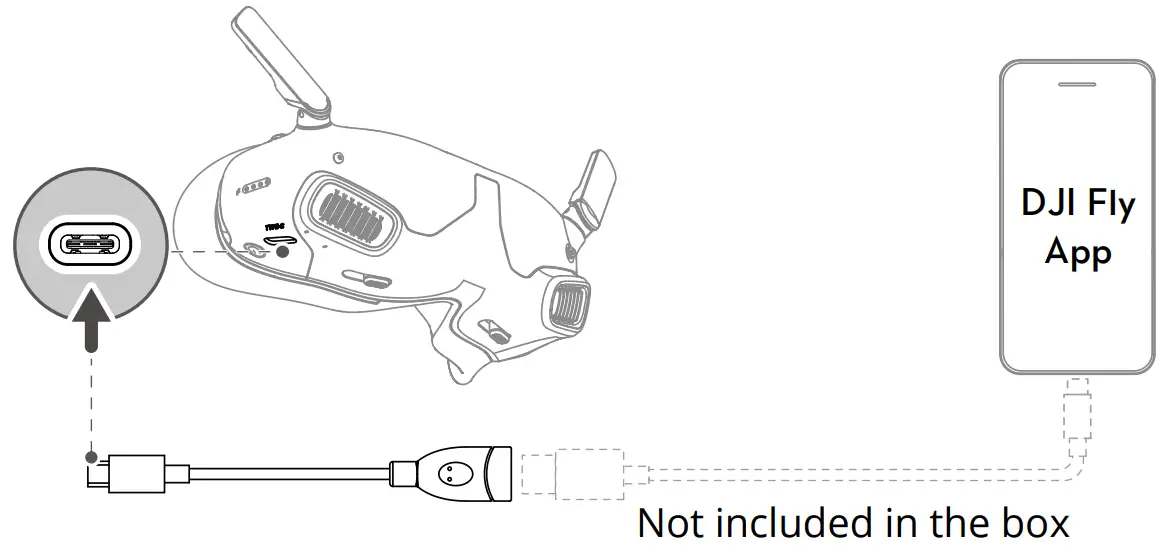

Connect the USB-C port of the goggles to the mobile device with the USB-C OTG cable and a suitable data cable. Run DjJI Fly on the mobile device and follow the prompts to activate the DJI devices.

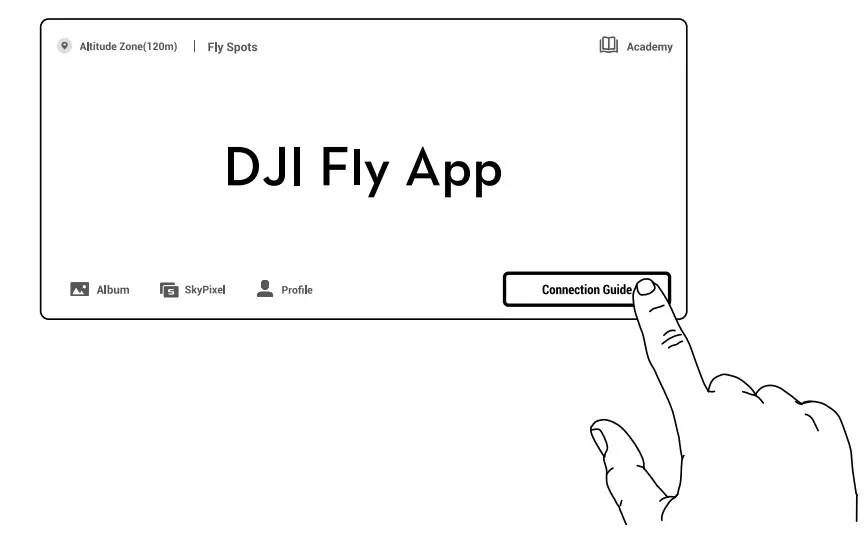

After activation, tap Connection Guide on Dj! Fly and follow the on-screen instructions to connect the aircraft.

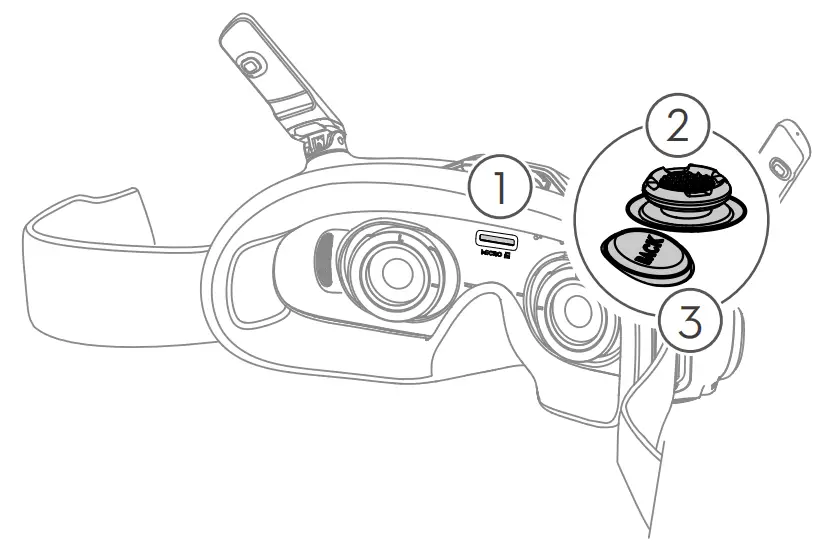

1. microSD Card Slot
2. 5D Button
   Press down or toggle to the right to open the menu from the FPV view of the goggles. Toggle the button forward to open the camera settings panel and toggle backward
   to open the shortcut menu.
   After a settings panel is opened, toggle the button to navigate the menu or adjust the parameter value. Press the button to confirm the selection.
3. Back Button

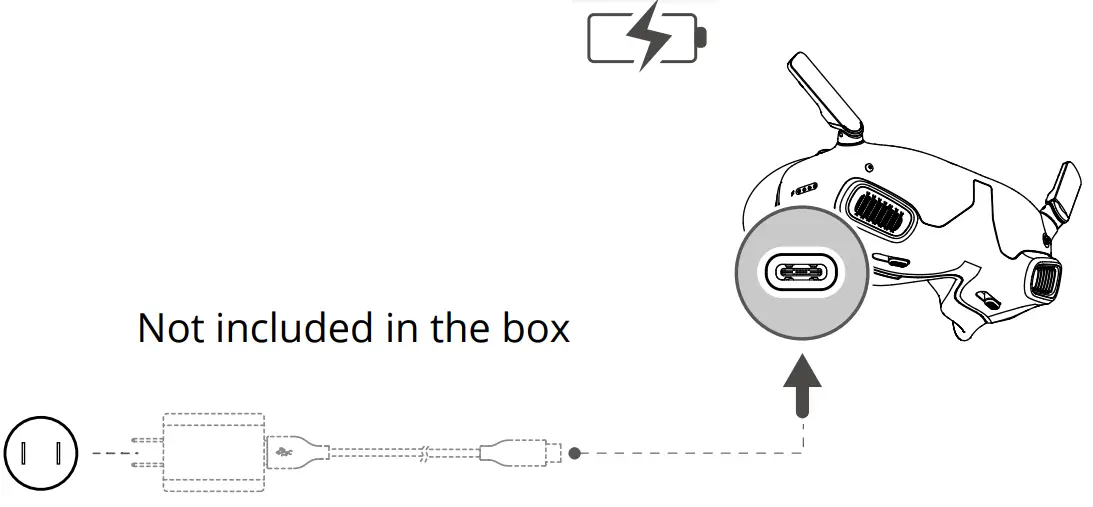

It is recommended to use a USB Power Delivery charger that supports 9 V, 22 A output.

https://s.dji.com/guide52

dij is a trademark of Djl.
Copyright © 2023 Djl All Rights Reserved.
