SERVICE NOTE (Check the following note before the service.)
- PRECAUTION ON REPLACING THE SY-296 BOARD
- PRECAUTION ON REPLACING THE CABINET FRONT
[About the service of this model]
- NEX-7K is commodity that packed the Interchangeable Lens Digital Camera and Interchangeable Lenses.
- Refer to each following service manual the Interchangeable Lens kit, when you repair.
- When replacing a part of lens (SEL1855), do not replace the part of silver model with the one for black model and vice versa.
| Model | Lens | Service Manual of Lens |
| NEX-7 | No supplied lens | No supplied lens |
| NEX-7K | SEL1855 (E 18-55mm F3.5-5.6 OSS) | 9-852-799-1[] |
INTERCHANGEABLE LENS DIGITAL CAMERA
Revision History
| Ver. | Date | History | Contents | S.M. Rev. issued |
| 1.0 | 2011.10 | Official Release | — | — |
| 1.1 | 2012.01 | Revised-1 (A1 11-323) | • Correction of REPAIR PARTS LIST. Page 2-8 • Addition of ASSEMBLY. Page 3-2 | Yes |
| 1.2 | 2012.02 | Revised-2 (A2 11-353) | • Correction of ACCESSORIES. Page 2-12 | Yes |
| 1.3 | 2012.04 | Revised-3 (A3 12-056) | • Correction of REPAIR PARTS LIST. Page 2-4, 2-6, 2-7 • Correction of ACCESSORIES. Page 2-12 | Yes |
| 1.4 | 2012.07 | Revised-4 (A4 12-190) | • Correction of REPAIR PARTS LIST. Page 2-9 | Yes |
| 1.5 | 2013.12 | Revised-5 (A5 13-147) | • Correction of REPAIR PARTS LIST. Page 2-7 | Yes |
EXPLODED VIEWS

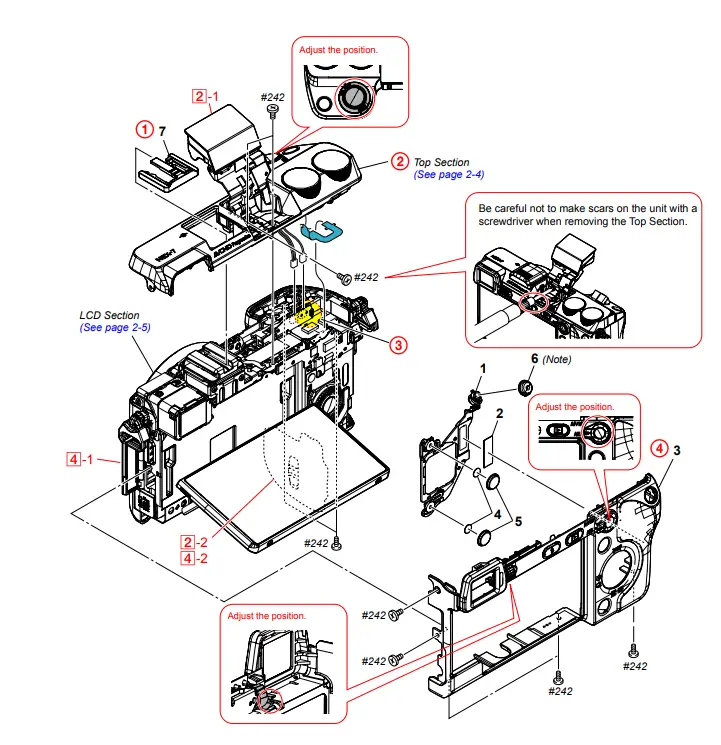

REAR SECTION
Ver. 1.3 2012.04

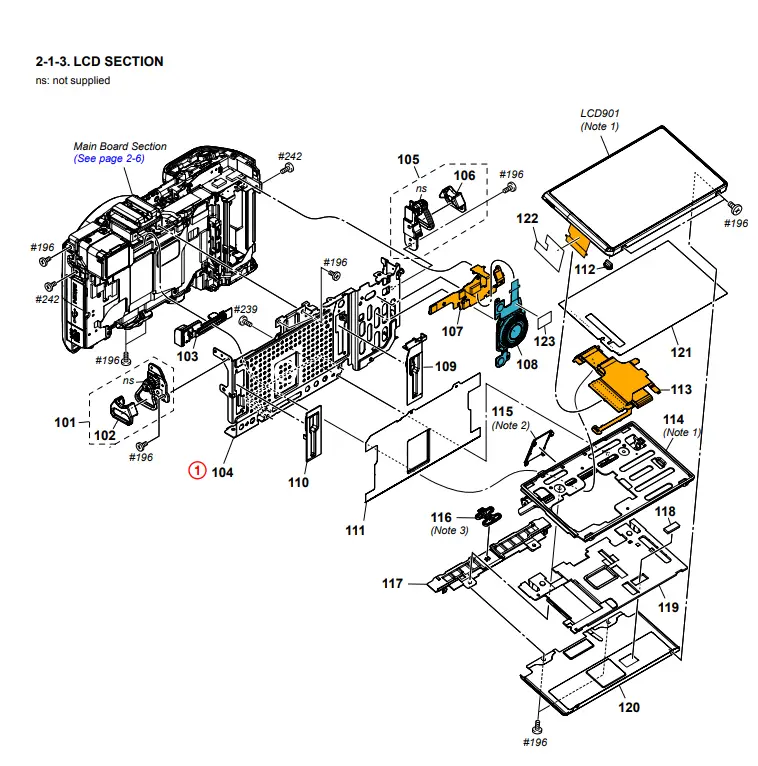

The changed portions from Ver. 1.2 are shown in blue. 2-1-4. MAIN BOARD SECTION

2-1-4. MAIN BOARD SECTION

Ver. 1.1 2012.01
The changed portions from Ver. 1.0 are shown in blue.

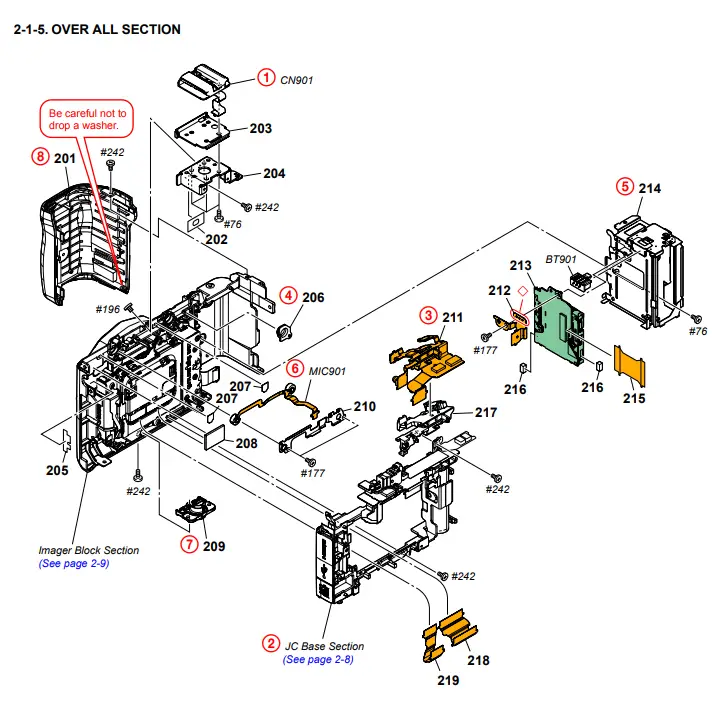

2-1-6. JC BASE SECTION
ns: not supplied
Ver. 1.4 2012.07
The changed portions from Ver. 1.3 are shown in blue.

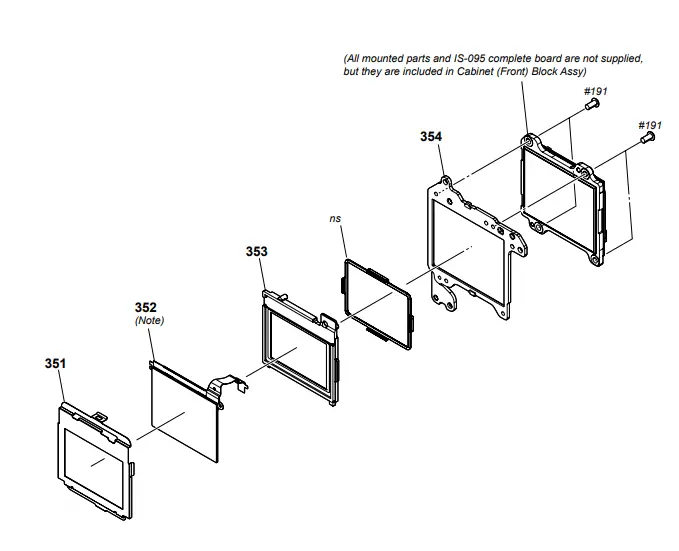

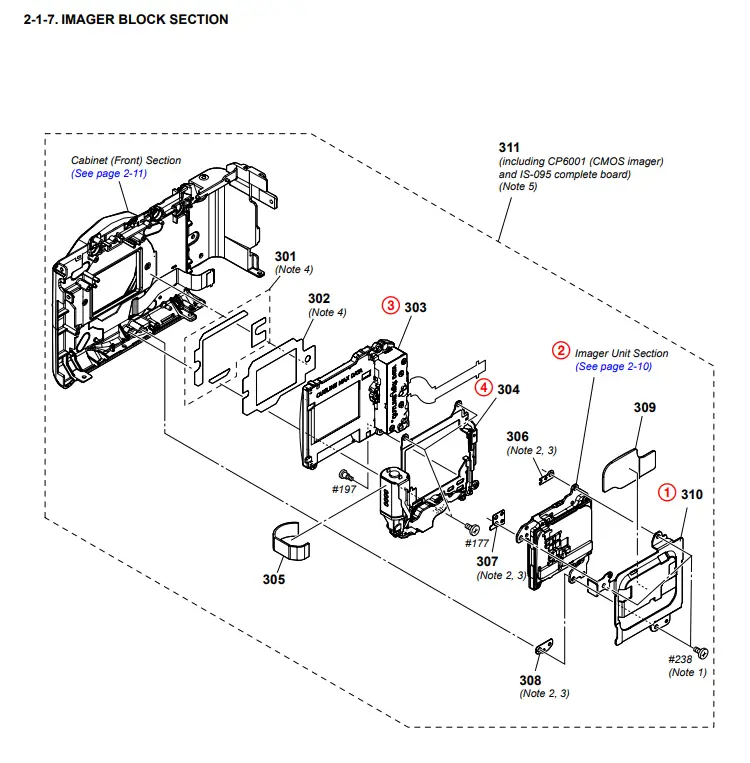

2-1-8. IMAGER UNIT SECTION
ns: not supplied

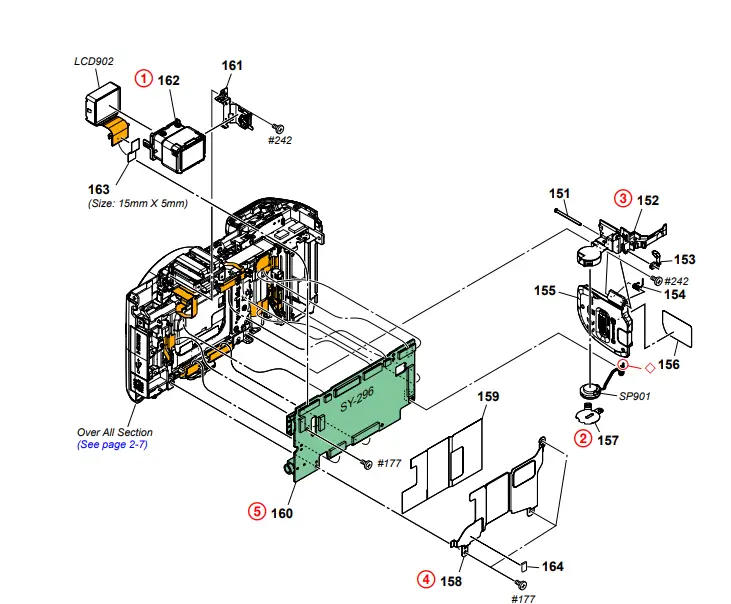

2-1-9. CABINET (FRONT) SECTION

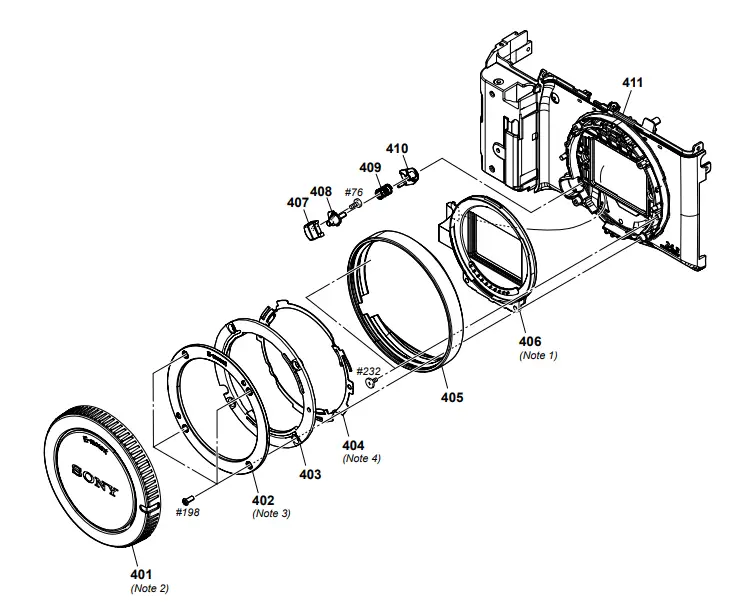

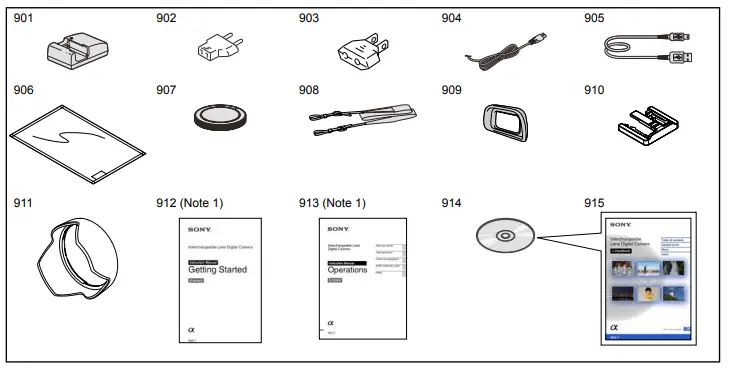

ACCESSORIES
This item is supplied with the unit as an accessory, but is not prepared as a service part. 951
