Tesla Wl71291m Washing Machine User Manual

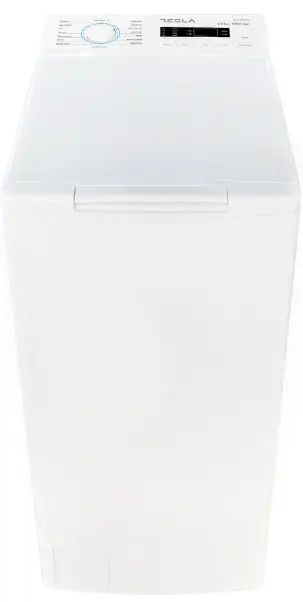

TESLA WL71291M Washing Machine

SAFETY INSTRUCTIONS

For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

Explanation of the symbols

WARNING: This combination of symbol and signal word indicates a potentially dangerous situation that may result in death or serious injuries unless it’s avoided.
CAUTION: This combination of symbol and signal words indicates a potentially dangerous situation that may result in slight or minor injuries or damage to property and the environment.
NOTE: This combination of symbol and signal word indicates a potentially dangerous situation that may result in slight or minor injuries.

WARNING: The electric shock!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and the old hose sets should not be reused.
• Before any maintenance the device, unplug the appliance from the mains.
• Always unplug the machine and turn off the water supply after use. The max. inlet water pressure, in pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified technician in accordance with the manufacturer’s instructions and local safety regulations.

Risk to children

• EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3years should be supervised to ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check the machine before every operation.
• Kids should be supervised so that they do not play with the appliance.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.
• The plug must be accessible after installation.

Risk of explosion!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances( such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• Beforehand thoroughly rinse items of washing by hand.

CAUTION

Installing the product

• This washing machine is for indoor use only.
• It isn’t intended to be built-in use.
• The openings must not be obstructed by a carpet.
• Washing machines shall not be installed in bathrooms or very wet rooms as well as in rooms with explosive or caustic gases.
• The washing machine with a single inlet valve only can be connected to the cold water supply. The product with double inlet valves should be correctly connected to the hot water and cold water supply.
• The plug must be accessible after installation.
• Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may result.

Risk of damaging appliance

• Your product is only for home use and is only designed for textiles suitable for machine washing.
• Do not climb up and sit on the top cover of the machine.
• Do not lean against the machine door.
• Cautions during Handling Machine:

1. Transport bolts shall be reinstalled to the machine by a specialized person.
2. The accumulated water shall be drained out of the machine.
3. Handle the machine carefully. Never hold each protruded part on the machine while lifting. The machine door can not be used as the handle during the conveyance.
4. This appliance is heavy. Transport with care.

• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
• It is forbidden to wash carpets.

Operating the appliance

• Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drums.
• Make sure that all pockets are emptied. Sharp and rigid items such as coin, brooch, nails, screws or stones etc. may cause serious damage to this machine.
• Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, please wait for two minutes to open the door.

Packaging/Old appliance

This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmentally safe recycling.

INSTALLATION

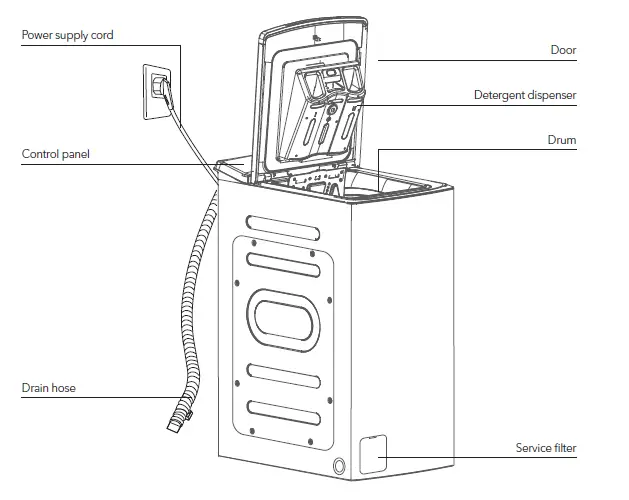

Product Description

NOTE: The product line chart is for reference only, please refer to real product as standard.

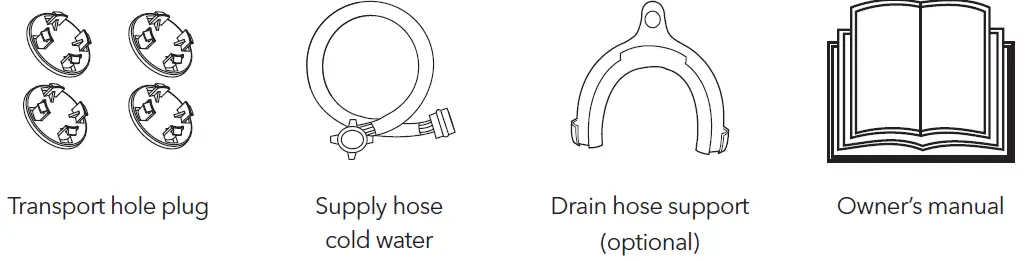

Accessories

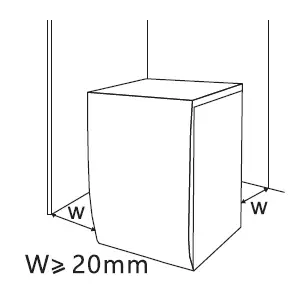

Installation area

WARNING

• Stability is important to prevent the product from wandering!
• Make sure that the product should not stand on the power cord.

Before installing the machine, the location characterized as follows shall be selected

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. The room temperature is above 0 °C
5. Keep far away from the heat resources such as coal or gas.

Unpacking the washing machine

WARNING

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing. Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with the side surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

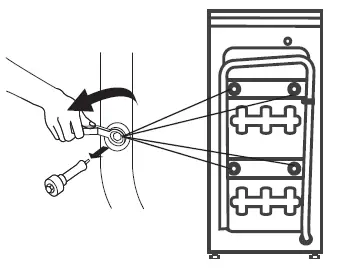

Remove transport bolts

WARNING

• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product, so make sure you keep them in a safe place.

Please take the following steps to remove the bolts

1. Loosen 4 bolts with the spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

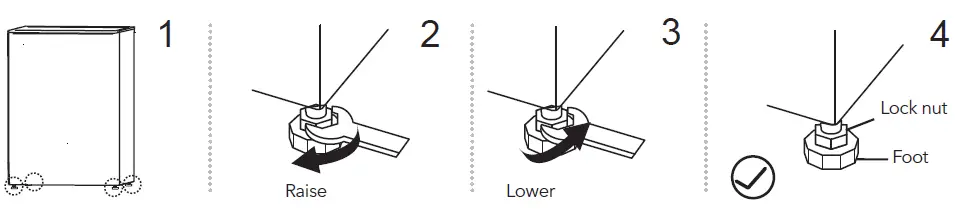

Leveling the washing machine

WARNING: The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions and tighten the nuts.
2. Loosen the lock nut and turn the feet until it closely contacts the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

Connect Water Supply Hose

WARNING

• To prevent leakage or water damage, follow the instructions in this chapter!
• Do not kink, crush, modify or sever water inlet hose.
• For the model equips hot valve,connect it to hot water tap with hot water supply hose. Energy consumption will decrease automatically for some programs.

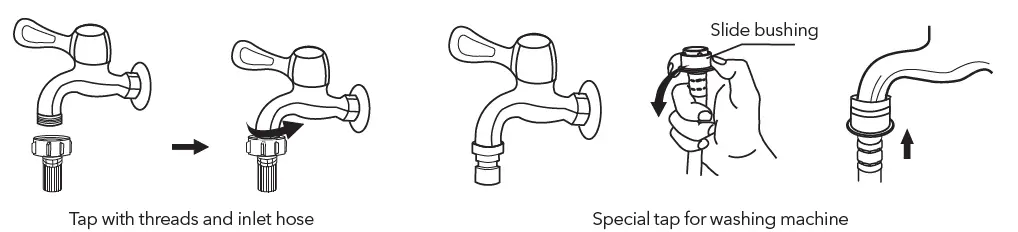

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.

1. The connection between ordinary tap and inlet hose.

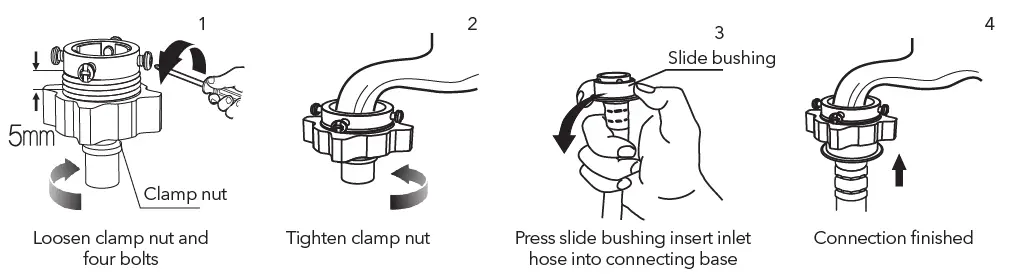

2. The connection between screw tap and inlet hose.

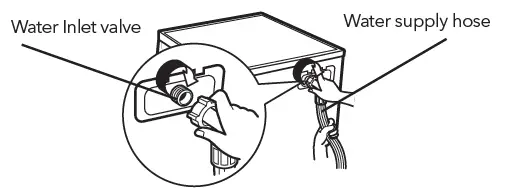

• Connect the other end of the inlet pipe to the inlet valve at the backside of the product and fasten the pipe tightly clockwise.

Drain Hose

WARNING

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result from water leakage.

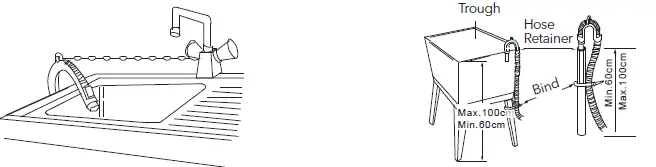

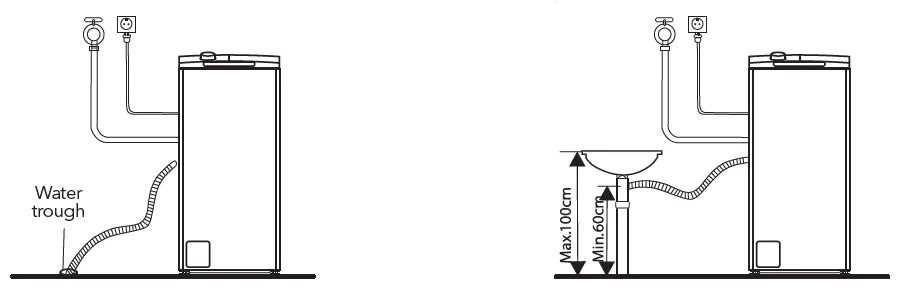

There are two ways to place the end of the drain hose

1. Put the hose into the water drain.
2. Connect it to the branch drain pipe of the trough.

NOTE: If the machine has drain hose support, please install it like the following.

WARNING

• When installing the drain hose, fix it properly with a rope.
• If the drain hose is too long, do not force it into the washing machine as it will cause abnormal noises.

OPERATIONS

Quick Start

CAUTION: Before washing, please make sure it’s installed properly.

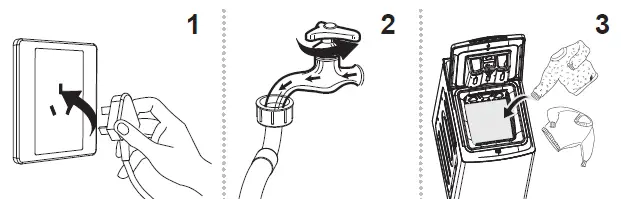

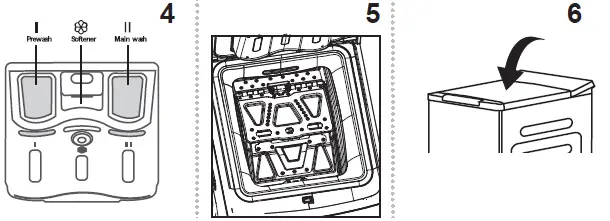

Before Washing

1. Plug in
2. Open tap
3. Load

1. Add detergent
2. Close drum door
3. Close machine door

NOTE

• Detergent need to be added in “case I “after selecting pre-washing for machines with this function.

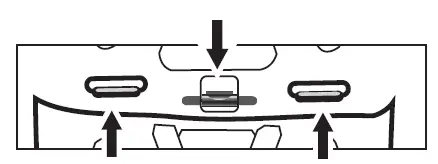

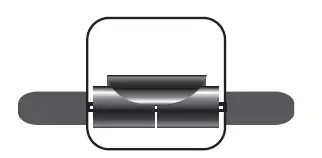

• Make sure that the drum flaps are properly locked.
• All metal hooks must be properly hooked inside the rear door flap.
• Check the roller before each laundry, it must roll smoothly.

Washing

1. Select program
2. Select function or default
3. Startup

NOTE: If the default is selected, step 2 can be skipped.

After Washing

• Buzzer beep or “End” on display.

Before Each Washing

• The working condition of the washer should be (0-40) °C. If used under 0 °C, the inlet valve and draining system may be damaged. If the machine is placed under a condition of 0 °C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use.

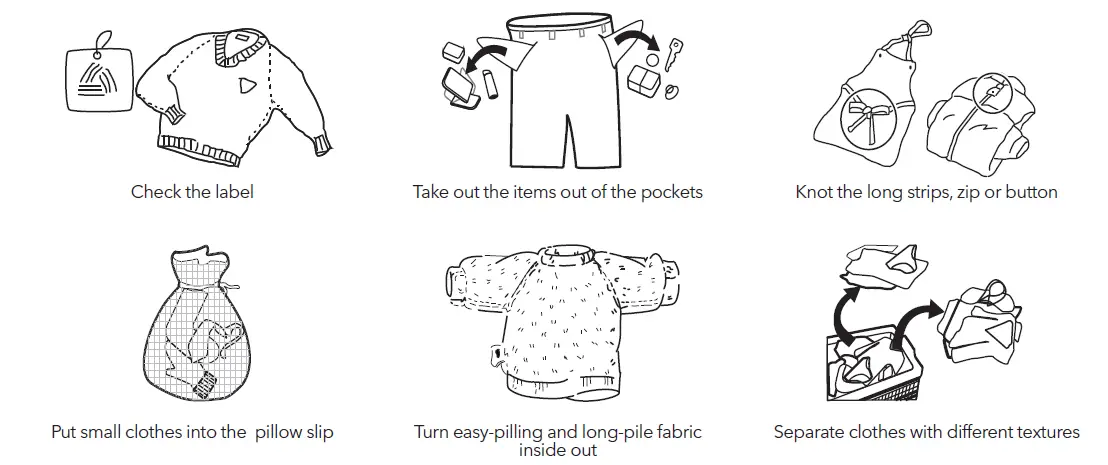

• Please check the labels and the explanation of using detergent before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

WARNING

• When washing single clothes, it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.
• Don’t wash clothes that have been in touch with kerosene, gasoline, alcohol, and other flammable materials.

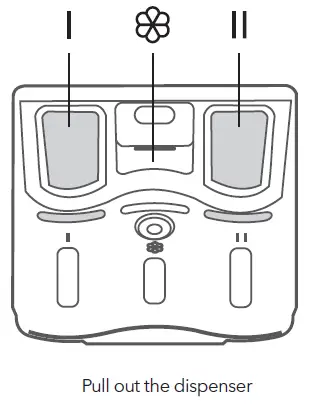

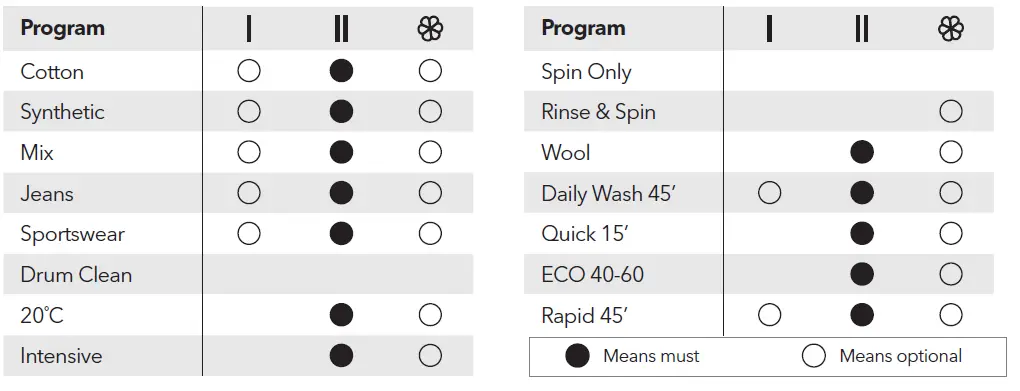

Detergent Dispenser

• Prewash detergent
• Main wash detergent
• Softener

CAUTION

• Detergent only needs to be added in “case I “after selecting pre-washing for machines with this function.
• Do not exceed the “MAX” level mark when filling in detergent, additives, or softener.

NOTE

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of the detergent box from being blocked and overflowing while filling water.
• Please choose the suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.

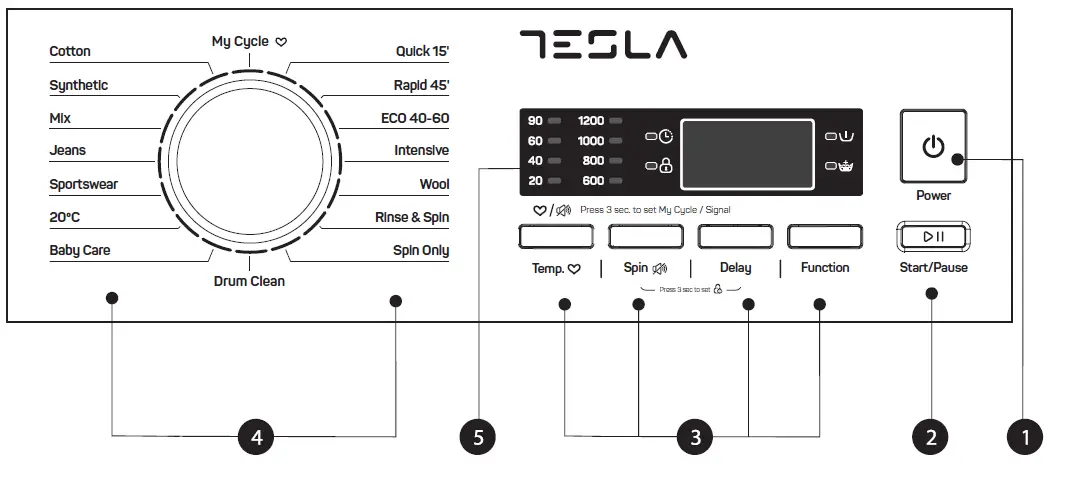

Control Panel

NOTE: The chart is for reference only, Please refer to the real products as standard.

1. On/Off
   1. The product is switched on or off.
2. Start/Pause
   1. Press the button to start or pause the washing cycle.
3. Option
   1. This allows you to select an additional function and will light when selected.
4. Program
   1. Available according to the laundry type.

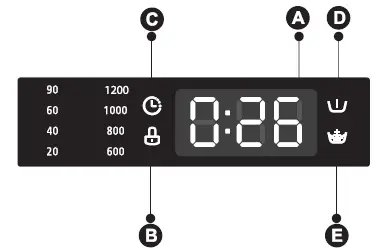

5. Display
   1. The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

Option

Pre Wash

• The Prewash function can get an extra wash before the main wash,it is suitable for washing the dust that rises to surface of the clothes;You need to put detergent into the Case (I) when selecting it.

Extra Rinse

• The laundry will undergo an extra rinse once you select it.

Delay

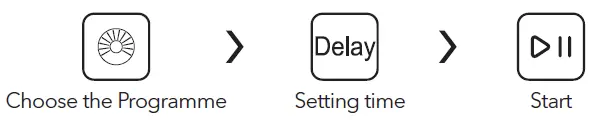

Set the Delay function

1. Select a program;
2. Press the Delay button to choose the time (the delaying time is 0-24 H/3H-6H-9H);
3. Press [Start/Pause] to commence the delay operation

Cancel the Delay function

• Press the [Delay] button until the display is 0H. It should be pressed before starting the program.
• If the program already started should switch off the program to reset a new one.

CAUTION: If there is any break in the power supply while the machine is operating, a special memory stores the selected program and when the power is restarted, the program will continue.

Program	Option
	Delay	Extra rinse	Pre-wash
Cotton
Quick 15’
Rapid 45’
ECO 40-60
Intensive
20C
Rinse & Spin
Spin Only

Program	Option
	Delay	Extra rinse	Pre wash
Drum Clean
Baby Care
Sportswear
Jeans
Wool
Synthetic
Mix

• Means optional(Some models have an intelligent weighing function, please refer to the actual product)

Other functions

• Temp: Press the button to regulate the temperature (Cold, 20°C, 40°C, 60°C, 90°C)
• Spin: Press the button to change the speed: 0-600-800-1000-1200

Child Lock: To avoid misoperation by children.

CAUTION

• During the “Child Lock” function is active, the buzzer will beep “Di-Di-Di”, When the buttons are pressed.
• Press the two button 3sec. also to be released the function.
• The “Child Lock” will lock all buttons except Power button.
• Cut off the power supply, the kid’s protection is to be released.

Mute the buzzer

• To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

CAUTION: After Muting the buzzer function, the sounds will not be activated anymore.

My Cycle

• To memory the frequently used program.
• After choosing the program and setting the options, press [Temp.] 3 sec. before starting to wash.
• The default setting course is Cotton.

Programs

Programs are available according to the laundry type

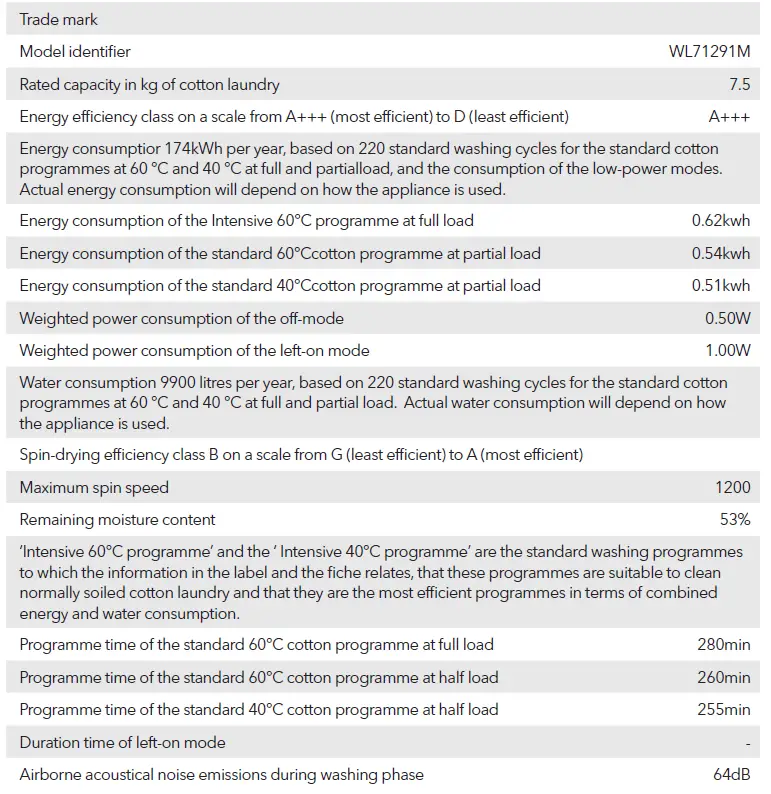

Washing Programs Table

Concerning to EN 60456:2016 With (EU)No.1061/2010

• The EU energy efficiency class is: A+++
• Energy test program: Intensive 60/40C; Speed: The highest speed; Other as the default.
• Half load for 7.5Kg machine:3.75Kg.

Concerning EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023

• The EU energy efficiency class is: C
• Energy test program: ECO 40-60. Other as the default.
• Half load for 7.5Kg machine: 3.75Kg.
• Quarter load for 7.5Kg machine: 2.0Kg.

NOTE: The parameters in this table are only for user’s reference. The actual parameters were maybe different from the parameters in the above-mentioned table.

MAINTENANCE

Cleaning And Care

WARNING: Before your maintenance starts, please unplug the machine and close the tap.

Cleaning The Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed.

NOTE: Formic acid and its diluted solvents or equivalent are forbidden, such as alcohol, solvents or chemical products, etc.

Cleaning The Drum

• The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.
• Never use steel wool.

NOTE: Don’t put laundry in the washing machine during the drum cleaning.

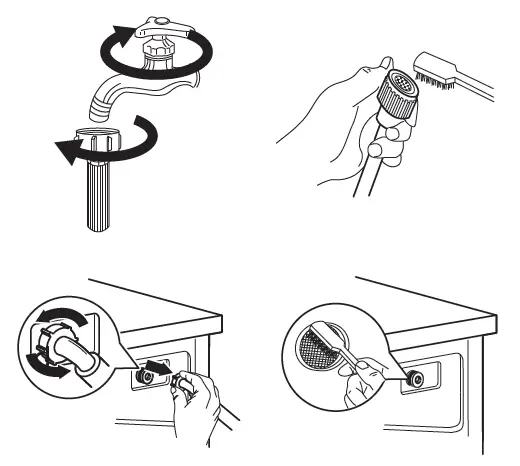

Cleaning The Inlet Filter

NOTE: Inlet filter must be cleaned if there is less water.

Washing the filter in the tap

1. Close the tap.
2. Remove the water supply hose from the tap.
3. Clean the filter.
4. Reconnect the water supply hose.

Washing the filter in the washing machine

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Use the brush to clean the filter.
4. Reconnect the inlet pipe.

NOTE

• If the brush is not clean, you can pull out the filter washed separately;
• Reconnect, and turn on the tap.

Clean The Detergent Dispenser

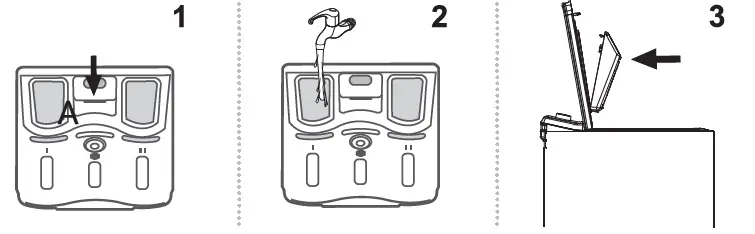

1. Press down the arrow located on the softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
3. Restore the softener cover and push the drawer onto the position.

• Pull out the dispenser drawer with press the A
• Clean the dispenser drawer under water
• Insert the dispenser drawer

NOTE: Do not use alcohol, solvents or chemical products to clean the machine.

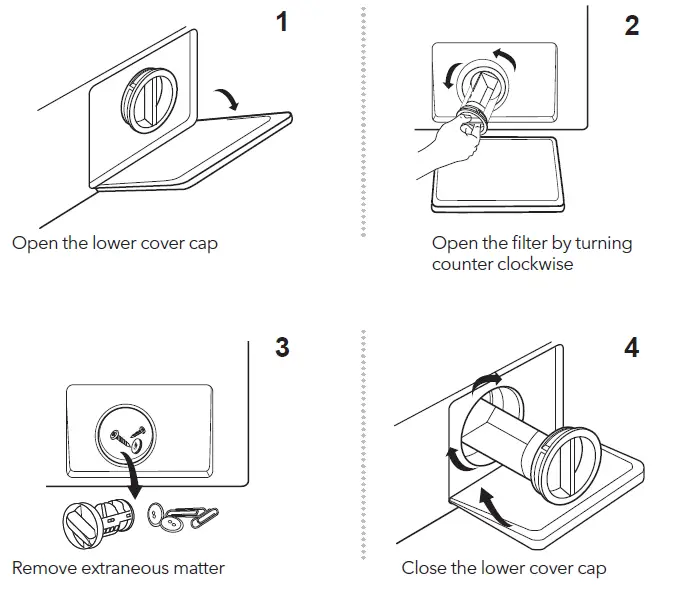

Cleaning The Drain Pump Filter

WARNING

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

CAUTION

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

TROUBLESHOOTING

• The start of the appliance does not work or it stops during operation.
• First, try to find a solution to the problem, If not, contact the service center.

NOTE: After the check, activate the appliance. If the problem occurs or the display shows other alarm codes again, contact the service.

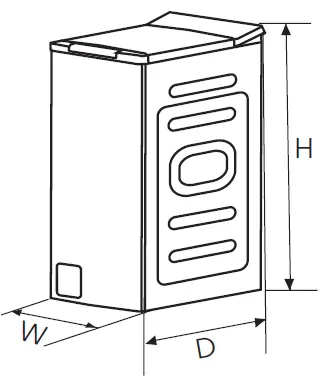

Technical Specifications

Product Fiches

Product fiche concerning to EN 60456:2016 With (EU)No.1061/2010.

Energy test program: Intensive 40/60. Speed: the highest speed; Other as the default.

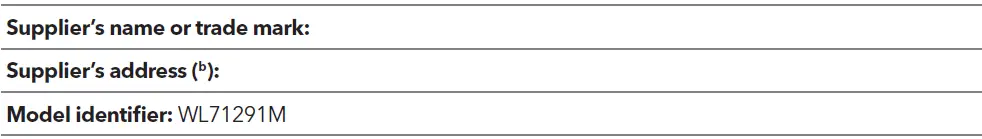

General product parameters

Minimum duration of the guarantee offered by the supplier (b)

Additional information

Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Regulation

(EU) 2019/2023 (1) (b) Is found

• for the eco 40-60 program.
• changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 201 7/1 369.
• if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

NOTE

• Program setting for testing in accordance with applicable standard En60456.
• When using the test programs, wash the specified load using the maximum spin speed.
• The actual parameters will depend on how the appliance is used and may be different from the parameters in the above-mentioned table.
• The household washing machine is equipped with the power management system. The duration of the lefton mode time is less than 10 minutes.
• The noise emissions during washing/spinning for the standard washing cycle at full load.

tesla.info
