Vehicle Gateway
CBL-VG-HJ1939-PAC
2017 MX/MX-13 PACCAR I 2017-2018 MX-11 PACCAR
WARNING: USE ONLY WITH VG54-NAH
ADVERTENCIA: USA SOLO CON VG54-NAH
INSTALL GUIDE GUIDE INSTALLATION
samsara.com/support

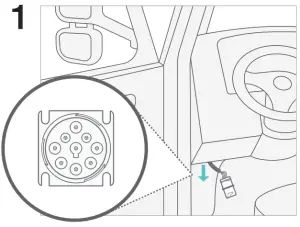

- Locate the vehicle’s diagnostic port and detach it from its original location.

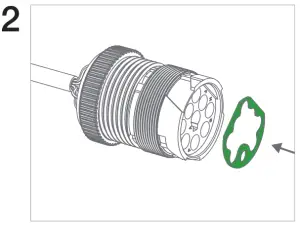

- Apply the Type 2 Indicator Label.
- Attach appropriate mounting clip—match up the colored line with a white line on the connector, and ensure the teeth lock at the 2

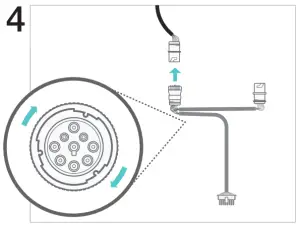

locations. - Connect Samsara cable to vehicle port and twist to lock.

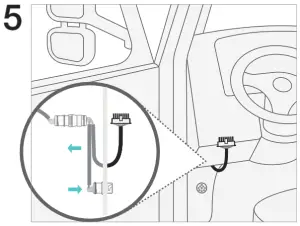

- Mount new port to the stock location.

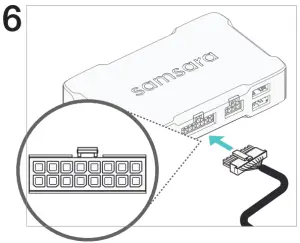

- Plug the Samsara gateway connector into the Gateway. It will click when fully inserted.
- Fasten connected gateway in a secure position. Verify the gateway indicator light turns green, this could take 1-3 minutes.
locations.
