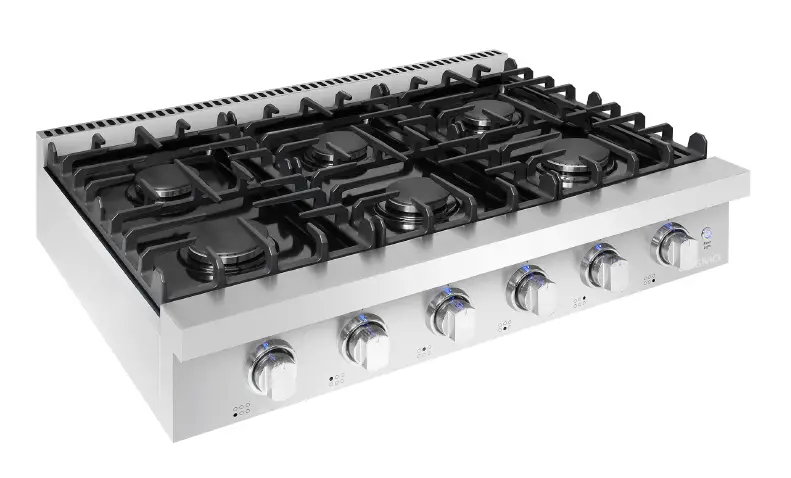

COSMO COS-GRT366 Gas Cooktop COSMO COS-GRT366 Gas Cooktop product

SPECIFICATIONS

Cosmo’s COS-GRT366 gas cooktop is sleek and refined, adding character to any home kitchen. Equipped with 6 Italian-made gas burners, including a high performance 18,000 BTU Burner, allowing for accurate cooking temperatures.

Product Width36 Inches
Installation TypeSlide-In
FuelGas
ControlsMetal Constructed Knobs
Material304 Stainless Steel
Electrical Rating120V / 60Hz
AdditionalHardware, Install Kit, Power Cord
Warranty3-Year Limited Parts
Burner Type / BTU•   Left Front / 18,000 BTU

•   Left Rear / 13,000 BTU

•   Mid Front / 8,500 BTU

•   Mid Rear / 8,500 BTU

•   Right Front / 13,000 BTU

•   Right Rear / 4,200 BTU

FEATURES

  • DESIGNED FOR SLIDE-IN INSTALLATION
  • 6 ITALIAN-MADE GAS BURNERS
  • ELECTRONIC IGNITION
  • FRONT METAL CONSTRUCTED CONTROL KNOBS
  • HIGH GLOSS BLACK PORCELAIN SURFACE
  • HEAVY-DUTY CAST IRON GRATES

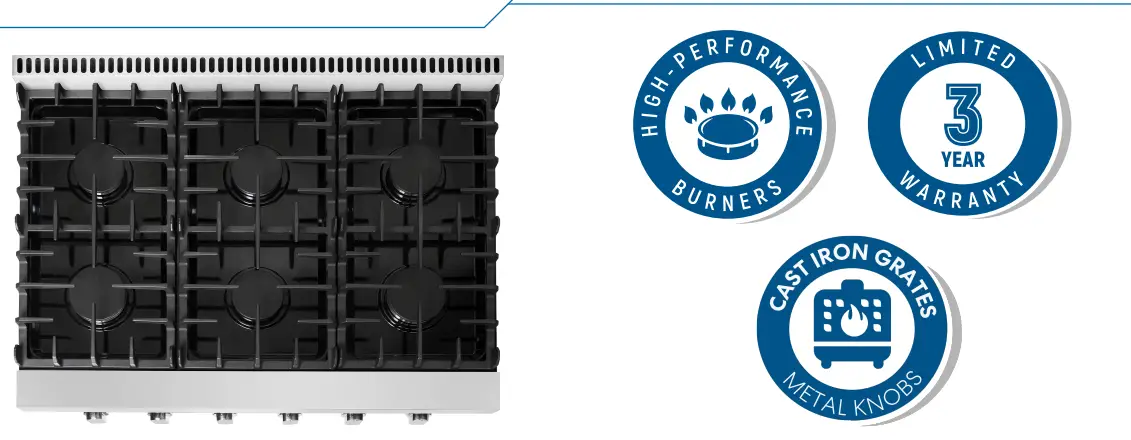

COSMO COS-GRT366 Gas Cooktop fig 1

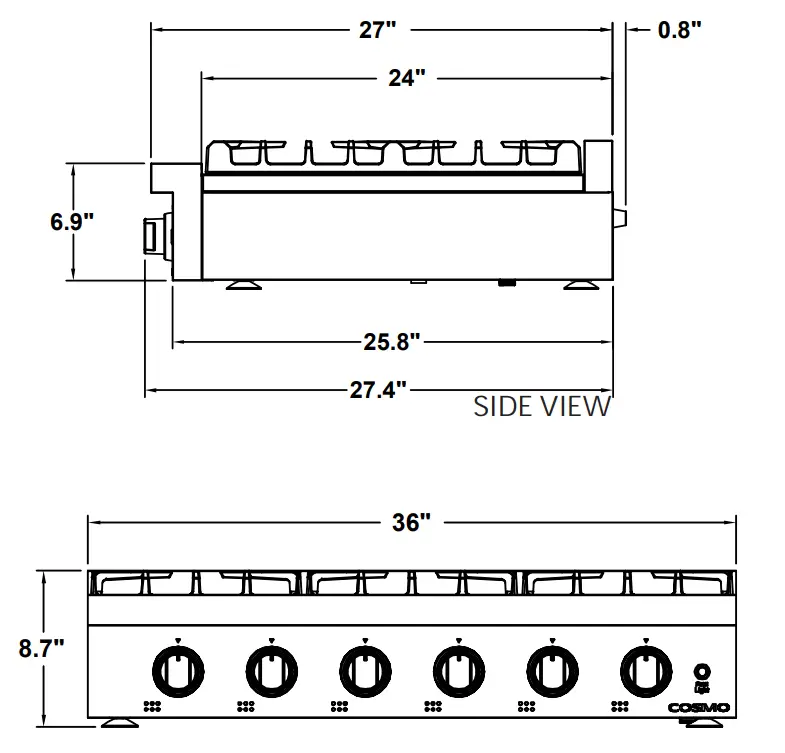

DIMENSIONSCOSMO COS-GRT366 Gas Cooktop fig 2

FRONT VIEW

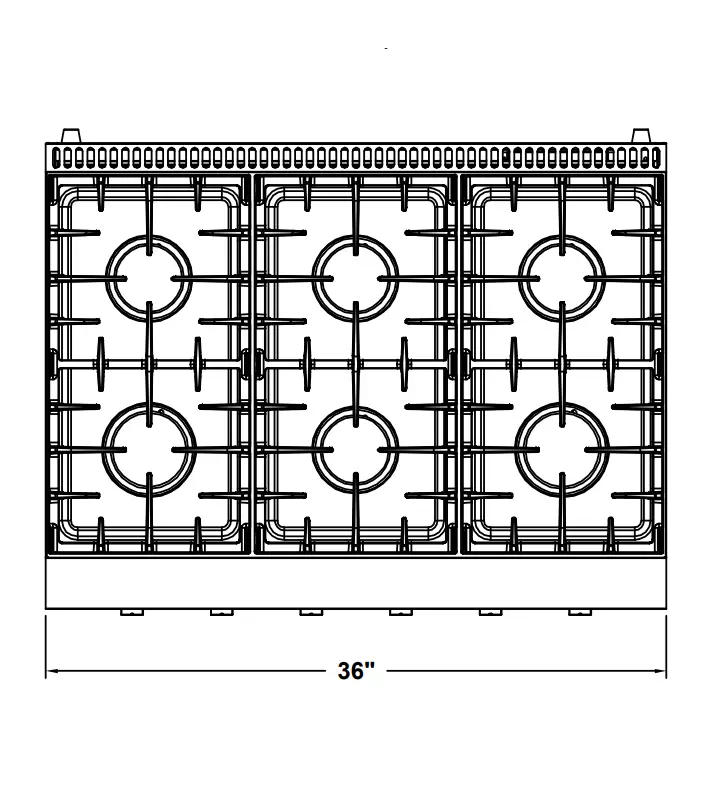

COSMO COS-GRT366 Gas Cooktop fig 3

TOP VIEW

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
