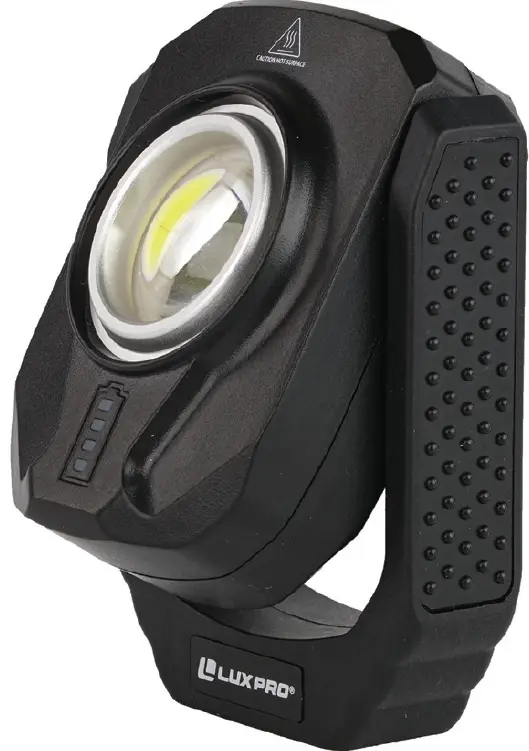

LUXPRO LP387 Rechargeable 360° Swivel LED Work Light

LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light logo

Features

  • Rugged-durable design
  • Strong magnet base
  • 360° swivel capabilities
  • Rechargeable 2300mAh battery (USB cable included)
  • Battery indicator lights
  • IPX4 waterproof rating

ANSI/PLATO FL1 STANDARD

MODESLUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 06LUMENSLUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 06RUN TIMELUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 08BEAM DISTANCE
High1000 lm2h40m
Medium500 lm4h30m
Low250 lm6h20m

Operation Instructions

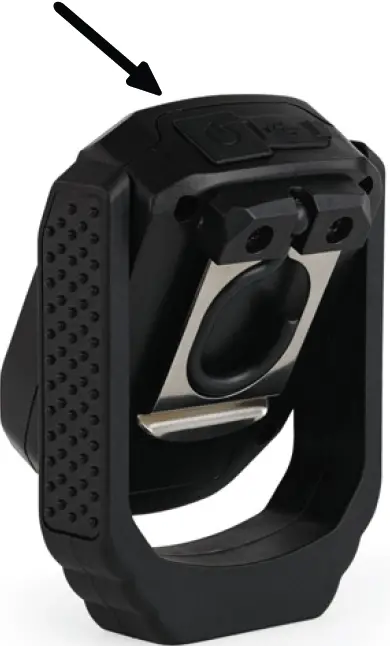

On/Off: Press and release the button on the top of the light to turn on and off. LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 01Cycle Modes: Press and release the button on the top of the light repeatedly to cycle through modes (High/Medium/Low).

Charging Instructions

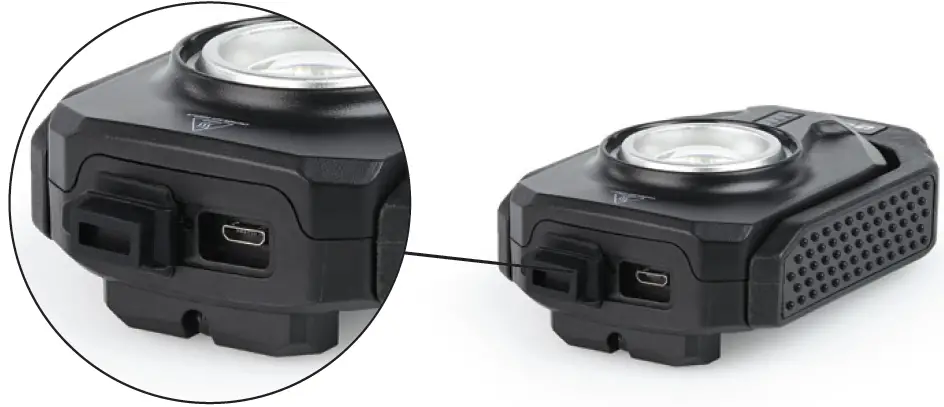

The LP385 uses a Lithium 3.96V, 2300mAh rechargeable battery. To charge the work light, first reveal the charge port by lifting the rubber dust cover on the top of the light. LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 02Plug the small end of the Micro-USB charging cable (included) into the port on the work light. Plug the opposite end of the charging cable into a 5V USB power source.

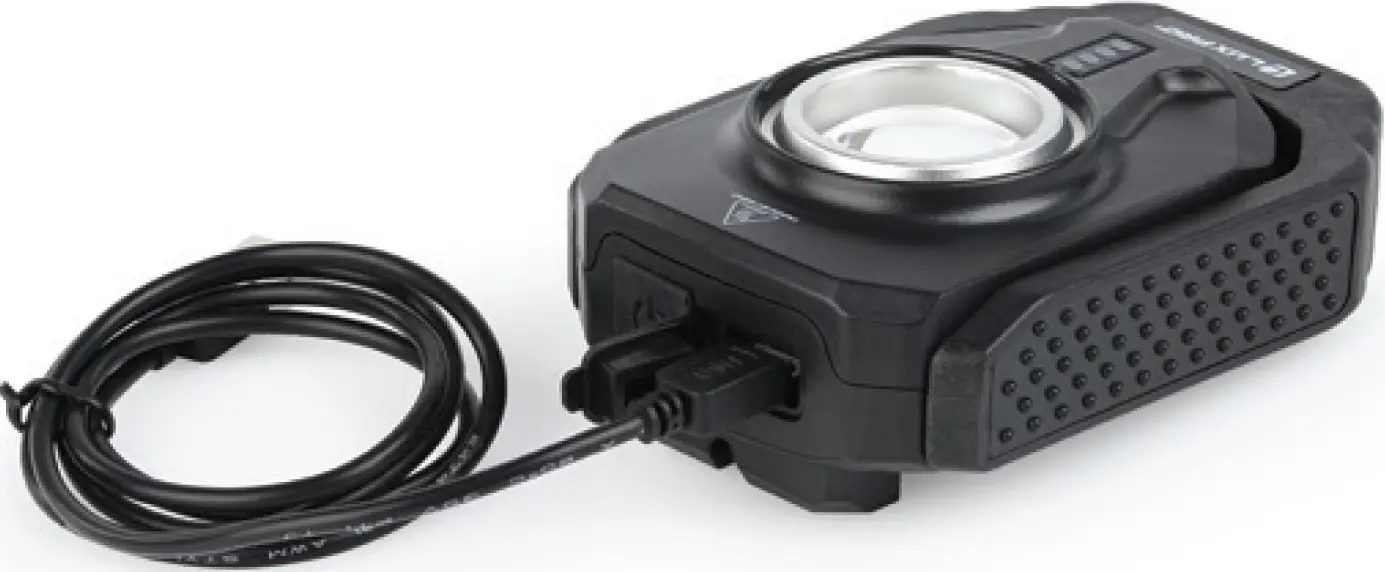

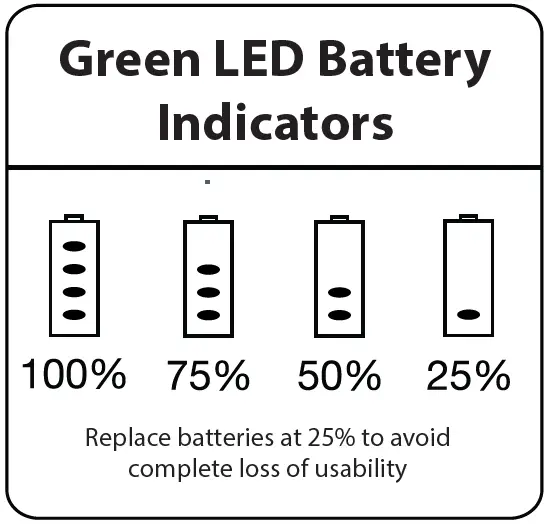

LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 03Green battery indicator lights on the front of the light will start blinking to indicate the light is charging. The work light is fully charged one the indicator lights are no longer blinking.
LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 04

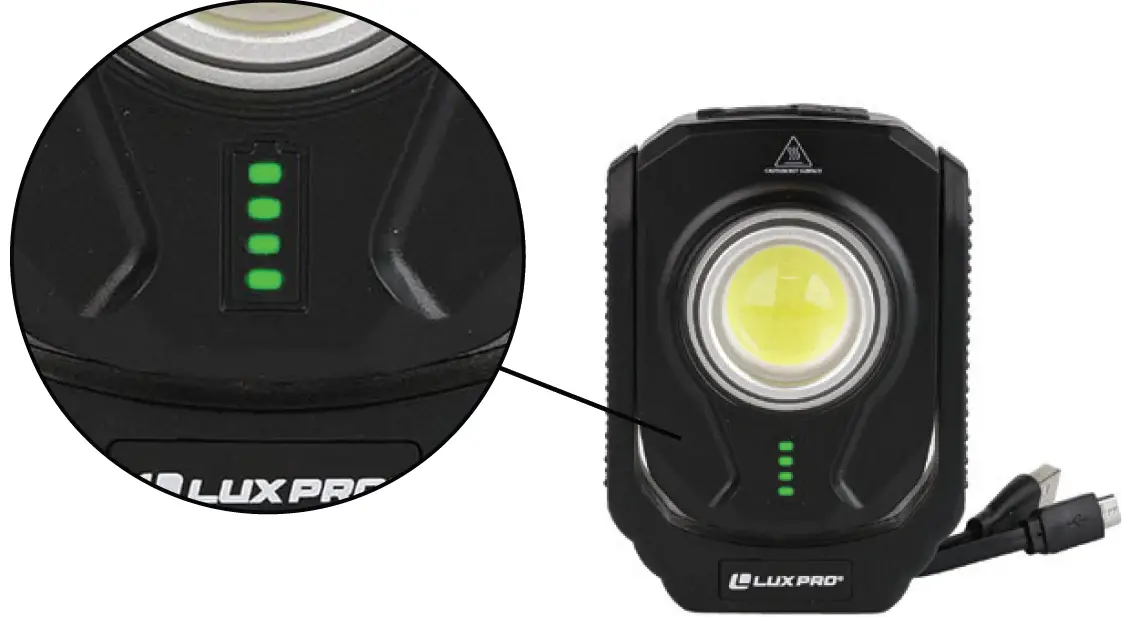

LUXPRO LP387 Rechargeable 360° Swivel LEDWork Light 05Rechargeable battery is sealed, and replacement is not necessary. The LP387 has a charge time of approximately 6 hours.

Product Warranty

The LP387 has a Limited 90-Day Warranty Against Manufacturer’s Defects from time of purchase. For warranty claims please contact us by calling 801-553-8886 or sending an email to [email protected]

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
