USER MANUAL
LP1036
High-Output Handheld Flashlight
6 AAA Batteries

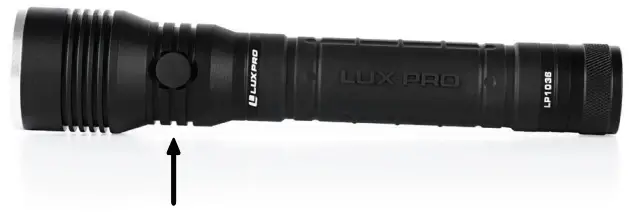

Operation Instructions
On/Off: Press and release the button on the side of the light to turn the light on and off.
Cycle Modes: Press the button on side of the flashlight quickly to cycle through modes (High/Medium/Ultra-Low). If the light remains in a single mode for longer than 3-5 seconds the next press of the button will turn the light off.
Light automatically resets to High mode when turned off.
Hidden Strobe On/Off: Press and hold the button for 3 seconds to activate the hidden strobe. The flashlight will remain in hidden strobe mode until it is deactivated by pushing and holding the button for 3 seconds again.

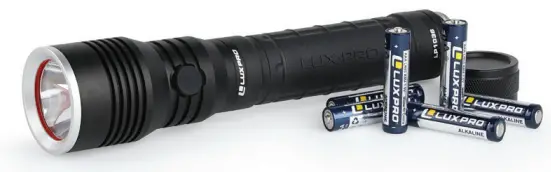

Battery Replacement
The LP1036 can use 6 or 3 AAA batteries.
To replace the batteries, turn the tail cap counterclockwise to remove it. Tip the light downward to slide the batteries out of the tubes.
 | To use light with 6 batteries, insert 3 batteries into each tube (+) side first (batteries will stick out of the opening slightly). |
 | To use light with 3 batteries, insert 3 batteries into just one of the tubes (+) side first. |
For best results, we recommend using brand new alkaline batteries that are the same voltage and brand. Re-attach the tail cap by pressing down and turning it clockwise until tight.
If you know it will be a while between uses, we suggest removing the batteries from the flashlight and storing it in a dry, protected place.
Features
Constructed with aircraft-grade aluminum
Long-range LPE optics
Patented TackGrip rubber grip
Ergonomic side button
Tactical on/button
IPX4 waterproof rating
Runs on 6 or 3 AAA batteries (6 AAA included)
| ANSI/PLATO FL1 STANDARD | |||
| MODES |  LUMENS |  RUN TIME |  BEAM DISTANCE |
| High | 600 lm | 3h 30m | 380m |
| Medium | 210 lm | 13h | 160m |
| Low | 50 lm | 46h 30m | 90m |
| Strobe | 600 lm | — | — |
Product Warranty
The LP1036 has a Limited Lifetime Warranty Against Manufacturer’s Defects from the time of purchase.
For warranty claims please contact us by calling 801-553-8886 or
sending an email to [email protected]
luxpro.com
14725 S Porter Rockwell Blvd Ste C
Bluffdale, UT 84065
866.553.8886
