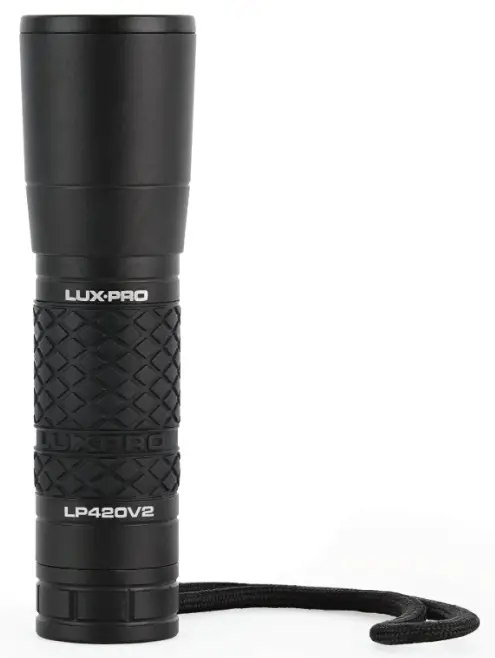

LP420V2 Lumen Tactical LED Compact Handheld Flashlight
User Manual
USER MANUAL LP420V2
Compact Ultra-Bright LED Flashlight
Features
Constructed with aircraft-grade aluminum
Enhanced rubber grip
High-quality wrist lanyard
Tactical on/off button IPX4 waterproof rating
Batteries included (3 AAA)
ANSI/PLATO FL1 STANDARD
| MODES |  LUMENS |  RUN TIME |  BEAM DISTANCE |
| High | 300 lm | 3h | 150m |
| Low | 90 lm | 5h | 50m |
| Strobe | 300 lm | — | — |
Operation Instructions

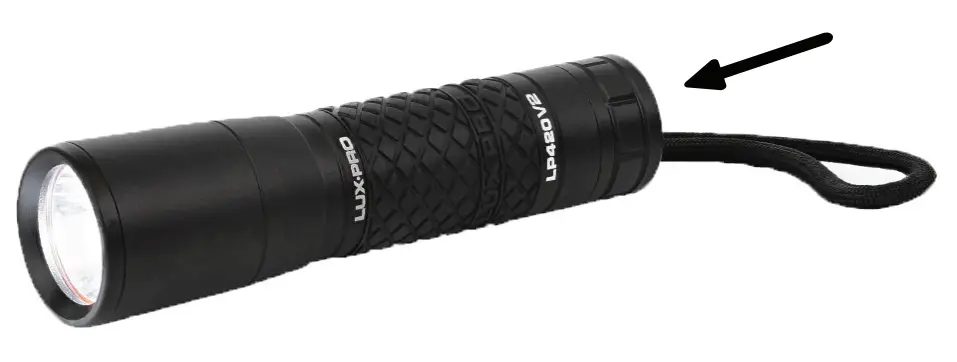

On/Off: Press and release the button on the tail cap to turn the light on and off.
Cycle Modes: First turn the light on by pressing down the button on the tail cap completely and releasing it. Half-press to cycle through the modes (High/Low/Strobe). Turning the flashlight on and off quickly and repeatedly will also cycle the light through the three modes.
The light will automatically reset to High mode when off for longer than 2 seconds.

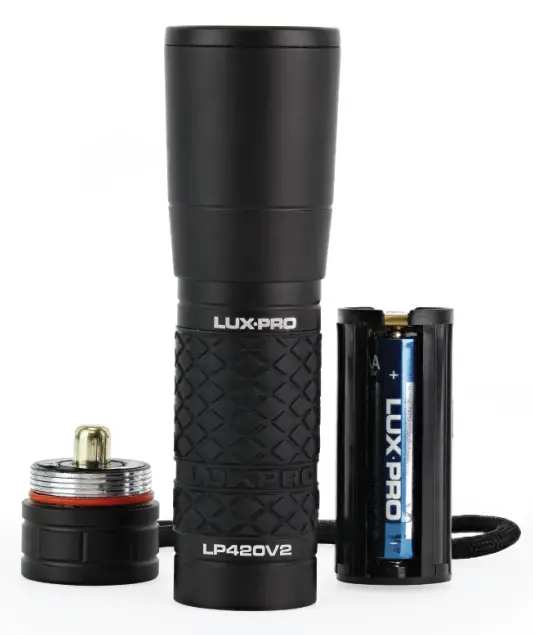

Battery Replacement
The LP420V2 uses 3 AAA batteries.
To replace the batteries, turn the tail cap counterclockwise to remove it. Tip the light downward to slide out the battery case which contains the batteries. Remove the batteries from the case and insert new batteries according to the (+/-) symbols found on the case. For best results, we recommend using brand new alkaline batteries that are the same voltage and brand. Re-insert the battery case into the flashlight (+) side first with the arrow on the battery case pointing down. Re-attach the tail cap by pressing down lightly and turning it clockwise until tight.
If you know it will be a while between uses, we suggest removing the batteries from the flashlight and storing it in a dry, protected place.
Product Warranty
The LP420V2 has a Limited Lifetime Warranty Against Manufacturer’s Defects from the time of purchase. For warranty claims please contact us by calling 801-553-8886 or sending an email to [email protected]
