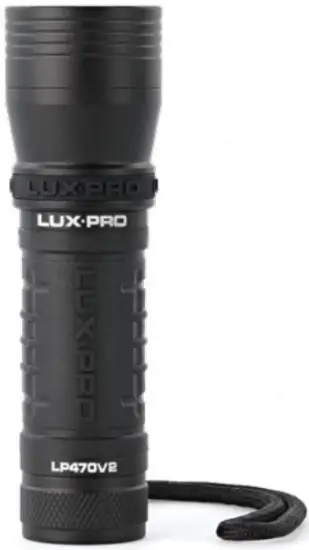

LUXPRO LP470V2 Focusing LED Flashlight User Manual
Features
- Durable aluminum construction
- LPE Optics; Flood to spot focusing
- Tack Grip molded rubber grip
- High quality wrist lanyard
- Tactical tail cap button
- O-ring sealed, IPX4
Operation Instructions
On/Off: Press and release button
Cycle modes: From High mode, press button to cycle through modes within 2 seconds (High/Medium/Ultra Low).
Hidden strobe On/Off: Hold button for 3 seconds to activate, and deactivate hidden strobe.
Automatically resets ‘next click’ to Off when on for longer than 3-5 seconds
Automatically resets to High mode when turned off.
Focus head: Push head away from flashlight to narrow beam. Pull head towards flashlight to widen beam
ANSI/PLATO FL1 STANDARD
| MODES |
|
|
|
| High | 380 lm | 3h | 205 m |
| Medium | 130 lm | 6h 15m | 85m |
| Low | 45lm | 15h 30m | 25m |
| Strobe | 380 lm | — | — |
Usage and Maintenance
Battery Replacement: In a dry environment, unscrew the tailcap by turning counter clockwise. Remove the battery case from the flashlight by tipping the bottom of the light downward until it slides free from the tube. With the battery case now out of the flashlight, remove the batteries from the case. Insert new batteries into the case according to the (+/-) symbols found on the case. Insert the battery case into the light according to the directional arrow on the outside of the case. Carefully reinstall the tailcap by pressing lightly while turning clockwise until tight.
Care Instructions: If you know it’s going to be a while between uses, we suggest removing batteries from your light and storing your gear in a dry, protected place.
Product Warranty
Limited Lifetime Warranty against manufacturer’s defects. For warranty claims contact LuxPro by calling 801-553-8886 or sending an email to [email protected] .
luxpro.com 866.553.8886 14725 S Porter Rockwell Blvd Ste C Bluffdale, UT 84065 .
