LUXPRO XP913 Rechargeable Focus LED Flashlight User Manual
Features
Constructed with aircraft-grade aluminum LPE optics
Patented TackGrip molded rubber grip Rear tactical on/off button 1×18650 2000mAh Li-ion rechargeable battery
Micro USB charge port access via rotating dial (USB cable included)
Product Warranty
The XP913 has a Limited Lifetime Warranty Against Manufacturer’s
Defects from time of purchase. For warranty claims please contact us by calling 801-553-8886 or sending an email to [email protected]
|
MODES |
LUMENS |
RUN TIME |
BEAM DISTANCE |
| High | 1100 lm | 3h | 250m |
| Medium | 325 lm | 5h 45m | 130m |
| Low | 70 lm | 12h | 70m |
| Strobe | 1100 lm | — | — |
Operation Instructions
On/Off: Press and release the button on the tail cap to turn the light on and off.
Cycle Modes: Press button on tail cap quickly to cycle through modes (High/Medium/Low). If light remains in a single mode for longer than 3-5 seconds, the next press of the button will turn the
light off.
Light automatically resets to High mode when turned off.
Hidden Strobe On/Off: Press and hold button for 3 seconds to activate hidden strobe. Flashlight will remain in hidden strobe mode until it is deactivated by pushing and holding the button
Focus Head: To focus the light beam, gently push the head away from the light to extend it. Pull the head back towards the light to widen the beam.
Charging Instructions

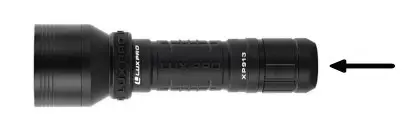

To charge the ashlight, reveal the charge port on the tail end of the light by rotating the charge port cover to the left.
Plug the small end of the Micro-USB charging cable (included) into the port on the ashlight. Plug the opposite end of the charging cable into a 5V USB power source.
The indicator light near the charge port will be red while the light is charging, then turn green to indicate the battery is fully charged.
Rechargeable battery is sealed and replacement is not necessary.
The XP913 has a charge time of approximately 3 hours.
