USER MANUAL

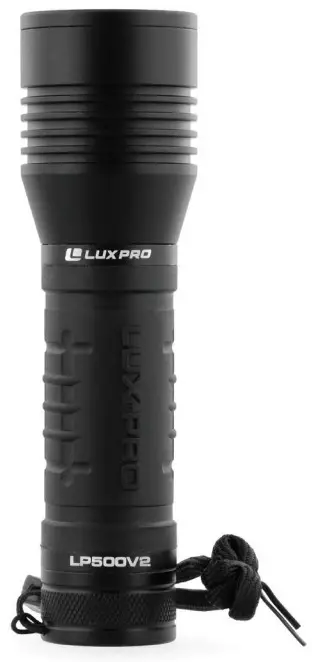

LP500V2
Advanced Small Handheld
LED Flashlight
Features
Constructed with aircraft-grade aluminum
LPE optics
Patented TackGrip rubber grip
High-quality wrist lanyard
Tactical on/off button
IPX4 waterproof rating
Batteries included (3 AAA)
ANSI/PLATO FL1 STANDARD
| MODES | LUMENS | RUN TIME | BEAM DISTANCE |
| High | 330 lm | 3h | 165m |
| Medium | 120 lm | 7h 30m | 80m |
| Low | 35 lm | 15h 15m | 20m |
| Strobe | 330 lm | — | — |
Operation Instructions

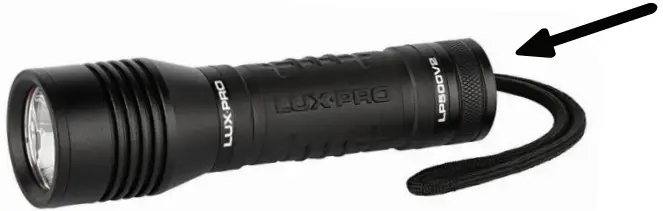

On/Off: Press and release the button on the tail cap to turn the light on and off.
Cycle Modes: Press the button on the tail cap quickly to cycle through modes (High/Medium/Ultra-Low). If the light remains in a single mode for longer than 3-5 seconds, the next press of the button will turn the light off. Light automatically resets to High mode when turned off.
Hidden Strobe On/Off: Press and hold the button for 3 seconds to activate the hidden strobe. The flashlight will remain in hidden strobe mode until it is deactivated by pushing and holding the button for 3 seconds again.
Battery Replacement

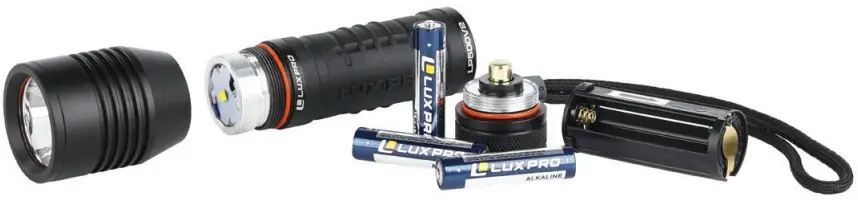

The LP500V2 uses 3 AAA batteries. To replace the batteries, turn the tail cap counterclockwise to remove it. Tip the light downward to slide out the battery case which contains the batteries. Remove the batteries from the case and install new batteries with the negative side of the battery against the springs in the battery case. For best results, we recommend using brand new alkaline batteries that are the same voltage and brand. Re-insert the battery case with the arrow on the battery case pointing down. Re-attach the tail cap by pressing down lightly and turning it clockwise until tight.
If you know it will be a while between uses, we suggest removing the batteries from the flashlight and storing it in a dry, protected place.
Product Warranty
The LP500V2 has a Limited Lifetime Warranty Against Manufacturer’s Defects from the time of purchase. For warranty claims please contact us by calling 801-553-8886 or
sending an email to [email protected]
