Luxpro Lp830 Focusing Universal Flashlight User Manual

Luxpro Lp830 Focusing Universal Flashlight User Manual

LUXPRO LP830 Focusing Universal Flashlight LOGO

LUXPRO LP830 Focusing Universal Flashlight

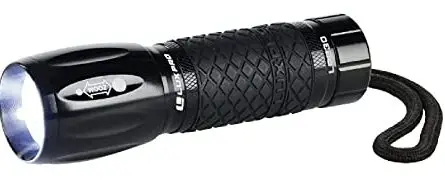

LUXPRO LP830 Focusing Universal Flashlight IMAGE

Features

  • Constructed with aircraft-grade aluminum
  • Push/pull focus beam
  • Enhanced rubber grip
  • High-quality wrist lanyard
  • Tactical on/o button
  • IPX4 waterproof rating
  • Batteries included (3 AAA)
MODESLUMENSRUN TIMEBEAM DISTANCE
High120 lm5h50m
Low50 lm8h25m
Strobe120 lm

Operation Instructions

On/Off: Press and release the button on the tail cap to turn the light on and off.

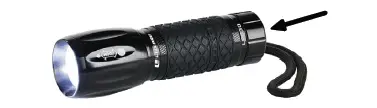

LUXPRO LP830 Focusing Universal Flashlight FIG 1

Cycle Modes: First turn the light on by pressing down the button\ on the tail cap completely and releasing. Half-press the button to cycle through modes (High/Low/Strobe). Turning the ashlight on and o quickly and repeatedly will also cycle the light through the three modes.

The light will automatically reset to high mode when off for longer than 5 seconds.

Focus Head:

To focus the light beam, gently push the head away from the light to extend it. Pull the head back towards the light to widen the beam

LUXPRO LP830 Focusing Universal Flashlight FIG 2

Battery Replacement

The LP830C uses 3 AAA batteries. To replace the batteries, turn the tail cap counterclockwise to remove it. Tip the light downward to slide out the battery case which contains the batteries. Remove the batteries from the case and insert new batteries according to the (+/-) symbols found on the case. For best results, we recommend using brand new alkaline batteries that are the same voltage and brand. Re-insert battery case into the ashlight with the arrow on the battery case pointing down. Re-attach the tail cap by pressing down lightly and turning it clockwise until tight.

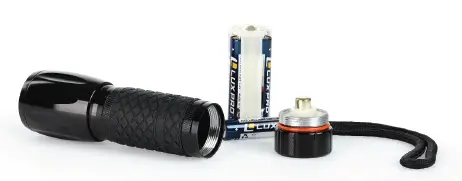

LUXPRO LP830 Focusing Universal Flashlight FIG 3

If you know it will be a while between uses, we suggest removing the batteries from the ashlight and storing it in a dry, protected place

Product Warranty

The LP830 has a Limited 30-Day Warranty Against Manufacturer’s
Defects from time of purchase.
For warranty claims please contact us by calling 801-553-8886 or
sending an email to inf[email protected]
