User Manual
CUBI738
Compact Rechargeable
LED Headlamp
Features
Durable ABS and rubberized compact design
LPE optics
Dual button intuitive mode selection
Non-slip adjustable headband
IPX7 waterproof rating
Rechargeable 250mAh Li-ion battery (USB cable included)
Product Warranty
The LP738 has a Limited 1-Year Warranty Against Manufacturer’s
Defects from time of purchase.
For warranty claims please contact us by calling 801-553-8886 or sending an email to [email protected]
Operation Instructions
On/Off: Press and release the button on the right side of the headlamp to turn on and off.

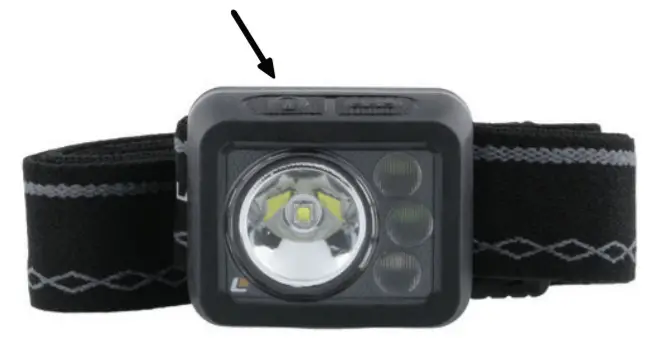

High+ Mode: From any mode, press and hold the button on the left side of the headlamp for 3 seconds to turn on High+ Mode.
Cycle Modes: Press and release the button on the left side of the headlamp repeatedly to cycle through modes (High/Medium/Flood Low/Flood Red/High+). Pushing the left button after the headlamp has been turned off will recall the last mode used.
Strobe Mode: From any mode, press and hold the left button for 3 seconds to switch to Strobe mode.
Charging Instructions
The LP738 uses a Li-poly; 3.7V 150 mAh rechargeable battery.

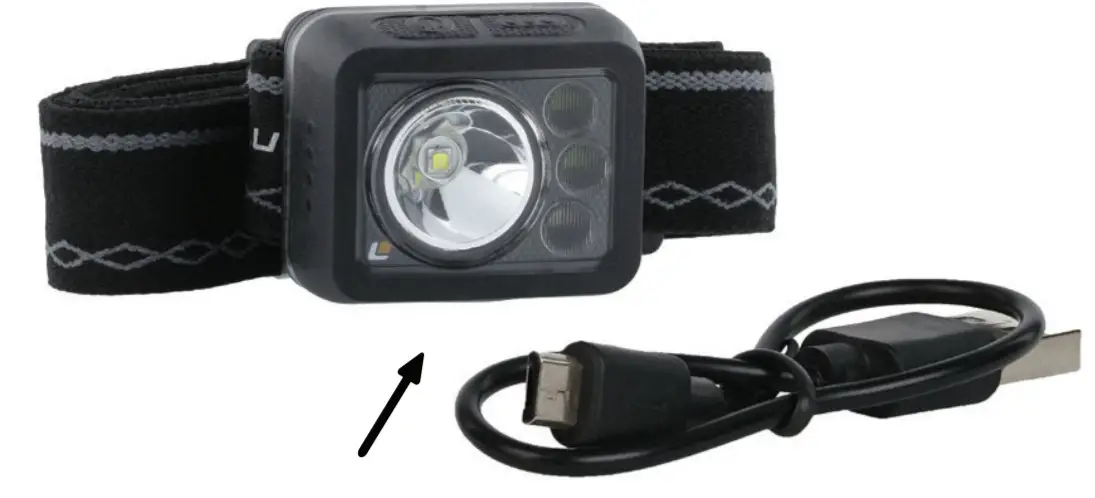

To charge the headlamp, locate the charge port on the bottom of the light (opposite of the on/off button).
Plug the small end of the Micro-USB charging cable (included) into the port on the headlamp. Plug the opposite end of the charging cable into a USB power source.

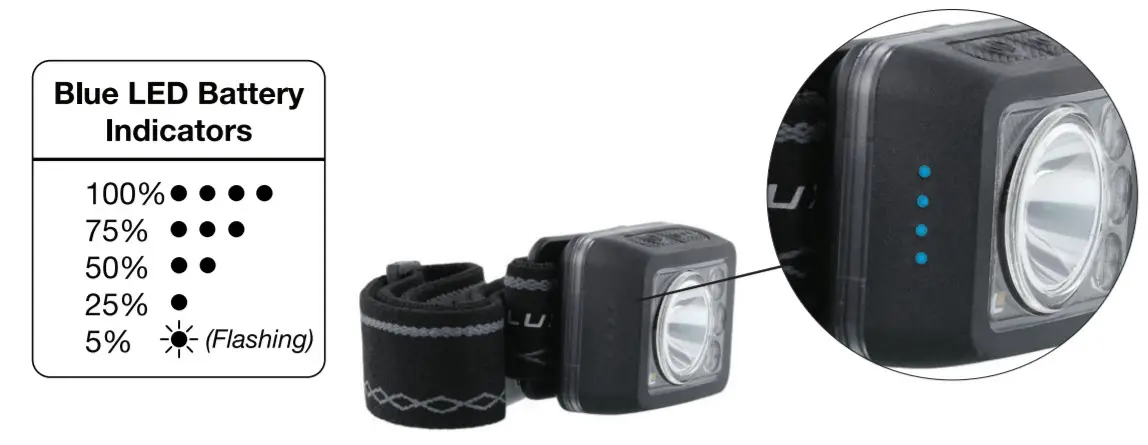

The blue battery indicator lights on the side of the headlamp will light up to indicate that the light is charging. The headlamp is fully charged when all 4 battery indicator lights are lit.
The rechargeable battery is sealed, and replacement is not necessary.
The LP738 has a charge time of approximately 1 hour.
