NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - logoTRANSCEND™ 1500

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp

TRANSCEND” 1500
With 1500 lumens and a rotary mode select dial, this headlamp doubles as a work light when detached from its mount.

MODES LUMENS RUNTIME METERS
TURBO150030s129
HIGH7504h91
MEDIUM3005h 30s58
LOW3028h18
STROBE7504h91

USB-C Rechargeable

  • Smart Power Control
  • Waterproof (IPX7)
  • Aircraft-Grade Aluminum Housing
  • Magnetic Base
  • Adjustable Headstrap
  • Rotary Mode Select Dial

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - figure 1

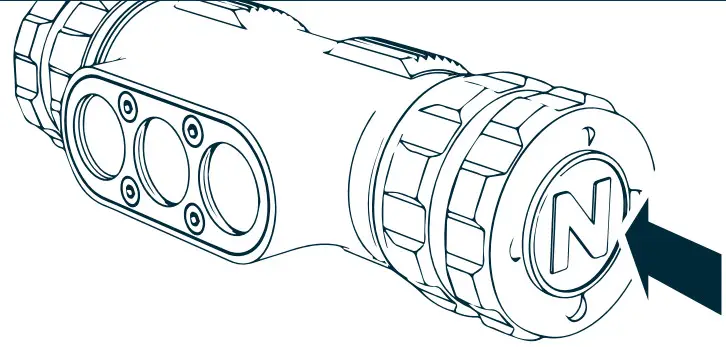

PUSH-BUTTON FUNCTIONS

  • Push the power button once to turn the unit on or off.
  • Double-tap for Strobe.
  • Press & Hold for Turbo mode.

NOTE: When in Strobe or Turbo mode, a single press will turn the unit off. Double-tap or Press & Hold will still activate their corresponding modes when in Strobe or Turbo.

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - figure 2

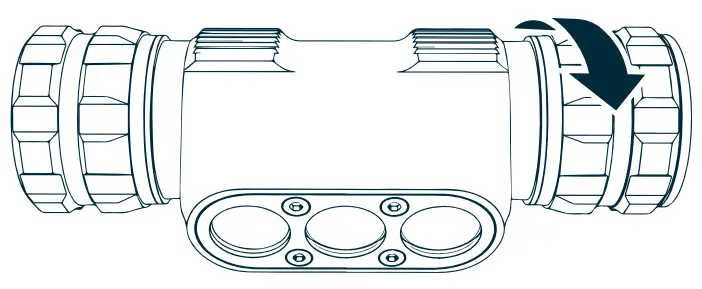

ROTARY MODE SELECT DIAL

Rotate the dial to select High, Medium, and Low modes.

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - figure 3

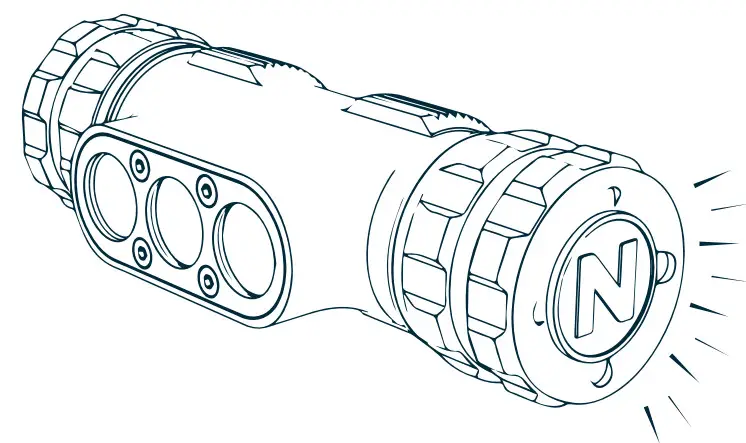

BATTERY INDICATOR
The power button doubles as a battery charge indicator.

Solid: Charge is greater than 25%.
Flashing: Charge is less than 25%.

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - figure 4

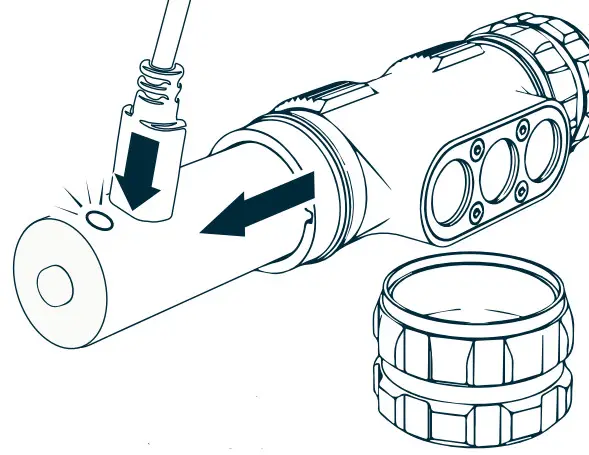

CHARGING

Unscrew the magnetic base to reveal the rechargeable battery. Connect the USB cable to power, then plug it into the battery as shown.
The charging indicator glows red when charging; green when fully charged.

This product is guaranteed against all defects in workmanship and materials for the original owner for one year from the date of purchase.

NEBO NEB-HLP-1001 Lumen Rechargeable headlamp - icon

For more information, detailed video instructions, and warranty registration, visit NEBOLIGHTS.com.
