HEADLAM a00

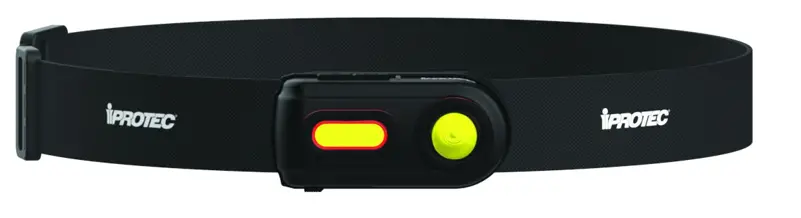

RECHARGEABLE HEADLAMP
USER MANUAL
ITEM #IPR-HLP-10O1
LIGHTING INSTRUCTIONS

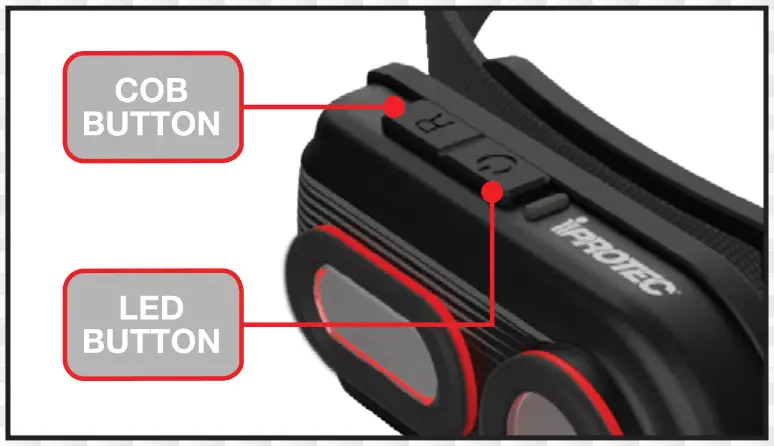

Dual buttons are provided to control the spot and COB independently. SPOT and COB cannot be used simultaneously. If the other button is pressed, that mode then activates. Normal mode order:
LED: Off
- High
- Low
- Off,
COD: Off - White
- Red
- Off.
Direct-to-red:
While OFF, press, and hold the button to activate Direct-to-Red. The next button press (within 8 seconds) cycles through the light modes in reverse (RED• FLOOD).
Turbo:
While ON, press and hold the button to activate TURBO MODE. After 45 seconds on TURBO, the previous mode is resumed.
 |  |

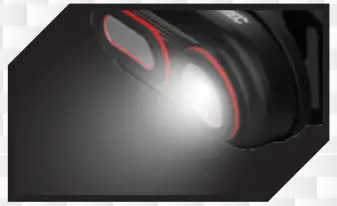

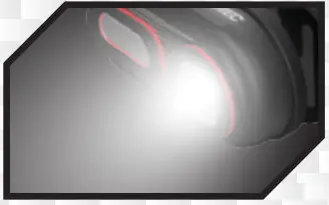

| LED TURBO: 400 LUMENS 400 lumens of white light Run Time: 35 Seconds Beam Distance: 133 Meters | LED HIGH: 250 LUMENS 250 lumens of white light Run Time: 45 Minutes Beam Distance: 104 Meters |
 |  |

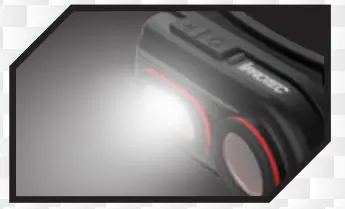

| LED LOW: 50 LUMENS 50 lumens of white light Run Time: 1 Hour 40 Minutes Beam Distance: 52 Meters | WHITE COB: 100 LUMENS 100 lumens of white light Run Time: 1.5 Hours Beam Distance: 14Meters |
 |  |

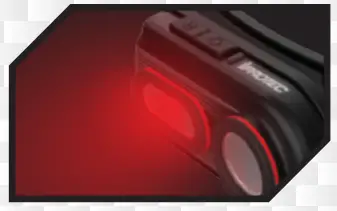

| RED COB: 15 LUMENS 15 lumens of white light Run Time: 8 Hours Beam Distance: 5 Meters |

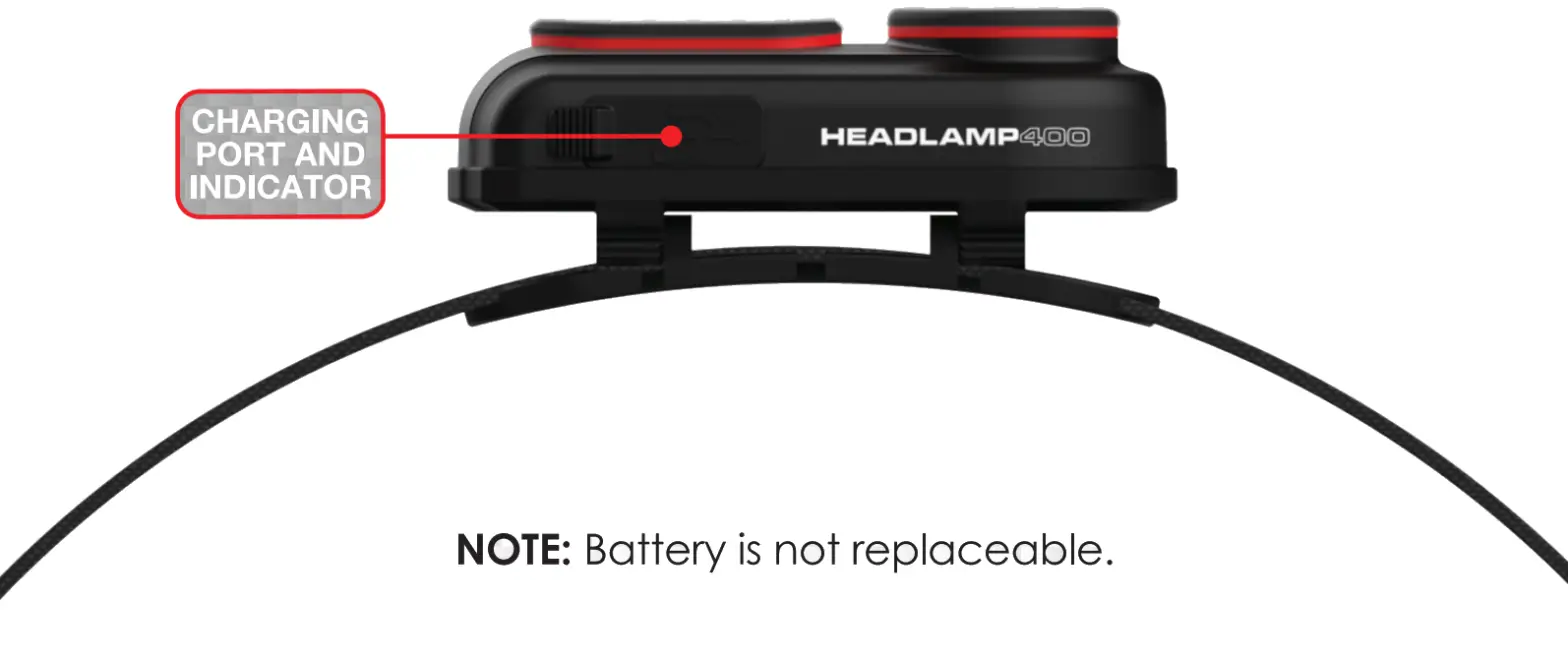

CHARGING
Remove the charge port cover. With the USB cable connected to power, plug the Micro USB end into the charge port. The charging indicator glows red when charging; green when fully charged.
 | This product is guaranteed against all defects in workmanship and materials for the original owner for one year from the date of purchase. Damage to or failure of the flashlight or any component thereof due to alteration, misuse, battery leakage or lack of maintenance will void any and all guarantees Damage by leakage of batteries should be taken up with the manufacturer of the battery using their damage claim instructions. For any additional information call 1 800-255-6061 |
WARNING
AVOID EYE INJURY- Do not stare directly into the beam or shine it directly into anyone’s face. Doing so for more than a few seconds could cause retinal damage. Do not allow children touseLEDlightsunlessunderthesupervisionofanadult
