COSMO COS-S9-6 Gas Cooktop

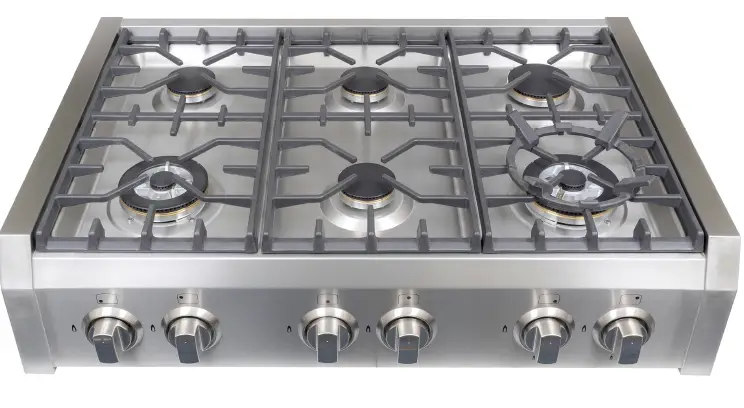

COSMO-COS-S9-6 Gas-Cooktop-product

Create meals like a professional chef in your own home. The S9-6 cooktop features 6 gas burners which allow you to cook from a high heat for boiling, frying or searing to a low simmer for the most delicate sauces.

FEATURES

  • DESIGNED FOR SLIDE-IN INSTALLATION
  • 5 SEALED GAS BURNERS: 17,000 BTU, 15,000 BTU, 12,000 BTU, 7,000 BTU (x3)
  • FLAME FAILURE TECHNOLOGY
  • ELECTRONIC IGNITION
  • STAINLESS STEEL SURFACE
  • HEAVY-DUTY CAST IRON GRATES
  • CONVERTIBLE TO LIQUID PROPANE, CONVERSION KIT SOLD SEPARATELY

DIMENSION

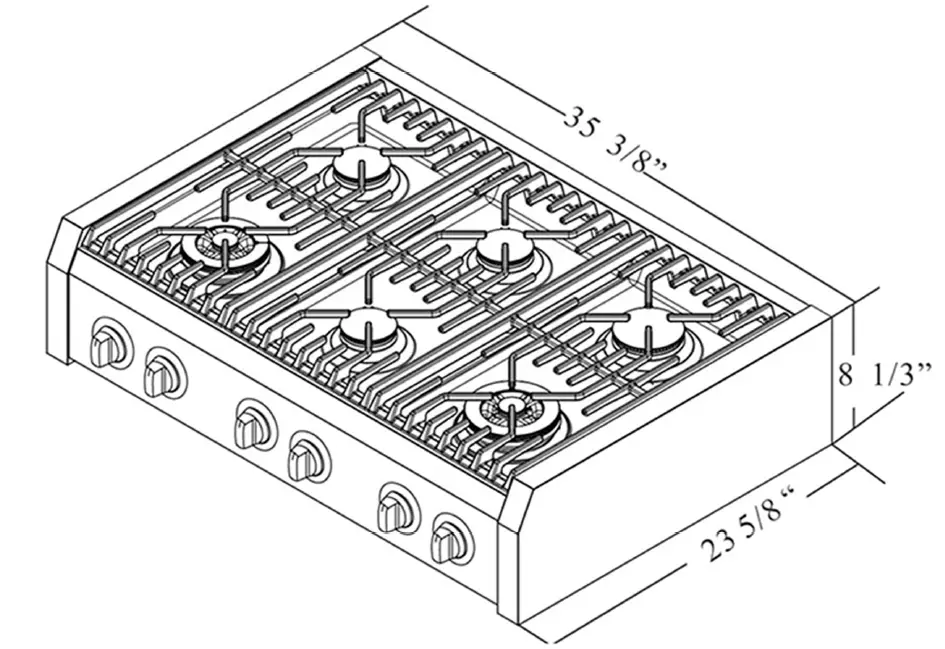

COSMO-COS-S9-6 Gas-Cooktop-fig-2

Product Dimension35.3 x 23.3 x 8.3 Inches
FuelGas
Installation TypeSlide-In
Control TypeMetal Constructed Knobs
MaterialStainless Steel
Electrical Rating120V / 60Hz

COSMO-COS-S9-6 Gas-Cooktop-fig-1

AdditionalHardware, Install Kit, Power Cord
Warranty3-Year Limited Parts
Burner Type / BTU
  • Triple Ring / 17,000 BTU
  • Triple Ring / 15,000 BTU
  • Rapid / 12,000 BTU
  • Semi-Rapid / 7,000 BTU (x3)

FOR MORE INFORMATION, PLEASE VISIT: WWW.COSMOAPPLIANCES.COM
