THOR TGC3601 36 Inch Professional Drop-In Gas Cooktop

THOR-TGC3601-36-Inch-Professional-Drop-In-Gas-Cooktop-PRODUCT

  • Product: 36 Inch Professional Drop-In Gas Cooktop with Six Burners in Stainless Steel
  • Model Number: TGC3601 UPC#: 850018999502
TECHNICAL DETAILS
Appliance TypeBuilt-In
Fuel TypeGas
Ignition TypeElectrical
Cooktop Control TypeStandard Dial Control
Control LocationRight
Color/FinishStainless Steel
Knobs MaterialMetal Knob – Acrylic Trim Ring for Blue LED
Commercial/ResidentialResidential

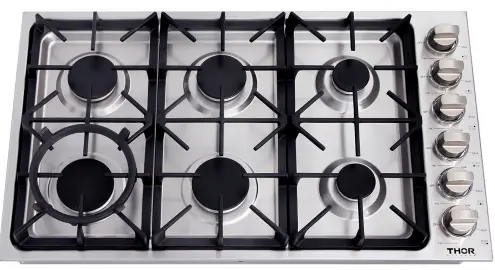

BURNER PERFORMANCE
Total Burners6
[1] Front Left Burner18,000 BTU
[2] Front Middle Burner18,000 BTU
[3] Front Right Burner6,000 BTU
[4] Rear Left Burner12,000 BTU
[5] Rear Middle Burner12,000 BTU
[6] Rear Right Burner6,000 BTU

THOR-TGC3601-36-Inch-Professional-Drop-In-Gas-Cooktop-FIG-1

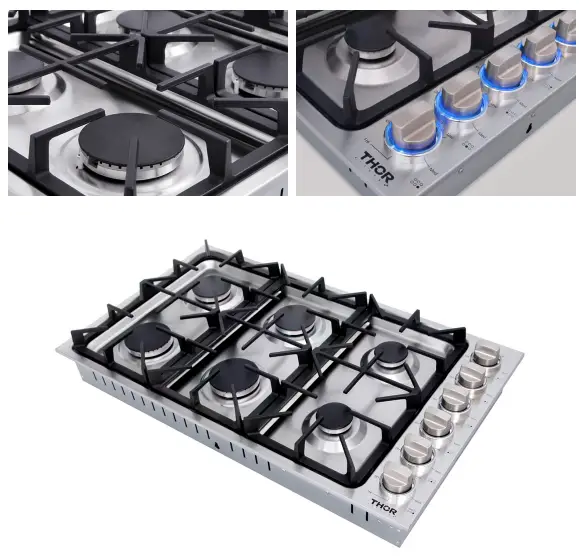

FEATURES & BENEFITS

  • Six High-Intensity Burners – Six sealed burners, including two high-intensity 18,000 BTU power burners that produces fast, intense heat and contains spills to make cleaning quick and easy.
  • Professional Illuminated Knobs – Metal constructed knobs provide easy access to flame settings and illuminate a striking blue when in operation.
  • Stainless Steel Cooktop – Adds a sleek, modern design to any kitchen; this product is designed with a single piece of stainless steel to withstand spills and grease for easy cleaning.
  • Continuous Cast Iron Grates – Heavy-duty, edge-to-edge, porcelain-coated cast iron grates allow for easy movement of pans between burners.
  • Automatic Electric Ignition – Eliminates the need to manually light the burners and protects the user from the likelihood of a burn because lighters and matches are not needed. It also saves money by using less gas than a standing pilot range.
  • Liquid Propane Option – LP convertible with liquid propane conversion kit included.
  • Wok Ring – Features a wok ring that provides extra stability for cooking with round-bottom woks.

THOR-TGC3601-36-Inch-Professional-Drop-In-Gas-Cooktop-FIG-2

WARRANTY

WARRANTY: TWO YEAR PARTS AND LABOR

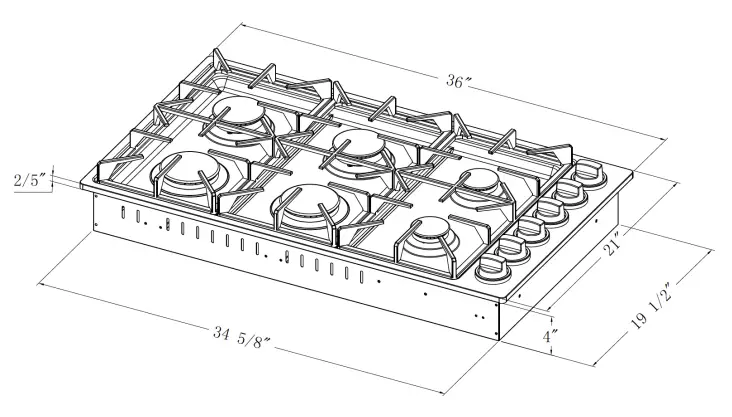

PRODUCT DIMENSIONS
Product Width36”
Product Depth21”
Product Height4 3/8”
Cut-Out Left to Right Width34 5/16”
Cut-Out Front to Back Depth19 1/8”
Cut-Out Height4”
Shipping Dimension (W x H x D)39 3/16” x 24 3/16” x

9 1/16”

PRODUCT WEIGHT
Gross Weight63.78 lb.
Net Weight52.96 lb.

THOR-TGC3601-36-Inch-Professional-Drop-In-Gas-Cooktop-FIG-3
