DB 247
Diesel locomotive

Contents hide

6 Documents / Resources

7 Related Posts

Rolling stock

1.1. DB 247

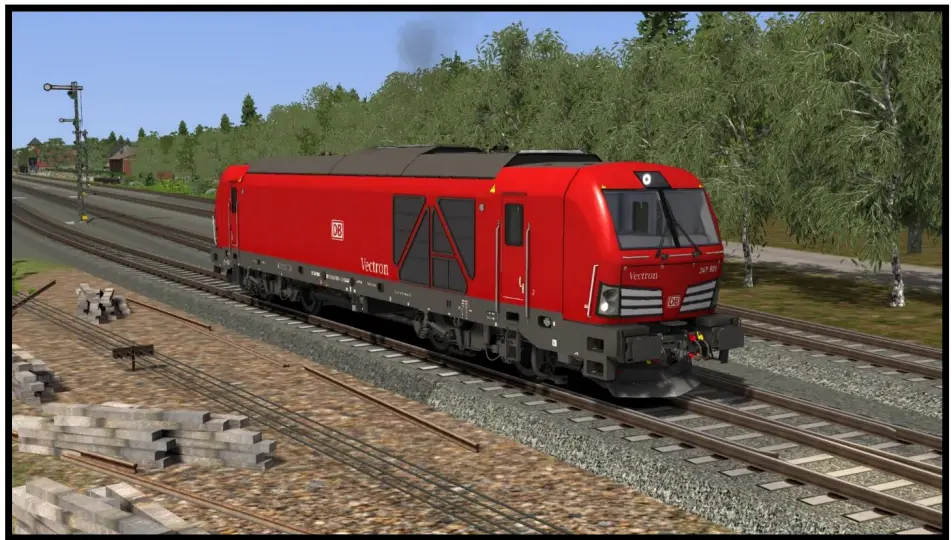

Model name in Train simulator is: DB 247

Cab controls

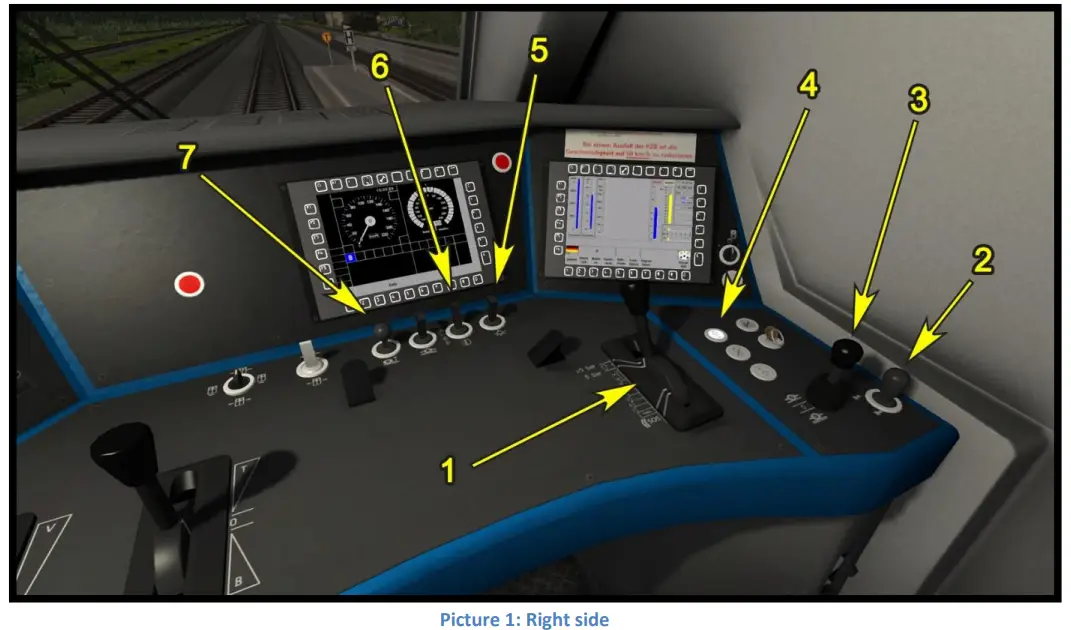

Picture 1: Right side
Train brake (1)
Horn (2)
Loco Brake (3)
Reverser (4)
Desk/Cab light (5)
Headlights (6)
Sander (7)
RSS DB 247

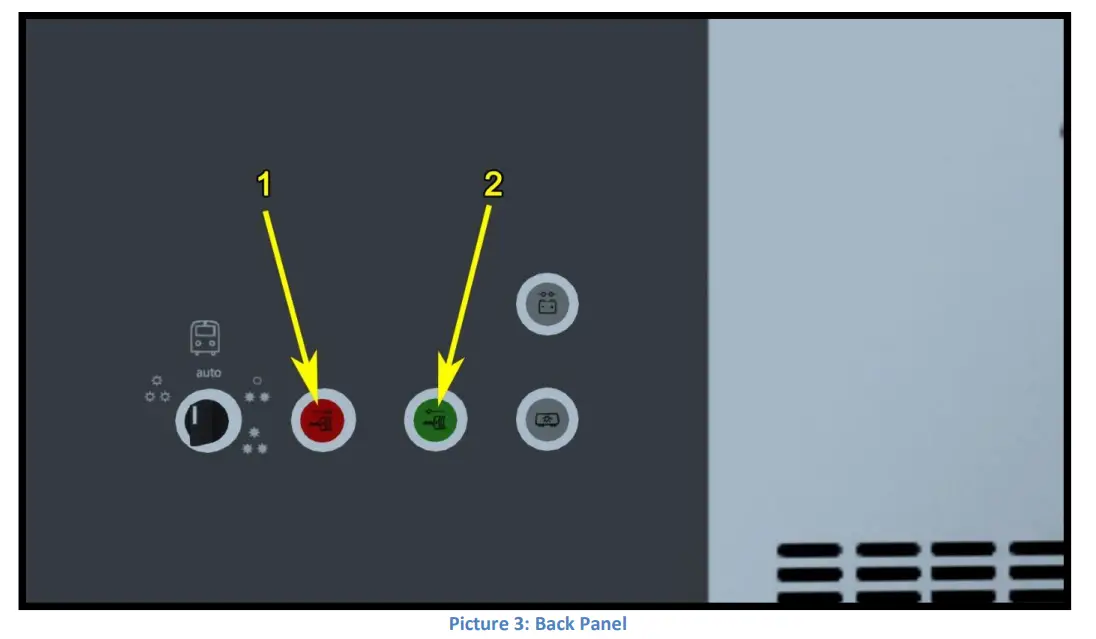

2.3. Picture 3: Back panel
Apply spring brakes (1)
Release spring brakes (2)

2.4. SIFA
The SIFA is disabled on startup, but can be activated with »SHIFT + NUM ENTER«. You can choose between basic SIFA and advanced SIFA.
Basic SIFA
You must confirm SIFA within 30 seconds from your last confirmation. If it was not confirmed in 30 seconds then the emergency brake will be applied. Before the emergency brake will be applied the warning voice will turn on.
Advance SIFA
You can hold the SIFA button down for max. 30 seconds but if you hold it for more than 30 seconds, the emergency brake will be applied, before this happens the warning voice will turn on. When the SIFA button is not held, then the emergency brake will be applied after 5 seconds. If the emergency brake is applied, then you must press the SIFA button again and release the train brake.
2.5. Train length system
The train length system can be marked with »E« (twice). When the back of the train or the last wagon of the train passes the marked point, then the »MikMik« sound will be played.
2.6. Anti-slip protection
Anti-slip protection is activated on startup you can deactivate with »SHIFT + W«

Keyboard

Function	Keyboard
Increase / Decrease – Throttle / dynamical brake	A / D
Increase / Decrease Reverser	W / S
Increase / Decrease Train Brake	” / ;
Increase / Decrease Cruise control	Y/C
Horn 1	Space
Horn 2	B
PZB on/off	Ctrl + Num Enter
PZB mode	Shift + 7
PZB override	Delete
PZB release	End
PBZ acknowledge	Page down
SIFA on / off	Shift + Num enter
Confirm SIFA	Q
SIFA Basic/Advance	Shift + S
Headlights	H (SHIFT + H)
Wipers	V (SHIFT + V)
Sander	X
Motor on/off	Z (SHIFT + Z)
Desk lights	I
Cab light	I.
Train length system	E
Cruise control	Shift + A
Anti-slip system	Shift + W
