H0-model:
Electric locmotive Rh 1043, ÖBB
Operating Manual
Starting locomotive operation

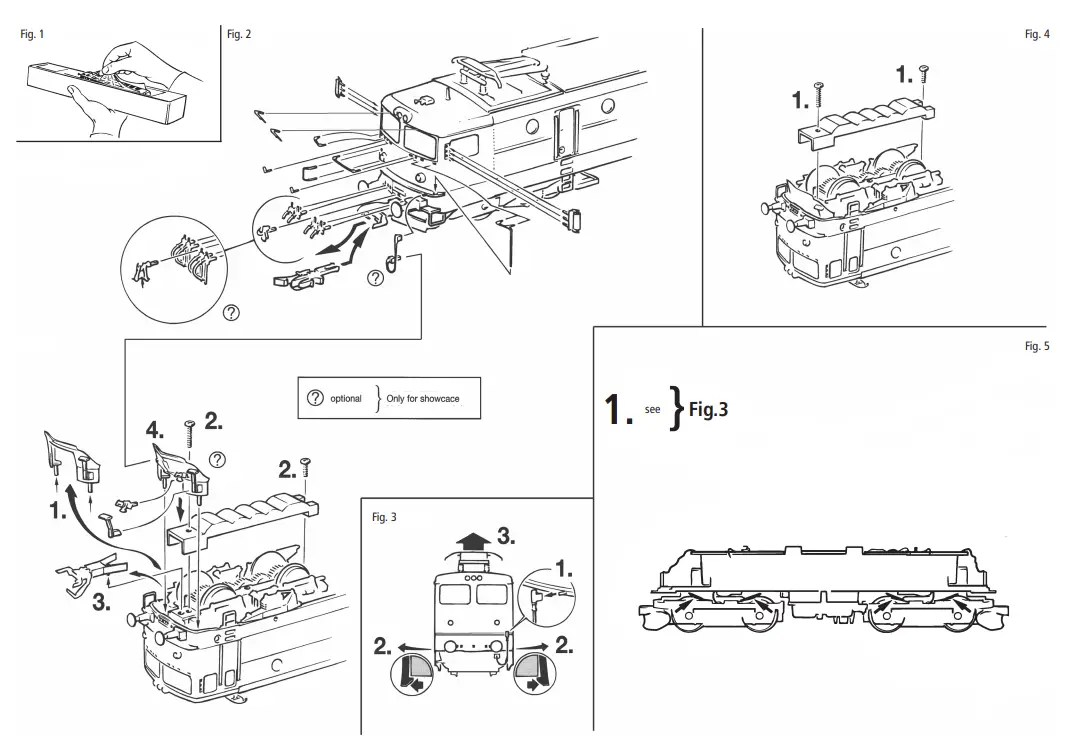

Unwrap model: Take out the model cautiously with foil (fig. 1).
Operating instructions: Before use is advisable to let the loco go around about 30 minutes forwards an 30 minutes backwards without load, to obtain an optomal circuit and best tractive power.
The smallest radius this model should run is R2 of the ROCO track system (R2 = 358 mm).
Your locomotive will run smoothly on clean tracks only. For this purpose we recommend using item no. 46400, ROCO track cleaning van, or item no. 10002, ROCO track cleaning rubber, for remo-ving heavy dirt.
Fittings: Operation is possible with different couplings (fig. 2). We recommend using the ROCO close coupling.In the enclosed accessory bag you will find small kits to be fitted on your locomotive. Please mount them cautiously. Attention! Use glue only if indicated (fig. 2).
Running in digital mode: Remove the jumper from the interface.

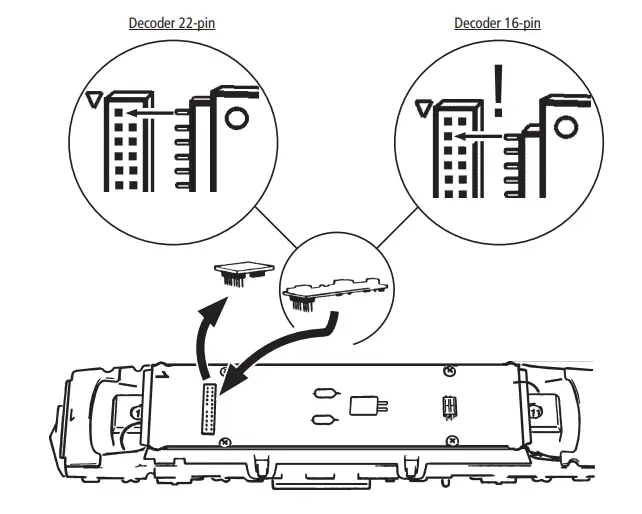

Finally put the plug of the chip into the interface as shown in fig. 10.
A.C. operation: see fig. 9

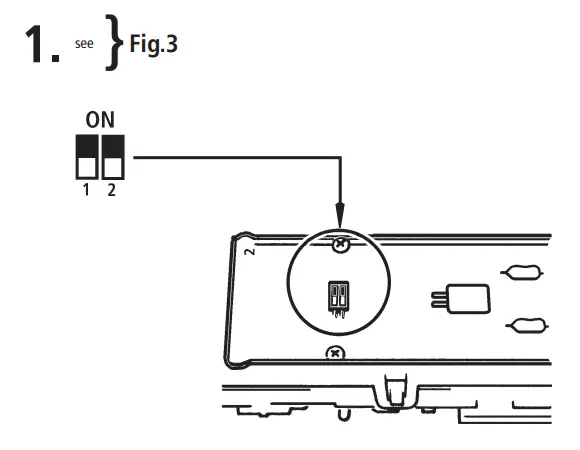

Switchable lightning functions: see fig. 11
Maintenance of the model
To enjoy your model for a long time, it is necesary to service it regulary (i.e. after it has been in ope-ration for approximately 30 hours).
- Cleaning of wheel contacts: Wheel contacts easily get dirty on tracks which are not entirely clean. Use a small brush to remove dirt from spots marked in fig. 5.

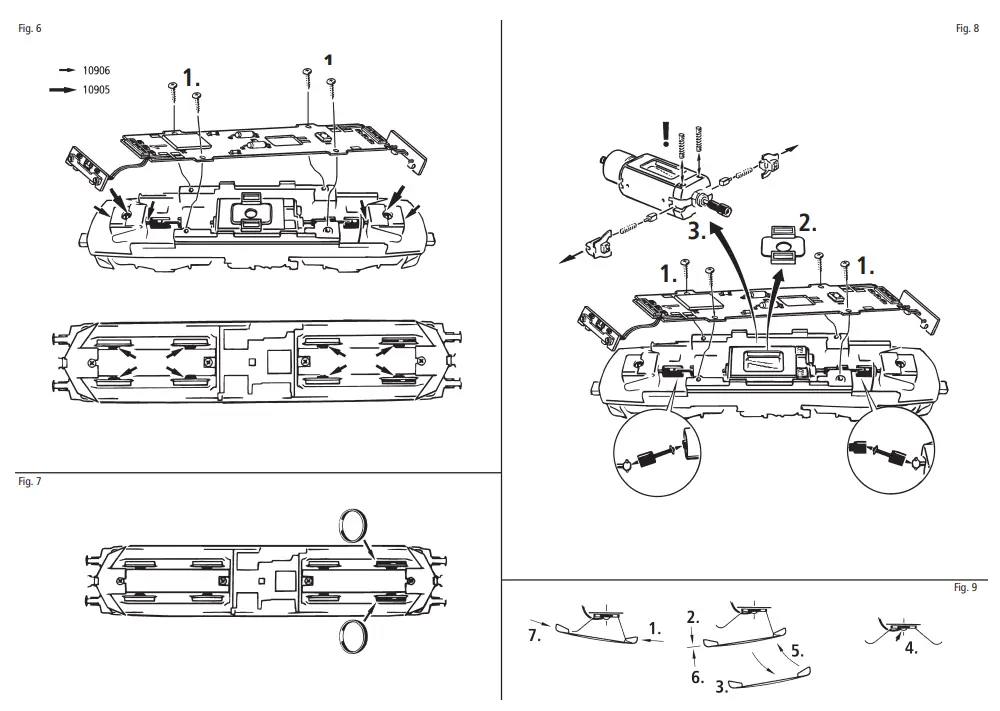

- Lubrication: Apply tiny oil drops to spots marked in fig. 6. Prior to lubrication dismantle locomotive (fig. 3). We recommend using item no. 10906, ROCO oiler. For ubrication the gearparts (e.g. cogwheels, worm) we whould recommended our ROCO special grease (item no. 10905).
Attention: Please do not oil these parts when using our grease. - Change of traction tyre: Remove the gear cover (fig. 4). Take out wheel set and remove traction tyre using a pin or a fine screwdriver (fig. 7). When pressing on the new traction tyre please avoid twisting it.
- Carbon Brush Changing: First remove loco body (fig. 3), and then the motor (fig. 8).
Assembly: During assembly please take care of correct position of contacts.
More information about the sound decoder can be found here
http://www.zimo.at/web2010/documents/MS-Sound-Decoder.pdf

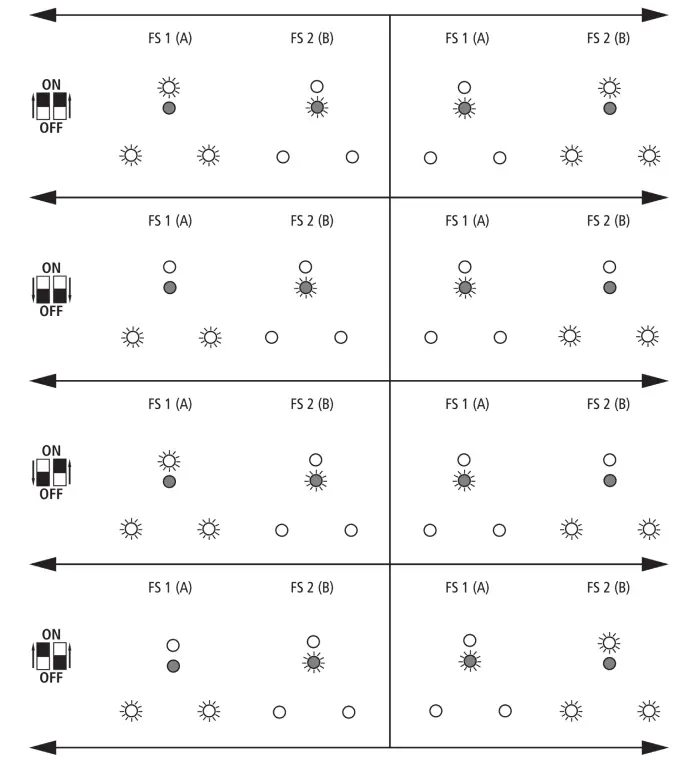

Switchable lightning functions (analog)
Decoder interface
| /C |  | Aux. 3 upper headlight, Drivers cab 1 |
| Clock |  | A |
| GND |  | DC (+) Elko |
| Front light, Drivers cab 1 |  | Engine right (+) |
| V (+) |  | Engine left (-) |
| Twist protection |  | Track right / Pick up |
| Front light, Drivers cab 2 |  | Track left / Tracks |
| Speaker A |  | Aux. 1 red Taillight, Drivers cab 2 |
| Speaker B |  | Aux. 2 red Taillight, Drivers cab 1 |
| Aux. 4 upper headlight, Drivers cab 2 |  | Aux. 5 |
| Aux. 6 |  | Aux. 7 |
Safety instructions: This product may only be used in closed rooms.
Do not expose the model to direct sunlight, severe temperature fluctuations or high air humidity.
