Roco Rh 1142 Electric Locomotive User Manual

Roco Rh 1142 Electric Locomotive

Product Information

The product is a model train produced by Modelleisenbahn GmbH. The user manual provides instructions for starting locomotive operation, maintenance, and care. The product has different couplings and can be operated in digital mode. It requires regular servicing after approximately 30 hours of operation. The smallest radius this model should run is R2 of the ROCO track system (R2 = 358 mm).

Product Usage Instructions

Starting locomotive operation

1. Unwrap the model carefully with foil (fig. 1).
2. Choose the coupling and use the Roco close coupling for operation (fig. 2).
3. Let the loco go around about 30 minutes forwards and 30 minutes backwards without load to obtain an optimal circuit and best  tractive power.
4. Mount the small kits provided in the accessory bag cautiously.Use glue only if indicated (fig. 2).
5. Remove the jumper from the interface for running in digital mode.
6. Finally put the plug of the chip into the interface.

Maintenance of the model

To enjoy the product for a long time, it is necessary to service it regularly.

1. Clean the wheel contacts using a small brush on spots marked in fig. 7.
2. Lubricate using tiny oil drops on spots marked in fig. 5. Prior to lubrication, dismantle the locomotive (fig. 3).
3. For lubrication of gear parts, use Roco special grease (item no. 10905). Do not oil these parts when using the grease.
4. To change the traction tyre, remove the gear cover (fig. 6). Take out the wheel set and remove the traction tyre using a pin or a fine screwdriver (fig. 6). Avoid twisting the new traction tyre when pressing it on.

The latest version of the instruction manual can be found on our website under downloads at the article.

Symbolic Illustration

70604		Rh 1142
70605
78605

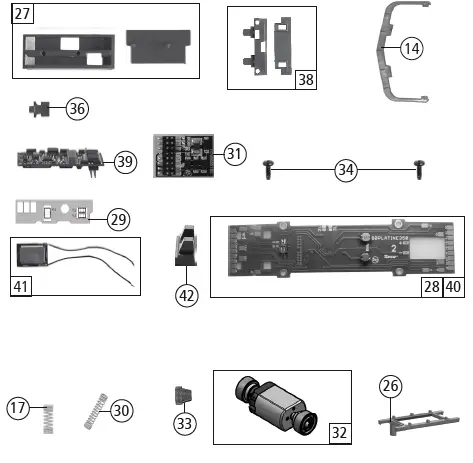

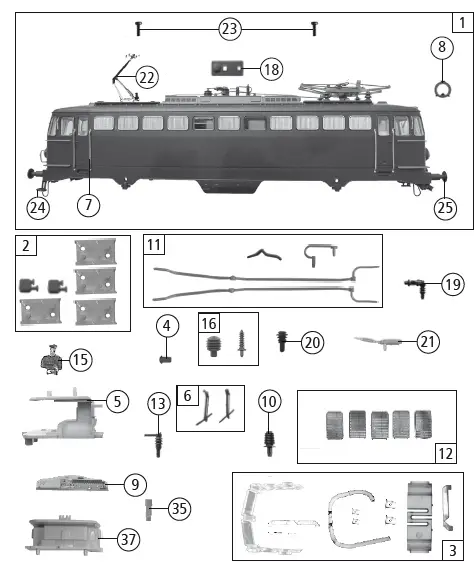

Pos.no.	Description					Art.no.		Price bracket
1	Body assembly Loco no. 1142 685					148667		35
2	Makrofon + Sleeve					144453		5
3	Part set of window + light conductor					148669		11
4	Light pin – red					112173		3
5	Driver’s cab					114366		6
6	Windshield wiper					123923		5
7	Handrail					148345		3
8	. Headlight rim					123924		3
9	Control panel					112160		6
10	Supporting isolator					112180		3
11	Set of roof wiring					126896		9
12	Part set ventilator grills					112178		9
13	Isolator Isolator					88039		3
14	Running board long					126881		5
15	E-Loko driver					89732		6
16	Set of isolators					112179		6
17	Contact spring short					145561		4
18	Main switch plate					107033		3
19	switch					88177		4
20	Isolator					101210		3
21	Retracting device					88169		3
22	Single arm panto.					85470		19
23	M1,6×6 mm GF – Screw					114836		3
24	To shunt stair					112998		3
25	Buffer square					114753		4
26	Spacer plate					146218		3
27	Light conductor cover					114368		6
28	Motor PCB					141548		20
29	LED-Platine Rh1042 – 2+1 LED´s LED – PCB Rh1042 – 2+1 LED´s					148055		5
30	Contact spring long					145560		4
31	TVS Jumper – Plux16 TVS					133241		10
32	Motor with 2 fly wheel ,incl. cardan reception					146020		25
33	Cardan reception, short					87129		4
34	Self-tapping screw					114850		3
35	Part set – Isolators					115978		7
36	Buffer treadle					114790		4
37	Drivers cab					148671		6
38	Light conductor cover					121137		6
Sound
39	Sound-decoder					147377		39
40	Motor PCB					141569		22
41	Loudspeaker RA					129524		13
42	Loudspeaker box					141570		5

70604		Rh 1142
70605
78605

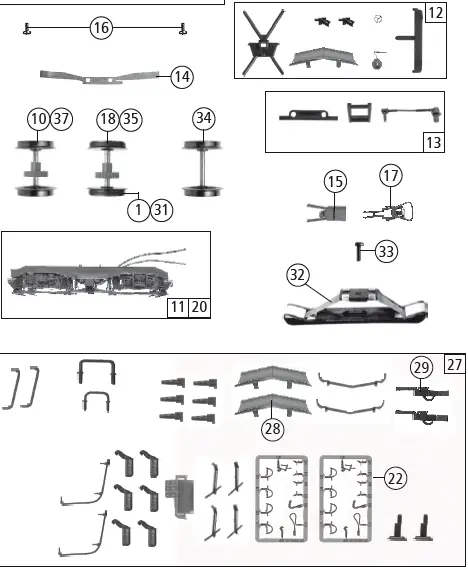

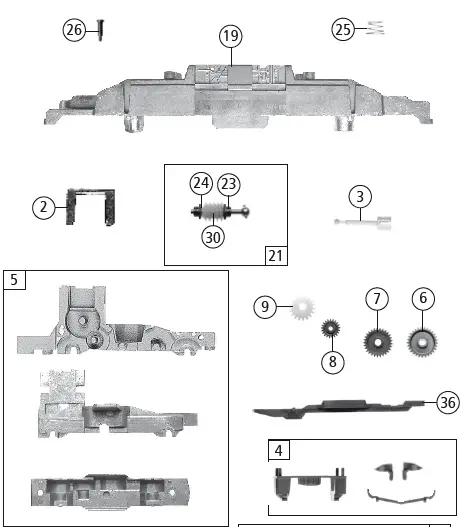

Pos. Nr. Pos.no.	Description					Art.no.		Price bracket
1	Trac. tyre 10 parts, 12,9 to 14,6m					40070		—
2	Worm gear					94707		4
3	Cardan shaft					107011		4
4	Micro skirts + underfloor unit					112161		6
5	Gear set 3 parts					112167		13
6	Zahnrad Z=29 / M0,4 Gear wheel					86467		3
7	Zahnrad Z=29 / M0,4 Gear wheel					86468		3
8	Zahnrad Z=21 G/M=0,4 Gear wheel					86414		3
9	Z=17/19 gelb Worm gear wheel					86413		5
10	Wheelset w gear wheel w/o trac. tyre					112168		11
11	Bogie frame 1 assembly					112219		13
12	Part set – Chassis + Rail guard					112162		7
13	Set of cover plug-in parts					112183		6
14	Wheel contact f. bogie frame					100256		3
15	Coupling chamber					108988		6
16	M2x5 mm Self-tapping screw					114966		3
17	Clip-in exchange coupling					89246		6
18	Wheelset w. gear wheel w. 2trac. tyres					112170		12
19	Main frame					141647		18
20	schw Bogie frame 2 assembly					112220		13
21	Set of worm gear incl.cardan ball					112307		13
22	Part set of brake tubes & coupling hooks					139832		7
23	Bearing for worm gear axle					89749		6
24	2,1×4/0,2mm Washer					86108		3
25	3,25/4,35 x 4 mm Cone spring					86202		3
26	M2x8/3,2 mm Flanged screw					100101		4
27	Bag of accessories					148675		17
28	Rail guard					116918		3
29	Short coupling					115550		6
30	Wormgear					86702		6
Wechselstrom
31	Haftringesatz 10Stk. 12,5-15,3mm Traction tyres set 10pieces					40075		—
32	6mm Center pick-up					86031		14
33	M 1,6X6 mm Screw					113069		3
34	tyre AC					112185		10
35	wheel AC					112184		12
36	Gear bottom AC					112186		6
37	AC Wheelset w/o traction tyre w. gear wheel AC					112187		11

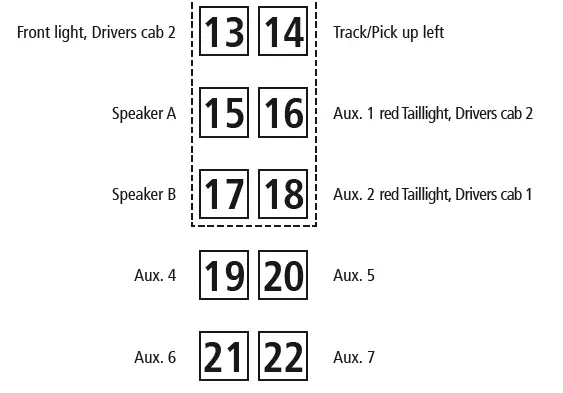

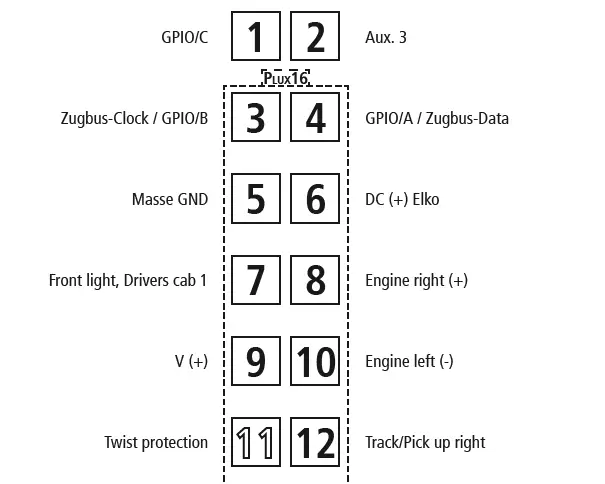

Decoder interface

Starting locomotive operation

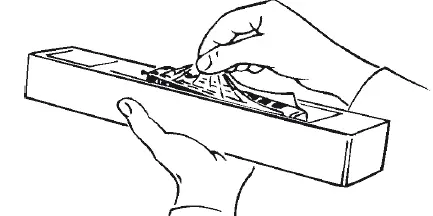

Unwrap model: Take out the model cautiously with foil (fig. 1).

Operating instructions: Before use is advisable to let the loco go around about 30 minutes for-wards an 30 minutes backwards without load, to obtain an optimal circuit and best tractive power. The smallest radius this model should run is R2 of the ROCO track system (R2 = 358 mm).
Your locomotive will run smoothly on clean tracks only. For this purpose we recommend using item no. 46400, Roco track cleaning van, or item no. 10002, Rocco track cleaning rubber, for removing heavy dirt.

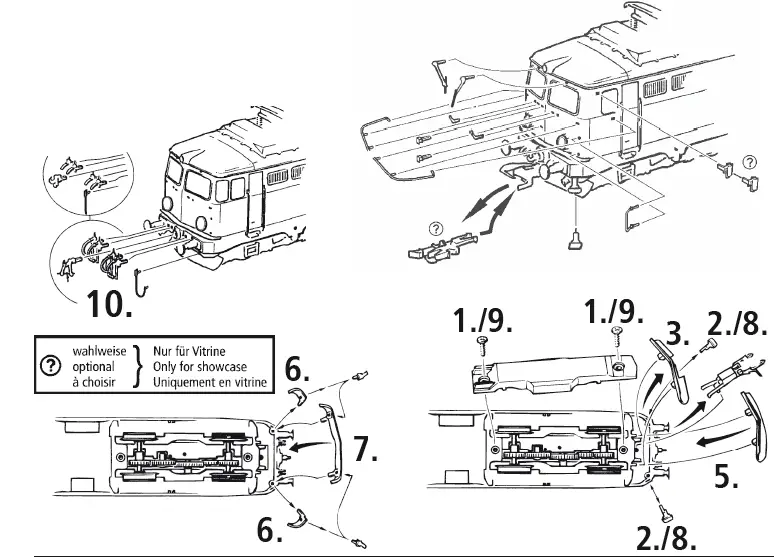

Fittings: Operation is possible with different couplings (fig. 2). We recommend using the Roco close coupling.In the enclosed accessory bag you will find small kits to be fitted on your locomotive. Please mount them cautiously.
Attention! Use glue only if indicated (fig. 2).

Running in digital mode:
Remove the jumper from the interface.

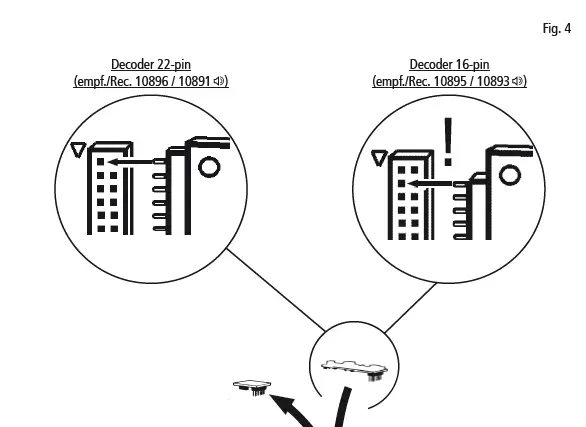

Finally put the plug of the chip into the interface as shown in fig. 4.

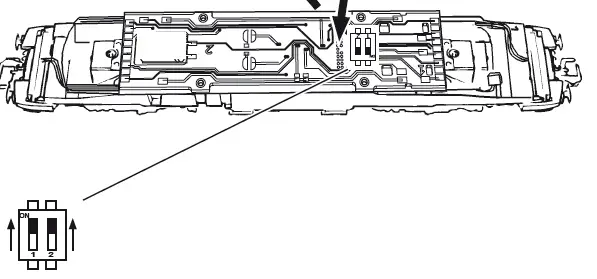

Dip-Switch for analogue model 70604

• Position „ON“: Default setting /
• Position „OFF“: Disabled in analog mode
• DIP 1: front light driver’s cab 1
• DIP 2: front light driver‘s cab 2

A.C. operation: see fig. 9

Maintenance Guide

To enjoy your model for a long time, it is necessary to service it regularly (i.e. after it has been in operation for approximately 30 hours).

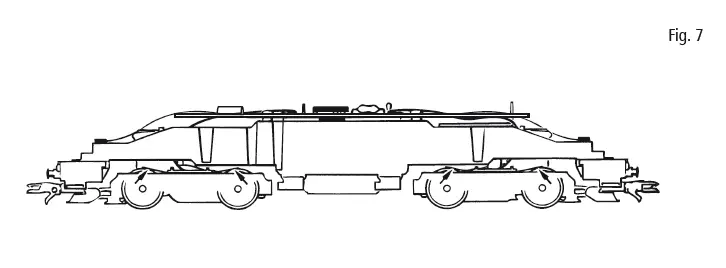

1. Cleaning of wheel contacts: Wheel contacts easily get dirty on tracks which are not entirely clean. Use a small brush to remove dirt from spots marked in fig. 7.

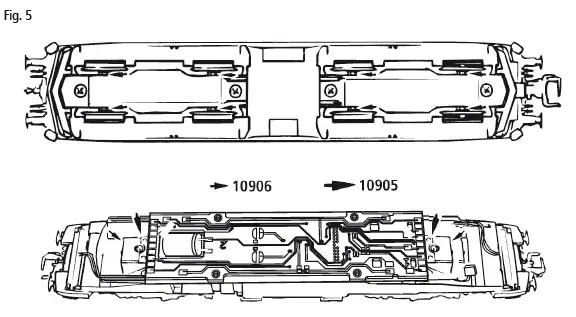

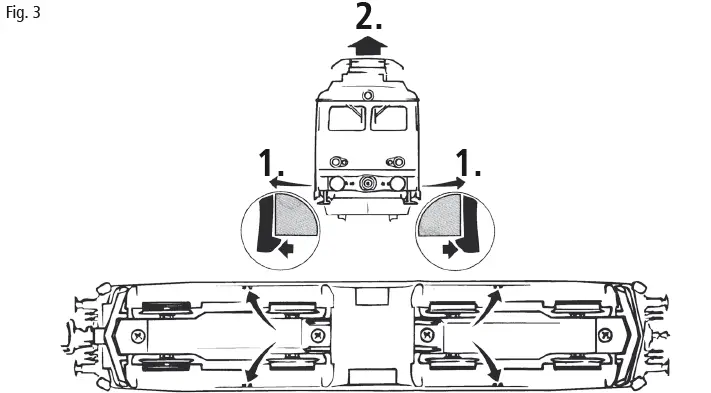

2. Lubrication: Apply tiny oil drops to spots marked in fig. 5. Prior to lubrication dismantle locomotive (fig. 3). We recommend using item no. 10906, Roco oiler. For lubrication the gear parts (e.g. cogwheels, worm) we would recommended our Roco special grease (item no. 10905).
   Attention: Please do not oil these parts when using our grease.

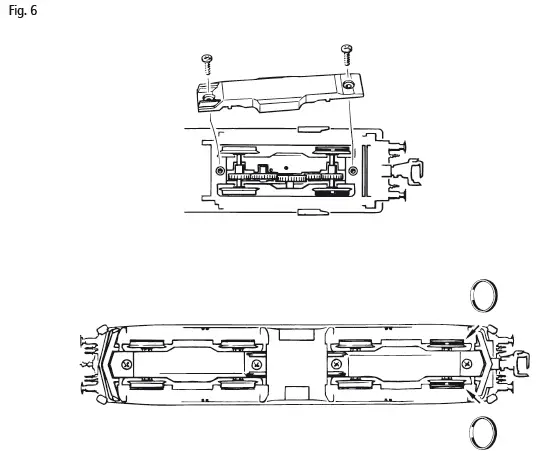

3. Change of traction tyre: Remove the gear cover (fig. 6). Take out wheel set and remove traction tyre using a pin or a fine screwdriver (fig. 6). When pressing on the new traction tyre please avoid twisting it.

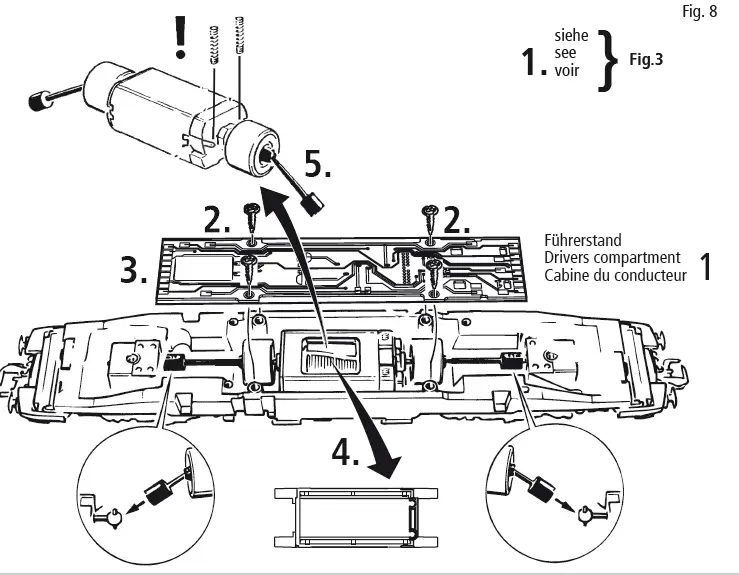

4. Motor Changing: First remove loco body (fig. 3), and then the motor (fig. 8).


Assembly: During assembly please take care of correct position of contacts.

Don‘t throw your box in the dustbin. If your model is not in use this box will keep it safe. If kits  are mounted on a wagon it will be slightly tight when placing it in the original box. This guarantees safe transport. It is therefore recommended to cut out certain parts of the original box. To keep the model like the original, smaller parts (e.g. buffers) had been manufactured separately from the body and are not tightly fixed on it. Therefore they probably can get lost. In this case you certainly may reorder them but  a complaint would not be acceptable.

Safety instructions: This product may only be used in closed rooms. Do not expose the model to direct sunlight, severe temperature fluctuations or high air humidity.

Modelleisenbahn GmbH
A-5101 Bergheim
Plainbachstraße 4
Email: [email protected]
Tel.: 00800 5762 6000
free of charge
International: +43 820 200 668
chargeable   local tariff for landline / Mobile max. 0,42€/min. incl. VAT)
8070604-920 II/23
