Roco 70330 Steam Locomotive User Manual

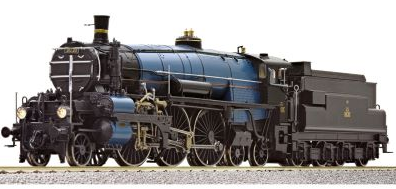

Roco 70330 Steam Locomotive

Starting locomotive operation

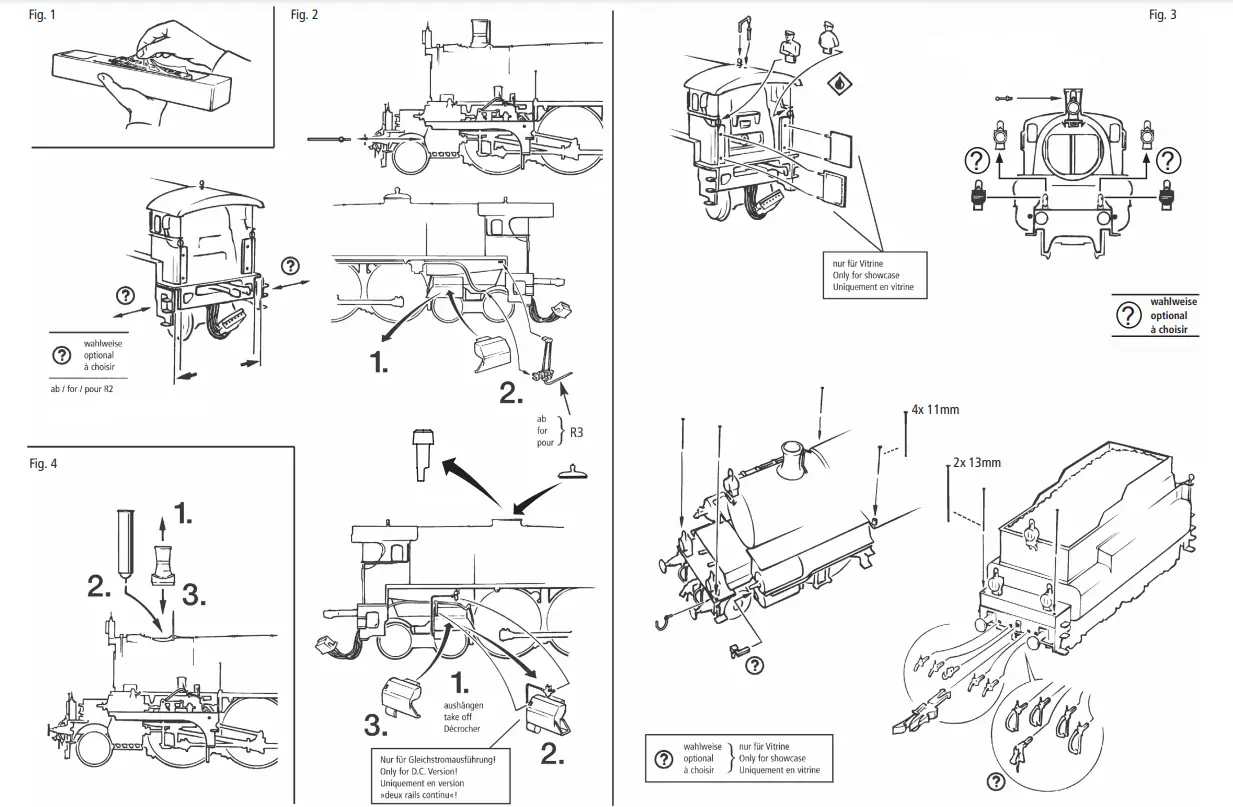

Unwrap model: Take the loco carefully out of the packing with the help of the foil (fig. 1).

Very important!
Before taking into service your model these bearings of the coupling rods must be oiled as otherwise there would be the risk of bad running qualities of dramage on he locomotive (see fig. 12).

Operating instructions: Before use is advisable to let the loco go around about 30 minutes forwards an 30 minutes backwards without load, to obtain an optomal circuit and best tractive power. The smallest radius this model should run is R3 (419,6 mm) or rather R2 (358 mm) of the ROCO track system (model without tubes protection pistons would run only if driven very carefully on R2) (fig. 2). Your locomotive will run smoothly on clean tracks only. For this purpose we recommend using item no. 46400, ROCO track cleaning van, or item no. 10002, ROCO track cleaning rubber, for removing heavy dirt.

Fittings: Operation is possible with different couplings (fig. 3). We recommend using the ROCO close coupling. In the enclosed accessory bag you will find small kits to be fitted on your locomotive. Please mount them cautiously.
Attention! Use glue only if indicated (fig. 2+3).
Running in digital mode: see fig. 6
A.C. pick up: see fig. 6a

Maintenance of the model

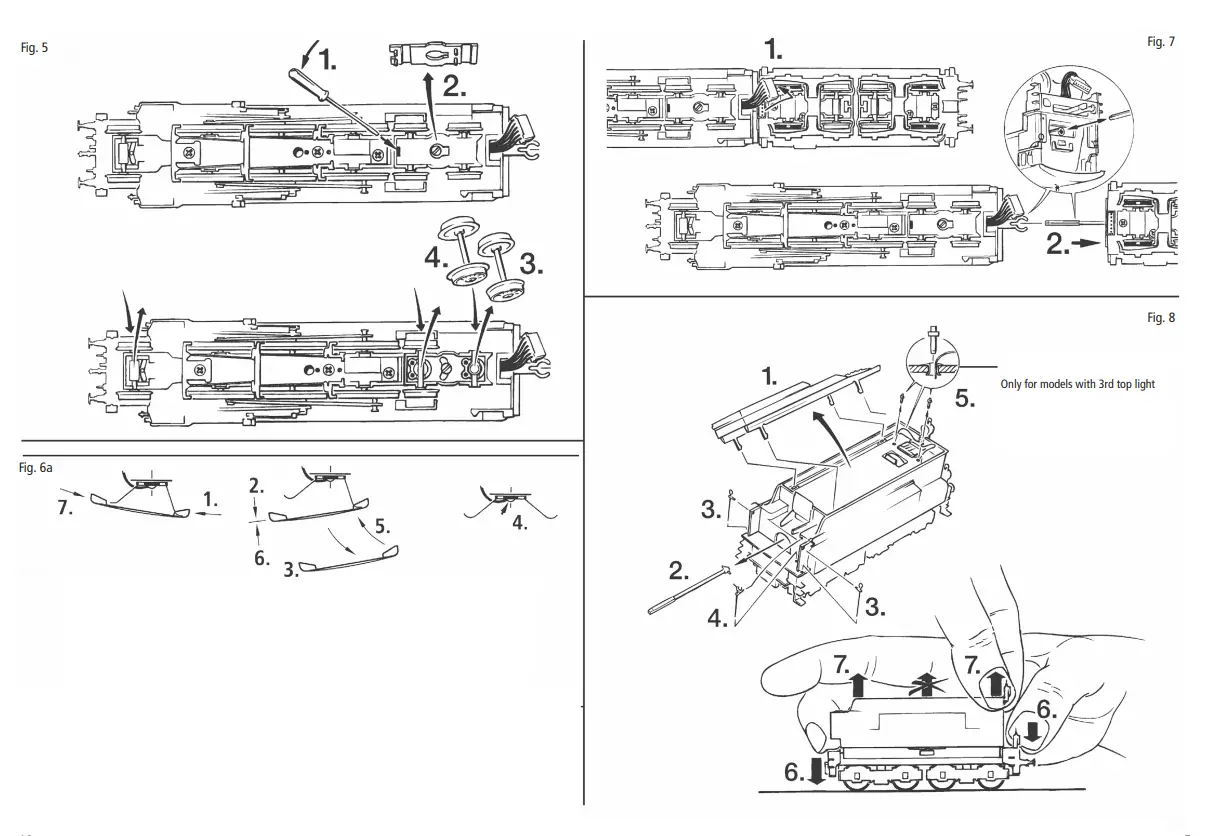

To enjoy your model for a long time, it is necessary to service it regularly (i.e. after it has been in operation for approximately 30 hours). Uncouple the locomotive and tender first (fig. 7).

1. Cleaning of wheel contacts: Wheel contacts easily get dirty on tracks that are not entirely clean. Use a small brush to remove dirt from spots marked in Fig. 10.
2. Lubrication: Apply tiny oil drops to the spots marked in Fig. 12. Prior to lubrication dismantle the tender body (fig. 8). We recommend using item no. 10906, Roco Oiler. For lubrication of the gear parts (e.g. cogwheels, worm) we would recommend our Roco special grease (item no. 10905). Attention: Please do not oil these parts when using our grease.
3. Change of lights: see fig. 9
4. Steam generator application (fig. 4): First remove the smokestack (fig. 7) and then push in the Seuthe steam generator no. 10 (running in digital mode: use no.11).
5. Change of traction tire: Remove the bogie blind (fig. 10). Remove the traction tire using a pin or a fine screwdriver (fig. 11). When pressing on the new traction tyre please avoid twisting it.
6. Carbon Brush Changing: First, remove the tender body (fig. 8), and then the motor (fig. 13).

Assembly: During assembly please take care of correct position of contacts.

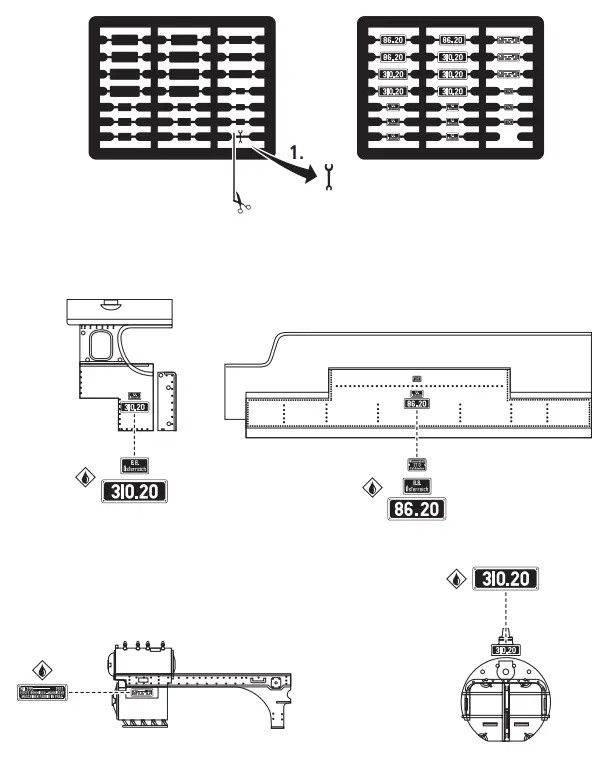

Working with etched Labels

Please note! To achieve proper mounting of the enclosed etched labels will you please follow these instructions:
As delivered the etched label surface is completely covered with paint. To make the metal numbers and letters visible the paint must be removed from the actual letter and numeral surfaces: this is done as follows:

1. Remove tool from the frame!
2. Dont remove the remaining signs from frame. Place them with their backs on a firm and completely level surface.
3. Remove the paint from the surface of the characters carefully either with the ROCO rubber (art. no. 10002) a sharp knife having a straight edge or similar object (e.g. single-edge razor blade). Take care that while doing this the paint surface between the characters is not damaged.
4. If the result is not satisfactory it is recommended that the remaining paint is removed with a suitable paint remover. Thoroughly dry the labels and then reapply fresh paint. Repeat the removal of the paint from the surface of the characters after the new paint is completely dry.
5. Carefully extract the different labels from their etching frames and remove any remaining burrs.
6. Attach the etched labels with very small amounts of adhesive on top of the printed signs on the vehicle.

ROCO wishes you lots of pleasure with your new model.

PARTS DESCRIPTION

70330		BBÖ      Rh 310	=
70331			=
78331			~
Pos. Nr. Pos.no.	Description					Art.-Nr. Art.no.		Preisgruppe Price bracket

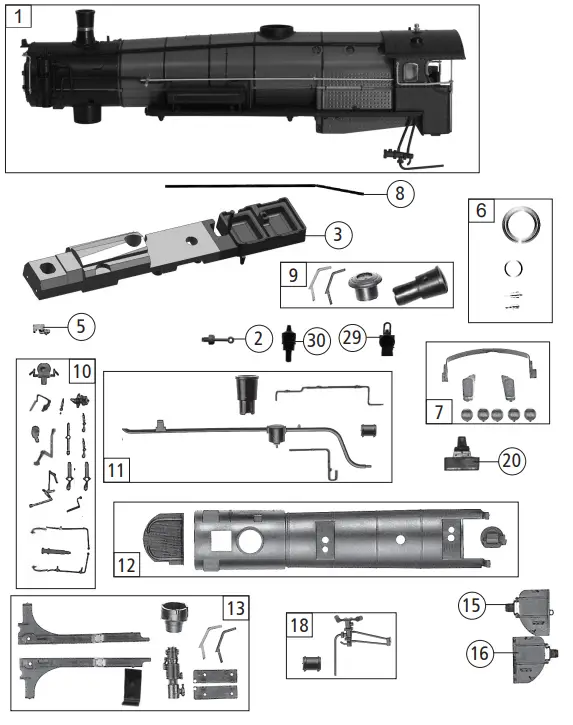

1	Betr. Nr. 310.20 Boiler compl. Loco no. 310.20					149063		35
2	Chimney eyelet					133619		6
3	Boiler ballast weight					133812		8
4	Part set-Boiler					149058		9
5	Plug-in part for runningboard					109276		3
6	Boiler plug-in parts					109277		9
7	Part set-Window+Light conductor					109279		13
8	Reversing rod					149065		6
9	part set-Boiler+Capture iron					109233		9
10	Part set-Boiler plug-in parts					109298		12
11	Part set-Lines					110233		12
12	Part set-Boiler floor					149066		14
13	Part set-Catch iron, covers					125569		8
14	M 1,6×6 mm GF-Screw					114836		3
15	Smokeroom door R					115168		8
16	Smokeroom door L					115169		8

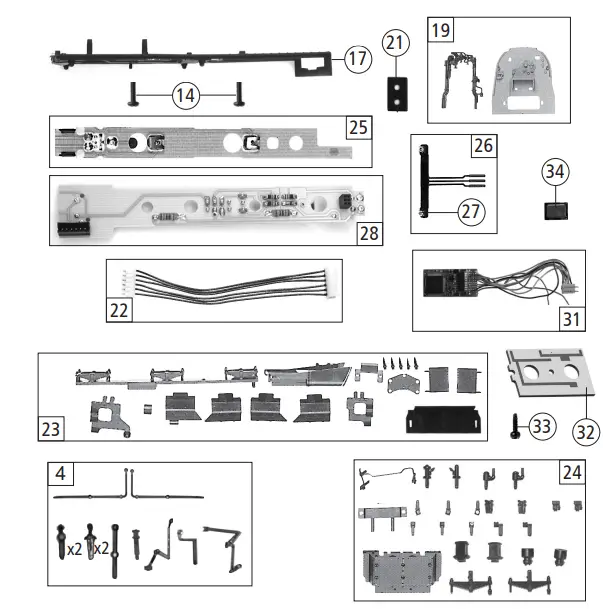

17	Running board					115178		12
18	Ep.3 Line 3+boiler ep.3					124710		6
19	Fittings+boiler backwall					115170		6
20	Lamp holder					149067		6
21	Jumper					100644		6
22	Plug-in connection					109272		15
23	Plug-in parts set					109239		12
24	Part set-Boiler					109249		13
25	Loco PCB					149415		19
26	Loco flexible PCB					109241		13
27	Light bulb					109278		8
28	Boiler PCB compl.					115166		23
29	Lower lamps					110236		8
30	Valve					122717		6
Sound
31	Sound-decoder					149800		39
32	Loudspeaker printed circuit board					128481		10
33	M1,6×4 mm Self-tapping screw					114850		3
34	Loudspeaker					129524		13

70330		BBÖ      Rh 310	=
70331			=
78331			~
Pos. Nr. Pos.no.	Description					Art.-Nr. Art.no.		Preisgruppe Price bracket
1	M1,4 L=6,7 mm Flanged screw					85720		5
2	M1,4×3,2/1,1 mm Screw					85764		3
3	Cone spring					86202		3
4	Draw spring					86208		3
5	Flanged screw					109252		3
6	Z=15/14 Wormgear					86490		5
7	Z=16 Gear					117617		3
8	Wormgear set with cardan ball					109242		13
9	Bearing for wormgear axle					89749		6
10	2,1×4/0,2 mm Washer					86108		3
11	Wormgear					86720		6
12	Cardan reception long					109248		5
13	Wormgear cover					111987		4
14	Loco bottom					109246		10
15	Base frame					109247		16
16	Buffer flat					109268		5
17	Buffer curved					109269		5
18	Boiler line + Reversing rod					149068		14
19	Contact pin					109545		4
20	Connecting rod R.					110229		7
21	Connecting rod L.					110230		7
22	Driving rod ring					110232		3
23	Gear cover					110235		12
24	Steering ass. rivets short+long					113252		8

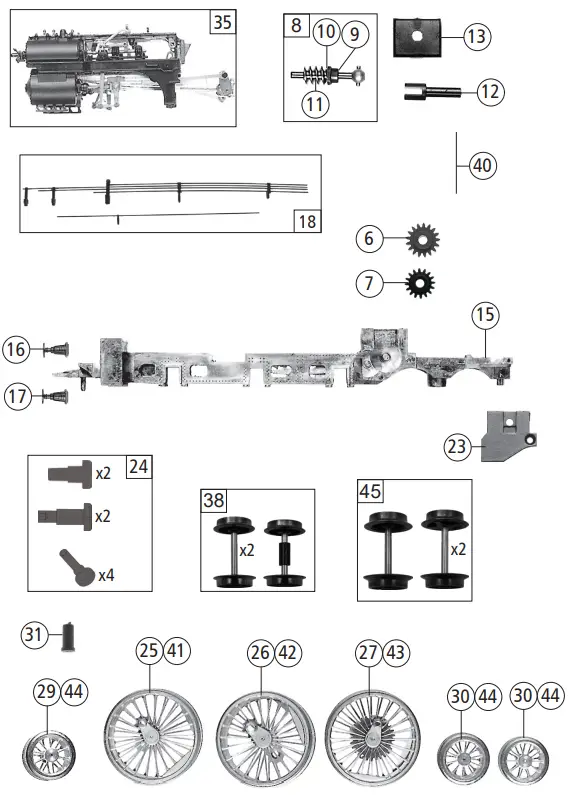

25	Wheelset 1					110237		17
26	Wheelset 2					110238		17
27	Wheelset 3					110239		17
28	Carrying wheelset ass. (front)					110248		12
29	Carrying wheelset/Tender wheelset					110254		14
30	Carrying wheelset(rear)					110288		13
31	Insulating shaft					112109		3
32	GF-Screw					114828		3
33	M2x4 mm GF-Screw					114877		3
34	M2x18 mm GF-Screw					115062		3
35	Reversing gear compl.					149062		30
36	Greasing lever L+R					149057		5
37	Carrying wheelset pressure spring					115176		3
38	Part set-Wheelsets Loco					110257		16
39	Part set					109234		12
40	Tack					110641		4
Wechselstrom AC ~
41	Wheelset 1					110266		17
42	Wheelset 2					110267		17
43	Wheelset 3					110268		17
44	Carrying wheelset/Tender wheelset					110271		11
45	Carrying wheelsets(front/rear)					110467		16
46	Part set-Carrying wheelset ass. (front)					110269		12

70330		BBÖ      Rh 310	=
70331			=
78331			~
Pos.no.	Description					Art.no.		Price bracket
1	Draw spring					86249		3
2	Motor clamp					108264		3

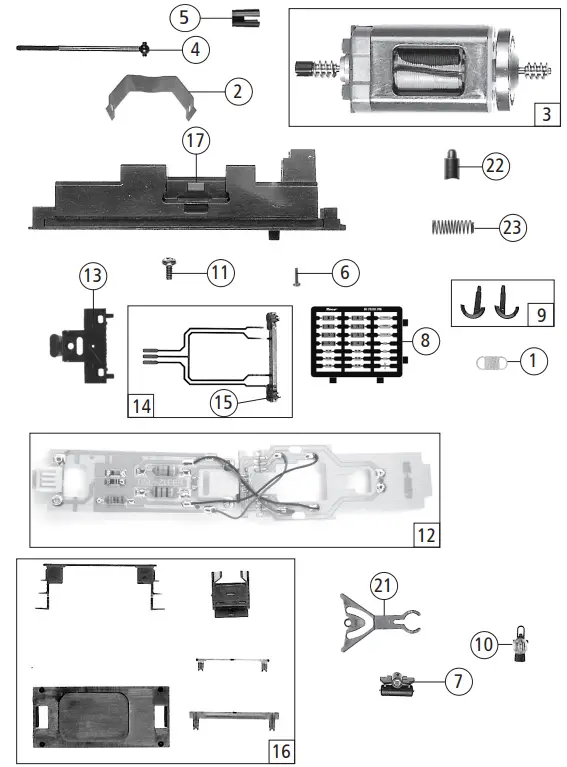

3	Motor					109261		28
4	Cardan shaft					109238		5
5	Cardan reception					109548		5
6	M2x5 mm GF-Screw					114966		3
7	Support					115155		3
8	Set of panels					149071		12

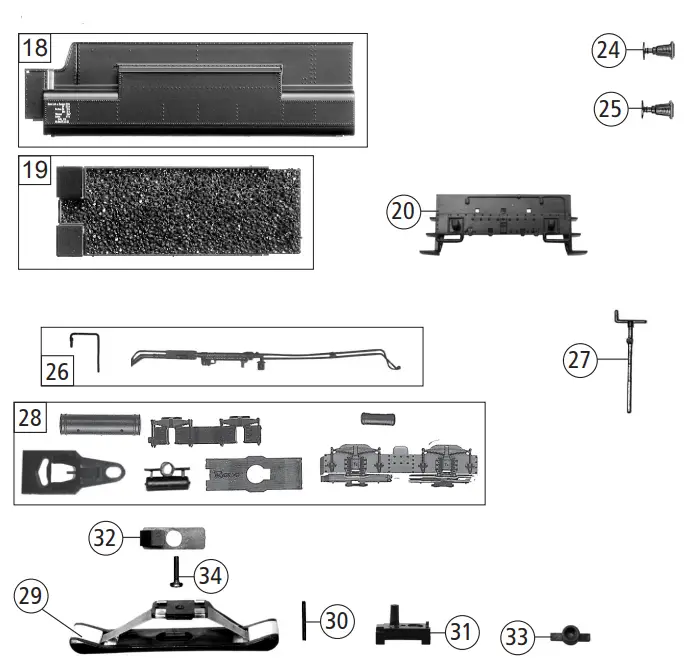

9	Vapor container L+R					115159		6
10	Lower lamp compl.					115160		8
11	M1,6×4 mm SK-Screw					115161		3
12	Tender PCB					149414		23
13	Buffer beam					115174		9
14	Tender fexible PCB					109260		14
15	Light bulb					109278		8
16	Part set-Tender					109256		9
17	Tender lower part					109292		16
18	Tender body					149061		18
19	Coal stacking frame					110262		8
20	Platform rear					115177		3
21	Loco-Tender coupling					109546		5
22	Carbon brush					89743		6
23	Carbon brush spring					114197		3
24	Puffer flach Buffer flat					109268		5
25	Buffer curved					109269		5
26	Line for box, tender line					115162		6
27	Brake lever					149060		3
28	Part set containers and support metal sheets					109232		12
Wechselstrom ~ AC
29	56 mm Slider					86033		14
30	Contact pin					100893		3
31	Slider box					109301		5
32	Pick-up contact					109302		5
33	Inset for carrying wheelset AC					110274		3
34	M1,6×8 mm GF-Screw					115037		3

70330		BBÖ      Rh 310	=
70331			=
78331			~
Pos. Nr. Pos.no.	Description					Art.-Nr. Art.no.		Price bracket

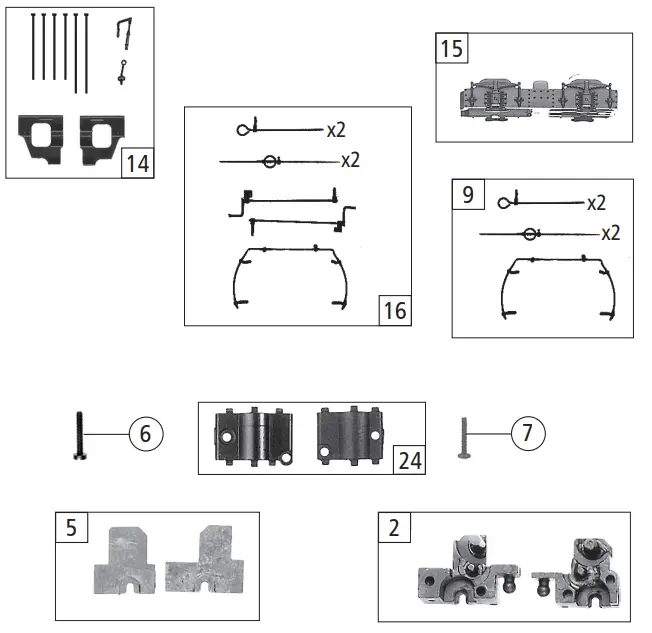

1	Set w.traction tyres 10pieces 10,3-12,8 mm					40069		—
2	Tender gear set 2-parts					109245		8
3	Tender coupling					109258		5
4	Coupling plate					109547		4
5	Gear cover front+rear					109265		8
6	M1,6X10 mm Self-tapping screw					114881		3
7	M1,6×8 mm Self-tapping screw					115037		3
8	Tool box					124695		4
9	Part set-Handles					149059		15

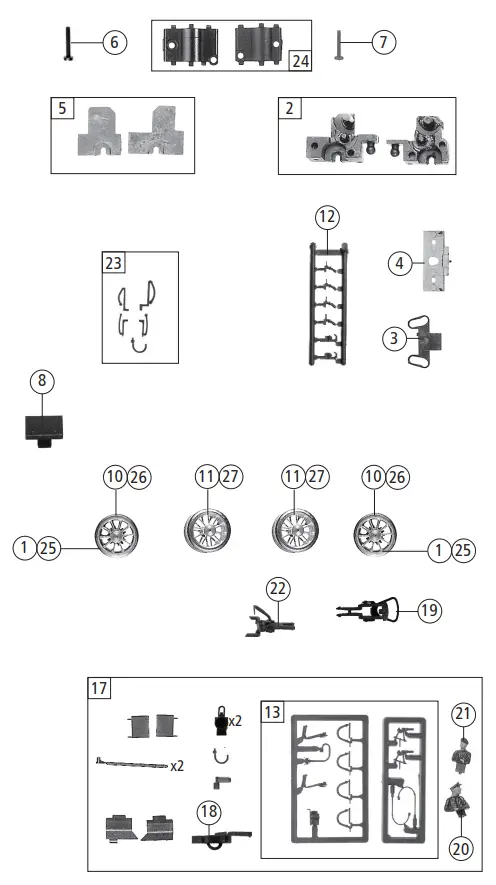

10	Radsatz m. Haftringen m.Zahnrad Wheelset w. traction tyres w.gear wheel					110251		14
11	Wheelset w/o traction tyres w/o gear wheel					110254		14
12	Small dummy frame					107808		4
13	Set of accessory frames					108322		7
14	Accessory bag					149070		18
15	Bogie frame w. contacts					109294		12
16	Set of plug-in parts					109295		15
17	Accessory bag					149069		17
18	Short coupling pre-uncoupling					115550		6
19	Standard coupling					89246		6
20	driver at the side					89724		6
21	Fireman/E-loco driver					89725		6
22	Universal coupling					89282		6
23	Brake hose-heating hose set					115175		6
24	Gear bottom front+rear					109266		8
Wechselstrom AC ~
25	10,3-12,4mm Set w.traction tyres 10pieces 10,3-12,4mm					40074		—
26	AC Wheelset w. traction tyres w.gear wheel					110272		14
27	AC Wheelset w/o traction tyres w/o gear wheel					110270		14
