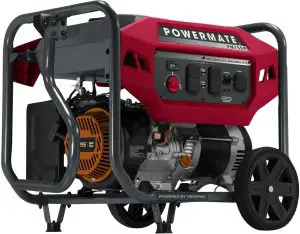

POWERMATE Portable Generator PM7500 User Guide
AC Maximum Output Starting Watts 7500
AC Rated Output Running Watts 6000
Features
- POWERDIAL™ Recoil Start (Off/Run/Cold Start) offers three operation settings integrated into one simple-to-use dial.
- Large Capacity Steel Fuel Tank provides durability and up to a 14 hour run-time at 25% load.
- Powered by Generac 420cc OHV Engine provides consistent power for multiple applications.
- 10” Never Flat Wheels for easy transportation.
- Hour Meter tracks run-time and maintenance intervals.
- Low-Oil Level Shutdown prevents engine damage.
- Fuel Gauge allows users to keep track of gasoline levels.
- Ergonomic Frame for easy portability.
- Covered Outlets provide protection and keep out debris.

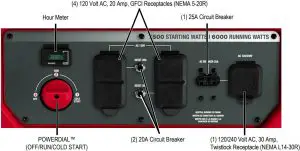

49-State/CSA Control Panel
Specifications
| Product Series | PM7500 |
| Model (Configuration) | P0081600 (EPA/49 ST/CSA) |
| AC Maximum Output Starting Watts | 7500 |
| AC Rated Output Running Watts | 6000 |
| Rated AC Voltage | 120/240 VAC |
| Rated AC Frequency | 60 Hz |
| Rated 120/240 VAC Amperage | 50 / 25 |
| Engine Displacement | 420cc |
| Engine Type | OHV |
| Engine RPM | 3600 |
| Recommended Oil | 10W-30 |
| Lubrication Method | Splash |
| Choke Location | On Control Panel |
| Fuel Shut Off | On Fuel Tank |
| Starting Method | Recoil Pull Start |
| Low Oil Shutdown | Low Level |
| Neutral Bonded to Ground | Yes |
| Start Switch Type | POWERDIAL™ |
| Start Switch Location | On Control Panel |
| Fuel Tank Capacity Gal (L) | 8 (30.3) |
| Run Time at 25% of Rated Load (Hours) | 14 |
| Run Time at 50% of Rated Load (Hours) | 11 |
| Warranty- Residential | 3 Year Ltd |
| Warranty- Commercial | 90 Day |

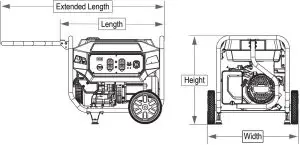

Dimensions and Weights
| Extended Length in (mm) | 48.7 (1238) |
| Length in (mm) | 31 (789) |
| Width in (mm) | 27 (685) |
| Height in (mm) | 26.4 (670) |
| Carton Length in (mm) | 32.7 (830) |
| Carton Width in (mm) | 23 (585) |
| Carton Height in (mm) | 24.2 (615) |
| Unit Weight lbs (kg) | 170 (77) |
| Shipping Weight lbs (kg) | 187 (84.9) |
Copyright
Powermate, LLC
S45 W29290 Hwy 59, Waukesha, WI 53189
©2020 Powermate, LLC. All rights reserved. All specifications are subject to change without notice. Part No. A0000761891-A 08/07/2020
