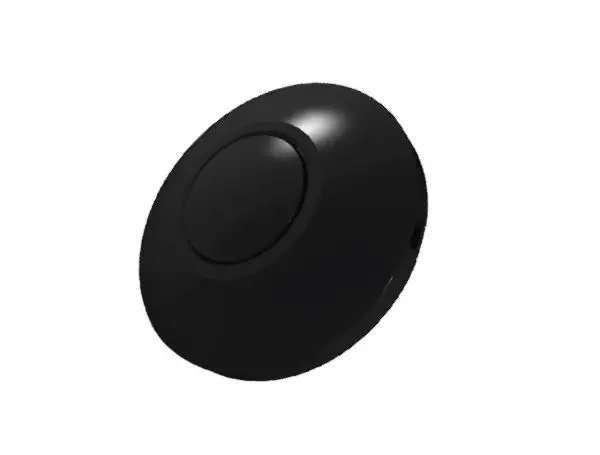

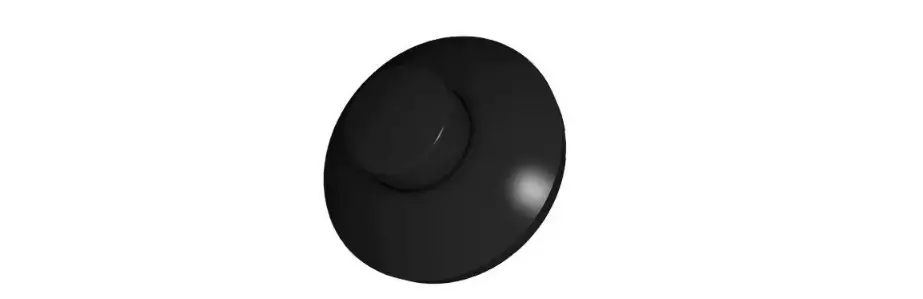

SPL 960000205 LED Cord Dimmer

Easy installable cord dimmer with Integrated load failure protection and min and max brightness adjustments to avoid flickering. Suitable for flat and round cables.

FEATURED

• Voltage: 220-240V 50Hz
• Load type / Soort belasting: 0-50W LED/10-100W Halogen
• Dimming method: R,C Trailing Edge /
• Dimming style: Rotary
• Memory function: Yes
• Ambient temperature: Max. 35° C
• Dimensions: 80.5 x 34.1 mm
• Weight: 46.3 g

Installation instructions

1. Make sure that there is no voltage on the cord to be connected when mounting!

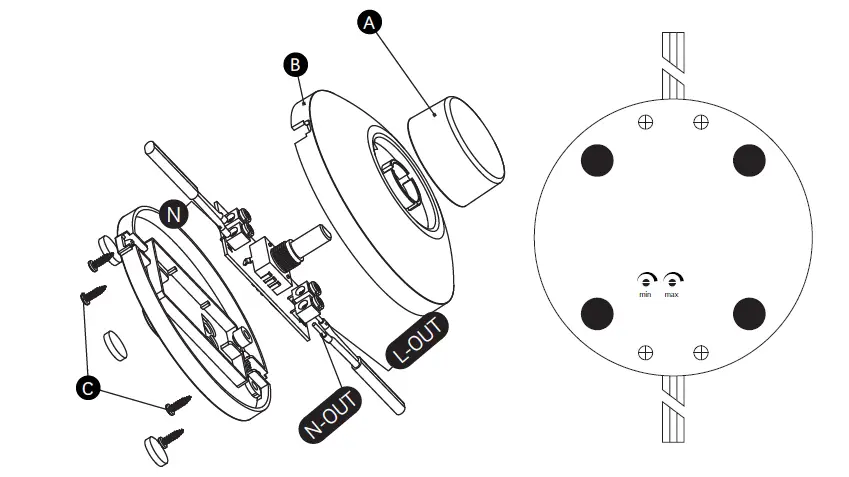

2.  Open the housing by loosening and removing the screws C
3. Remove button A and cover B
4. Clear the wire ends (approx. 5 mm)
5. Connect the veins of the feeding cord (where the plug is attached) to points L and N
6. Connect the cord to the lamp to OUT connections on the circuit board
7. Replace housing B and button A
8. Fasten the housing using the screws C

Set minimum and maximum brightness

1. Turn on the lights by pressing the button and turn the knob to the minimum brightness
2. Insert the screwdriver into the MIN screw and turn it to the left
3. If the light becomes unstable (flashes), turn the screwdriver to the right until the blinking stops
4. Now turn the knob to maximum brightness and insert the screwdriver into the MAX screw and turn it to the right
5. If the light becomes unstable (flashes), turn the screwdriver to the left until the blinking stops
