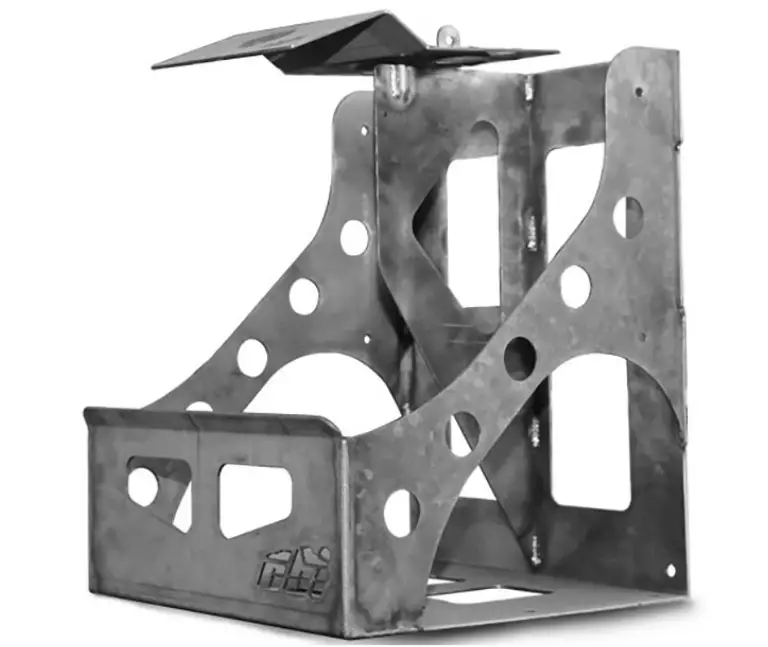

600-000-000-052 Single and Dual Can Carrier
Instruction Manual
Applications
These installation instructions apply to the following CBI Off-Road products
CBI Dual Can Carrier – For use with Single & Double Swing arms
CBI Single Can Carrier – For use with Single & Double Swing arms
IMPORTANT!
THANK YOU for purchasing this CBI product. Please read through this entire document before proceeding with the installation. If you are not confident in your mechanical skills, please seek the help of a professional to perform the installation. Check your packages immediately upon arrival to ensure that everything listed is included, and to check for damage during shipping.
If anything is missing or damaged, or if you need technical assistance with any aspect of this installation, call CBI at (208) 528-0664 as soon as possible.
IMPORTANT!
If your CBI product comes as unpainted, bare steel, or aluminum.
You will want to either powder coat or paint prior to final installation, however it is very important to PRE-INSTALL the unpainted product first, following these instructions, BEFORE painting or powder coating any of the components! This will ensure that all parts are correct and that any incidental trimming or drilling will have been done prior to coating. Also, it will give you a practice run to familiarize yourself with the process, to lessen the likelihood of damaging the finish during the final installation. CBI Off-Road is NOT RESPONSIBLE for paint or powder coating costs, damage to paint or powder coating, or costs associated with inadvertently painting or powder coating components that are defective or were shipped or assembled in error. It is the customer’s responsibility to pre-install and verify that all parts are correct prior to paint or powder coat
Questions?
Call: 866-522-0697
Email: [email protected]

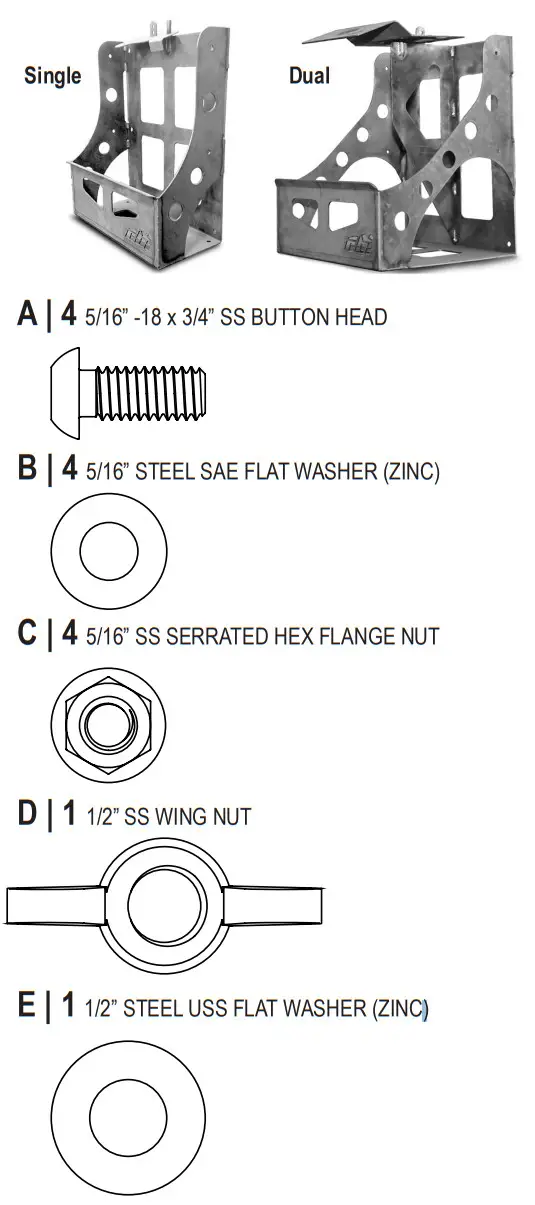

Hardware: What is included
Installation

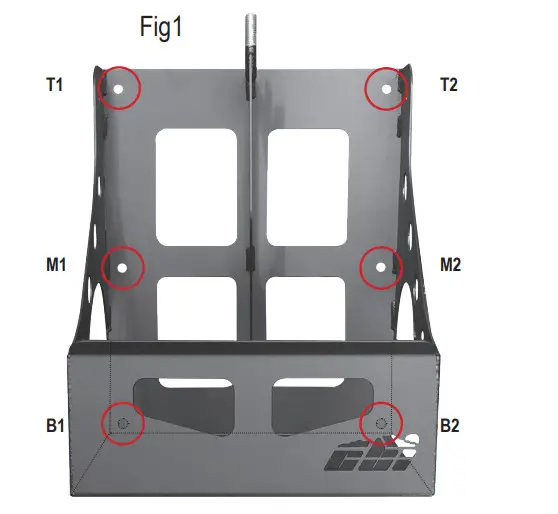

There are 6 mounting holes on the back of the Can Carrier: T (TOP), M (MIDDLE), B (BOTTOM).

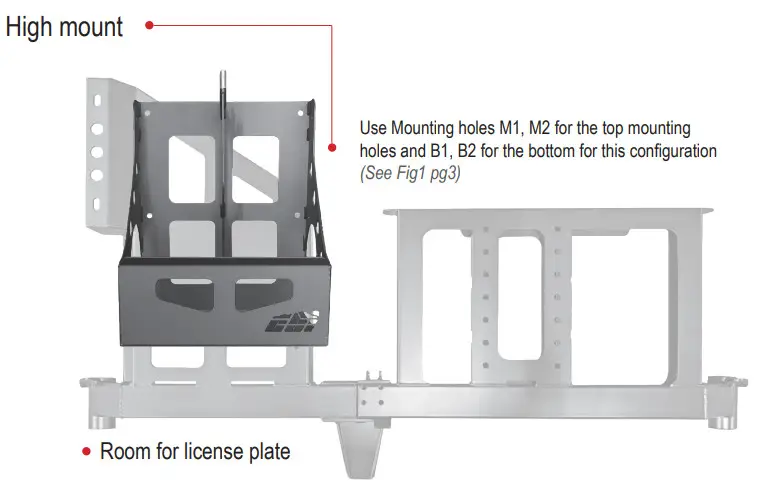

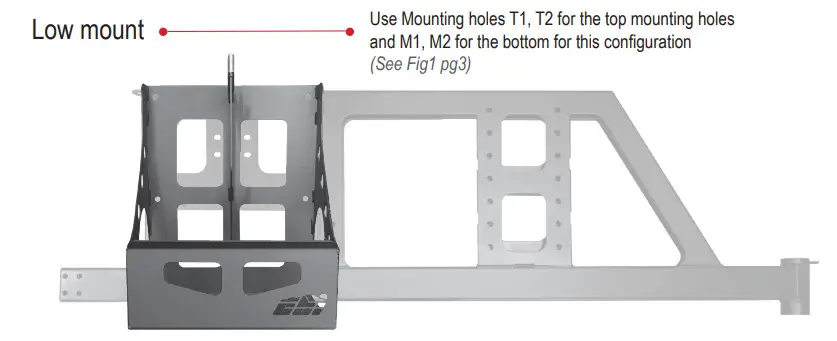

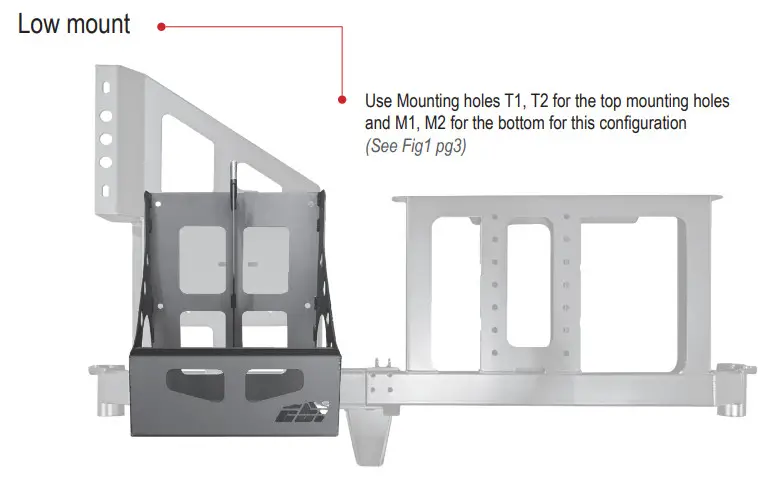

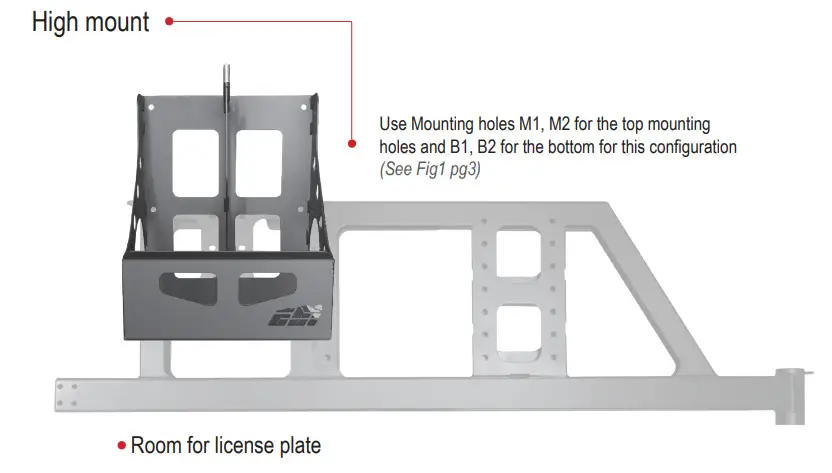

You will only use 4 of these holes to mount the Can Carrier. Use the images in this guide to mount the Can Carrier in a way that best fits your setup.
Use the 5/16” button head bolts to mount the Can Carrier to the swing arm with the 5/16” nuts on the back side of the swing arm.

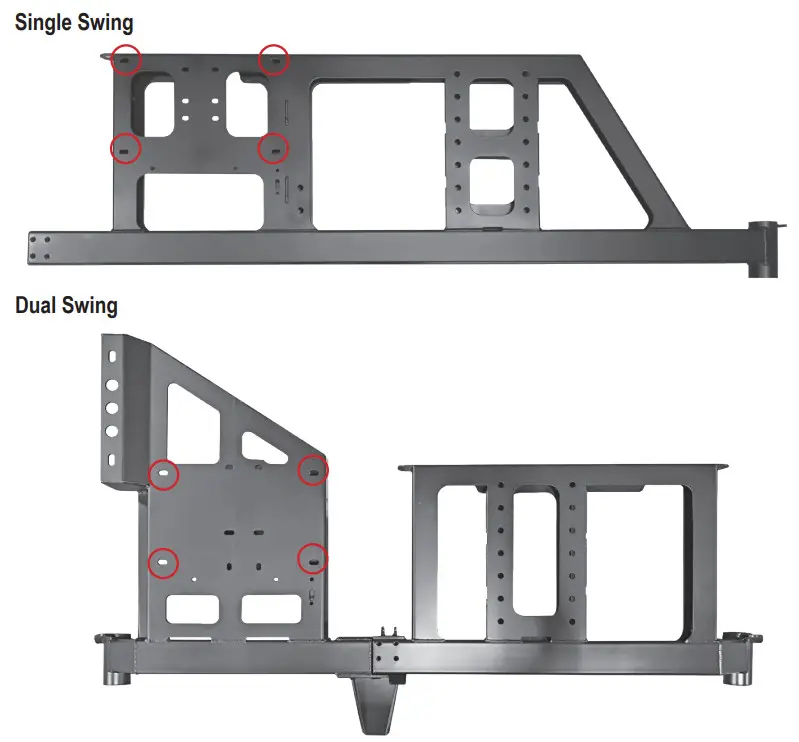

Single Swing
