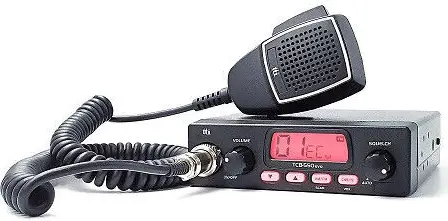

TTi TCB-550evo 4W CB Mobile Radio

Transceiver Controls and Functions

Supplied Accessories

Your transceiver is supplied with a full range of accessories to help you get started and virtually beneﬁ t from all the features straight away.

TCB-550evo Transceiver: 1 unit
Microphone with cord:1 unit
Radio mounting bracket:1 unit
Radio mounting thumb screw with rubber washer: 2 pieces
Mounting screw with washer (for transceiver bracket): 3 pieces
Mounting screw with washer (for microphone bracket): 2 pieces
Microphone mounting bracket: 1 unit

Installation

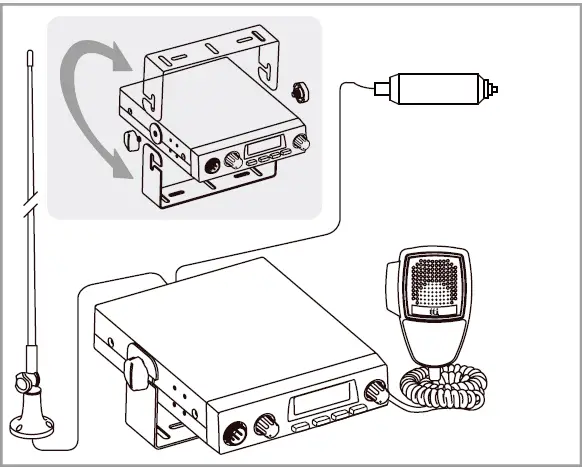

Normal Installation using Mounting Bracket

Put the mounting bracket on the proper location where you are going to install.
Drill holes and ﬁ x mounting bracket on the location.

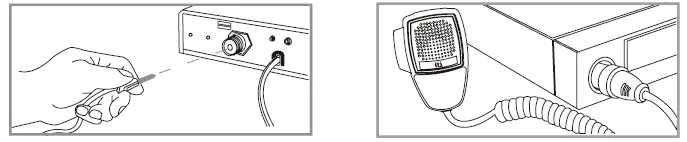

Connect the antenna cable plug to the standard receptacle on the transceiver, which is marked “ANT”.
Connect the radio using the included cigarette lighter plug.
Mount the microphone bracket on one side of the transceiver, or near it using two screws included.
Connect the microphone to the transceiver’s microphone receptacle.
Now you are ready to operate the transceiver.

Volume / Power Knob
LCD Display
Squelch / DSS Knob Manual Adjustment : Turn this knob counter-clockwise until you hear the background noise and then turn the knob a little clockwise until the noise disappears. In this way, you get the best receive sensitivity.
DSS : Turn the knob counter-clockwise until you hear the click. The squelch level of your transceiver is dynamically adjusted.
Emergency 9,19 / VOX Button Short press to go to the emergency channel (9 or 19). Long press to activate the VOX.
AM.FM / Scan Button Short press to change AM / FM. Long press to activate Scan function.
Channel Up Button
Channel Down Button
Microphone Jack
Antenna Connector
External Speaker Jack
Power 13.2V / 24V DC
Band Selection Pressing AM/FM button and Turn on the transceiver to access Band Selection. Use Up/Down button to change Band.
Menu Mode Presssing CH9/19 button and Turn on the transceiver to access Menu mode. Use AM/FM button to select the setting.

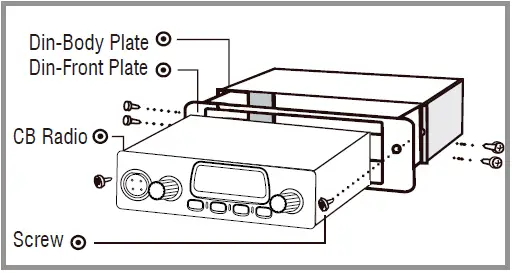

Installing into Audio Compartment

Install the Din-Body plate into the audio compartment (center fascia) of your vehicle.
(Use the ready made locking ﬂ aps.)
Set the transceiver in the Din-Front plate, and insert the transceiver in the Din-Body plate.
Fix the screws through the transceiver, Din-Front plate and Din-Body plate.

Installing an Antenna

Place the antenna as high as possible.
The longer the antenna is, normally the better is the performance of the transceiver.
Try to mount the antenna in the centre of the surface that you select.
Make sure that you have a solid metal-to-metal ground connection.
Be careful not to damage the cable during the installation.

Warning: Never try the operation of your transceiver before connecting a proper antenna in order not to cause any damage.

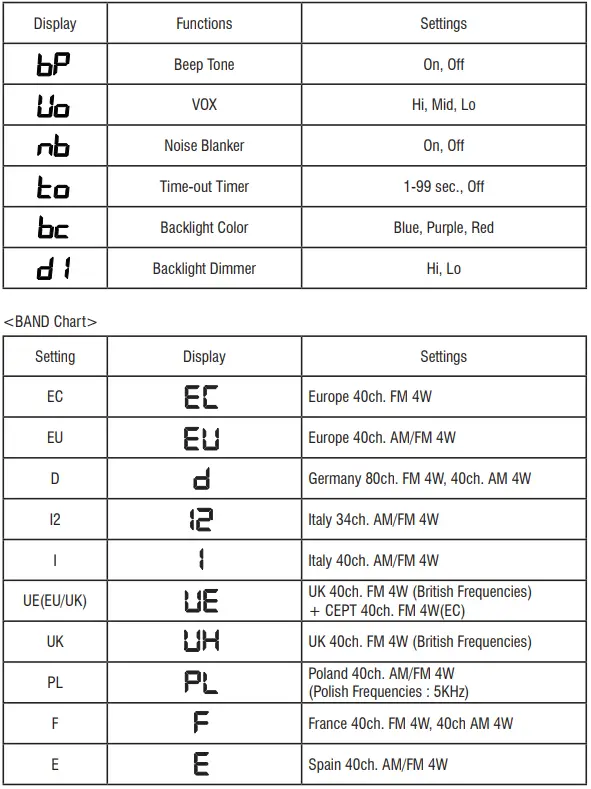

<MENU>

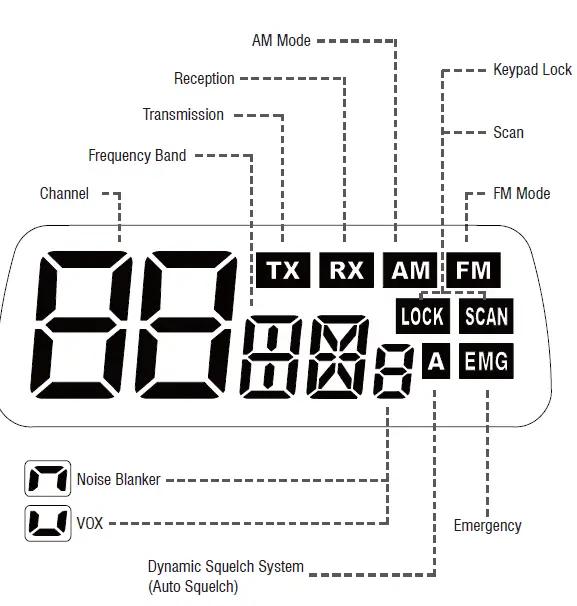

LCD Display

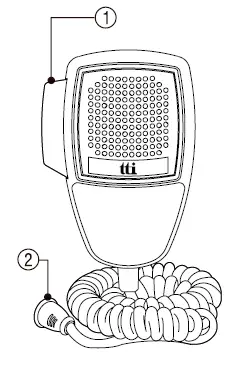

Microphone

How to operate the Transceiver

Make sure the microphone is connected to the microphone jack.
Make sure the power cable is connected properly.
Make sure the antenna is connected to the antenna receptacle.
It is better to put the squelch control knob turned fully counter-clockwise.
Turn on the transceiver and control the volume level.
Adjust the squelch control knob to the optimum level.
Select your desired channel.
To transmit, press the PTT button and speak to the microphone.
Release the PTT button to receive.

Trouble shooting

If you experience problems with your TCB-550evo transceiver, ﬁ rst check the power supply source. Poor connection of the power supply source can cause problems such as no transmission, no reception or poor reception, and weak or no sound. Ensure that the microphone and antenna are also well connected.

If this does not solve the problem, reset your transceiver as follows.

Switch off the transceiver.
Pressing both AM/FM button, 9/19 button and turn on the transceiver.

This will reset the transceiver, so all the memories are erased and the parameters return to the initial factory setting. This should ﬁ x most problems. In case of further difﬁ culty, please consult your dealer or visit our website.

CE Declaration

CE versions of the TCB-550evo which display the CE symbol on the product label, Comply with the essential requirements of the Radio Equipment Directive (RED) 2014/53/EU.

This warning symbol indicates that this equipment operates in non-harmonized frequency bands and/or maybe subject to licensing conditions in the country of use.

Be sure to check that you have the correct version of this radio or the correct programming of this radio, to comply with your national licensing requirements.

This unit can be used without license and charges in; Austria, Belgium, Bulgaria, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, and U.K.

Safety Requirement

The power cable is for 13.2 / 24V DC only. Be sure the transceiver is off before connection the leads of the power cable to the power supply. It is important to observe the polarity even if the unit is protected against the accidental inversion :

Red : Positive pole (+)
Black : Negative pole (-)

The same colors are present on the battery and in the fuse box of the car.
The unit must be wired for the negative ground only. To avoid damage, do not operate your CB radio without connecting a proper antenna

Specifications

G E N E R A L	Channel	40 (See the frequency band chart)
	Frequency Range	26.965 MHz ~ 27.405 MHz
	Operating mode	F3E (FM), A3E (AM)
	Frequency Control	PLL Synthersizer
	Frequency Tolerance	0.002%
	Operating Temperature Range	-10 to +55℃
	Microphone	Plug-in Type
	Input Voltage	13.2 / 24V DC ± 15%
	Size	124 (W) x 135 (L) x 37 (H)
	Weight	590 g
	Antenna Connector	SO-239 type
T R A N S M I T T E R	Power Output	Duty cycle 10% 4 Watts @ 13.2V DC
	Modulation	AM: from 85% to 95% FM: 1.8KHz ± 0.2KHz
	Frequency Response	300Hz to 3000Hz
	Output Impedance	50ohms, Unbalanced
	Harmonic Suppression	Less than -36dBm
	Current Drain	AM Full Mod. 1.6A Max.
R E C E I V E R	Receiving System	Dual conversion superhterodyne
	IF Frequencies	Double conversion 1st 10.695MHz/2nd 455KHz
	Sensitivity	0.7㎶ for 10dB(S+N)/N in AM Mode 0.7㎶ for 20dB SINAD in FM Mode
	Audio Output Power	2W @ 8ohm
	Audio Distortion	Less than 8% @ 1KHz
	Image Rejection	More than 60dB
	Adjacent Channel Rejection	More than 60dB
	Conducted Spurious	Less than -57dBm
	Frequency Response	300Hz to 2500Hz
	Built-in Speaker	8ohms, Round
	Squelch	Adjustable; Threshold less than 1㎶ DSS; Less than 2㎶

Speciﬁ cation is subject to change without prior notice.

Restrictions on the use

Country	Band					Use restrictions and other comments
BELGIUM SWITZERLAND		EU	F		EC	40 Ch – 4W FM – Individual licence is required
						40 Ch – 4W AM – Individual licence is required
DENMARK,NORWAY LUXEMBOURG,CZECH					EC	40 Ch – 4W FM – Free use
FINLAND,PORTUGAL FRANCE,NETHERLANDS		EU	F		EC	40 Ch – 4W FM – Free use
						40 Ch – 4W AM – Free use
GERMANY	D					80 Ch – 4W FM – Individual licence is required
						40 Ch – 4W AM – Individual licence is required
		EU				40 Ch – 4W AM – Use ch 4-15 only
	D2				EC	40 Ch – 4W FM – Free use
						12 Ch – 4W AM – Individual licence is required
	fx Allowed: from 26.960 to 27.410 MHz “BAPT 222 ZV 104”
GREECE	E	EU	F	I	EC	40 Ch – 4W FM – Free use
						40 Ch – 4W AM – Free use
	T/R 20-02
IRELAND	E	EU	F	I	EC	40 Ch – 4W FM – Free use
						40 Ch – 4W AM – Free use
	S.I. No 436 of 1998. WIRELESS TELEGRAPHY ACT, 1926 (SECTIONS) (EXEMPTION OF CITIZENS’ BAND (CB) RADIOS) ORDER, 1998
ITALY	E	EU	F	I	EC	40 Ch – 4W FM – General authorization is required
						40 Ch – 4W AM – General authorization is required
				I2		34 Ch – 4W FM
						34 Ch – 4W AM(ERP) *AM mode allowed on ch1-23 only
	PNF issued on DM 08.07.02 NOTES 49 A-B-C-D-E-G
SPAIN	E	EU	F		EC	40 Ch – 4W FM – Individual licence is required
						40 Ch – 4W FM – Individual licence is required
	Art. 57 – Law 11/1998 dated 24th April
SWEDEN		EU	F		EC	40 Ch – 4W FM – Free use
						40 Ch – 4W AM – Individual licence is required
UK	UK	EU			EC	40 Ch – 4W FM – Free use
						40 Ch – 4W AM – Free use
POLAND	PL	EU			EC	40 Ch – 4W FM / AM – Free use

Declaration of Conformity

We, TTI Tech Co., Ltd. (#1312 361 Simindaero Dongan-gu Anyang-si Gyeonggi-do Korea) declare on our sole responsibility that this equipment complies with the essential requirements of the Radio Equipment Directive (RED) 2014/53/EU, and that any applicable Essential Test Suite measurements have been performed.
