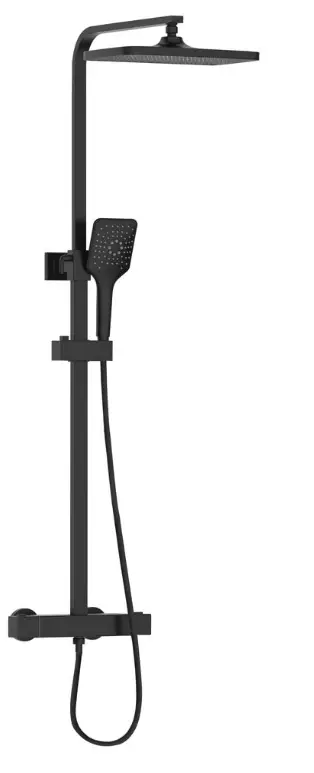

BRISTAN SHXDIVCTFF BLK Craze Black Exposed Bar Shower Valve Kit

Specifications

Please leave these instructions with the end user
Product Code: CRZ SHXDIVCTFF BLK (D1)

Working Pressures

Inlet Water Temperature

Inlet Dimensions

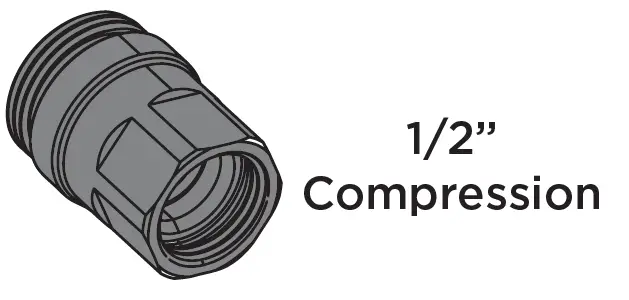

Inlet Connections

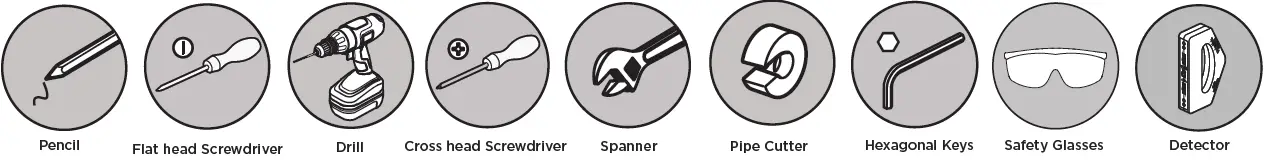

Tools You’ll need

Prior to Installation

All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in
accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and current by-laws. For full Installation Requirements & Notes (IRN) please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease of future maintenance.
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will invalidate the guarantee.
Full access must be made available for future maintenance/servicing purposes.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply pipes. This can be checked with the aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
If in doubt, contact a registered plumber or your Local Water Authority or the Secretary of the Institute of Plumbing, address as follows:-
- The Institute of Plumbing,
- 64 Station Lane,
- Hornchurch,
- Essex,
- RM12 6NB, Tel: 01708 472791

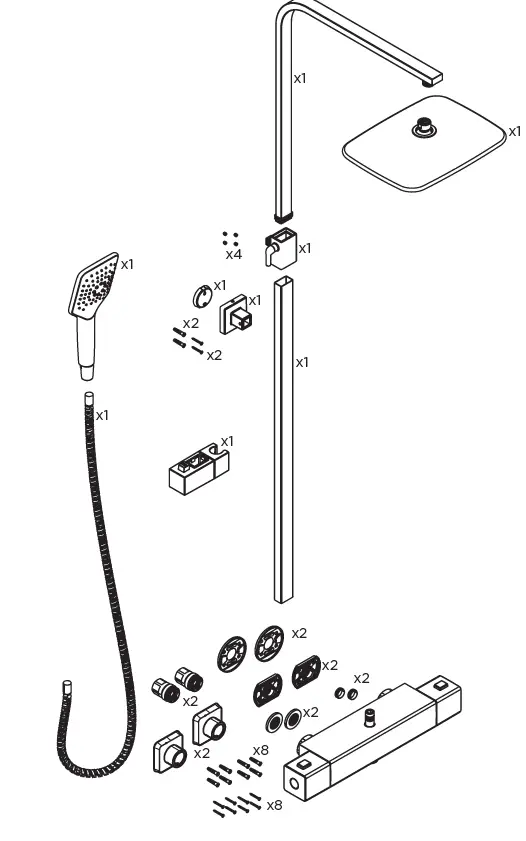

Pack Contents

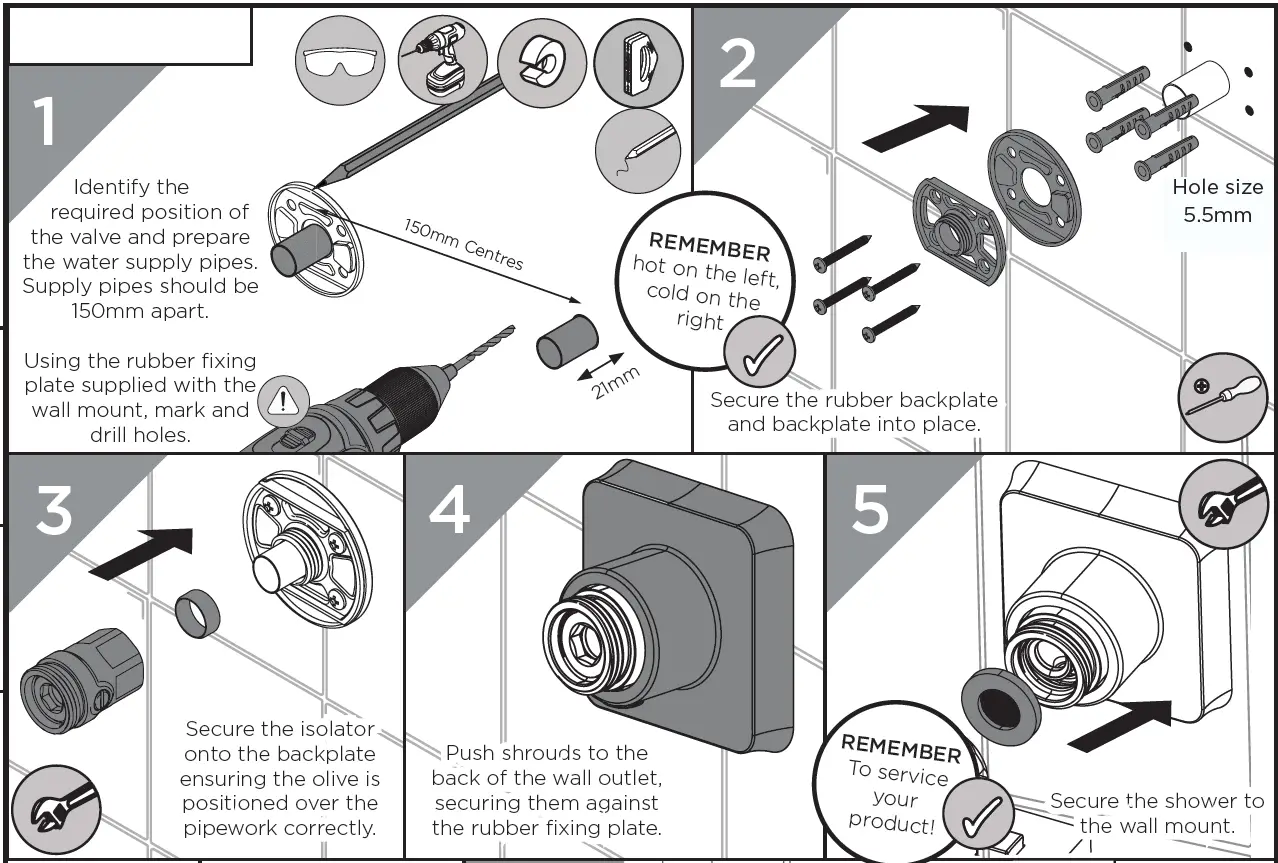

Installation

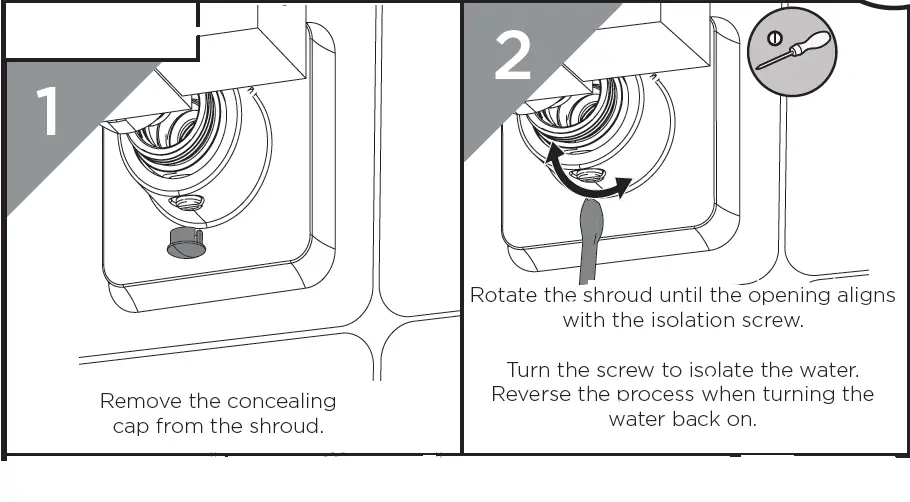

Isolation

Spare Parts

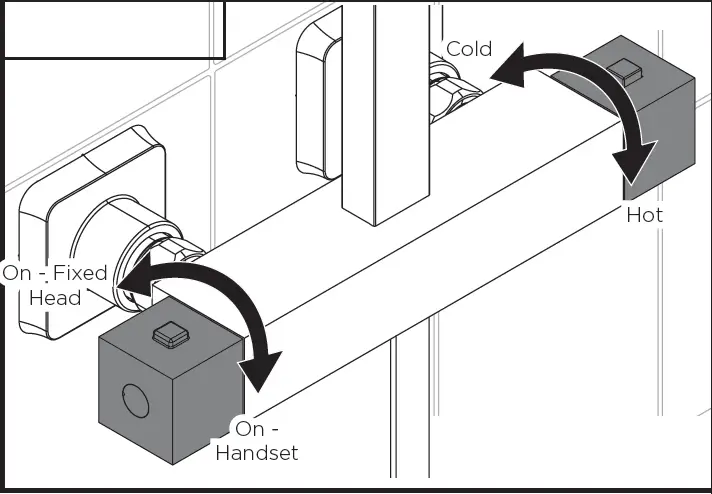

Operation

General Cleaning

Bristan products are made from premium materials, with hand polishing and electroplated, PVD or EPD finishes’ Your taps or shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toiletries etc. should be rinsed off straight after use. Household bleaches and cleaners contain harsh chemicals and may damage the surface finish. Avoid using abrasive cloths, scouring pads, scrub sponges, steel wool or anything similar.

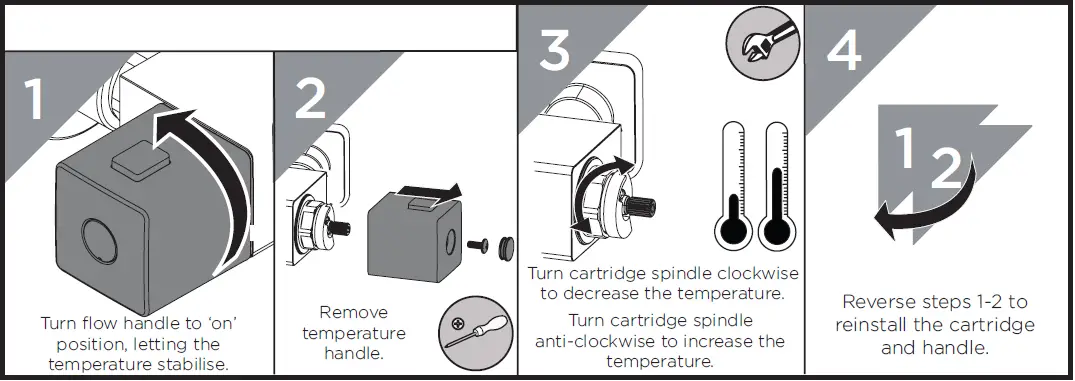

Temperature Setting

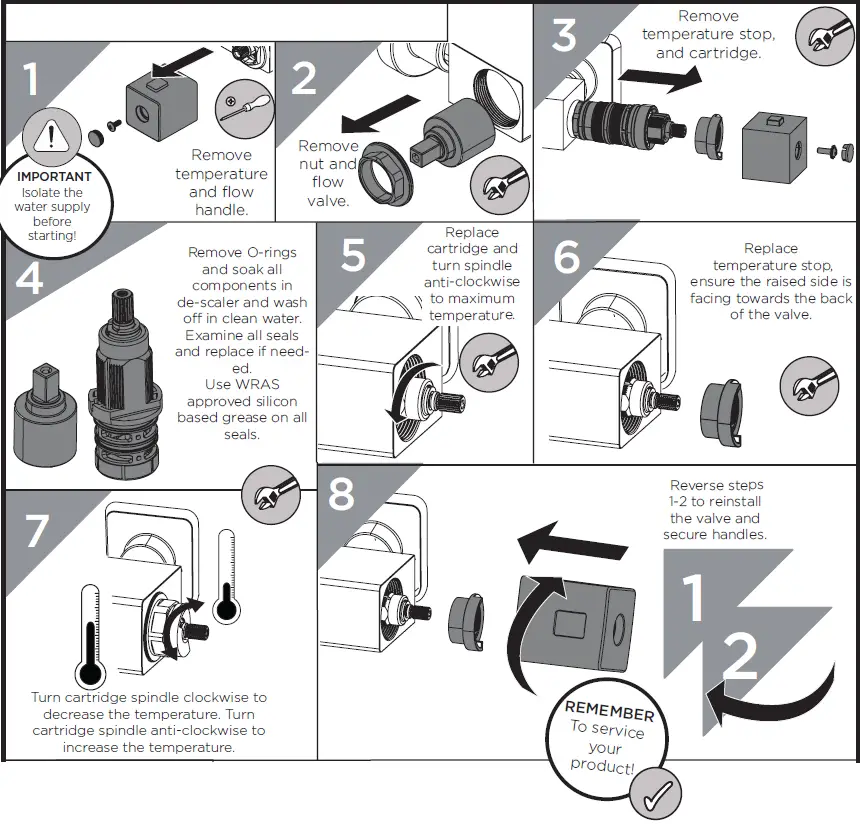

Maintenance – Cartridge Cleaning

Servicing Intervals

To reduce the build-up of limescale and to ensure this shower works to its maximum performance we recommend this shower is serviced every 6-12 months depending on the hardness of your water.

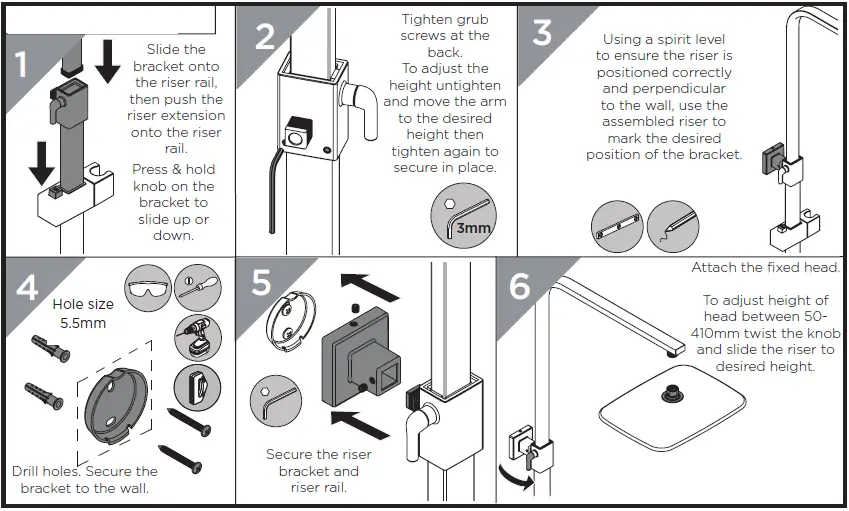

Riser Installation

Troubleshooting

Troubleshooting
Symptom	Cause	Remedy
No flow or low flow rate	Partially closed isolation valve.	Open isolation valve.
	Instantaneous water heater cycles on and off as the flow rate or pressure is too low.	Increase water flow rate or pressure through the system.
	The head of water is below the minimum distance required.	2 meters minimum required.
	Hot or cold water being drawn off elsewhere causes pressure changes or instantaneous boiler temperature changes.	Do not use other water outlets when using the shower.
	Airlock or partial blockage in the supply pipe work.	Flush through pipework to ensure the removal of debris and any airlocks.
Water dripping from the shower	This is normal for a short time after using the shower.	This is caused by residual water tension, the build-up of water in the shower.
	If water continues to drip, possibly due to the cartridge	Remove the cartridge and clean it, refer to the ‘Maintenance’ section before starting any maintenance.
Maximum Water Temperature too Hot/Cold	Maximum Water Temperature needs adjusting.	Refer to the Temperature Setting section to set your desired maximum temperature.

Our Guarantee

At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee simply scan the QR code and register your product. Alternatively, visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team of advisors will be able to offer you any help and advice. For full guarantee terms and conditions visit www.bristan.com/service-centre/guarantees.

Bristan Group Ltd.
