Designer Collection Rb0874dc Complete Shower System With Rough-in Valve Instruction Manual

RB0874DC
User’s Manual

INSTALLATION INSTRUCTIONS

Installation Manual

BEFORE INSTALLATION

This product has been inspected and debugged by the factory to the best condition. Please do not disassemble and assemble it yourself.

Before installing the faucet, please be sure to remove sundries and sludge from the water pipe to prevent sundries from blocking the faucet.

1. Please read the manual firstly before installation;
2. Please check the condition of all the parts, and the installation tools are not included, please prepare them by yourself;
3. The user manual includes matters needing attention during installation, please keep it properly;
4. The size chart in the manual is for reference only, please refer to the actual product that you receive.

Recommend Tools :

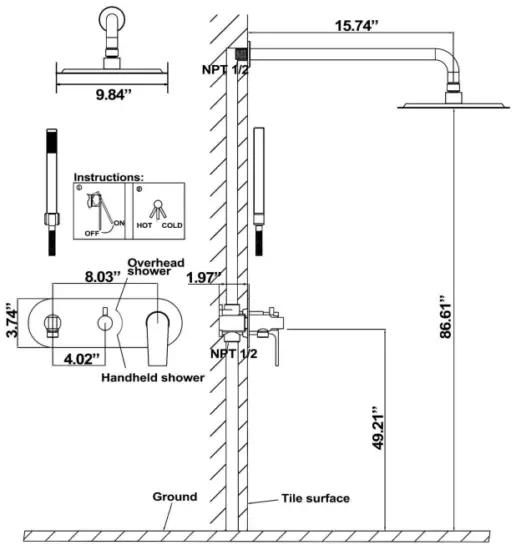

INSTALLATION DIMENSION

The picture is for reference only, you can install it according to your own requirements.

INSTALLATION STEPS

1. The sundries at the connection area must be cleared before installation to avoid blockage or leakage;
2. Connect the inlet pipe correctly as shown in the figure;
3. The maximum temperature of hot water is not higher than 80 X_ (176T);
4. Please contact the seller for consultation if you need to install another method.

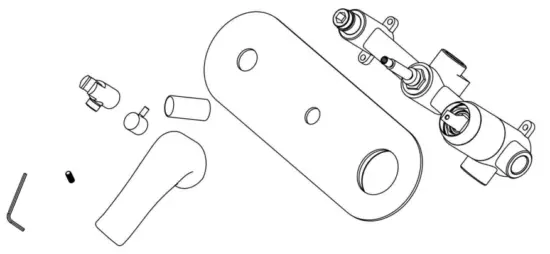

First, bury the main part in the wall

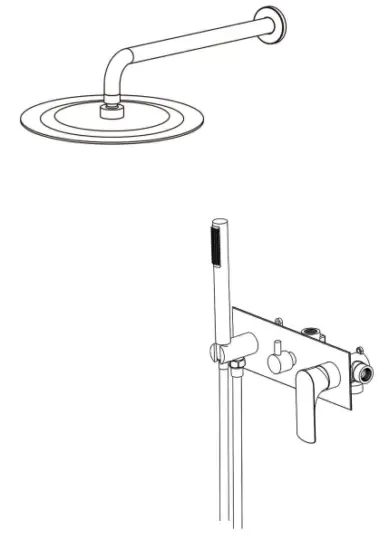

Please install other parts in the order as shown in the figure below when the valve is mounted to the wall:

1. Cover the deck plate
2. Install a hand-held bracket and diverter valve
3. Install handle

CLEANING CARE

In order to keep the appearance of the faucet clean,bright, and good performance, please take care of the faucet as follows;

1. Rinse with water only and dry with soft cotton cloth;
2. Use mild liquid and colorless glass cleaner to remove surface dirt and scale film, or use polish without abrasive effect;
3. Do not use abrasive detergent, polish, emery cloth, paper towel or scraper, etc.;
4. Do not use acid cleaner, or cleaner and soap with insoluble gran, etc.;
5. In the process of use, mud may accumulate in the bubbler and make the water flow show, The bubbler can be unscrewed, rinsed with water, and then installed back in place.

Please feel free to contact us if you have any questions. We will help to solve the issue together with you. OUR EMAIL: [email protected]
