Ravak B2f0000002 Universal Shower Tray Base Instruction Manual

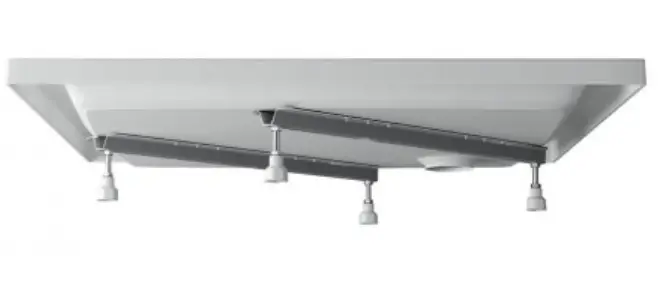

RAVAK B2F0000002 Universal Shower Tray Base

INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS for the „UNIVERSAL BASE“ Support for LA Type Shower Trays

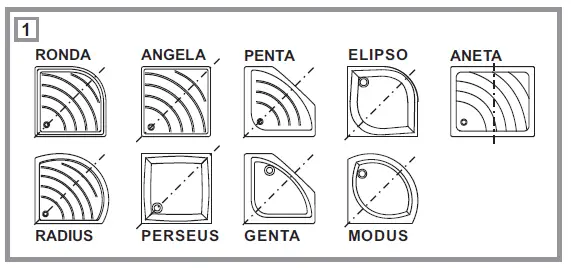

1. Draw the basic axis on the under side of the shower tray according to the type of the tray.

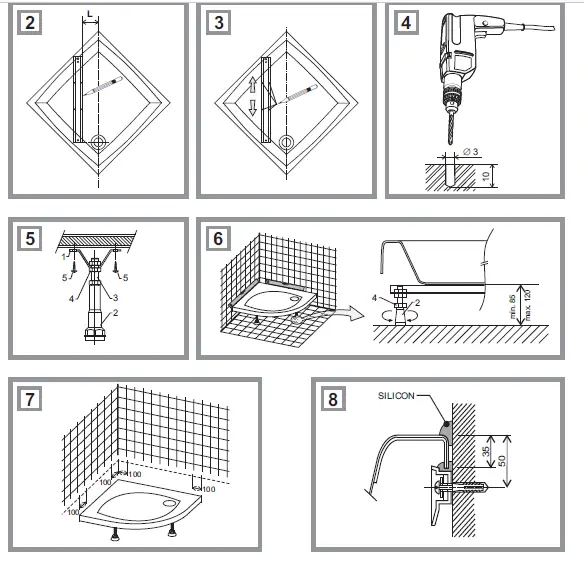

2. Place the bearer (1) on the tray bottom so that it is parallel with the axis; measure out the “L” spacing between the axis and the inner edge of the bearer and draw the outline of the bearer on the tray bottom.
3. Adjust the bearer so that it does not impede the frontal encasing. On the reinforced shower tray base, mark out four positions for the mounting holes. Follow the same steps to measure and mark out the position of the other bearer mounting holes.
4. In the marked positions now drill four Ø 3 mm mounting holes for each bearer. ATTENTION! Drill into the reinforced part only, 10 mm deep, in order to not damage the shower tray bottom.
5. Using the hole (5), screw the bearer (1) onto the shower tray bottom. Insert the threaded rods (3) with nuts (4) and plastic legs (2) into the Ø 12,5 mm openings.
6. Set the shower tray into its intended installation position. By twisting the plastic legs, level the tray; using a spirit level to check. Tighten the setting nuts (4).
7. Draw the outline of the shower tray upper edge on the bathroom wall; mark out axes of the mounting clips 100 mm from the tray corners. Set the tray aside.
8. On these axes mark out and drill Ø 8 mm openings exactly 50 mm under the shower tray upper edge. Insert wall plugs and attach the mounting clips from the shower tray mounting kit. Apply some silicon putty into the upper rods of the clips and hang the shower tray on the clips.
9. Following the basic instructions included in the shower tray package, install and connect the waste siphon, and seal the shower tray to the bathroom walls.

MOUNTING KIT

1. Bearer 2 pcs
2.  Plastic leg M 12 x 40 4 pcs
3.  Thread Rod M 12 x 85 4 pcs
4. Nut M 12 12 pcs
5. Self-tapping screw 5,5 x 16 8 pcs
6. Drill Bit 3 mm 1 pcs

For each type and size of the shower tray there is different length of the bearers: 600 mm, 650 mm, or 750 mm.
