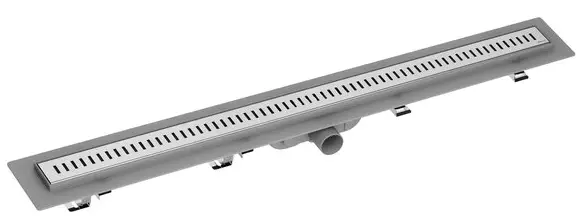

RAVAK ZEBRA 850 Plastic Shower Channel

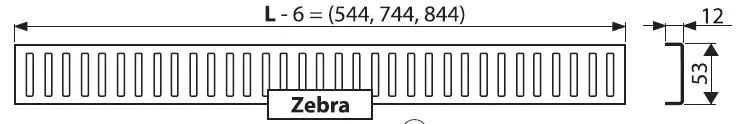

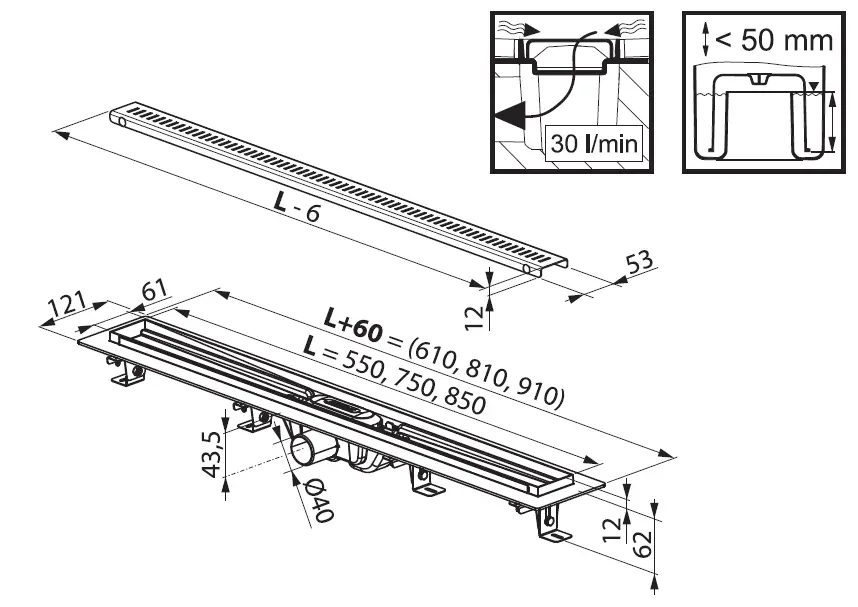

DIMENSION

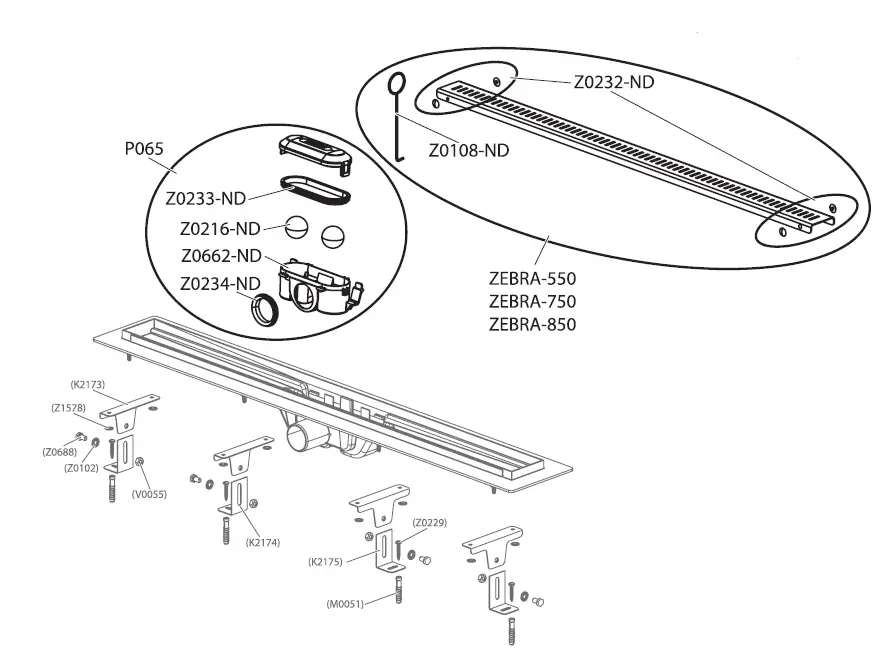

Spare parts

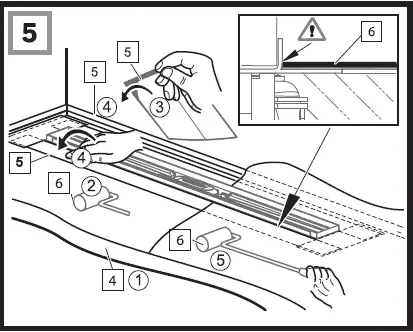

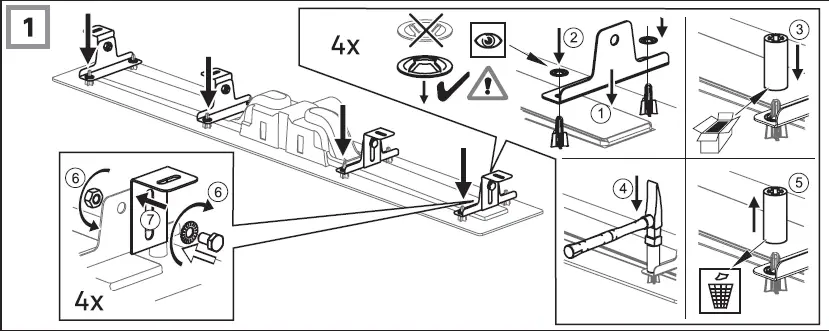

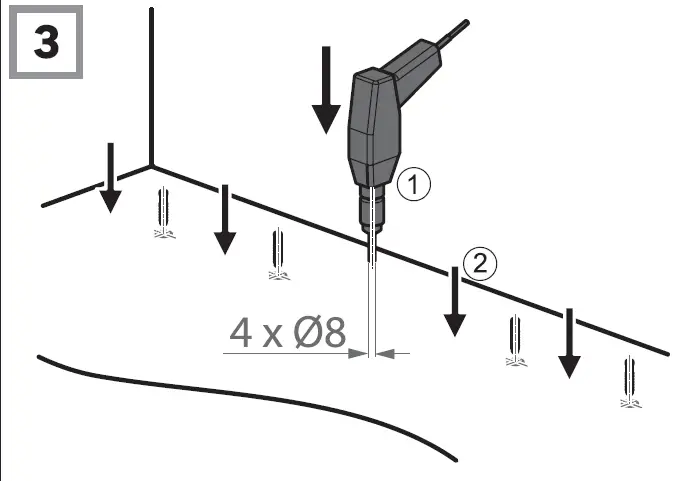

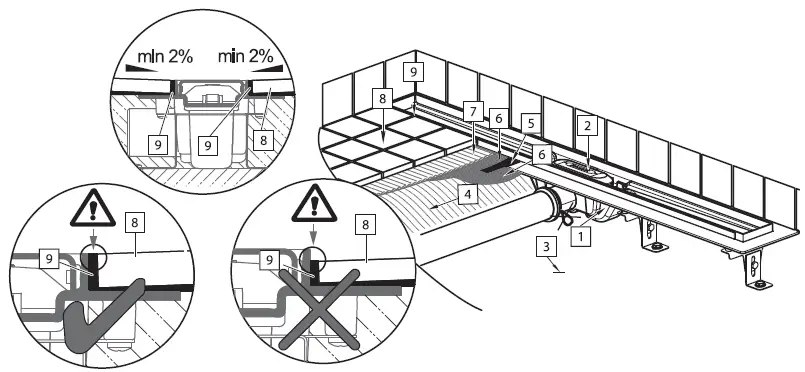

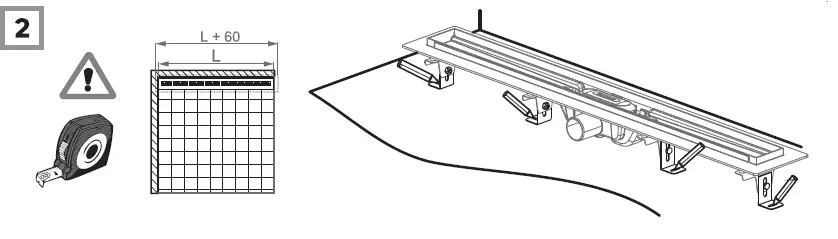

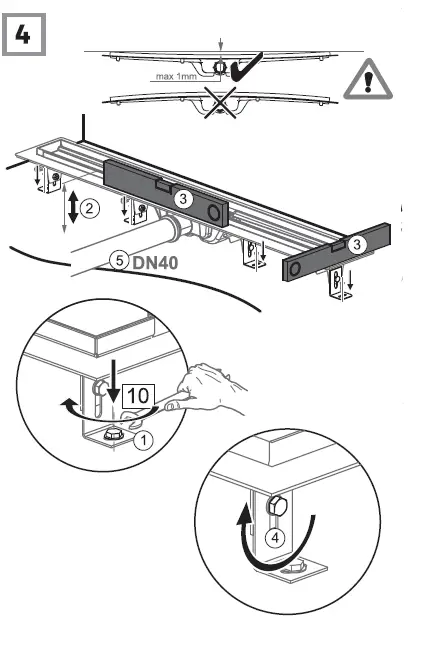

INSTALLATION INSTRUCTIONS
- 1 -Shower drain
- 2-Siphon
- 3 -Flooring concrete
- 4 -Top concrete
- 5 -Hydroisolation wrapper / band/
- 6 – Hydroisolation substance
- 7- Glue
- 8- Paving
- 9 -Flexible filler

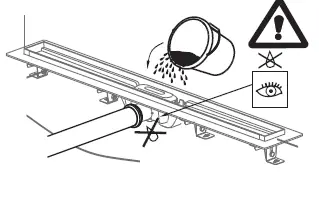

WARNING

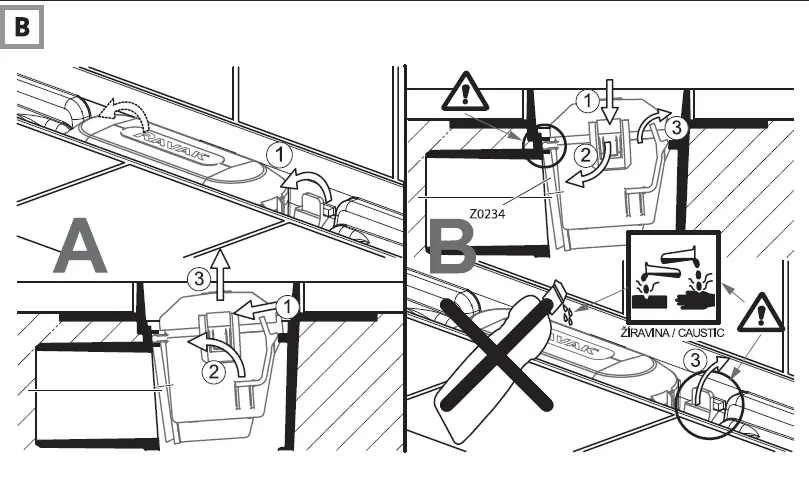

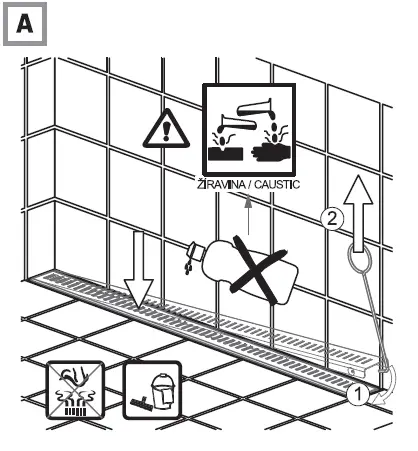

MAINTENANCE
clean with a cloth and mild recommended detergent. Never use any abrasive pastes, dissolvents, acetone ordetergents and desinfectants, that contain chlorine. The manufacturer is not liable for damages caused by improper use, installation or maintenance of the product. The manufacturer recommends: RAVAK CLEANER.
RAVAK a.s., Obecnická 285, 261 01 Přibram
tel: +420 318 427 200, 318 427 111 fax: +420 318 427 269
e-mail: [email protected], www.ravak.com
