Ravak Rkrv2-80 Shower Cabin Instruction Manual

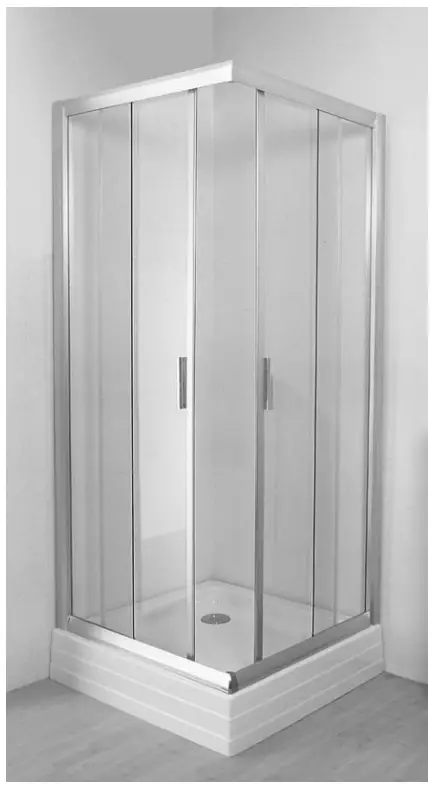

RKRV2-80 Shower Cabin
Instruction Manual

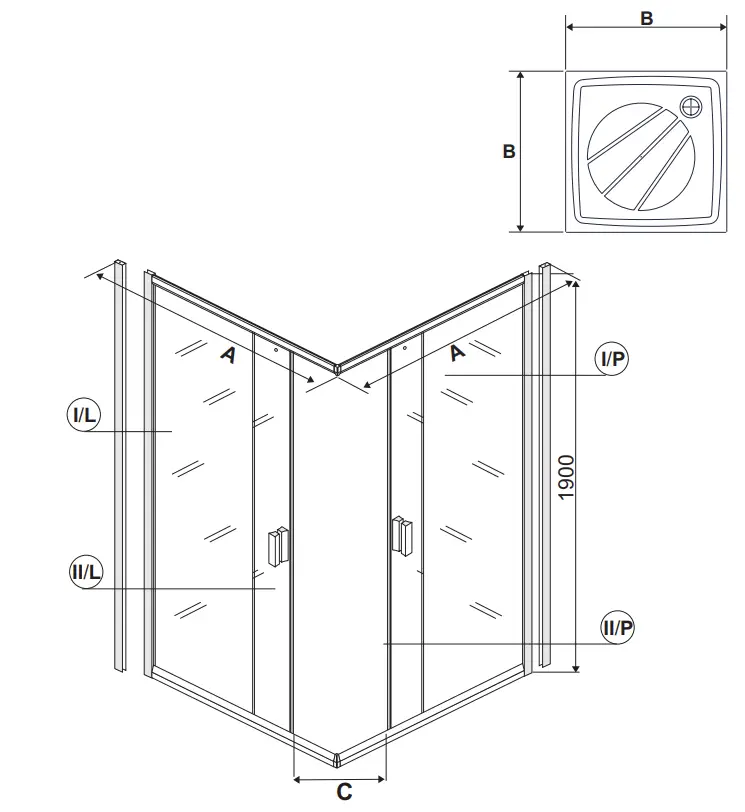

RKRV2-80 Shower Cabin

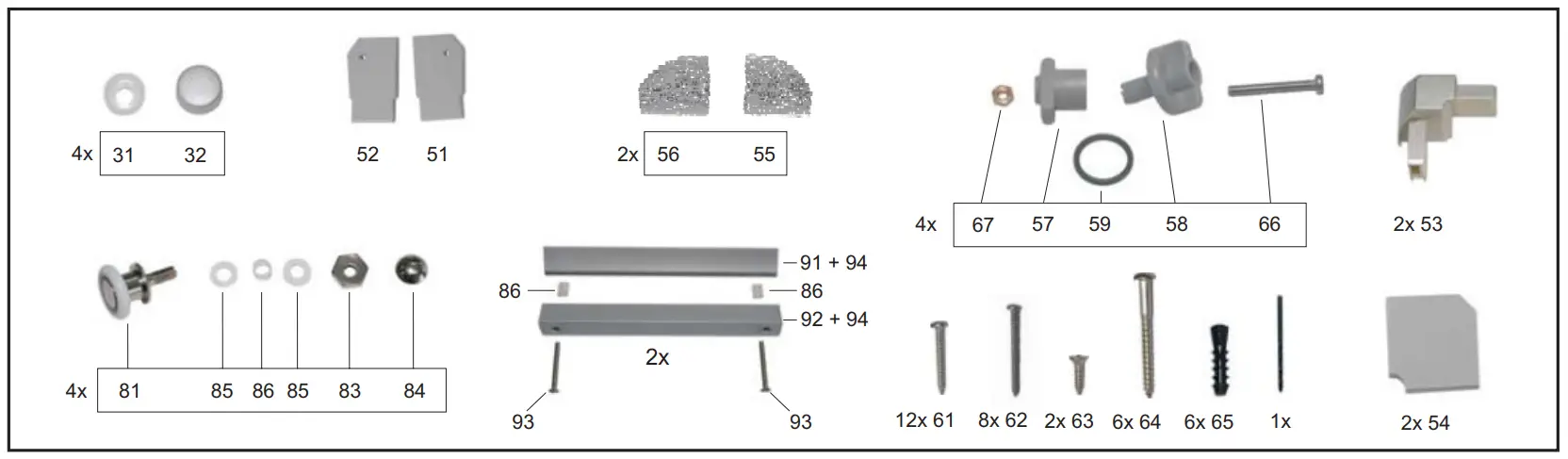

	(mm)	ks/pcs/St/szt/db/wt / pzas / buc
1	1900	2
3	1900	2
5		2
6		2
10		2
11		2
21	Ø16	4
22	1900	2
23	14	0,133 m
24	1900	1
25	1900	1
26	6	5,5 m
31	Ø11	4
32	Ø11	4
51		1
52		1
53		2
54		2
55		2
56		2
57		4
58		4

	(mm)	ks/pcs/St/szt/db/wt / pzas / buc
59	Ø16×2	4
61	Ø 3,5×13	8+4
62	Ø 3,5×25	8
63	Ø 3,5×13	2
64	Ø 4×40	6
65	Ø8	6
66	M4x30	4
67	M4	4
68	M4x16	4
69	M4	4
81		4
83	M6x4	4
84	M6x7	4
85	Ø12,8×1,5	8
86	Ø7,7×5,5	4
91	165	2
92	165	2
86	Ø7,7×5,5	4
93	M4x35	4
94	164×9	4
101	1815 x 6	2
102	1882 x 6	2

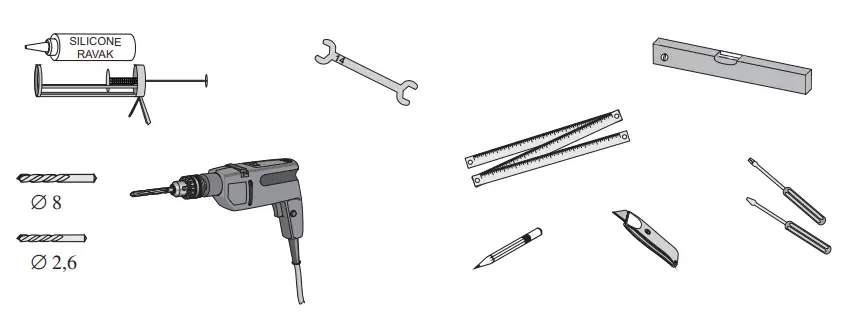

HERRAMIENTAS

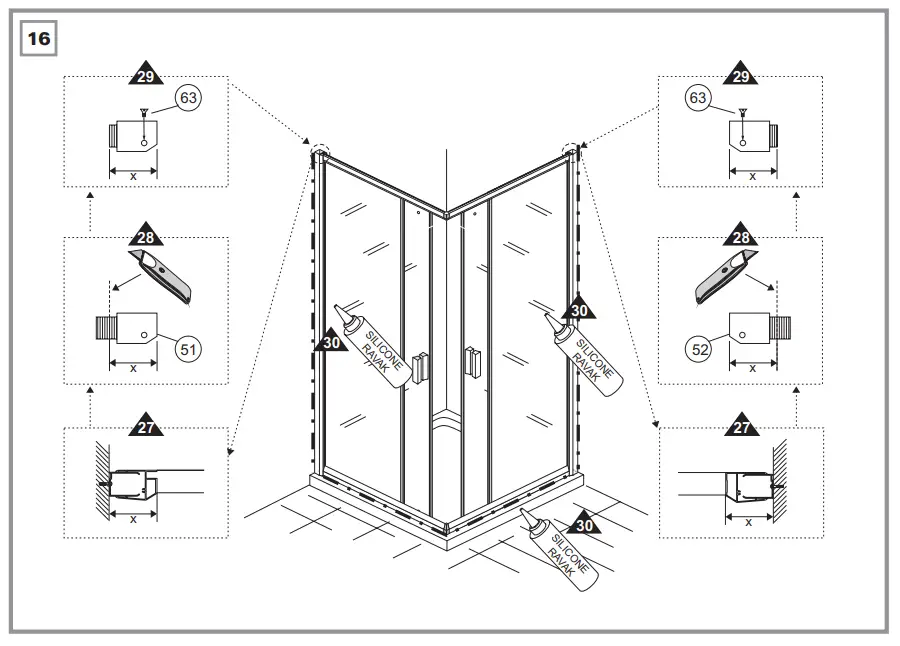

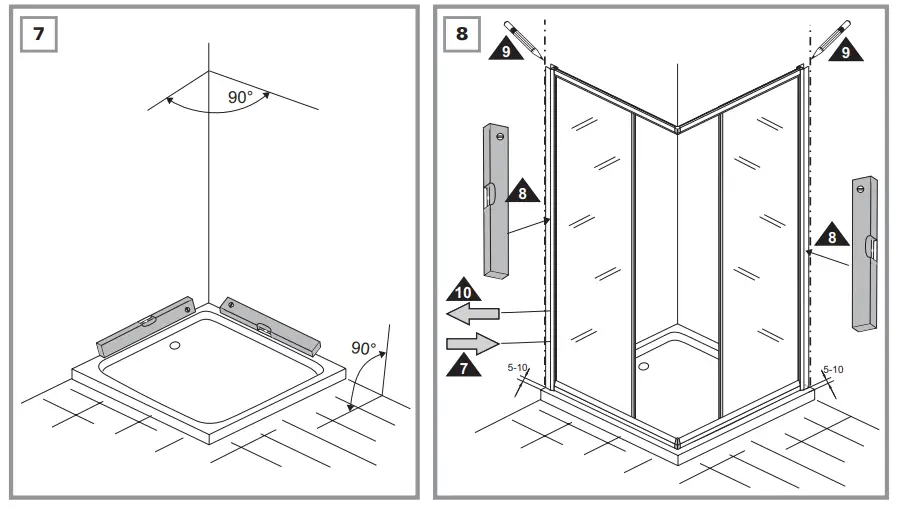

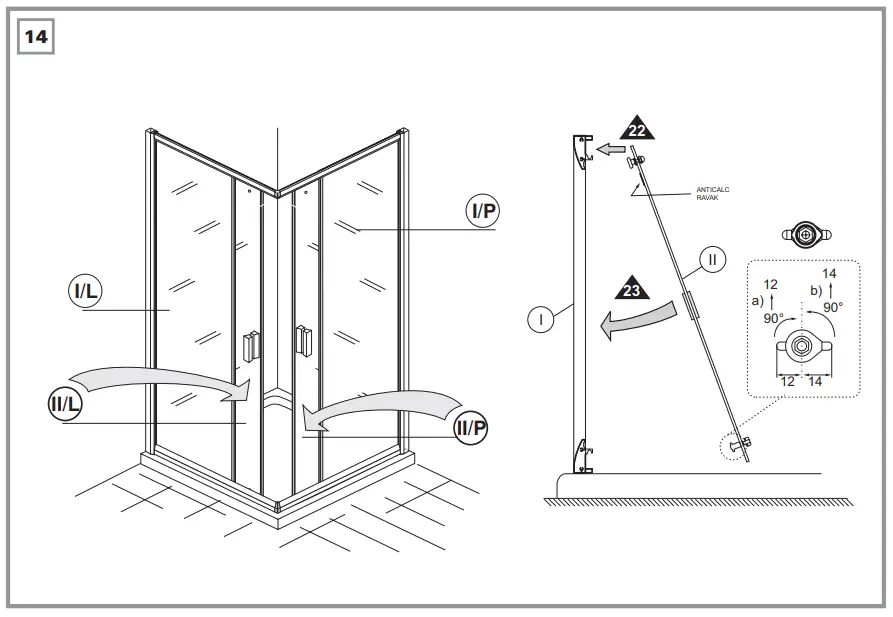

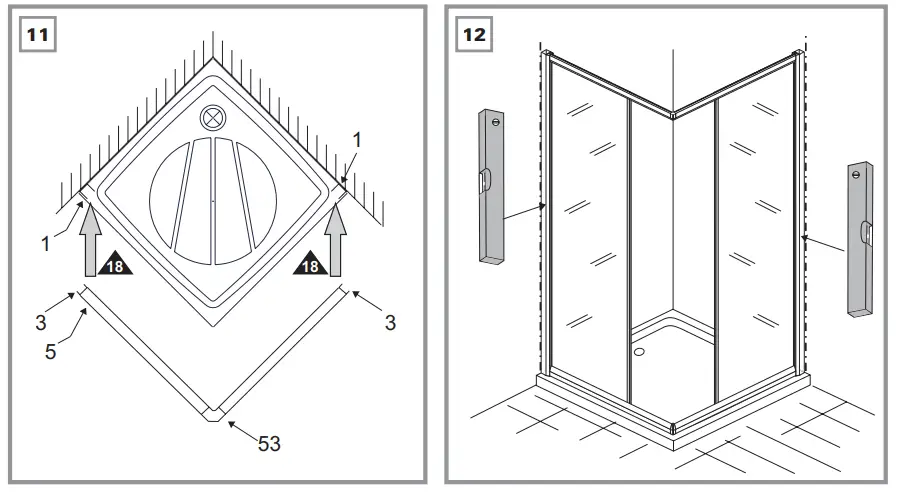

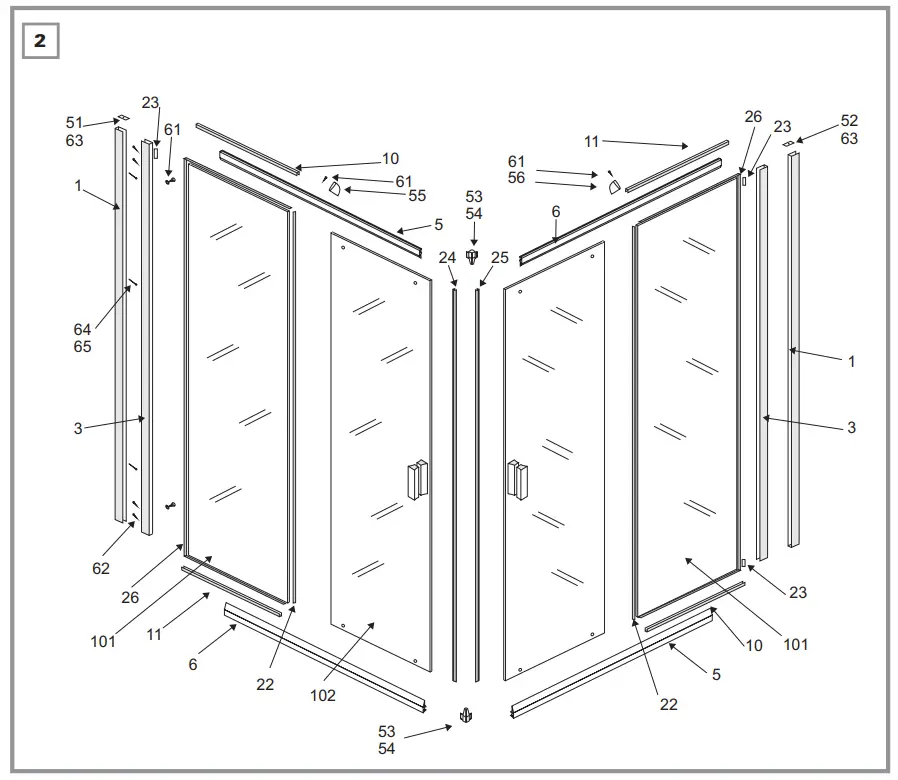

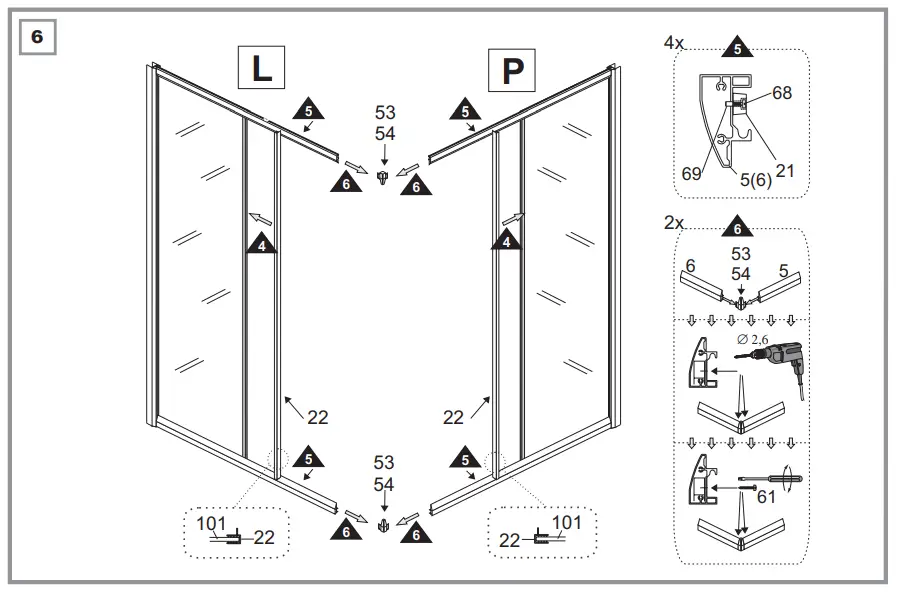

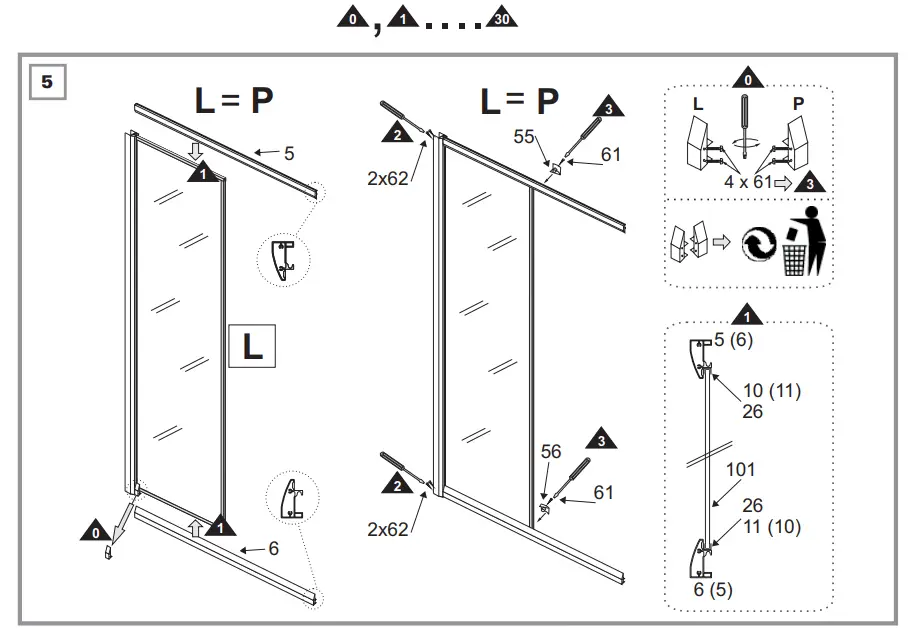

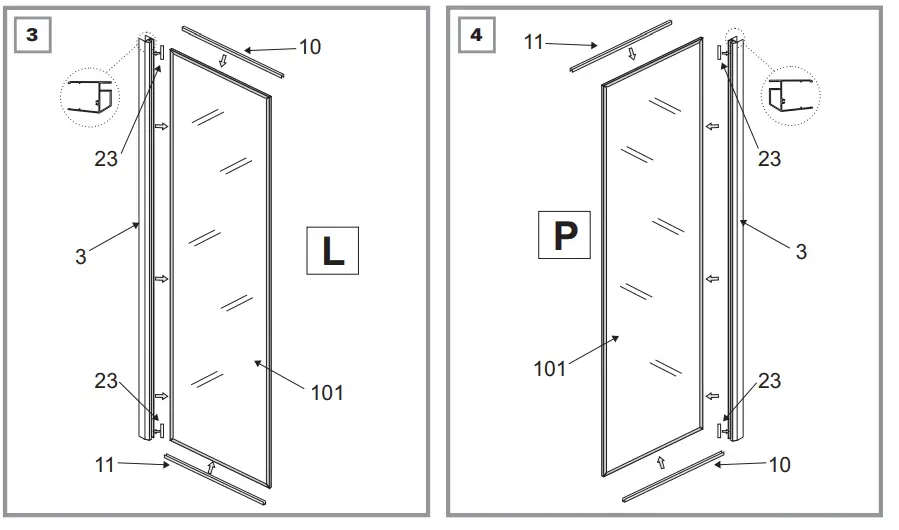

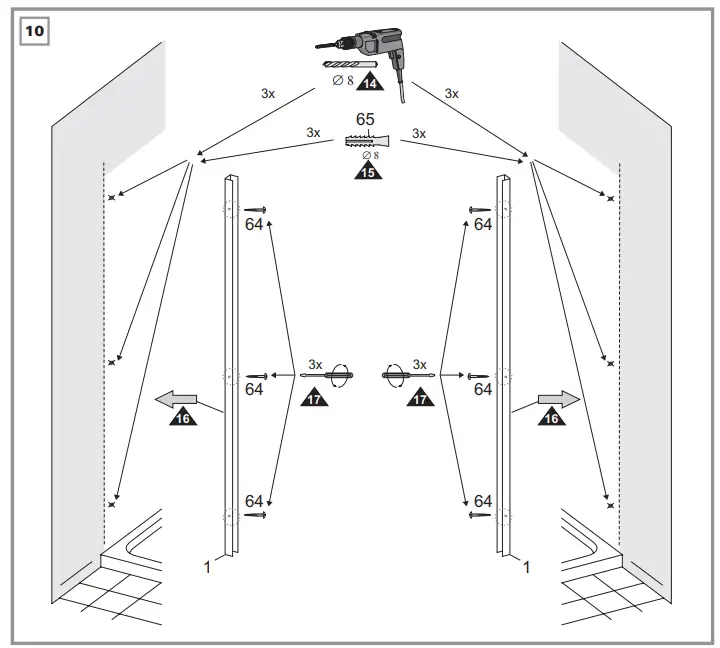

ASSEMBLY PROCEDURE

For further information, contact your local Ravak dealer.
The manufacturer reserves the right to amend or improve on existing designs or features.
Please help preserve the environment by observing local country guidelines or laws regarding re-cycling. Materials which are not suitable for re-cycling must be disposed of at an official and suitable waste control centre.

CLEANING AND MAINTENANCE

ATTENTION!
Maintain the product only by wiping its painted, glass or plastic pieces with a soft cloth. Use the detergents recommended by the manufacturer. Never use any abrasive pastes, dissolvents, acetone or detergents and desinfectants, that contain chlorine

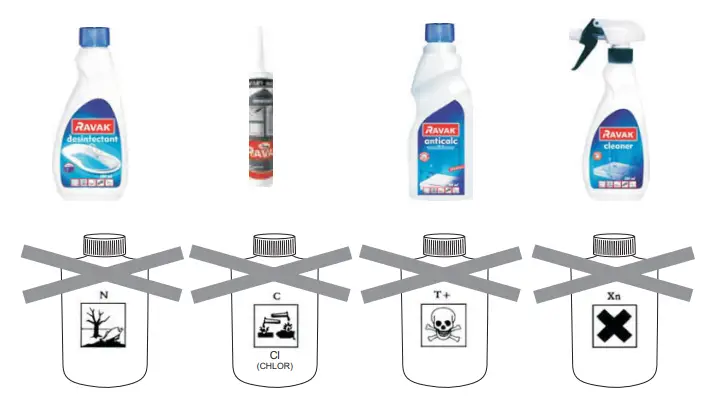

We reco mmend the line of RAVAK ANTICALC products: RAVAK ANTICALC CONDITIONER a preparation which perfectly renews and maintains all the qualities of the RAVAK ANTICALC coating; RAVAK CLEANER worpcs to remove old and dried-on debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins and water taps; RAVAK DISINFECTANT is a special preparation with notable anti-bacterial and anti-fungal effects. The manufacturer is not responsible for damage caused by misuse, improper installation and repair of the product. The manufacturer has the right to constant innovation and changes of the product.
Guarantee is valid 24 months from the date of purchase or from the date of installation of the product by an authorised company. In all other cases, the guarantee time limit will be determined in accordance with the appropriate legal terms.
For further information concerning assembly, installation, and use and maintenance, please contact your local dealer.

OOO RAVAK ru, ul. Priorova 24, stroenie 2, Moskva 125 130,
tel./fax: +7 095 450 91 34,
+7 095 450 12 77,
e-mail: ravak@inbox.
www.ravak.comRAVAK a.s.,
Obecnická 285, 261 01 Pøíbram I
tel.: +420 318 427 200, 318 427 111 fax: +420 318 427 269
e-mail: [email protected],
www.ravak.com
