Gude Gp, Hwa, Hww Series Garden Water Pump Instruction Manual

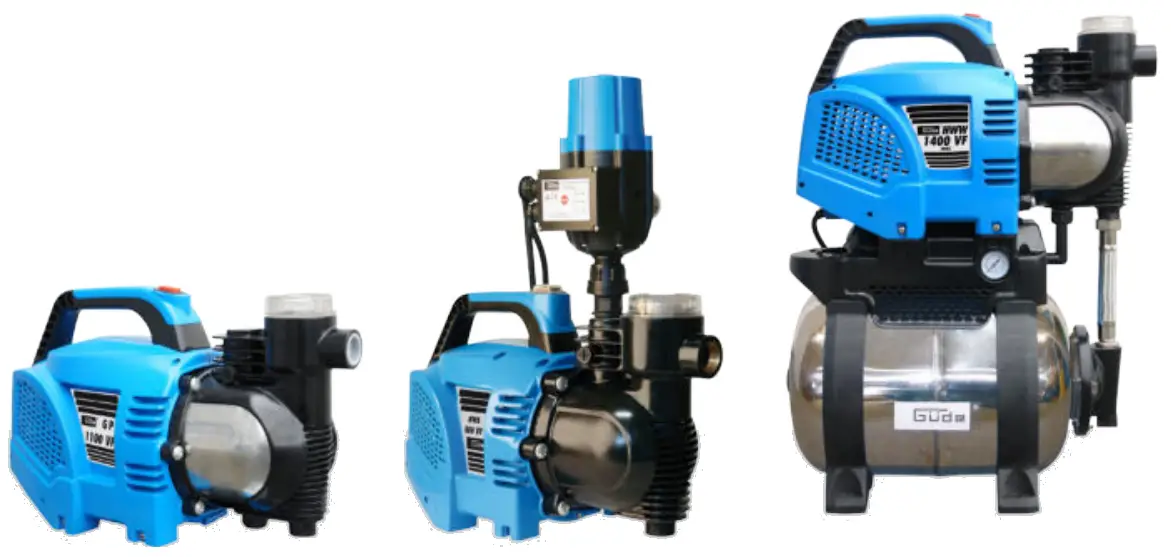

GP, HWA, HWW Series Garden Water Pump
Instruction Manual
Translation of the original instructionsGP 600 VFP 06028 GP 1100 VF 94228
HWA 800 VFP 06030 HWA 1100 VF 94226
HWW 600 VF P 06032 HWW 1100 VF 94230
HWW 1400 VF 94231 HWW 1400 VF INOX 94232

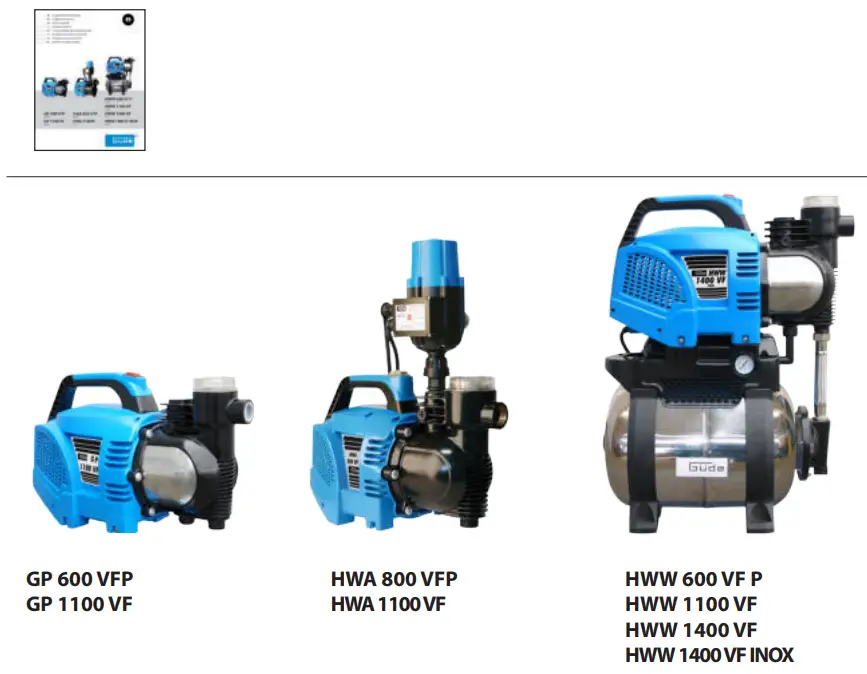

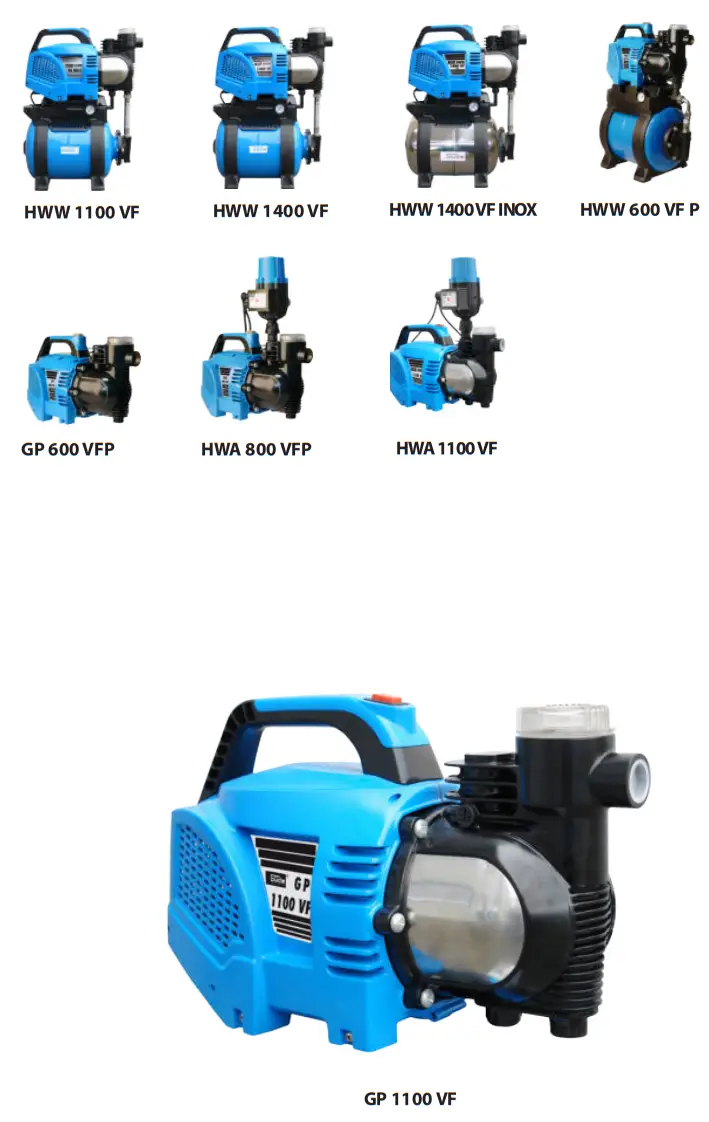

DELIVERED ITEMS

Please read the instructions carefully before starting the machine.

Service international

	STARTING-UP THE MACHINE
	SERVICE CONNECTION
	ENGINE PROTECTION
	OPERATION
	MAINTENANCE
	TRANSPORT / STORAGE
	STARTING-UP THE MACHINE

STARTING-UP THE MACHINE

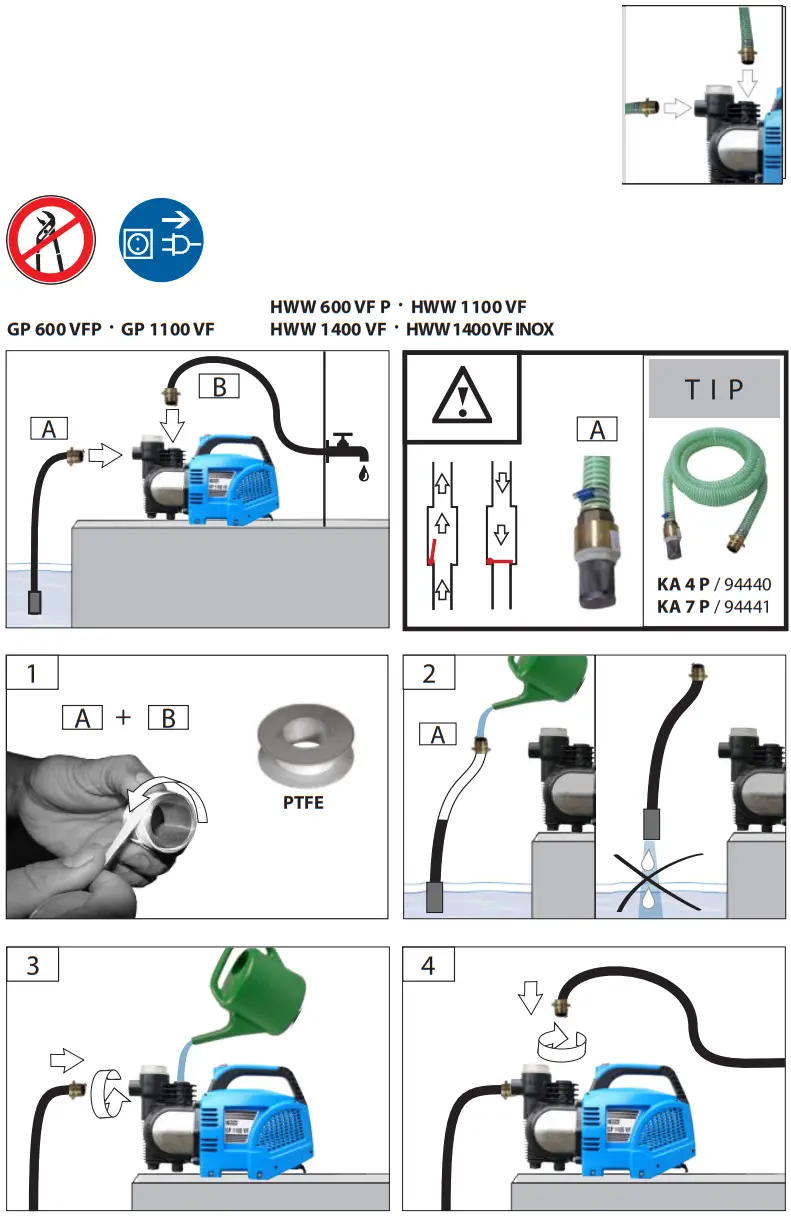

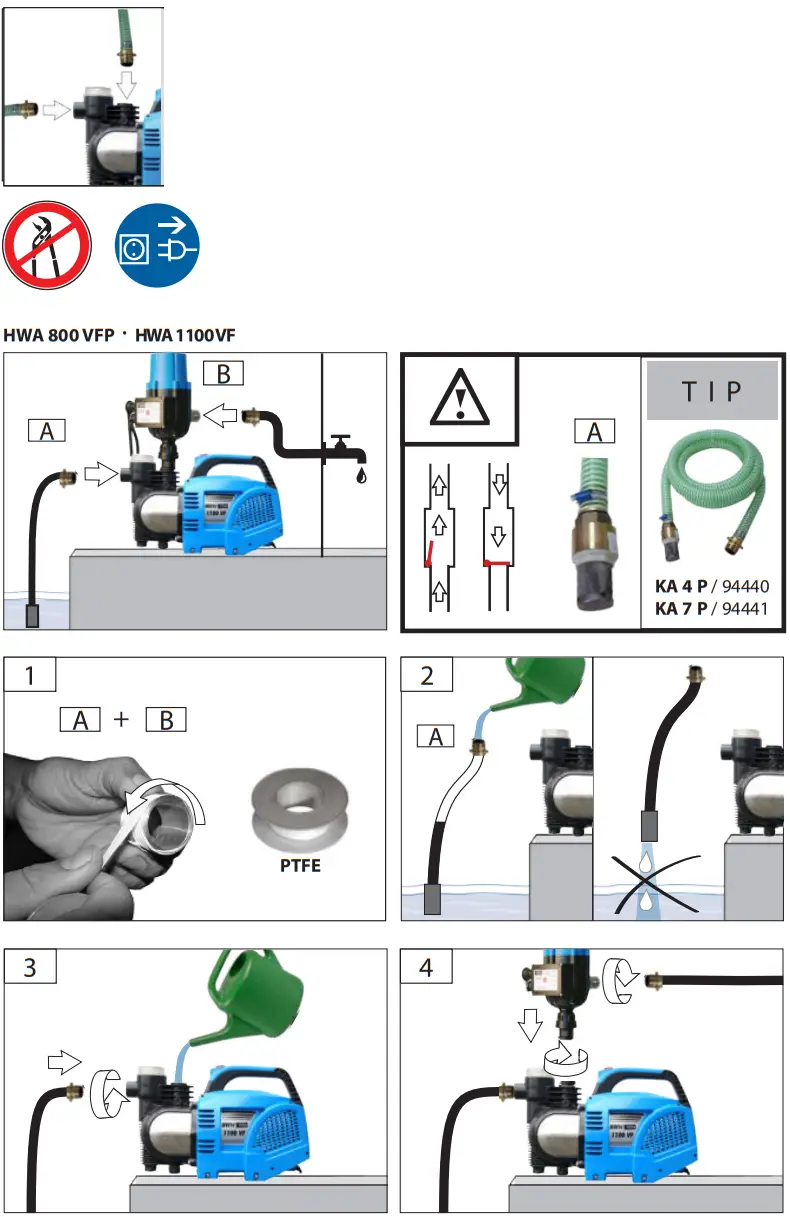

SERVICE CONNECTION

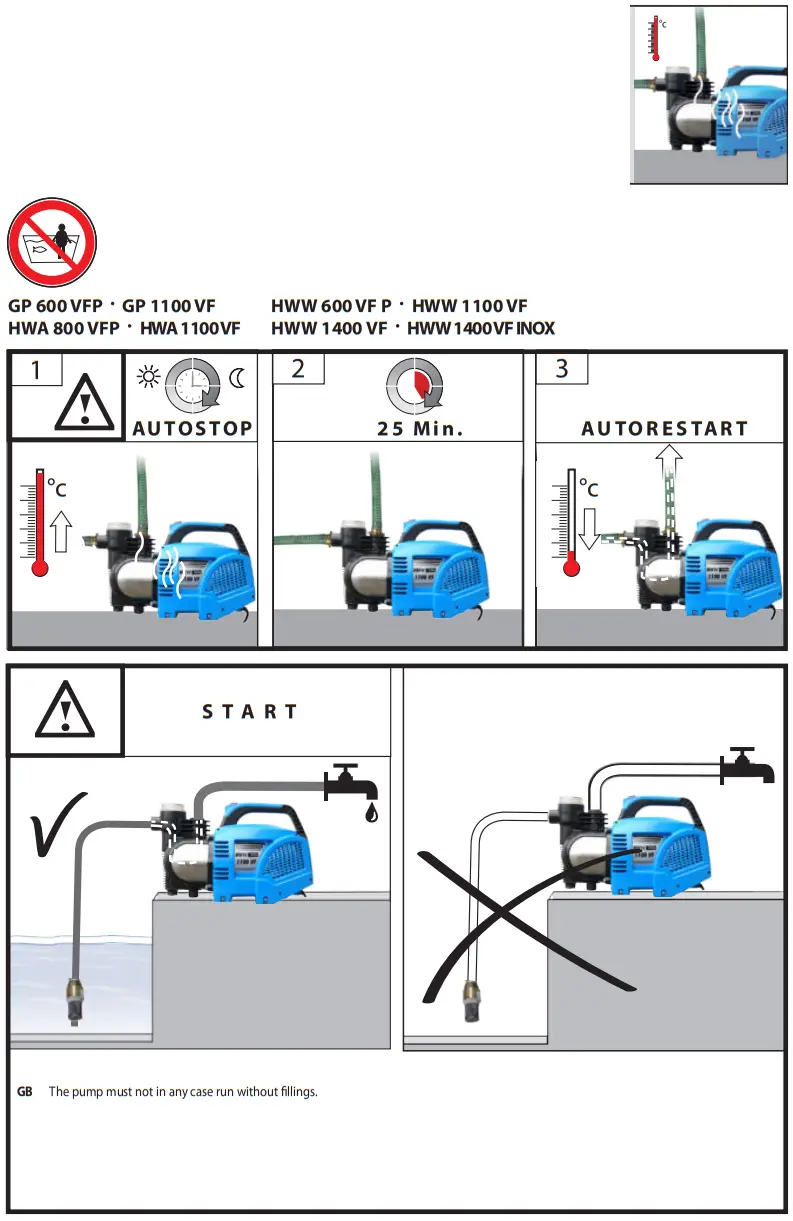

ENGINE PROTECTION

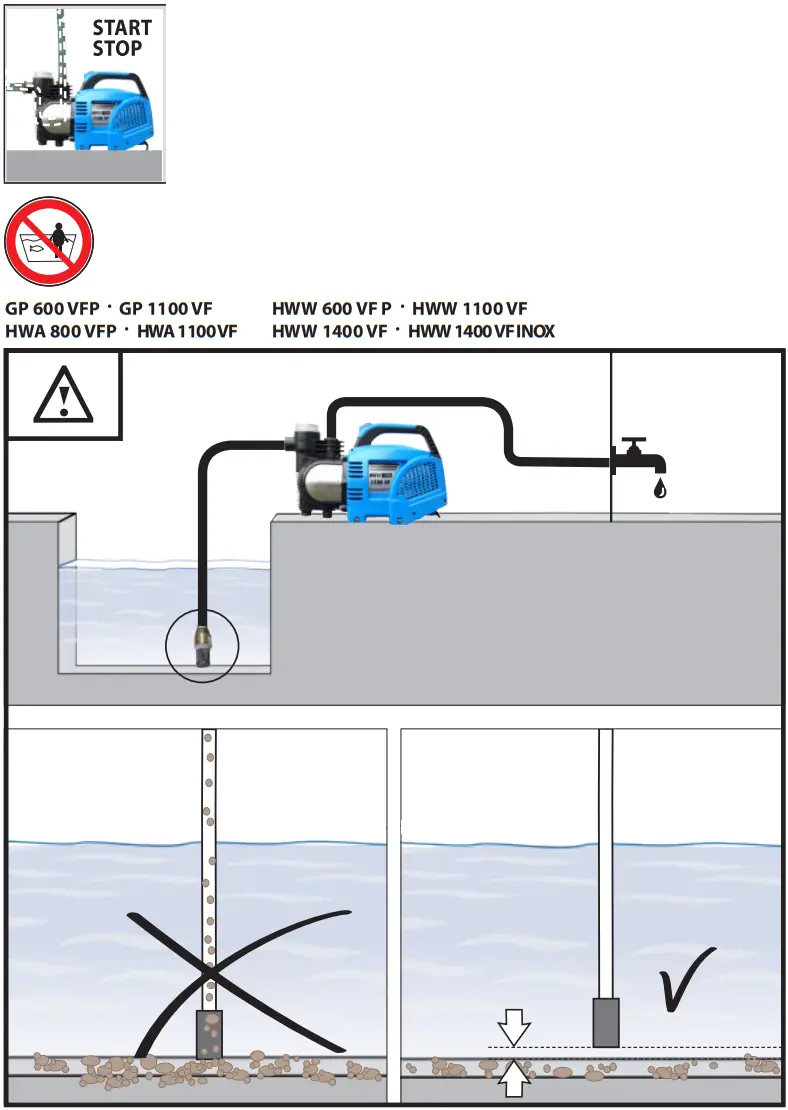

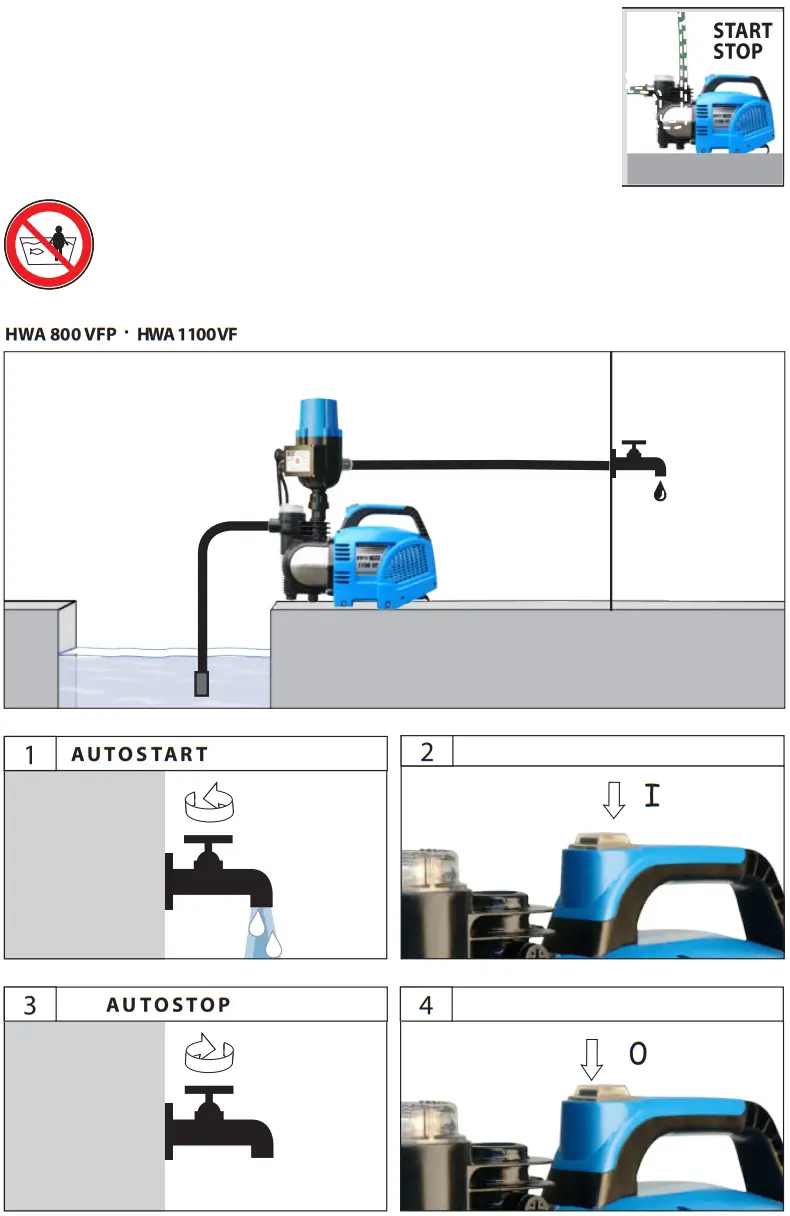

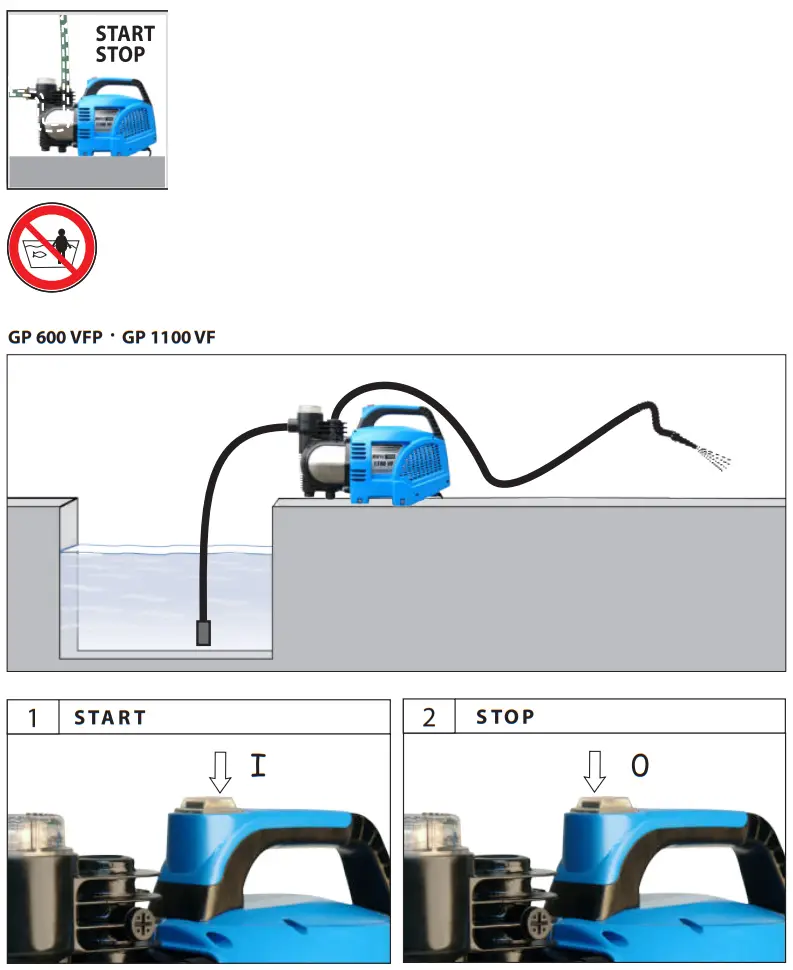

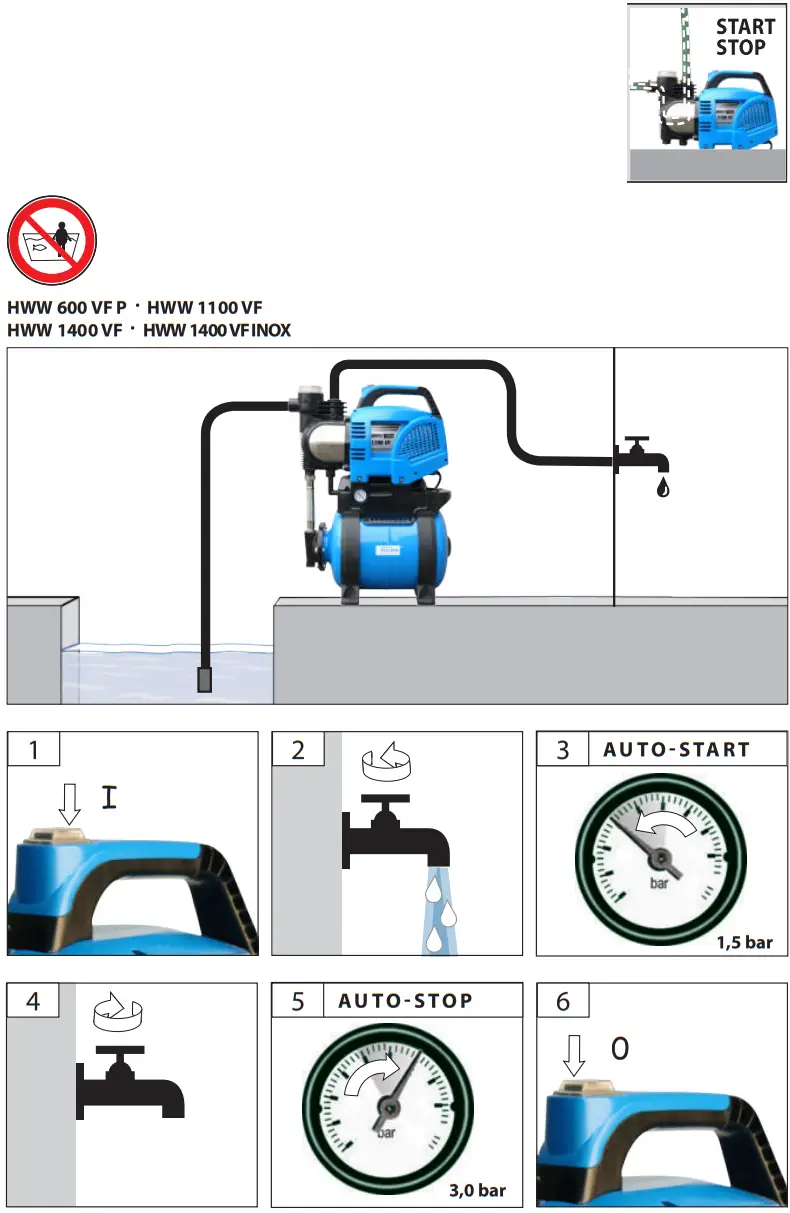

OPERATION

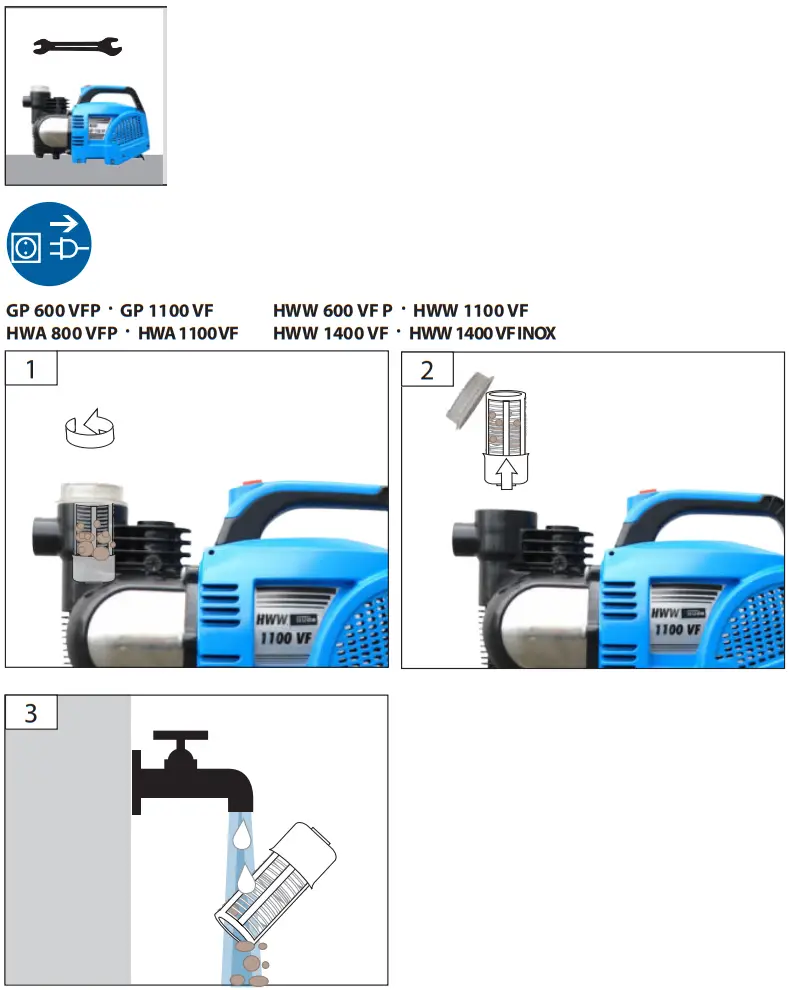

MAINTENANCETRANSPORT / STORAGE

Technical Data

Garden pump

			Domestic water supply system
GP 600 VF P	GP 1100VF	HWA 800 VF P	HWA 1100 VF	HWA 1100 VF
Art. No	6028	94228	6030	94226
Service connection	230V/ 50Hz	230V/ 50Hz	230V/ 50Hz	230V/ 50Hz
Motor output P1	600W	1100 W	800 W	1100 W
Max. delivered quantity	3600 l/h	3600 l/h	3600 l/h	3600 l/h
Max. head of delivery	35m	45 m	40 m	45 m
Max. suction head	8m	8 m	8 m	8 m
35°C Max. Water temperature	35°C	35°C	35°C	35°C
Hose connection	1“ IG	1“ IG	1“ IG	1“ IG
IPX4 Degree of protection	.IPX4	IPX4	IPX4	IPX4
Weight	11,0 kg	12,5 kg	12,5 kg	14,5 kg
Sound power level	90 dB	90 dB	90 dB	90 dB

Domestic water supply unit

	HWW 600 VF P	HWW 1100 VF	HWW 1400 VF	HWW 1400 VF INOX
Art. No	6032	94230	94231	94232
Service connection	230V/50Hz	230V/50Hz	230V/50Hz	230V/50Hz
Motor output P1	600 W	1100 W	.1400 W	1400 W
Max. delivered quantity	3600 l/h.	3600 l/h	3900 l/h	3900 l/h
Max. suction head	8 m	8 m	8 m	8 m
Max. Water temperature	35°C	35°C	35°C	35°C
Hose connection	1“ IG	1“ IG	1“ IG	1“ IG
IPX4 Degree of protection	IPX4	IPX4	IPX4	IPX4
Weight	12,0 kg	19,8 kg	20,8 kg	19,5 kg
Sound power level	90 dB	90 dB	90 dB	90 dB
tank capacity	19 l	24 l	24 l	24 l

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
In case of any doubts about connection and operation refer please to our customer center
Specified Conditions Of Use
The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and
safety precautions.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams). When used in this manner, its service life is  urtailed correspondingly. In these cases, then, use a time switch to secure sufficient idle periods between cycles of operation.
Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.
Do not use the pump for drinking water!
The pump must not be connected to the existing water-supply network as a pressureboosting device.
Never use the pump as a pool circulation pump.

Safety Instructions

WARNING!
Electric shock! There is a risk of an injury caused by electric shock!
This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.
Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).
Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.
Electric connection to a socket.
Do not expose the appliance to rain and do not use it in wet or moisture conditions.
It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.
Avoid installing the appliance in wet shafts (risk of short circuit, corrosion effects)!
Check the voltage. Technical data given on the type label must correspond with electric network voltage.
Only use splash proof extension cables approved for outdoor purposes.
Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid!
Check the cable and/or socket for damages before the appliance putting into operation.
To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.
Protect the feeder cable from excessive temperatures, oil and sharp edges.
If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.).
The pump must not in any case run without fillings.
Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the
grid if you do not plan on using it.
The temperature of the drained liquid must not exceed +35 °C.
When using the pump for domestic water supply, alwaysobserve the local regulations of water managementauthorities and the waste water drainage.
If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed.

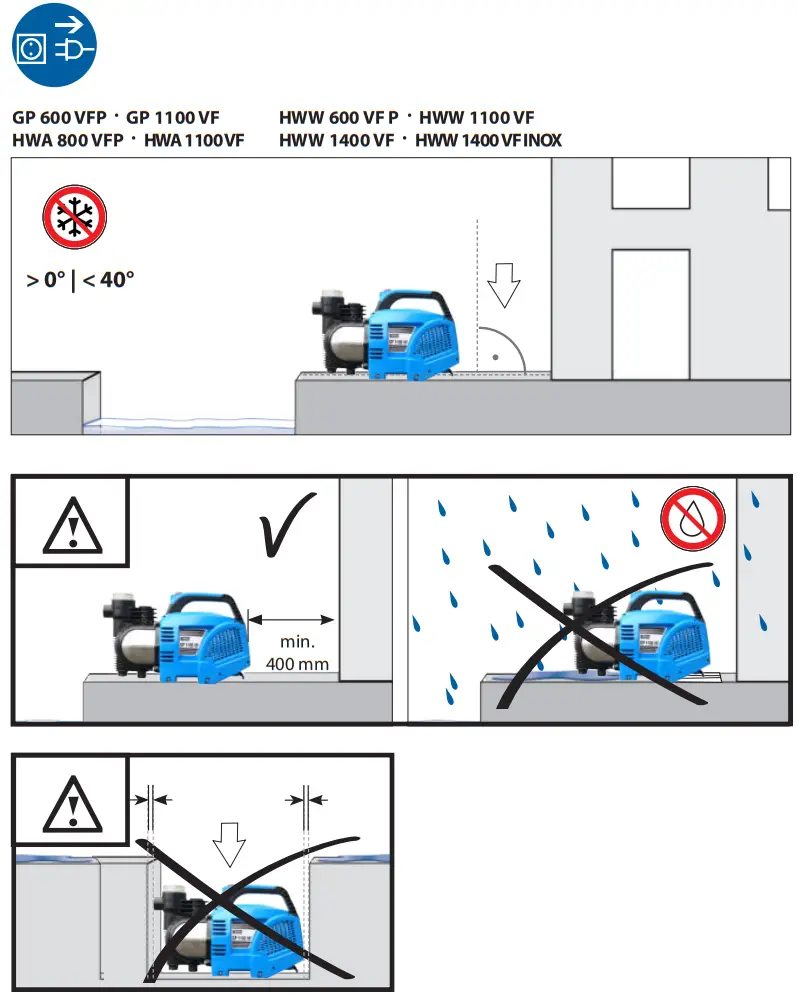

Do not use pump at outside temperatures over 40°C or under 0°C
In cold weather, the pumping body motor should not bewrapped in a blanket or another piece of textile with intent toprevent the water freezing.
The user is responsible to third parties if pump (dumping stations, etc.) is used.
Requirements for operating staff
The operating staff must carefully read the Operating Instructions before using the appliance.
Qualification:  Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age:  Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
Training:  Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Before carrying out any work on the machine, disconnect the plug from the socket.
Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.
The machine must not be used under any circumstances if the machine or the safety devices are damaged.
Refer all servicing to customer service. Use only original accessories and original spare parts.
Caution: Standing water may corrode (brownish colour) in the pump according to design.
At winter storing, it is necessary to make sure there is no water in the appliance as the frost could damage the appliance. Prior to transportation, it is necessary to unplug the pump from the grid! The device has to be completely emptied and stored with frost-proof protection. Adhesion of mechanical seals can be prevented if you rinse the pump with appropriate oil (for example, with vegetable oil).
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a  result of any unauthorised interference or caused by foreign
items. Failing to  follow the operating and assembly instructions and common wear are also not included in the guarantee..
GÜDE cannot be held responsible for damages incurred in consequence of unqualified installation or unskilled handling of the pump.
The device has to be checked on a regular basis to ensure perfect functioning.
Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the belowmentioned cases:

• Unprofessional repairs executed by unauthorised service centres;
• Use in conflict with the designed purpose, or failure to observe the use as designed;
• Pump overload with a continuous run;
• Damage as a result of icing or any other fault caused by climatic influences; Identical regulations apply for accessory parts.

To prevent damage (such as flooded rooms, etc.) as a result of faulty pumpoperation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).
Service
Do you have any technical questions? Any claim? Do ou need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able  to help you. In order to identify your device in case of claim we need theserial No., product No. and year of production. All this data can be found on the type label. Please enter it here forfuture reference:
Serial No.:
Art. No:
Year of production:
Symbols

	Read the Operating Instructions
	Before carrying out any work on the machine, disconnect the plug from the socket.
	Cable pulling / transport prohibited
	Staying in the transportation medium prohibited
	Warning against dangerous electric voltage
	Warning against automatic starting
	Accessory – Not included in standard equipment, available as an accessory.
	Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.
	Protect against humidity
	This side up

Inspection and maintenance plan

Failures – causes – removal

SERVICE INTERNATIONAL

GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
Tel.: +49-(0)7904/700-0
Fax.: +49-(0)7904/700-250
eMail: [email protected]
