Gude Gp 1100.1 Automatic Garden Water Pump Instructions

Translation of the original instructions
Pump series

GÜDE GmbH & Co. KG
74549 Wolpertshausen

Please read the instructions carefully before starting the machine.

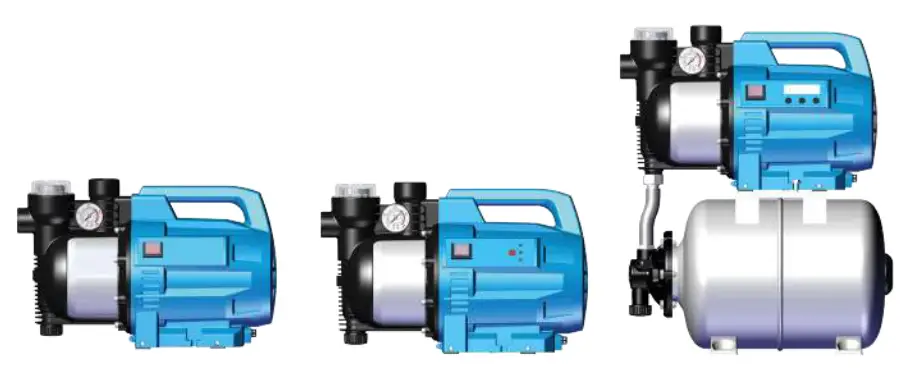

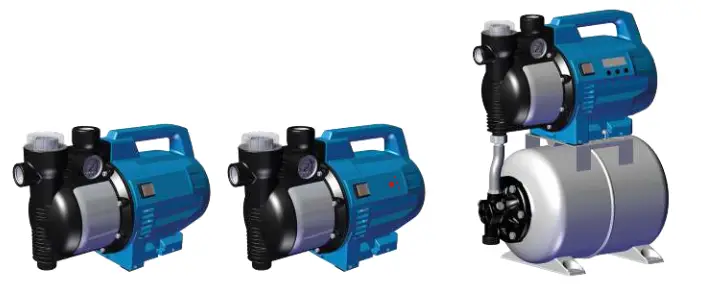

GP 1100.1 93905	HWA 1100.1 VF 93907	HWW 1100.1 VF 93906 HWW 1400.2 VF 93908 HWW 1400.3 VF INOX 93909

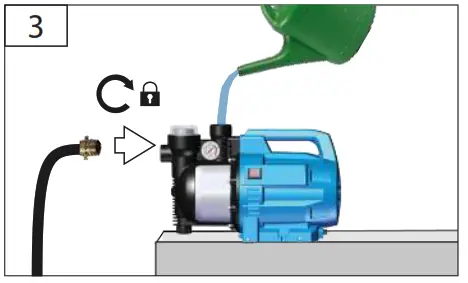

starting-up the device

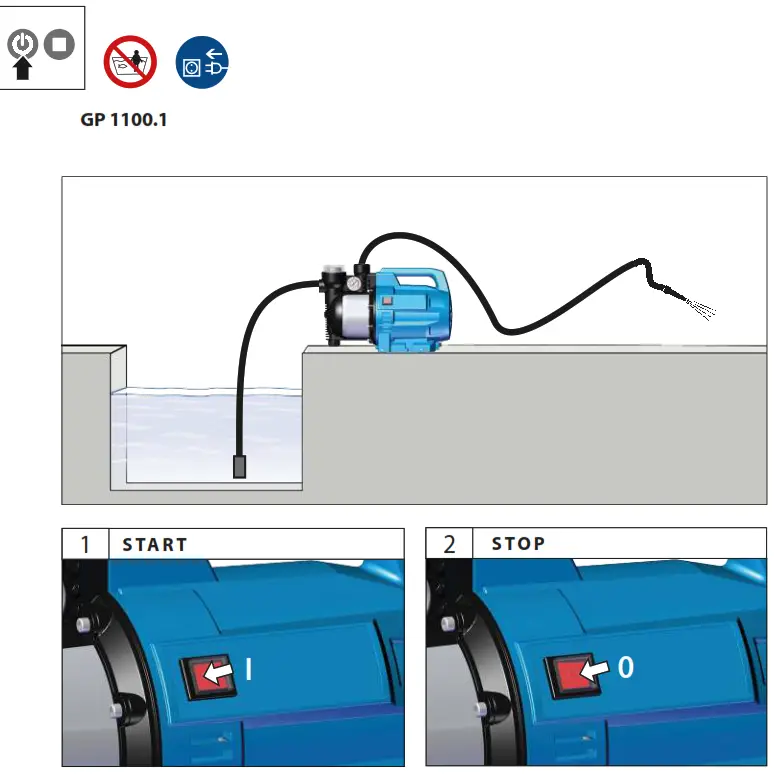

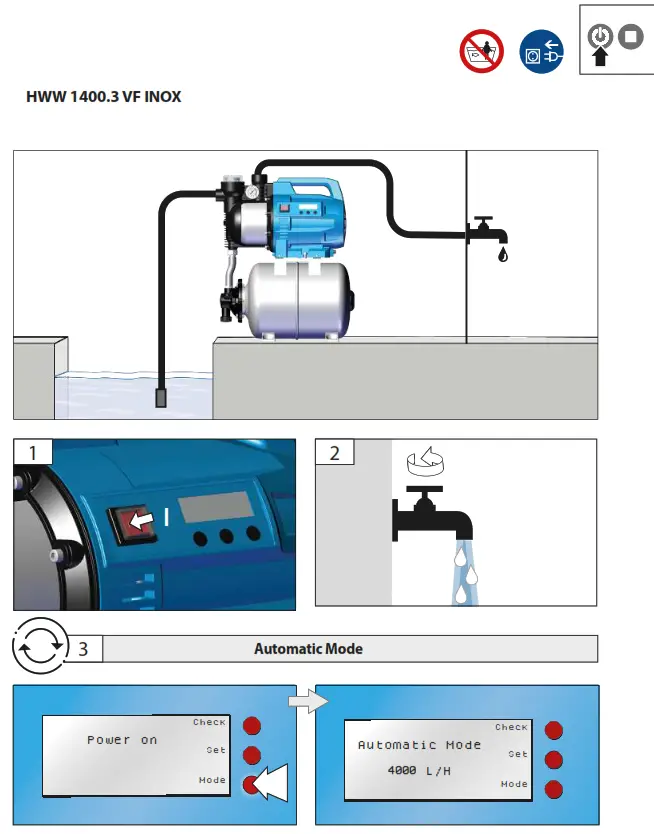

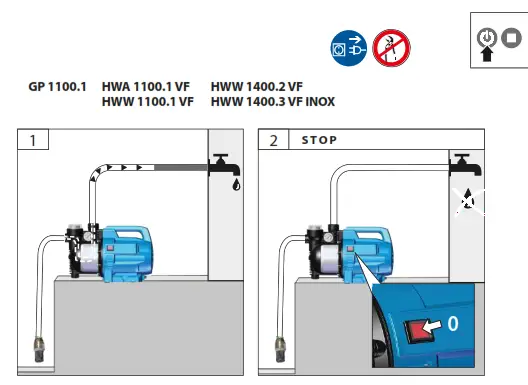

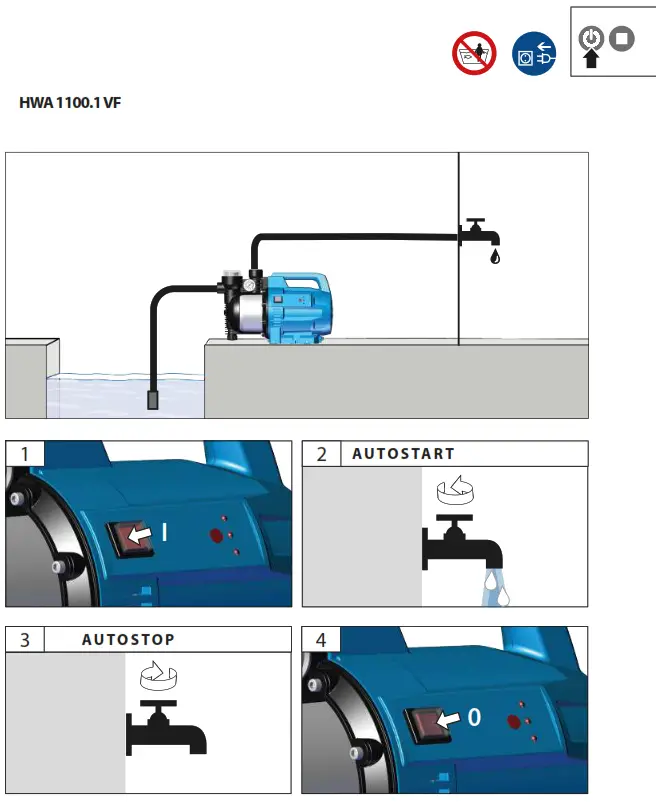

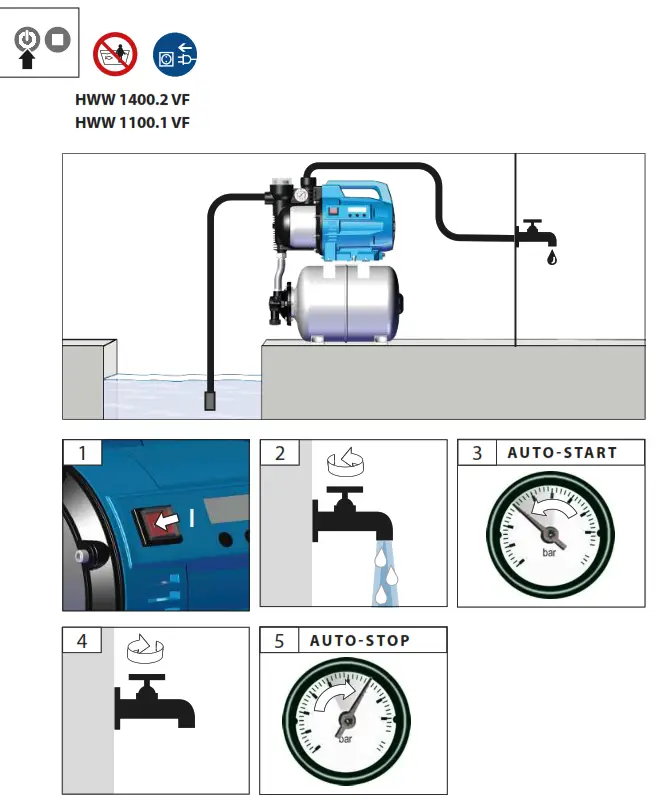

Operation

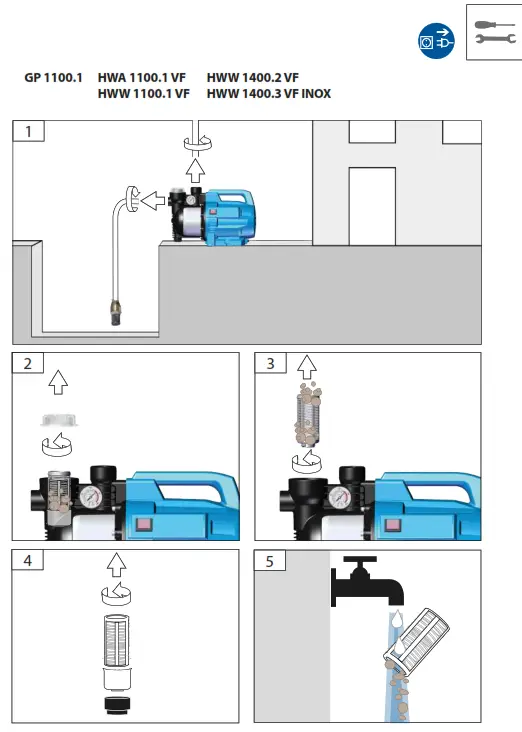

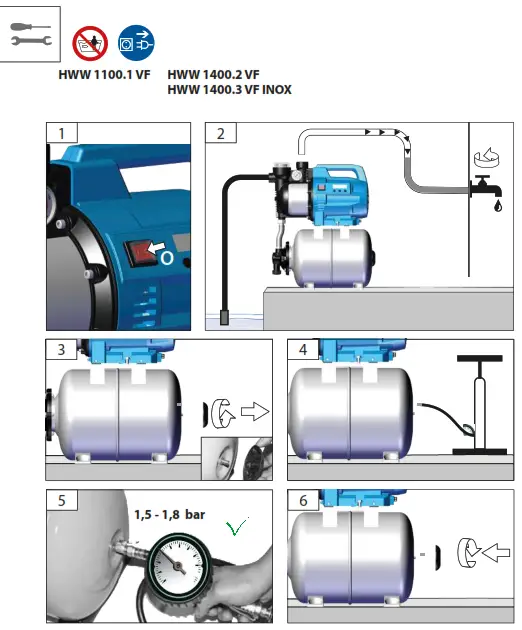

Wartung & Reinigung Maintenance & Cleaning
Transport & Lagerung Transport & Storage
EC Declaration of Conformity

 GP 1100.1
HWA 1100.1 VF
HWW 1400.2 VF
HWW 1400.3 VF INOX
HWW 1100.1 VF

GP 1100.1
HWA 1100.1 VF
HWW 1400.2 VF
HWW 1400.3 VF INOX
HWW 1100.1 VF

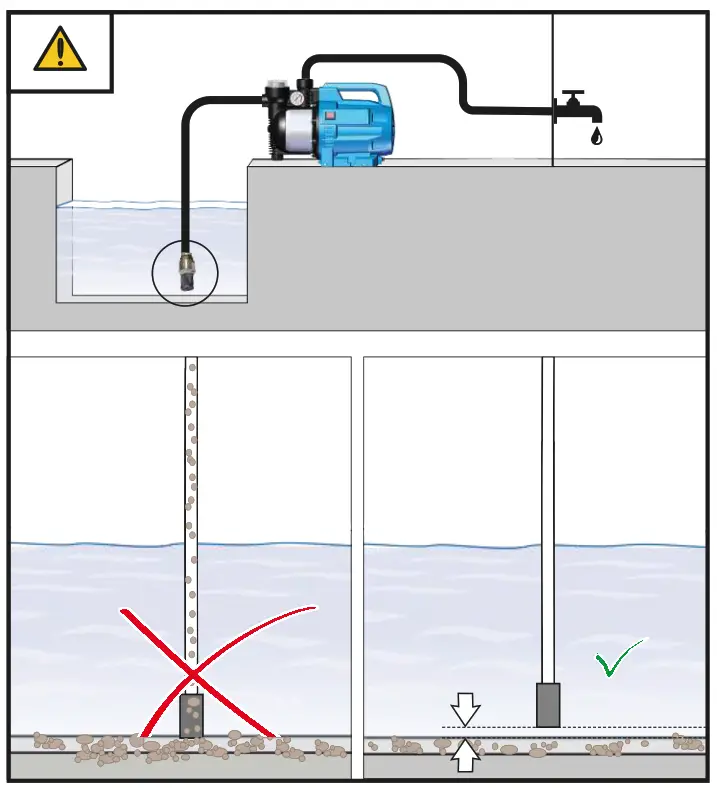

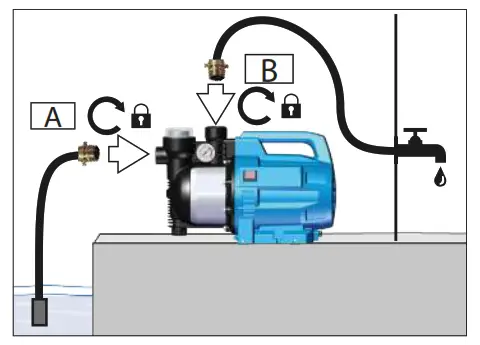

Suction hose with check valve

1. teflon sealing tape

GP 1100.1 HWA 1100.1 VF
HWW 1400.2 VF
HWW 1400.3 VF INOX
HWW 1100.1 V

GP 1100.1
HWA 1100.1 VF
HWW 1400.2 VF
HWW 1400.3 VF INOX
HWW 1100.1 VF

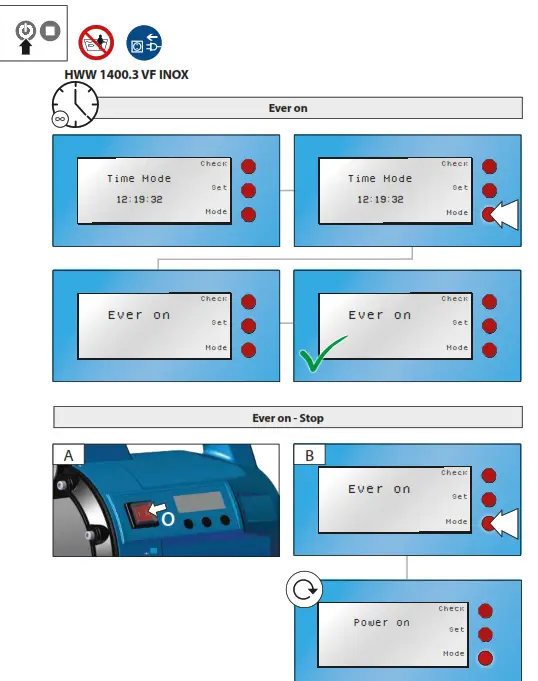

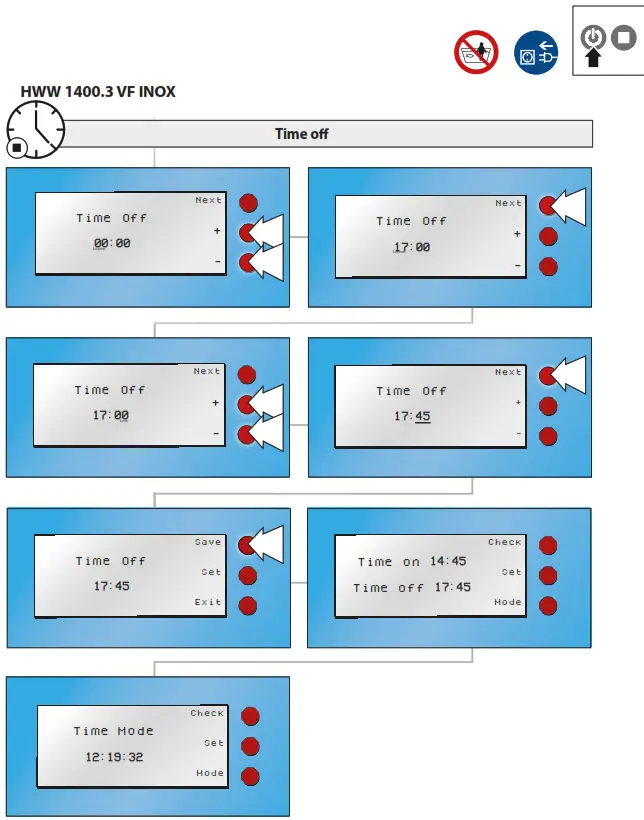

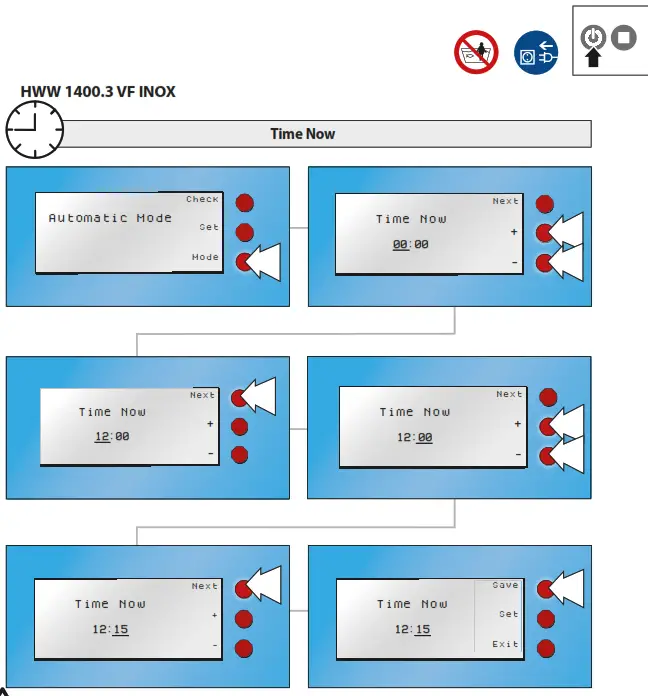

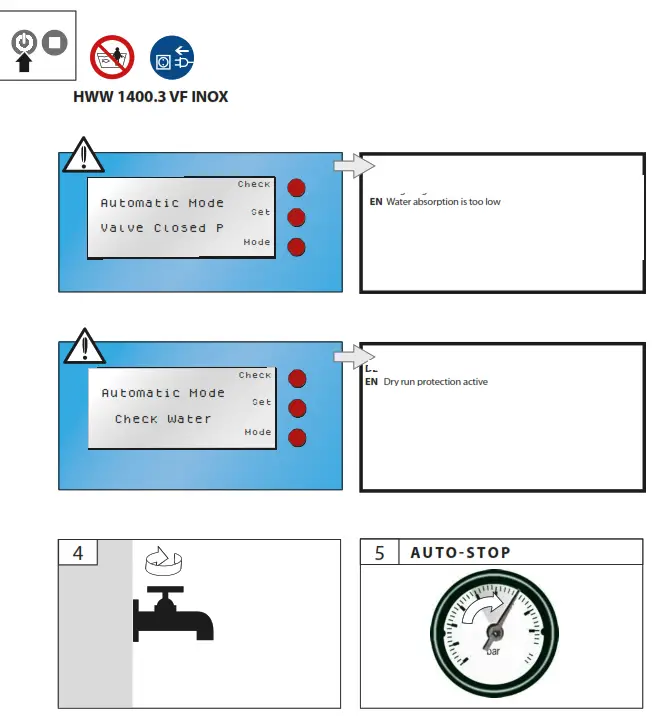

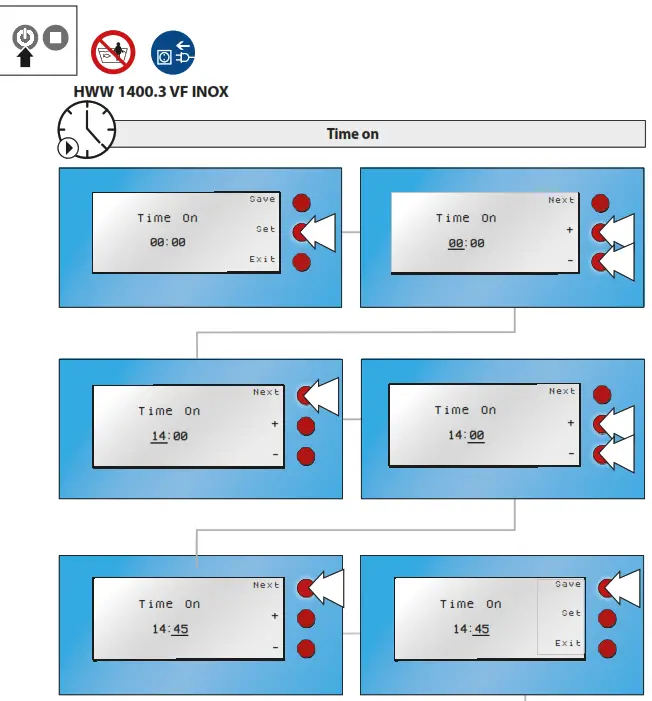

 In “Ever on mode” and “Time mode” neither the dry run
protection nor the automatic switch-off function is active!

Technical Data

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. In case of any doubts about connection and operation refer please to our customer center

Specified Conditions of Use

The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and safety precautions.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
The pump is not suitable for long-term operation (e.g. as a circulating pump in ponds or for brooks). If this type of operation is carried out, the service life will be reduced accordingly.
Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.
Do not use the pump for drinking water!
The pump must not be connected to the existing water-supply network as a pressure-boosting device.
Never use the pump as a pool circulation pump.

Safety Warnings

WARNING! Electric shock! There is a risk of an injury caused by electric shock! This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or insufficient experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance. Children should be supervised in order to ensure that they do not play with the tool. Always keep children and unauthorised persons out of reach of the appliance.
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

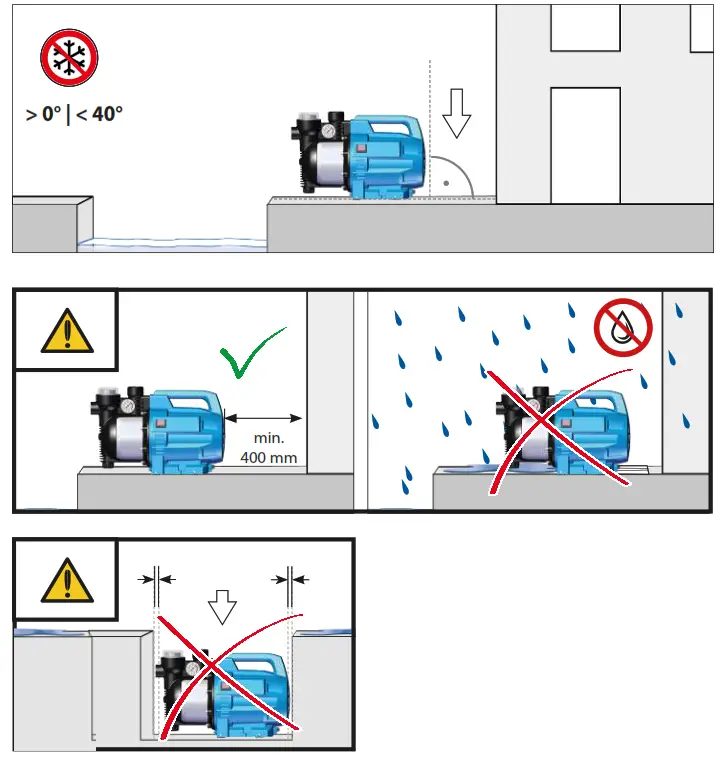

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with. Electric connection to a socket. Do not expose tools to rain. Do not use tools in damp or wet locations. It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity. Avoid installing the appliance in wet shafts (risk of short circuit, corrosion effects)! Check the voltage. Technical data given on the type label must correspond with electric network voltage. Only use splash proof extension cables approved for outdoor purposes. Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid! Check the cable and/or socket for damages before the appliance putting into operation. To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself. Protect the feeder cable from excessive temperatures, oil and sharp edges.

If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.).

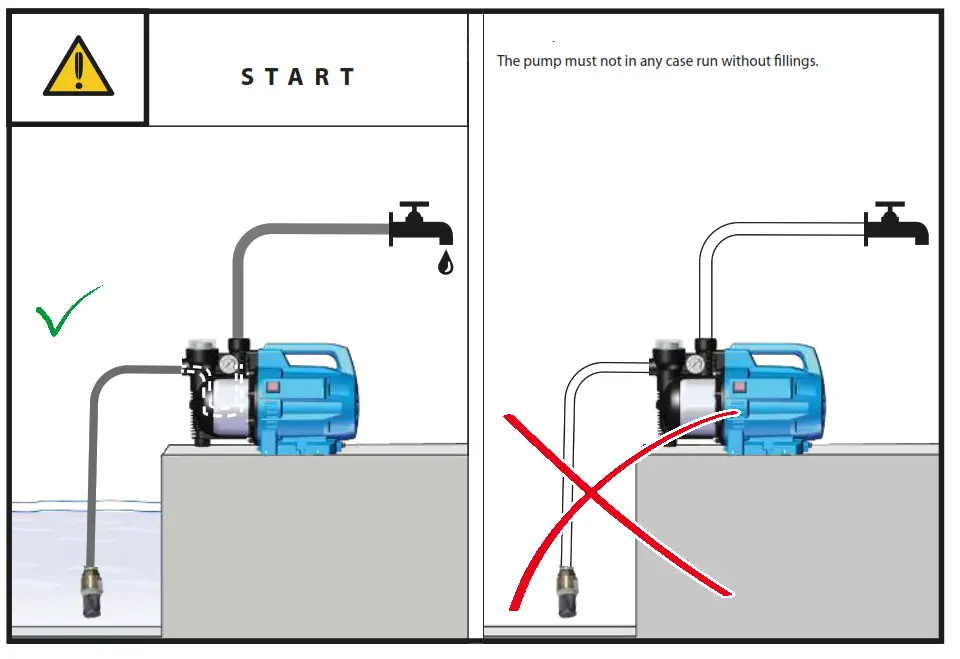

The pump must not in any case run without fillings Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it. The temperature of the drained liquid must not exceed +35 °C. When using the pump for domestic water supply, always observe the local regulations of water management authorities and the waste water drainage. If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed. Do not use pump at outside temperatures over 40 °C or under 0 °C In cold weather, the pumping body motor should not be wrapped in a blanket or another piece of textile with intent to prevent the water freezing. The user is responsible to third parties if pump (dumping stations, etc.) is used.
Water escapes between the motor and pump, mechanical seal leaks (approx. 35 drops of water per day is considered insignificant, this leakage is functional with a mechanical seal).

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.
Qualification:  Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age:  Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Before any adjustment, cleaning and maintenance work, switch off the device and disconnect it from the power supply. Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

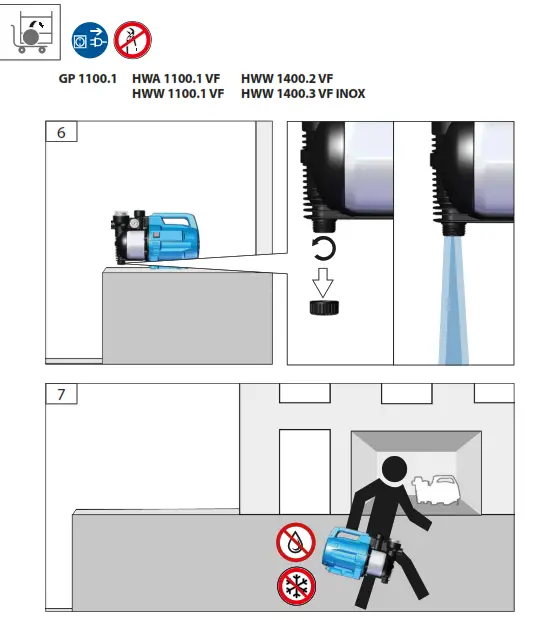

Repairs and works specified in these Instructions may only be performed by qualified authorized staff. Use only original accessories and original spare parts. Caution! Depending on the design, water that is left standing for a longer period of time may cause corrosion in the pump housing! (Brown coloration) For winter storage, ensure that there is no water in the device. Otherwise, frost exposure may cause irreparable damage to the device. The pump must be stored in a completely empty and frost-proof state. You can reduce the chance of the mechanical seals sticking by flushing out the pump with suitable oil (e.g. vegetable oil). Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

The warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device. The guarantee solely covers inadequacies caused by a material defect or manufacturing defects. An original payment voucher with the date of the sale needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorized use such as appliance overloading, use of violence, damage as a result of any unauthorized interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee. GÜDE cannot be held responsible for damages incurred in a consequence of unqualified installation or unskilled handling of the pump. The device has to be checked on a regular basis to ensure perfect functioning. Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the below-mentioned cases: Unprofessional repairs executed by unauthorized service centres; Use in conflict with the designed purpose, or failure to observe the use as designed; Pump overload with a continuous run; Damage as a result of icing or any other fault caused by climatic influences; Identical regulations apply for accessory parts. To prevent damage (such as flooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).

Service

Do you have any technical questions?
Any claim? Do you need any spare parts or operating instructions?
We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim, we need the serial No., product No. and year of production. All this data can be found on the type label.

Serial No.:………
Art. No:……………….
Year of production:……….

SYMBOLS

	Read the operating instructions to reduce the risk of injury.
	Machine to be always unplugged before any adjustment and servicing work on it.
	Insert the mains plug
	Staying in the transportation medium prohibited
	Warning against dangerous voltage
	Warning about automatic start-up
	Any damaged or disposed electric or electronic devices must be delivered  to appropriate collection centres.
	CE marking
	TÜV / GS conformity mark

Inspection and maintenance plan

Failure removal
