RAVAK ASDP3 Shower Door

INSTALLATION INSTRUCTIONS

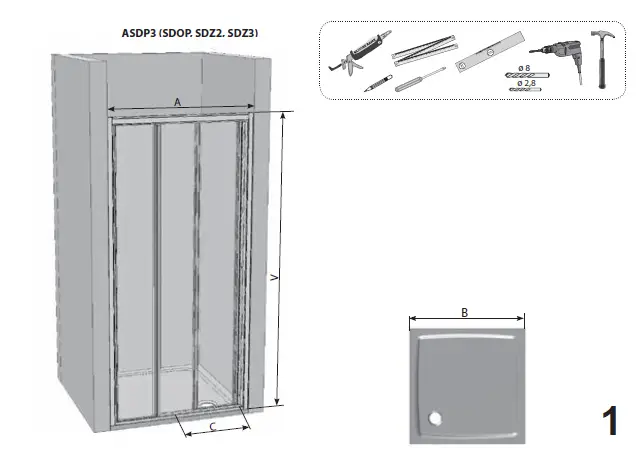

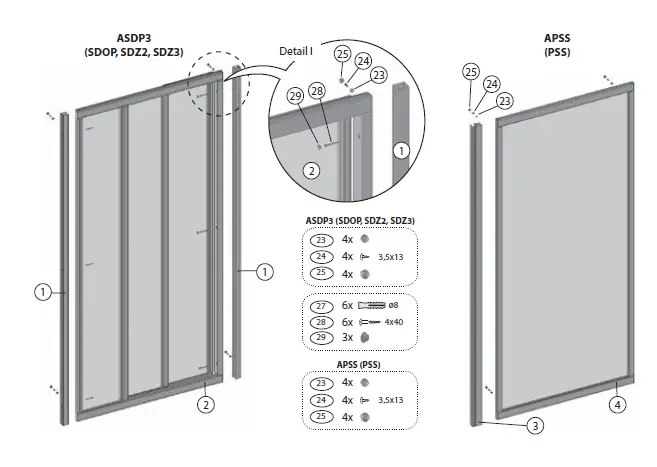

| TYP | A | B | C | V |
| ASDP3 80 | 770 – 810 | 800 | 395 | 1880 |
| ASDP3 90 | 870 – 910 | 900 | 461 | 1880 |
| ASDP3 100 | 970 – 1010 | 1000 | 528 | 1880 |
| ASDP3 110 | 1070 – 1110 | 1100 | 594 | 1880 |
| ASDP3 120 | 1170 – 1210 | 1200 | 661 | 1880 |
| ASDP3 130 | 1270 – 1310 | 1300 | 728 | 1880 |
| SDOP 80 | 773 – 810 | 800 | 485 | 1850 |
| SDOP 90 | 873 – 910 | 900 | 485 | 1850 |
| SDOP 100 | 973 – 1010 | 1000 | 485 | 1850 |
| SDZ2 70 | 670 – 710 | 700 | 510 | 1850 |
| SDZ3 80 | 770 – 810 | 800 | 610 | 1850 |
| SDZ3 90 | 870 – 910 | 900 | 610 | 1850 |
| SDZ3 100 | 970 – 1010 | 1000 | 610 | 1850 |

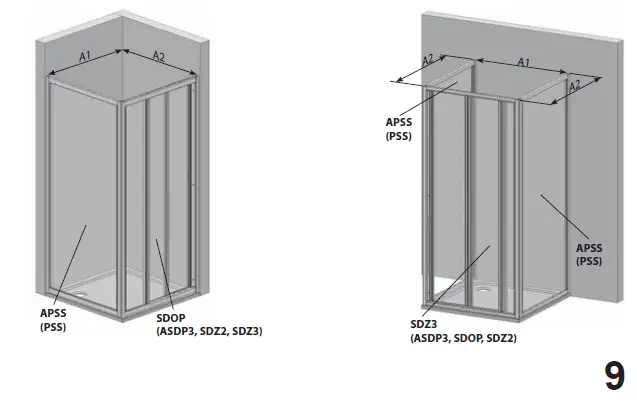

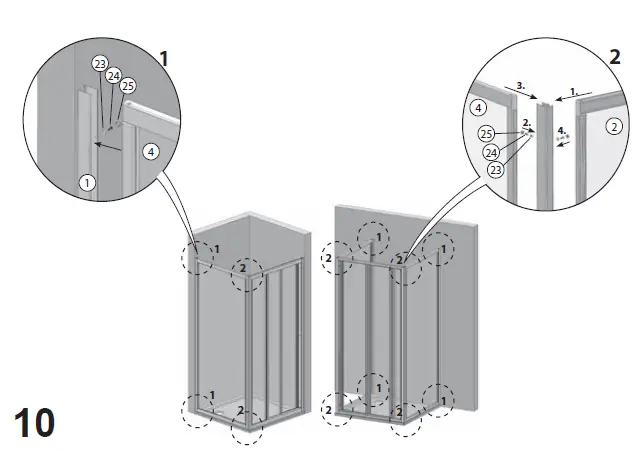

ASDP3, SDOP, SDZ2, SDZ2, SDOP + APSS/PSS -75, 80, 90

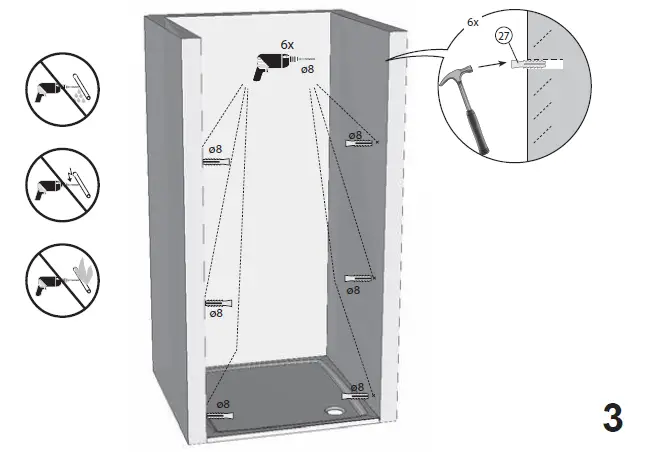

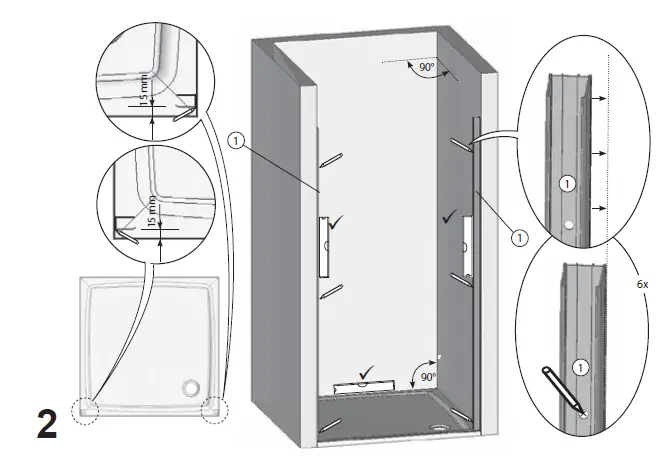

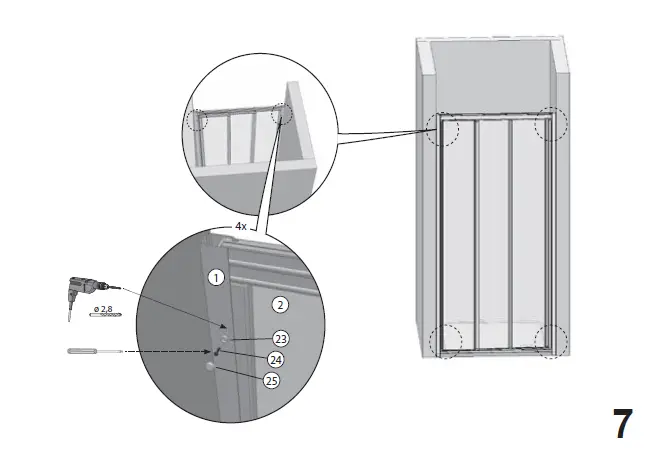

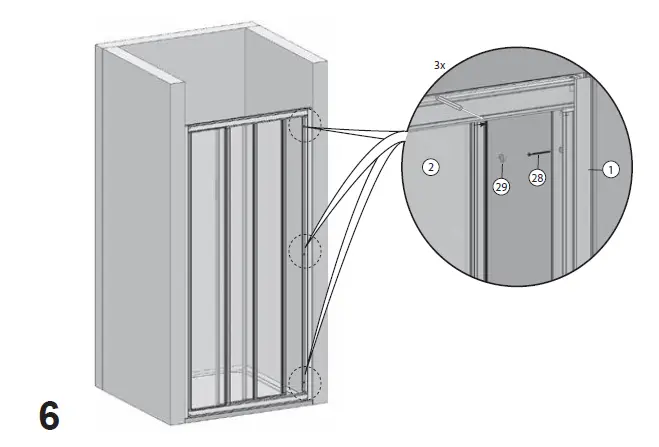

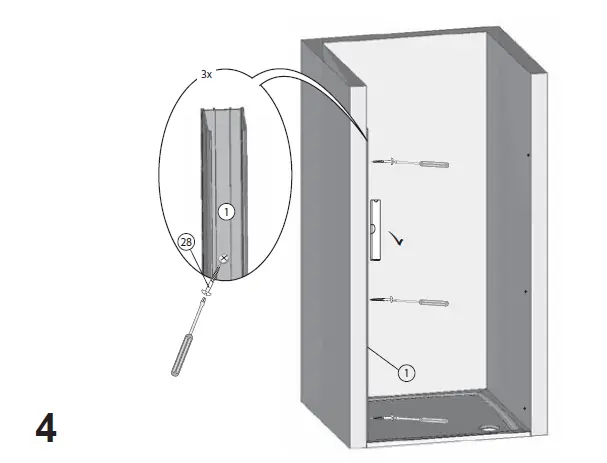

| TYP | A1 |
| ASDP3 80 | 770 – 810 |
| ASDP3 90 | 870 – 910 |
| ASDP3 100 | 970 – 1010 |
| ASDP3 110 | 1070 – 1110 |
| ASDP3 120 | 1170 – 1210 |
| ASDP3 130 | 1270 – 1310 |
| SDOP 80 | 773 – 810 |
| SDOP 90 | 873 – 910 |
| SDOP 100 | 973 – 1010 |
| SDZ2 70 | 670 – 710 |
| SDZ3 80 | 770 – 810 |
| SDZ3 90 | 870 – 910 |
| SDZ3 100 | 970 – 1010 |
| TYP | A2 |
| APSS/PSS 75 | 720 – 755 |
| APSS/PSS 80 | 770 – 805 |
| APSS/PSS 90 | 870 – 905 |


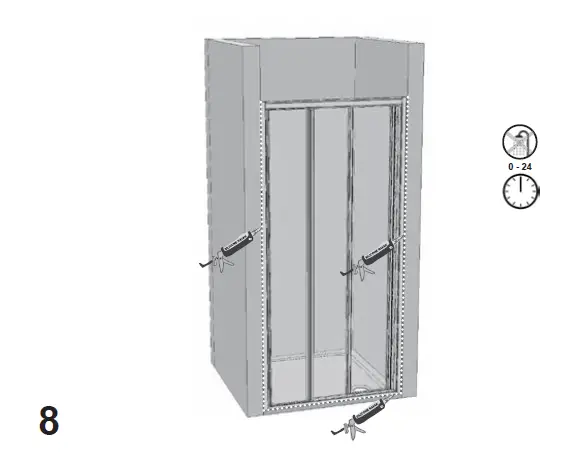

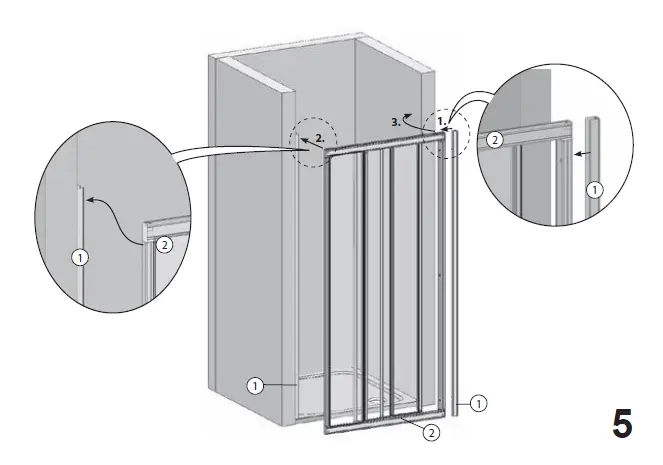

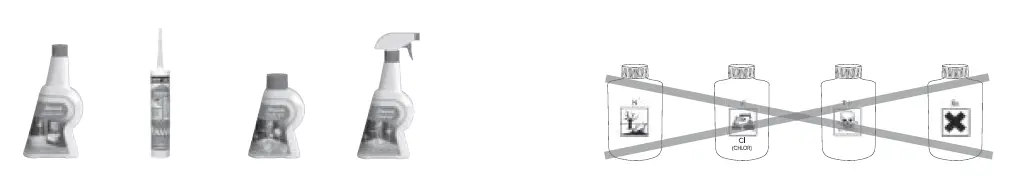

For further information, contact your local Ravak dealer. The manufacturer reserves the right to amend or improve on existing designs or features. Please help preserve the environment by observing local country guidelines or laws regarding
re-cycling. Materials which are not suitable for re-cycling must be disposed of at an official and suitable waste control centre.
