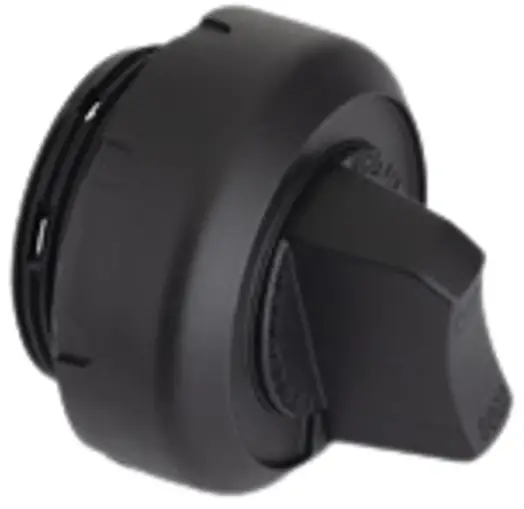

8602C3-732-S-90G-E08 Rotary Actuator Small Not Padlockable
Instructions
8602C3-732-S-90G-E08 Rotary Actuator Small Not Padlockable
Installation Equipment
Rotary actuator, small, Not pad-lockable
8602C3-732-S-90G-E08
Art. No. 264002
- Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay- put button, twin pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer bezel and indicator lamp bezel
- One axial actuator can actuate up to four 8082 series contact elements
- Key-operated switches and rotary switches are codable at any time as “latching/ spring return” or “key not removable”
WebCode 8602A
Thanks to their special technical features, the actuators from the 8602/ 3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN 60529.
It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/ 3 series.
The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the “latching/spring return” and/or “key not removable” functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.
Technical Data
| Explosion Protection | |
| Application range (zones) | 1 2 21 22 |
| IECEX gas certificate | IECEx PTB 13.0047U |
| IECEx gas explosion protection | Ex eb IIC Gb |
| IECEX dust certificate | IECEx PTB 13.0047 U |
| IECEx dust explosion protection | Ex tb IIIC Db |
| ATEX gas certificate | PTB 13 ATEX 1019 U |
| ATEX gas explosion protection |  II 2 G Ex eb IIC Gb |
| ATEX dust certificate | PTB 13 ATEX 1019 U |
| ATEX dust explosion protection | II 2 D Ex tb IIIC Db |
| Certificates | ATEX (PTB), Brazil (ULB), Canada / USA (UL), EAC (ENDCE), IECEx (PTB), India (PESO), Korea (KGS) |
| Ambient Conditions | |
| Ambient temperature | -60 °C … +70 °C |
| Ambient temperature | -76 °F … +158 °F |
| Storage temperature | -60 °C … +70 °C |
| Storage temperature | -76 °F … +158 °F |
| Use at the height of | < 2000 m |
| Degree of contamination | 3 |
| Mechanical Data | |
| Version | not lockable |
| Degree of protection (IP) | IP66 |
| Note on the degree of protection | According to IEC/ EN 60529 |
| Enclosure material | Polyamide |
| Silicone-free | No |
| Assembly | 732 |
| Diameter | 39 mm |
| Service life, min. | 105 actuation |
| Impact strength (IEC 60079) | 7 J |
| Impact strength (IEC 62262) | min. IK08 |
| Colour | Black |
| Fastening | Thread type |
| Designation plate | 0/OFF – I/ON |
| Seal | Silicone |
| Lockable in | Not pad-lockable |
| Packaging unit | 1 |
| Weight | 0.04 kg |
| Weight | 0.09 lb |
| Description note | Label 0/OFF-I/ON enclosed separately. Different labels must be ordered separately. |
| Mounting / Installation | |
| Tightening torque | 3 Nm |
| Tightening torque of in | 26.55 lbs in |
Technical Drawings – Subject to Alterations

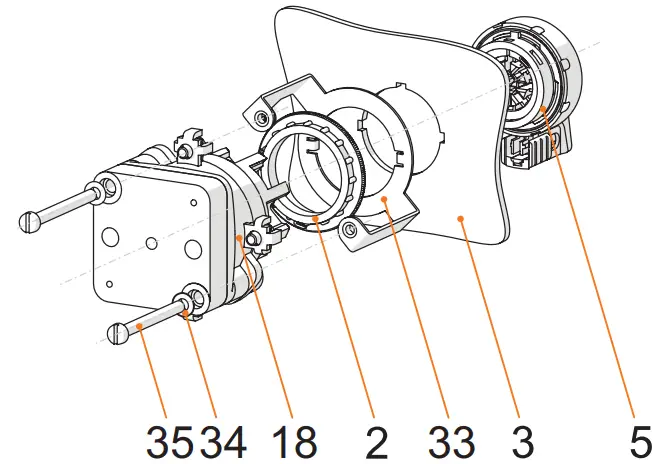

Front installation mounting with control switch series 8008
Legend
2 = Jam nut (order no. 205592)
3 = Installation wall (wall thickness max. 2 mm [0.0787in])
5 = Actuator 8302/3 with seal (4)
18 = Control switch 8008/2-.
33 = Adaptor 8602/3 for front installation for type 8008/2
34 = Disc M4
35 = Screw M4x

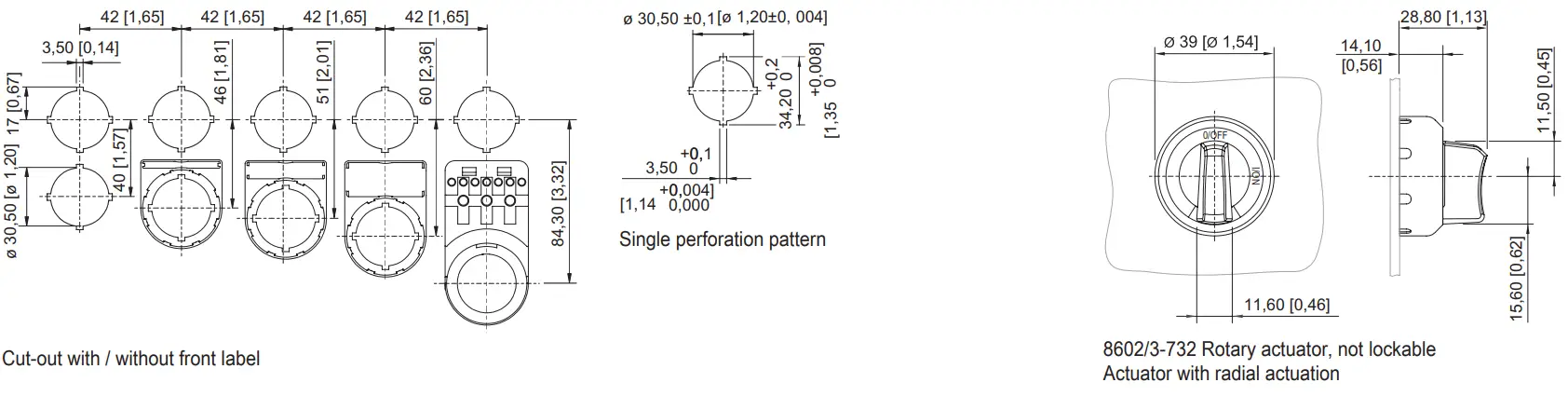

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Accessories
| Insert discs for a label holder | Art. No. | |
 | 1-line Plain Material: PVC Colour: White Self-adhesive | 238271 |
| 2-line Plain Material: PVC Colour: White Self-adhesive | 238272 |
| 3-line Plain Material: PVC Colour: White Self-adhesive | 238273 |
| Labels for small BG 732, BG 734 rotary actuator | Art. No. | |
 | Ø 30.8 0/OFF I/ON | 227489 |
 | Ø 30.8 0 I | 227490 |
 | Ø 30.8 I 0 II | 227491 |
 | Ø 30.8 0 I | 227492 |
 | Ø 30.8 HAND 0 AUTO | 227494 |
 | Ø 30.8 AUS EIN | 269983 |
 | Ø 30.8 AUTO 0 HAND EIN | 269984 |
 | Ø 30.8 AUTO 0 HAND | 269985 |
| Labels for small BG 732, BG 734 rotary actuator and BG 726, BG 727 axial rotary actuator | Art. No. | |
 | Ø 30.8 plain | 227495 |
| Closing part | Art. No. | |
 | 8602C3-733-B for closing unused holes in the cover, Ø 30.5 mm, NBR | 244306 |
| 8602C3-733-S for closing unused holes in cover, Ø 30.5 mm, silicone | 244307 | |
Spare Parts
| Label holder | Art. No. | |
 | Size 1, without insert disc, 1- line label for actuators Ø 39 | 223566 |
 | Size 2, without insert disc, 1- or 2- line label for actuators Ø 39 | 223567 |
 | Size 3, without insert disc, 1-, 2- or 3- line label for actuators Ø 39 | 223568 |
| Special key | Art. No. | |
 | for tightening the plastic locking nut | 169101 |

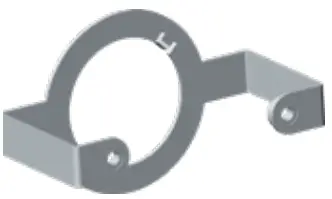

| Adaptor for front installation | Art. No. | |
 | 8602/ 3 Front installation for control switch series 8008 | 260081 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
