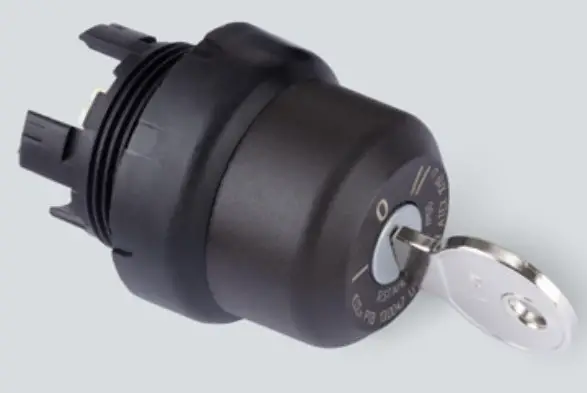

Stahl 244633 Key Operated Switch Actuator Instruction Manual

STAHL 244633 Key Operated Switch Actuator Instruction Manual

• Pushbutton, mushroom pushbutton, mushroom stay-put button with key lock, mushroom stay-put button, twin pushbutton and illuminated pushbutton, rotary actuator, key-operated switch, potentiometer bezel and indicator lamp bezel
• One axial actuator can actuate up to four 8082 series contact elements
• Key-operated switches and rotary switches codable at any time as “latching/spring return” or “key not removable”

Thanks to their special technical features, the actuators from the 8602/3 series can withstand the most extreme conditions. In addition to the application option for use in ambient temperatures from -60 °C to +70 °C, the IP degree of protection, IP66, is maintained in accordance with EN 60529.
It is also possible to actuate up to four contact elements from the 8082 series with a single axial actuator from the 8602/3 series.
The coding option of the key switches and rotary switches is innovative and one-of-a-kind. Integrated coding allows you to adjust the “latching/spring return” and/or “key not removable” functions at any time without additional accessories. A versatile set of accessories consisting of label holders and locking devices is available.

Technical Data

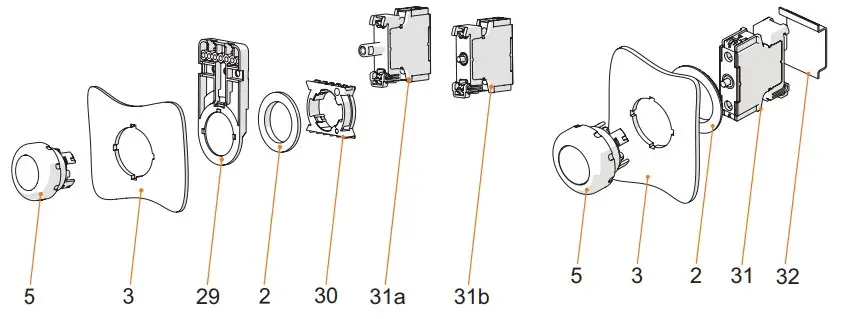

Technical Drawings – Subject to Alterations

Front installation mounting with indication lamp series 8010/6 and contact element series 8082/3

Legend

2 = Jam nut (order no. 205592)
3 = Installation wall (wall thickness max. 5 mm [0.197 in])
5 = Actuator with seal
29 = Cable duct carrier (optional) (order no. 248673)
30 = Adaptor (order no. 227038)
31a = Built-in element: LED element 8010/6
31b = Built-in element: Contact element 8082/3

Mounting rail mounting

Legend

2 = Jam nut (order no. 205592)
3 = Installation wall (wall thickness max. 5 mm [0.197 in])
5 = Actuator with seal
31 = Built-in element
32 = Mounting rail TS35

Dimensions

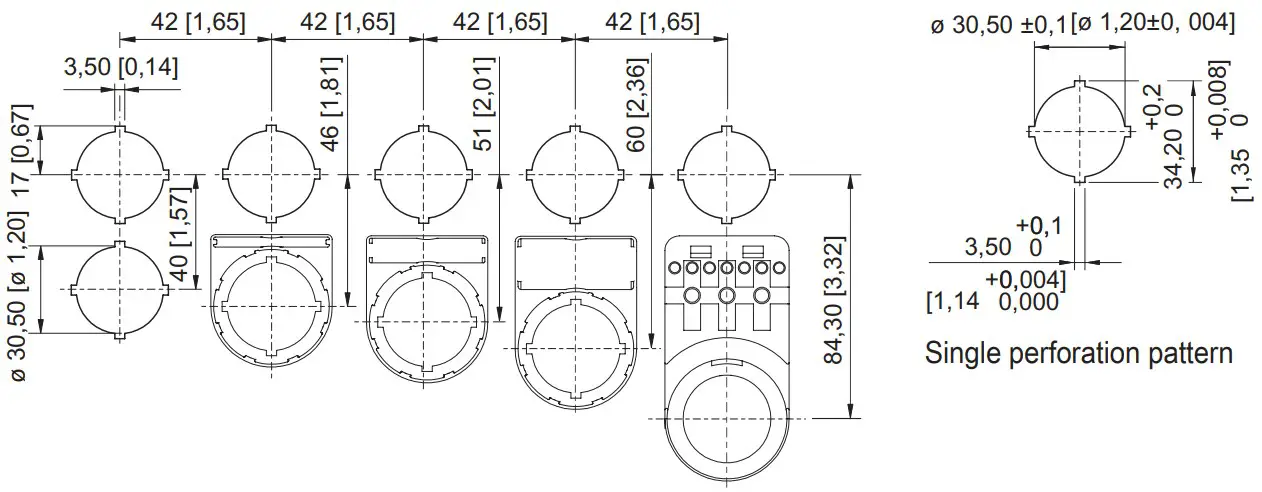

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

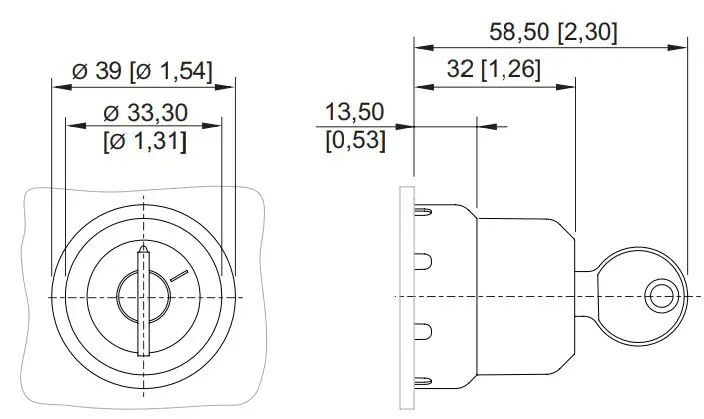

8602/3-008 MS Key-operated switch Actuator with axial actuation

Accessories

Spare key		Art. No
	Closing MS1	107109

Spare Parts

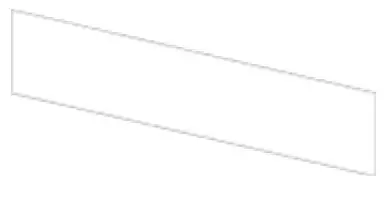

Insert discs for label holder		Art. No.
	1-line Plain Material: PVC Colour: White Self-adhesive	238271
	2-line Plain Material: PVC Colour: White Self-adhesive	238272
	3-line Plain Material: PVC Colour: White Self-adhesive	238273

Closing part		Art. No
	8602C3-733-B for closing unused holes in cover, Ø 30.5 mm, NBR	244306
	8602C3-733-S for closing unused holes in cover, Ø 30.5 mm, silicone	244307

Label holder		Art. No
	Size 1, without insert disc, 1-line label for actuators Ø 39	223566
	Size 2, without insert disc, 1- or 2-line label for actuators Ø 39	223567

Special key		Art. No.
	for tightening plastic locking nut	169101

Pressure plates		Art. No.
	for key-operated switch and axial rotary actuator 1 to 2 contact elements	253627
	for key-operated switch and axial rotary actuator 3 to 4 contact elements	221707

Holder for front installation		Art. No.
	8602/3 holder for cable duct	248673

Adaptor for front installation		Art. No.
	8602/3 Front installation for indicator lamp series 8010/6 and contact element series 8082/3	227038

8082/3 Contact element		Art. No
	for NC contact front installation	240898
	for NO contact front installation	240899

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
